400GSM 1000D 3x3 Transparent PVC Coated Polyester Fabric for Durable Tent Windows and Protective Covers

Transparent PVC coated polyester fabric is designed for applications that require visibility, weather resistance, mechanical strength, and long-term outdoor performance. The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is a reinforced flexible material that combines a high-strength polyester base fabric with a transparent PVC coating. It is especially suitable for tent windows, awning panels, protective covers, outdoor enclosures, exhibition structures, industrial packaging, and other demanding uses where ordinary transparent PVC film may not provide sufficient strength.

This product belongs to the tent fabric and tarpaulin fabric category, but its value extends far beyond a single application. Compared with super clear PVC film, transparent PVC coated polyester fabric has a reinforced internal textile structure, giving it stronger tensile strength, improved tear resistance, better dimensional stability, and more reliable performance under wind, tension, folding, and repeated outdoor use. While clear film offers transparency, it can be more vulnerable to puncture, stretching, and mechanical damage. Reinforced transparent PVC coated polyester fabric solves this problem by integrating polyester yarns into the structure, making the material suitable for real-world use in outdoor and semi-industrial environments.

The 400GSM weight indicates that each square meter of finished fabric weighs approximately 400 grams, with a tolerance of plus or minus 3 percent. This weight provides an effective balance between flexibility and durability. The 1000D yarn specification indicates the use of strong polyester yarn, while the 3x3 thread density creates a stable base fabric that supports the transparent PVC coating. The result is a material that remains flexible enough for fabrication while offering superior strength compared with non-reinforced transparent sheets.

For manufacturers, fabricators, and project contractors, material reliability is a central concern. A tent window, transparent enclosure, or industrial covering may be exposed to rain, sunlight, temperature changes, wind load, dust, handling stress, and frequent installation or removal. This fabric is engineered to answer those challenges with a combination of waterproof protection, chemical resistance, flame-retardant performance, optional anti-UV treatment, optional anti-fungal treatment, and compliance options for environmental and safety standards such as RoHS, REACH, and EN71-3.

400GSM 1000D3X3 Ttransparent PVC Coated Polyester Fabric

Product Overview

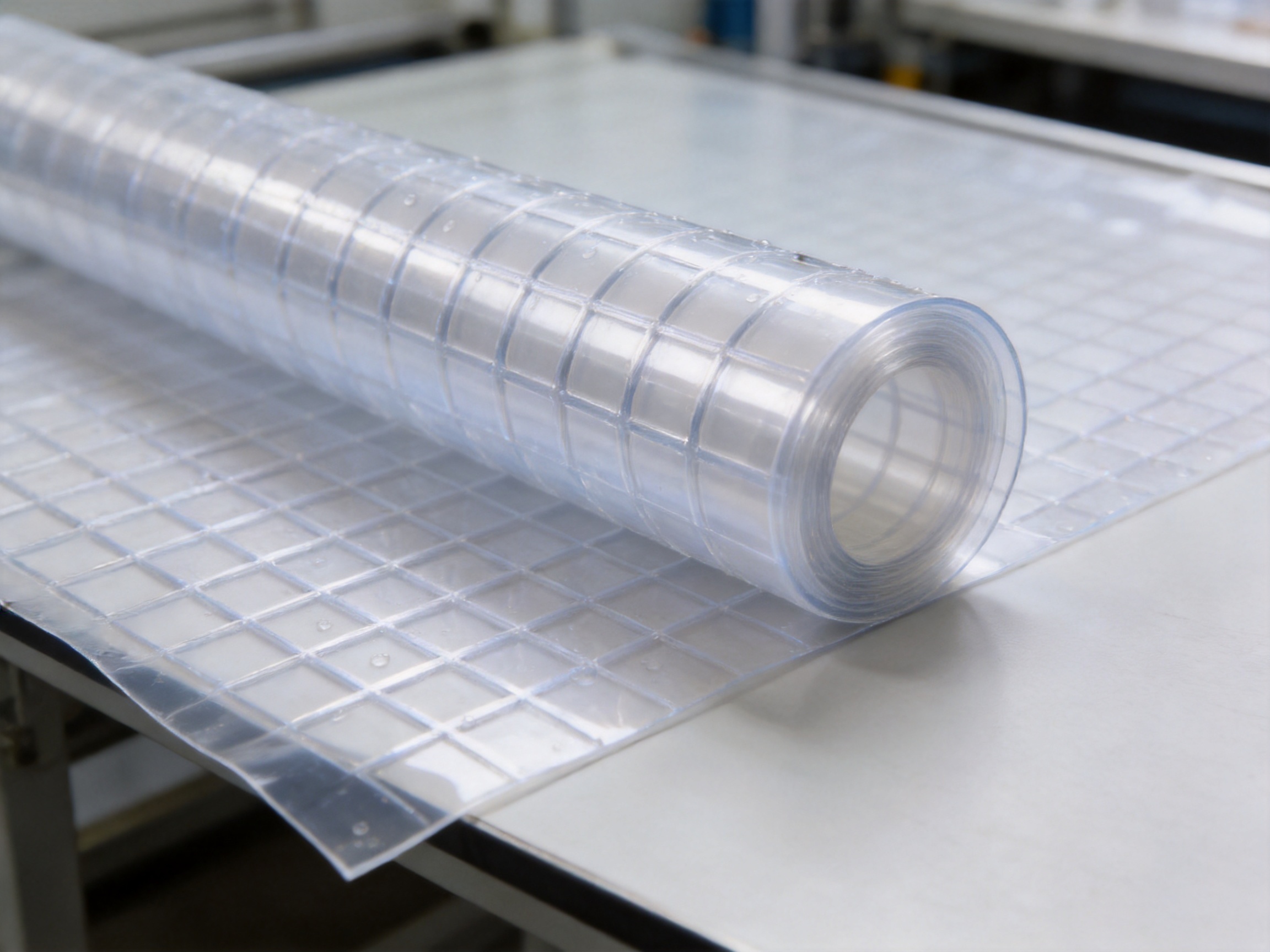

The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is constructed with a polyester base fabric and a transparent polyvinyl chloride coating. The polyester layer acts as the reinforcing skeleton of the material, while the PVC coating provides weather resistance, waterproofing, surface protection, and transparency. This combination creates a multifunctional fabric that is stronger than ordinary transparent PVC film and more visually functional than opaque tarpaulin materials.

The fabric is commonly used as a window material for tents because it allows light transmission and visibility while withstanding outdoor stress. In camping tents, event tents, commercial tents, temporary shelters, exhibition booths, greenhouse covers, and outdoor dining enclosures, transparent fabric provides a practical solution for natural lighting and visibility. It also helps users maintain environmental protection from rain and wind without completely blocking the outside view.

The material is also appropriate for packaging and covering applications. Its high-strength polyester reinforcement and PVC coating allow it to be used for protective bags, logistics covers, cargo protection, storage shields, machinery covers, and temporary construction coverings. Because the PVC coating can resist water, dirt, and many chemical conditions, it helps protect goods and equipment from environmental exposure.

From a design perspective, transparency is one of the most important features. Many protective fabrics are strong but opaque, limiting their use in situations where visibility matters. This product bridges that gap. It offers a transparent appearance while keeping the structural advantage of reinforced textile fabric. This makes it more versatile than traditional clear sheets and more practical than many conventional tarpaulin products.

Technical Data Sheet

Material Structure and Functional Design

The performance of this fabric comes from its layered structure. The polyester base fabric forms the inner reinforcement. Polyester is widely used in technical textiles because it offers high tensile strength, good abrasion resistance, weather resistance, dimensional stability, wrinkle resistance, and durability. When polyester yarns are woven into a stable 3x3 structure and then coated with PVC, the finished fabric gains a strong internal support system that prevents excessive deformation and improves handling performance.

The transparent PVC coating provides waterproof and protective performance. PVC is naturally suitable for coated fabric production because it has good flame-retardant characteristics, chemical resistance, mechanical strength, and electrical insulation properties. With suitable additives and processing control, PVC can also be designed to offer anti-UV, anti-mildew, anti-frost, anti-static, antibacterial, and enhanced flame-retardant properties. These optional treatments allow the fabric to be tailored for different markets and application conditions.

The bond between the coating and the base fabric is essential. A transparent coated fabric is only reliable when the PVC layer and polyester reinforcement stay firmly connected during cutting, welding, stitching, rolling, folding, and outdoor use. The listed peeling strength of 90 newtons per 5 centimeters demonstrates that the material is designed with adhesion performance in mind. Strong peeling resistance helps prevent coating separation, cracking around seams, and delamination during use.

Thickness is another important factor. At approximately 0.4 millimeter, this fabric remains flexible enough for fabrication and installation. It can be sewn, welded, cut, folded, rolled, and installed into tent structures without excessive stiffness. At the same time, the 400GSM weight gives the material enough body to resist tearing and stretching. This balance is particularly valuable for tent windows, which need to move with the surrounding structure while retaining clarity and strength.

Advantages Over Ordinary Transparent PVC Film

Ordinary transparent PVC film is often selected because of its clarity and smooth surface. However, when the application involves wind, repeated tension, large panels, or mechanical handling, film alone may not provide enough strength. The key advantage of 400GSM 1000D 3x3 transparent PVC coated polyester fabric is that it reinforces the transparent PVC layer with polyester yarns. This gives the material far better physical strength than unreinforced film.

First, reinforced fabric offers improved tensile strength. When a transparent window panel is pulled by wind or stretched during installation, the polyester yarns distribute the load across the fabric. This helps prevent elongation and tearing. In contrast, ordinary transparent film may stretch more easily, and once a tear starts, it may spread quickly.

Second, reinforced fabric provides better tear resistance. Tent windows, tarpaulin covers, and outdoor panels can be damaged by sharp corners, installation tools, frame edges, or repeated folding. The internal polyester structure helps slow tear propagation and improves the service life of the finished product. This is especially useful in rental tents, event structures, and industrial covers that are frequently assembled, disassembled, transported, and stored.

Third, the fabric is more stable in large-format use. Clear film can be suitable for small windows, but large panels may sag, wrinkle, or deform if not supported. The 1000D polyester reinforcement improves dimensional stability and makes the fabric more suitable for larger window sections, curtains, partitions, and coverings.

Fourth, the product offers more customizable functional options. Anti-UV, anti-fungal, flame-retardant, anti-static, antibacterial, and environmental compliance options can be incorporated depending on customer requirements. This makes the material better suited to professional applications where safety, durability, and regulatory expectations are important.

Finally, the fabric provides a more balanced solution for customers who need both visibility and protection. It may not be used only as a decorative transparent sheet; it is an engineered technical fabric designed for demanding outdoor use. That difference creates practical value for tent manufacturers, tarpaulin fabricators, construction contractors, exhibition companies, logistics businesses, and other users.

Waterproof and Weather-Resistant Performance

Outdoor materials must resist rain, moisture, humidity, dust, temperature changes, and sunlight. The transparent PVC coating gives this fabric excellent waterproof performance, making it ideal for tent windows, outdoor enclosures, protective covers, and canopies. Water does not easily penetrate the coated surface, and the polyester reinforcement maintains the strength of the material even when exposed to changing weather conditions.

The optional anti-UV treatment is especially useful for outdoor applications. Sunlight can degrade many plastic materials over time, causing yellowing, brittleness, surface cracking, and loss of flexibility. By adding anti-UV technology, the fabric can better resist ultraviolet exposure and maintain practical performance for longer periods. This is important for tents, awnings, exhibition structures, and outdoor partitions that remain exposed to sunlight.

Optional anti-fungal treatment is also valuable in humid environments. Tent windows and tarpaulin panels may be stored while damp or used in rainy areas, creating conditions where mildew can develop. Anti-fungal treatment helps reduce this risk and keeps the product cleaner and more reliable in long-term use. This is particularly relevant for marine-related covers, camping equipment, outdoor event structures, and storage applications.

The temperature range from minus 50 degrees Celsius to plus 70 degrees Celsius indicates that the fabric is designed for broad environmental conditions. Flexibility at low temperatures and stability at elevated temperatures are both important. In colder climates, materials may become rigid or crack if they are not properly formulated. In hot environments, low-quality materials may soften too much, deform, or lose strength. This fabric is designed to maintain usability across a wide temperature window.

Flame Retardancy and Chemical Resistance

PVC materials are valued in many technical applications because they can provide good flame-retardant performance. This fabric can be supplied with flame-retardant grades such as B2 and M2 depending on the application requirement. For tents, public events, exhibition halls, temporary structures, and commercial enclosures, flame-retardant performance is often a critical safety consideration.

The product also benefits from the chemical resistance of PVC. PVC can resist many chemical substances, including concentrated hydrochloric acid, high-concentration sulfuric acid, nitric acid, and sodium hydroxide under appropriate conditions. For industrial protection, storage covers, construction accessories, and packaging applications, this resistance can help protect the material from environmental contamination and chemical exposure.

It is important to choose the correct formulation for the intended use. Different countries and industries may require different flame-retardant standards, environmental limitations, or chemical safety requirements. This is where experienced manufacturing and formulation control become essential. By adjusting additives and processing conditions, the fabric can be designed to meet specific project requirements while maintaining mechanical strength and transparency.

Environmental and Safety Compliance Options

Modern coated fabrics must not only perform well; they must also meet environmental and health expectations. This fabric can be produced to comply with standards such as RoHS, REACH, and EN71-3 depending on customer requirements. These compliance options are important for markets that regulate restricted substances, product safety, and environmental responsibility.

RoHS compliance is especially relevant for products that may be used around electrical equipment or in regulated supply chains. REACH compliance supports access to markets that require strict chemical management. EN71-3 is commonly associated with the migration of certain elements and is useful when products may be used in environments where safety expectations are high.

Environmental and safety compliance is not only about passing tests. It reflects a manufacturer’s ability to control raw materials, additives, coating formulations, production conditions, and quality documentation. A stable supply chain and careful testing process help ensure that the finished fabric meets both technical and regulatory expectations.

Advanced Manufacturing Process

The manufacturing quality of transparent PVC coated polyester fabric depends on a series of controlled production steps. It begins with yarn selection. The use of 1000D polyester yarn provides a strong foundation for the final fabric. The yarn must be consistent in strength, diameter, and quality so that the woven base fabric performs evenly across the roll.

After yarn selection, the base fabric is woven with a 3x3 density structure. Weaving quality is essential because uneven density can affect coating uniformity, transparency, tensile strength, and dimensional stability. A well-controlled base fabric provides the correct mechanical reinforcement and allows the PVC coating to bond properly.

The coating stage is a key part of the process. Transparent PVC compound must be prepared with suitable plasticizers, stabilizers, flame-retardant agents, UV absorbers, anti-fungal additives, or other functional additives according to the required product specification. The compound is then applied to the polyester fabric under controlled temperature, pressure, and speed. Accurate control helps achieve consistent thickness, weight, transparency, and adhesion.

Calendering, coating, laminating, or related processing technologies may be used depending on production requirements. The goal is to create a uniform surface and stable bonding between the PVC layer and polyester base. During production, tension control is important because excessive tension may distort the fabric, while insufficient tension may lead to wrinkles or uneven coating.

Cooling and surface finishing are also important. Transparent coated materials require careful handling to maintain appearance and prevent surface defects. The finished fabric must be wound evenly, inspected, and packaged to protect the surface during transportation and storage.

Manufacturing Strengths of Zhejiang MSD Group Share Co., Ltd.

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park of Haining City, Zhejiang Province, China. With years of development, the company has built a broad product system covering environmentally friendly decorative materials, functional sports materials, and other flexible materials for multiple application scenarios. Its product portfolio includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and related coated and laminated fabric products.

The company’s strength comes from continuous independent innovation. In the flexible materials industry, product performance is closely connected to research and development, formulation technology, production control, and quality management. The company has consistently treated technology and product innovation as important methods for improving competitiveness. This approach supports the development of transparent PVC coated polyester fabric with balanced strength, clarity, weather resistance, and customization potential.

Another advantage is product system integration. Because the company manufactures multiple types of PVC films, tarpaulin fabrics, flex banners, ceiling films, drop stitch fabrics, and decorative materials, it has broad experience with polymer materials, textile reinforcement, coating processes, surface treatment, and customer-specific customization. This experience benefits the development of specialized products such as 400GSM transparent PVC coated polyester fabric.

The company’s location in an industrial park associated with warp knitting and textile production also supports supply chain efficiency. Access to textile expertise, technical labor, industrial infrastructure, and production resources contributes to consistent manufacturing. For international buyers, this can mean more stable supply, better customization support, and more reliable quality control.

For customers seeking PVC coated fabric, PVC laminated fabric, PVC outdoor fabric, and waterproof PVC fabric, the company can provide wholesale supply and production support. Its manufacturing background allows it to serve different market needs, including tent materials, tarpaulin products, advertising materials, decorative materials, and functional flexible materials.

Quality Control and Testing

Quality control is essential for transparent PVC coated polyester fabric because small variations can affect the product’s appearance, strength, and processing behavior. A professional manufacturer must inspect raw materials, base fabric quality, coating formulation, production conditions, and final roll performance.

Raw material inspection helps ensure that polyester yarn and PVC compounds meet production requirements. Yarn strength, denier consistency, and cleanliness affect the final fabric. PVC resin, plasticizers, stabilizers, and functional additives must be selected carefully to match the required clarity, flexibility, flame-retardant performance, and environmental compliance.

During production, thickness and weight control are monitored to maintain the 400GSM and 0.4 millimeter specification. If the coating is too thin, waterproofing, durability, and surface protection may be reduced. If it is too thick, the product may become unnecessarily heavy or less flexible. Consistent coating weight is therefore critical.

Mechanical testing is also important. Tensile strength in machine direction and cross direction confirms the fabric’s ability to withstand pulling stress. Tearing strength evaluates resistance to tear propagation. Peeling strength confirms the bond between PVC coating and polyester base fabric. These values are not only laboratory numbers; they predict how the material will behave during cutting, welding, sewing, installation, and outdoor use.

Appearance inspection is especially important for transparent products. The surface should be uniform, clean, and suitable for visual applications. Excessive defects, uneven coating, contamination, wrinkles, or delamination could affect product performance and customer acceptance. Proper winding and packaging help protect the finished roll before it reaches the fabricator or end user.

Fabrication and Processing Performance

A major advantage of PVC coated polyester fabric is its compatibility with common fabrication methods. The material can be cut into panels, sewn into structures, welded with suitable heat or high-frequency equipment, connected with other PVC fabrics, and installed into frame systems. For tent manufacturers, this processing flexibility is essential.

When used for tent windows, the transparent fabric may be joined with opaque tent fabrics or tarpaulin materials. The strong PVC surface allows welding or bonding methods to create reliable seams. Proper processing conditions should be selected according to the equipment, fabric thickness, and project requirements. Test welding is recommended before mass production to confirm seam strength and appearance.

The material can also be used in roll-up curtains, clear sidewalls, partitions, transparent protective screens, and temporary enclosure panels. Because it has a reinforced textile structure, it handles repeated rolling and installation better than many ordinary films. The fabric can be equipped with eyelets, ropes, hooks, zippers, webbing, or frame channels depending on the final product design.

For packaging and industrial covers, the fabric can be fabricated into bags, covers, liners, shields, and protective curtains. The waterproof PVC surface can be cleaned more easily than untreated textile fabrics, and the transparent appearance allows visual inspection of covered items in some applications.

Key Application Areas

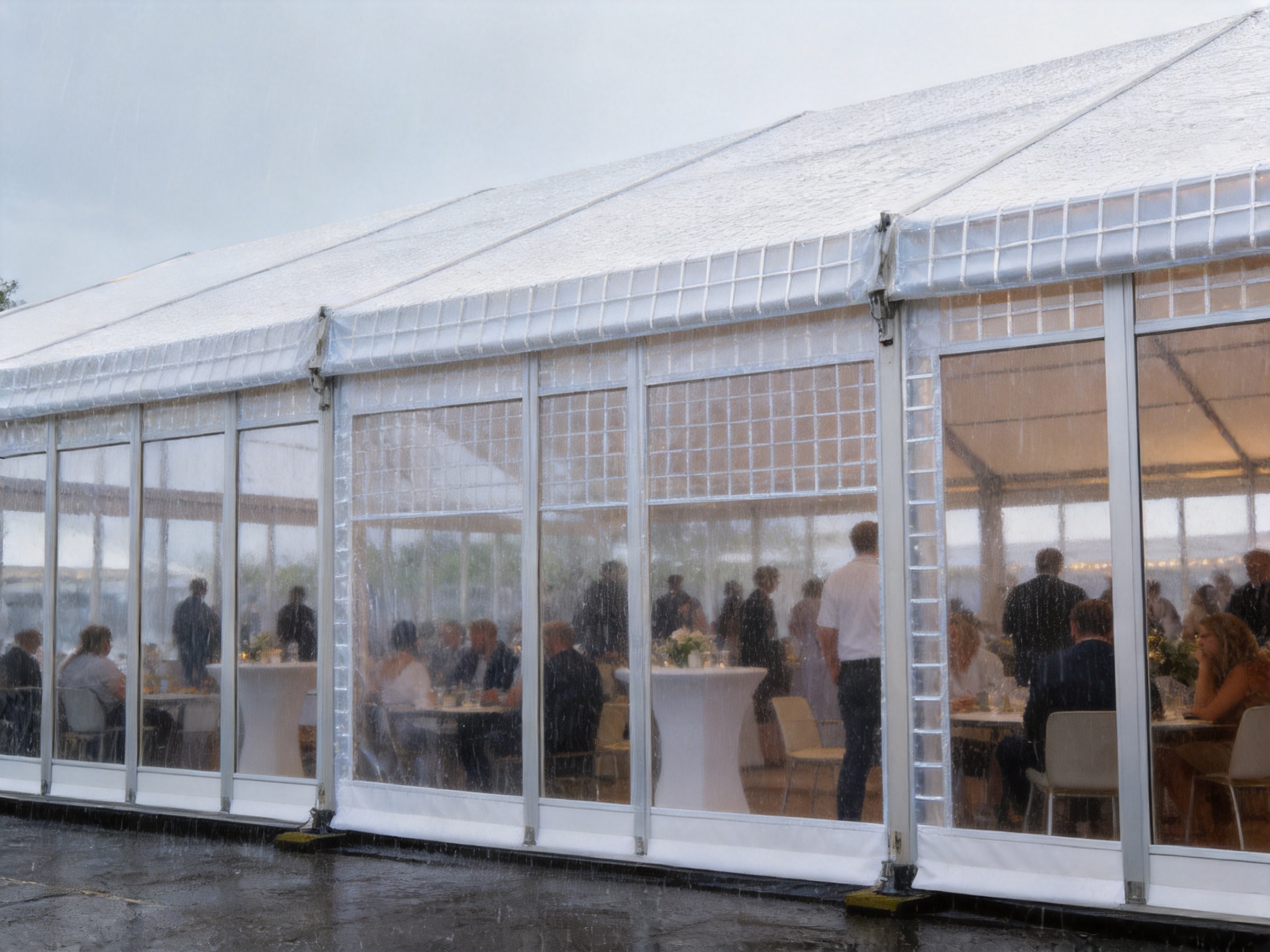

Tent Windows and Outdoor Shelters

The most common application for this fabric is tent windows. Outdoor tents need materials that protect users from rain and wind while allowing light and visibility. This transparent PVC coated polyester fabric is ideal for tent windows because it combines transparency with reinforced strength. Event tents, camping tents, emergency shelters, market tents, and outdoor dining tents can all benefit from its balance of flexibility and durability.

In commercial tents, windows may be large and frequently exposed to wind pressure. Ordinary film can stretch or tear, but reinforced fabric distributes stress more effectively. This helps maintain the structure and appearance of the window panel over time.

Awnings, Canopies, and Rain Covers

The fabric can be used in awnings and rain canopies where light transmission is desired. Transparent sections can make covered areas brighter while still providing protection from rain. In restaurants, walkways, building entrances, garden structures, and recreational spaces, this material can help create protective yet visually open environments.

Industrial Packaging and Logistics Covers

The high strength, wear resistance, weather resistance, and waterproof surface make the fabric suitable for packaging and logistics applications. It can be used for cargo covering cloth, logistics packaging bags, protective wraps, and storage covers. The reinforced structure helps resist tearing during handling, transportation, and outdoor storage.

Construction and Building Accessories

In construction, temporary covers, awnings, rain shields, and protective panels are often needed. This transparent fabric can provide visibility while protecting work areas from rain, wind, and dust. It may also be used as a covering material for building accessories where a transparent or semi-transparent appearance is required.

Advertising and Exhibition Structures

Because the fabric is transparent and customizable, it can be used in advertising displays, exhibition tents, event enclosures, and promotional structures. It allows designers to create visible spaces while maintaining weather protection. For exhibitions, the fabric can help build bright, open, and protective display areas.

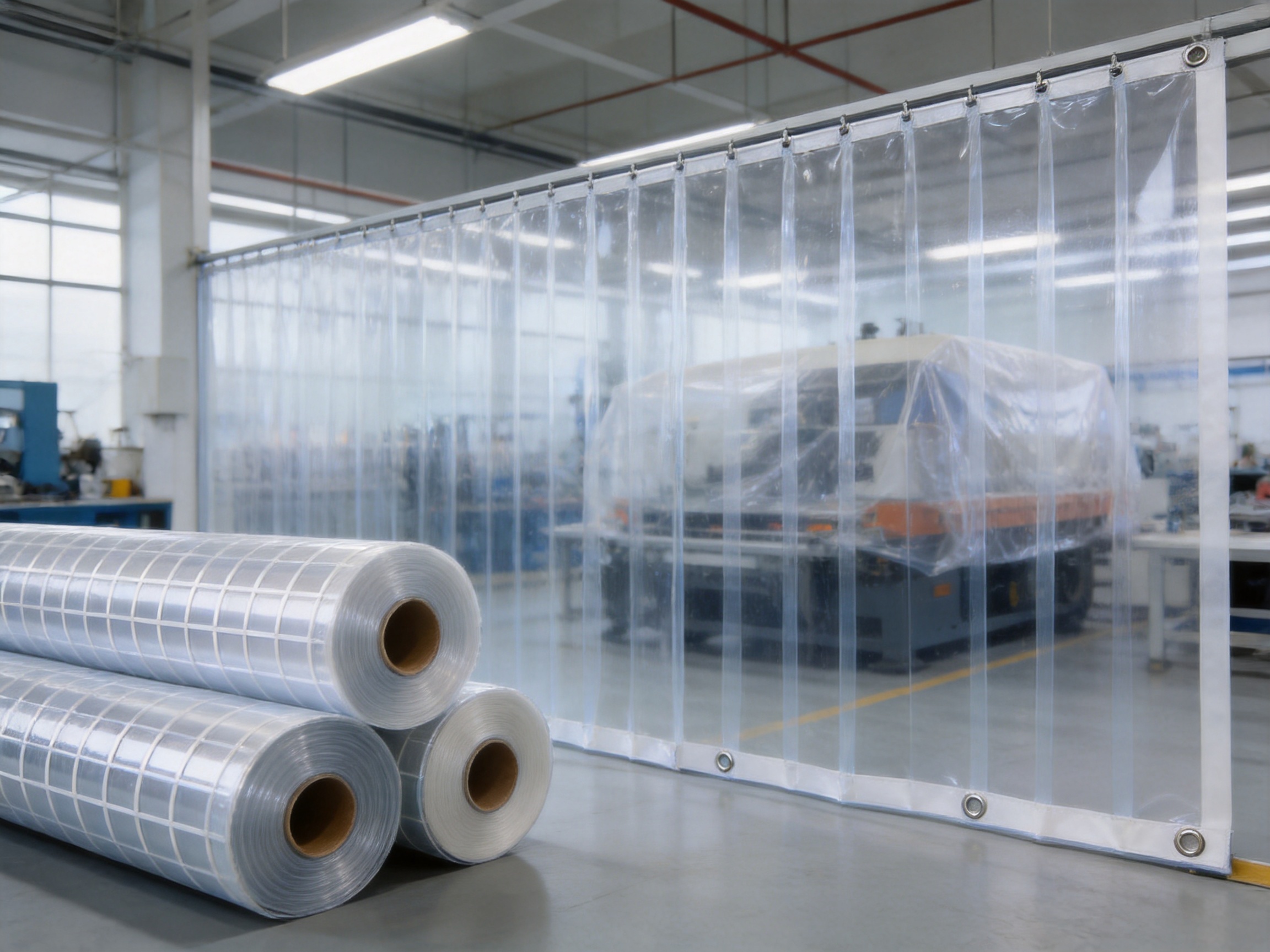

Protective Curtains and Partitions

The fabric can also be used for transparent curtains and partitions in warehouses, workshops, agricultural facilities, and commercial areas. It can separate spaces while allowing visibility. Compared with thin clear film curtains, reinforced PVC coated polyester fabric provides stronger mechanical performance and a longer service life in demanding environments.

Customization Capabilities

Customization is one of the product’s major strengths. Different projects may require different colors, thicknesses, widths, weights, surface treatments, flame-retardant grades, UV resistance levels, anti-fungal properties, and compliance standards. The fabric can be adjusted to meet specific application requirements.

Color customization may include fully transparent, tinted transparent, or other visual effects depending on production feasibility. Thickness and weight can be adjusted for applications that require lighter flexibility or heavier durability. Surface characteristics can also be modified to improve anti-stick behavior, cold resistance, or handling performance.

Functional customization is particularly important for international markets. Customers in public event industries may require flame-retardant grades. Customers in sunny climates may prioritize anti-UV performance. Customers in humid or marine environments may require anti-fungal properties. Customers serving regulated markets may request RoHS, REACH, or EN71-3 compliance. The ability to adjust formulation and performance makes this fabric suitable for a wide range of end-use sectors.

How This Fabric Helps Reduce Lifecycle Cost

Material selection should not be based only on the purchase price per square meter. A lower-cost material that tears easily, yellows quickly, stretches excessively, or fails under outdoor stress can create higher replacement, repair, and labor costs. The reinforced structure of 400GSM 1000D 3x3 transparent PVC coated polyester fabric helps reduce lifecycle cost by improving durability and reliability.

For tent rental companies, durable window materials reduce maintenance and replacement frequency. For fabricators, consistent quality reduces production waste and customer complaints. For project contractors, stronger material reduces the risk of field failure. For end users, better weather resistance and mechanical strength mean longer service life and better value.

The fabric’s optional treatments also contribute to lifecycle performance. Anti-UV treatment can slow sunlight-related degradation. Anti-fungal treatment can reduce mildew issues in humid storage. Flame-retardant treatment can help meet safety requirements and avoid compliance risks. Strong peeling resistance can reduce delamination and seam-related problems.

Comparison With Competing Materials

When compared with non-reinforced transparent PVC film, this fabric offers higher tensile strength, better tear resistance, and improved stability. Film may be acceptable for small, low-stress windows, but reinforced transparent coated fabric is more appropriate for professional tent, industrial, and outdoor applications.

When compared with opaque PVC tarpaulin, this fabric provides visibility and light transmission. Opaque tarpaulin is excellent for covers where privacy or full blocking is required, but it cannot provide the visual function needed for windows, transparent partitions, and display spaces. Transparent reinforced PVC coated fabric fills this gap.

When compared with lightweight mesh or thin coated textile, the 400GSM fabric provides better waterproofing and a smoother transparent barrier. Mesh fabrics are useful for ventilation, but they do not block water or wind as effectively. Thin textiles may be easier to handle, but they may lack the strength and protective performance needed for outdoor window panels.

When compared with rigid transparent sheets, such as acrylic or polycarbonate panels, flexible transparent PVC coated polyester fabric is easier to roll, fold, transport, weld, sew, and install in temporary structures. Rigid sheets may offer high clarity and impact resistance, but they are heavier, less flexible, and more difficult to use in tents and fabric structures. This fabric is more suitable for applications that require flexible installation and storage.

Storage, Handling, and Maintenance

Proper storage and handling help preserve fabric performance. Rolls should be stored in a clean, dry, and ventilated environment away from direct sunlight and excessive heat. Sharp objects should be kept away from the fabric surface to prevent scratches or punctures. Rolls should be handled carefully during loading and unloading to avoid edge damage.

During fabrication, cutting surfaces should be clean and smooth. If welding is used, correct temperature, pressure, and dwell time should be selected. Overheating may affect transparency or surface quality, while insufficient heat may create weak seams. For sewing, suitable thread and reinforcement design should be used to prevent stress concentration.

Cleaning should be performed with mild methods. The surface can often be wiped with water and gentle cleaning agents. Strong solvents or abrasive tools should be avoided unless approved for the specific formulation. After use in rainy conditions, the fabric should be dried before long-term storage to help prevent mildew and odor, especially if anti-fungal treatment has not been specified.

Purchasing Considerations

When purchasing transparent PVC coated polyester fabric, customers should evaluate the final application, required strength, expected outdoor exposure, local safety standards, and fabrication method. Important questions include whether the fabric will be used for tent windows, covers, partitions, packaging, or construction accessories; whether it will be exposed to strong sunlight or humid environments; whether flame-retardant certification is required; and whether environmental compliance documentation is needed.

Customers should also consider roll width, roll length, packaging requirements, surface appearance standards, and tolerance requirements. For large projects, sample testing is recommended before bulk order confirmation. Fabricators should test cutting, welding, sewing, folding, and installation behavior to confirm compatibility with production equipment.

For wholesale buyers and long-term users, supplier stability is essential. A manufacturer with broad experience in PVC coated fabric, PVC laminated fabric, PVC outdoor fabric, waterproof PVC fabric, film products, tarpaulin materials, and related flexible materials can provide more reliable technical support and customization options.

Why This Product Is a Strong Choice for Professional Users

The 400GSM 1000D 3x3 transparent PVC coated polyester fabric offers a practical combination of strength, transparency, weather resistance, and customizability. It is not merely a clear film and not merely a tarpaulin. It is a reinforced technical material designed for applications where visibility and durability are both required.

The polyester base fabric provides mechanical strength. The transparent PVC coating provides waterproofing, chemical resistance, flame-retardant potential, and surface protection. Optional additives can further improve anti-UV, anti-fungal, anti-frost, anti-static, antibacterial, and environmental compliance performance. The 400GSM weight and 0.4 millimeter thickness create a useful balance between flexibility and toughness.

For tent manufacturers, the product delivers strong window performance. For event companies, it supports attractive and protective transparent structures. For industrial users, it provides durable covers and partitions. For construction and logistics businesses, it offers weather protection and handling strength. For distributors, it provides a versatile product with broad market demand.

Q&A Section

What is 400GSM 1000D 3x3 transparent PVC coated polyester fabric?

It is a reinforced transparent flexible fabric made with a 1000D polyester base fabric and a transparent PVC coating. The finished fabric weighs about 400 grams per square meter and has a 3x3 base fabric density. It is designed for applications that require visibility, waterproofing, strength, and outdoor durability.

How is it different from ordinary transparent PVC film?

Ordinary transparent PVC film does not have an internal textile reinforcement. This fabric includes a polyester base fabric, which gives it higher tensile strength, better tear resistance, and improved dimensional stability. It is better suited for tent windows, large panels, outdoor covers, and demanding applications.

What are the main applications?

The main applications include tent windows, outdoor shelters, awnings, canopies, rain covers, logistics covers, cargo covering cloth, transparent partitions, protective curtains, construction covers, advertising structures, and exhibition tents.

Is the fabric waterproof?

Yes. The transparent PVC coating provides strong waterproof performance, making the fabric suitable for outdoor and protective applications.

Can the fabric be used outdoors for a long time?

Yes, it is designed for outdoor use. For long-term sunlight exposure, anti-UV treatment is recommended. For humid environments, anti-fungal treatment can also be specified.

What temperature range can it handle?

The fabric is designed for a temperature range of approximately minus 50 degrees Celsius to plus 70 degrees Celsius, making it suitable for a wide variety of climates and use conditions.

Does it have flame-retardant performance?

PVC has inherent flame-retardant characteristics, and the fabric can be supplied with flame-retardant grades such as B2 and M2 depending on customer requirements.

Can it meet environmental standards?

Yes. The fabric can be produced to meet requirements such as RoHS, REACH, and EN71-3 when specified by the customer.

Can the product be customized?

Yes. Customization can include color, thickness, weight, width, surface treatment, anti-UV performance, anti-fungal treatment, flame-retardant grade, and compliance requirements.

Is the fabric suitable for welding and sewing?

Yes. The PVC coated surface and reinforced polyester structure make the fabric suitable for common fabrication methods such as cutting, sewing, welding, and installation with accessories. Processing parameters should be tested according to equipment and final product requirements.

Why is peeling strength important?

Peeling strength measures the bond between the PVC coating and polyester base fabric. Strong peeling resistance helps prevent delamination, improves seam reliability, and supports longer service life.

Who should choose this fabric?

This fabric is suitable for tent manufacturers, tarpaulin fabricators, event structure suppliers, construction contractors, logistics cover producers, industrial curtain manufacturers, distributors, and buyers who need a transparent material with stronger physical performance than ordinary film.

Conclusion

The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is a high-performance reinforced material developed for professional applications where transparency, waterproofing, strength, and durability are required. By combining a 99.9 percent polyester base fabric with transparent PVC coating technology, it offers advantages that ordinary clear PVC film cannot provide. Its tensile strength, tear resistance, peeling strength, weather resistance, chemical resistance, and customization options make it a valuable choice for tent windows, protective covers, outdoor partitions, construction accessories, logistics applications, and exhibition structures.

The product’s greatest value lies in its balance. It is flexible but strong, transparent but reinforced, waterproof but workable, and customizable but stable in performance. For customers who need reliable transparent fabric for outdoor or industrial use, this material provides a practical and professional solution.

Backed by the manufacturing experience, product diversity, technical development, and flexible material expertise of Zhejiang MSD Group Share Co., Ltd., the fabric is well positioned to serve global buyers seeking PVC coated fabric, PVC laminated fabric, PVC outdoor fabric, and waterproof PVC fabric. With careful formulation, controlled production, and application-oriented customization, it supports both standard product needs and specialized project requirements.

References

1. Technical textile testing references for coated fabrics, including tensile strength, tearing strength, coating adhesion, and dimensional stability evaluation.

2. General material science literature on polyester fiber properties, including strength, abrasion resistance, weather resistance, and textile reinforcement behavior.

3. PVC coated fabric manufacturing references covering calendering, coating, lamination, plasticizer selection, stabilizer systems, and functional additive technology.

4. International compliance guidance related to RoHS, REACH, and EN71-3 requirements for polymer and coated textile products.

5. Industry application references for tent fabrics, tarpaulin fabrics, outdoor enclosures, transparent partitions, industrial covers, and flexible architectural materials.
