16oz 1000D 9X9 99.9% Block-Out Tent PVC Laminated Polyester Fabric: Performance, Manufacturing Excellence, and Outdoor Applications

Outdoor fabric must perform under demanding conditions. It may be exposed to rain, strong sunlight, wind, abrasion, temperature changes, repeated folding, transportation, and intensive daily use. For tents, tarpaulins, awnings, temporary structures, industrial covers, and vehicle shelters, ordinary textile materials often cannot provide a suitable balance of strength, waterproofing, light control, durability, and processing flexibility.

The 16oz 1000D 9X9 99.9% Block-Out Tent PVC Laminated Polyester Fabric is engineered to address these requirements. It combines a high-strength 1000D polyester base fabric with a 9X9 construction and a protective PVC laminated structure. Its 99.9% block-out performance helps control sunlight and ultraviolet exposure, while the PVC layer contributes to waterproofing, weather resistance, chemical resistance, and long-term serviceability.

This fabric is particularly popular in the United States, Canada, and Mexico, where outdoor products must withstand diverse weather conditions and demanding commercial use. It is suitable for manufacturers that require a dependable material for tents, industrial tarpaulins, awnings, carports, temporary buildings, and related products.

Produced by Zhejiang MSD Group Share Co., Ltd., the material benefits from the company’s experience in flexible materials, PVC products, warp-knitted textiles, advertising materials, decorative films, and functional fabrics. Through independent research and development, carefully controlled coating and laminating processes, and a broad product-development capability, the company supports customers seeking consistent quality and application-specific solutions.

16oz 1000D 9X9 99.9％ Block-Out Tent PVC Laminated Polyester Fabric

What Is 16oz 1000D 9X9 99.9% Block-Out Fabric?

16oz 1000D 9X9 99.9% Block-Out Tent PVC Laminated Polyester Fabric is a reinforced flexible material made from polyester yarn and PVC. The product name describes several of its essential characteristics.

“1000D” refers to the denier specification of the polyester yarn. Denier is a measurement associated with the linear density of a fiber or yarn. A 1000D yarn is a relatively heavy, high-strength yarn commonly used where the finished fabric must resist tearing, tension, abrasion, and repeated handling.

“9X9” refers to the approximate base-fabric density, expressed as threads per inch in the warp and weft directions. The balanced construction provides strength in both primary directions of the fabric. This is important for tents and tarpaulins because loads may be applied from multiple angles during installation, wind exposure, folding, and use.

“16oz” is the approximate commercial weight designation. The technical data sheet specifies an average finished fabric weight of 540 grams per square meter with a tolerance of plus or minus 3%. In practical purchasing and manufacturing discussions, product weight may be expressed in ounces per square yard or grams per square meter, so buyers should confirm the required unit and tolerance before placing an order.

“99.9% Block-Out” describes the fabric’s very high light-blocking performance. The material is designed to prevent almost all visible light from passing through. This feature can improve comfort inside tents and temporary structures, reduce solar gain, provide shade, and support privacy in enclosed outdoor spaces.

“PVC laminated polyester fabric” indicates that polyester provides the reinforcing textile structure while PVC forms the protective and functional outer layers. The polyester contributes tensile and tear strength. PVC contributes waterproofing, surface protection, flexibility, cleanability, and resistance to many environmental factors.

Core Construction and Functional Design

High-Strength Polyester Reinforcement

The polyester base fabric is the structural foundation of the material. Polyester is widely used in coated fabrics because it offers a useful combination of tensile strength, dimensional stability, relatively low moisture absorption, and resistance to stretching compared with many conventional textile fibers.

The 1000D construction gives the base fabric a substantial strength level. According to the supplied technical data, the average tensile strength reaches 1,600 N/5 cm in the machine direction and 1,400 N/5 cm in the cross direction. These figures indicate that the material is designed for applications in which the fabric may experience substantial pulling forces during installation or use.

The base cloth also records tearing strengths of 420 N/5 cm in the machine direction and 350 N/5 cm in the cross direction. Tear strength is important because a small cut, puncture, or damaged edge can develop into a larger failure when a fabric is under tension. A strong reinforced structure helps slow this progression and improves the reliability of finished products.

Balanced 9X9 Weave

The 9X9 thread density provides a balanced construction between warp and weft. A balanced textile structure can help manufacturers achieve more predictable cutting, welding, sewing, tensioning, and installation results. It also helps the finished product maintain its shape when exposed to wind or mechanical loads.

For tent panels and tarpaulins, directional stability is essential. If the fabric stretches excessively in one direction, seams may become stressed, panels may lose their intended shape, and water may collect in unwanted areas. The combination of a 1000D yarn and a 9X9 construction provides a practical foundation for dimensional stability and robust fabrication.

PVC Surface Protection

PVC is applied to the polyester base to create a continuous protective surface. The coating helps prevent water from passing through the textile structure and provides a smooth, durable finish that is suitable for outdoor products.

PVC can also be formulated with additives to improve specific properties. Depending on the customer’s requirements and the intended application, these additives may support ultraviolet resistance, mildew resistance, frost resistance, antistatic performance, antibacterial characteristics, and enhanced flame-retardant behavior.

The PVC surface is also relatively easy to clean. Dust, mud, and many common outdoor contaminants can be removed more easily from a coated surface than from an untreated textile. This is valuable for rental tents, event structures, transport covers, commercial awnings, and products that must maintain a professional appearance over repeated use.

High Light Blocking

The 99.9% block-out feature is one of the product’s key differentiators. Many outdoor fabrics provide shade, but a high block-out fabric is designed to limit light transmission much more effectively. This can be useful for sleeping tents, exhibition structures, hospitality shelters, temporary rooms, storage covers, and outdoor spaces where privacy or visual comfort is important.

High light blocking can reduce the amount of direct sunlight entering an enclosed area. It may therefore help reduce glare and support a more comfortable interior environment. It can also help protect equipment, furnishings, merchandise, and interior surfaces from direct sunlight and ultraviolet exposure.

Compared with a basic single-layer textile, the block-out construction provides a more controlled interior environment. Compared with lighter shade fabrics, it can provide stronger privacy and more consistent visual separation between the interior and exterior.

Technical Performance Overview

The following table summarizes the main technical information supplied for this product. Actual production values may vary within the stated tolerances, and buyers should request a current technical data sheet or sample for project approval.

Property	Unit	Test Method	Average Value
Base Fabric Yarn	Denier	Not specified	1000 x 1000D
Base Fabric Density	Thread/inch	FZ/T01003	9 x 9
Finished Fabric Weight	Gram/m²	FZ/T01003	540 ± 3%
Thickness	mm	FZ/T01003	0.48 ± 3%
Tensile Strength at MD	N/5 cm	GB/T1040	1600
Tensile Strength at CD	N/5 cm	GB/T1040	1400
Tearing Strength at MD	N/5 cm	GB/T16578	420
Tearing Strength at CD	N/5 cm	GB/T16578	350
Peeling Strength	N/5 cm	GB/T3917	40
Temperature Range	°C	Not specified	-50 to +70
Flame-Retardant Options	Classification	Depending on specification	B1, B2, M1, M2, NFPA-701, C 19

MD means machine direction, while CD means cross direction. These values help product designers evaluate how the material may behave during cutting, sewing, welding, tensioning, and installation.

Advantages Over Conventional Outdoor Fabrics

Improved Waterproofing

Untreated woven polyester can absorb water and allow moisture to pass through its interstices. The PVC laminated structure forms a more continuous barrier, making the material suitable for waterproof covers and outdoor enclosures.

Waterproofing is especially important for tents and tarpaulins because moisture can damage stored goods, reduce user comfort, encourage mildew, and increase maintenance costs. A properly fabricated product made from PVC laminated polyester fabric can help keep interiors dry during rainfall and damp conditions.

The fabric’s waterproof performance also depends on the finished product. Seams, zippers, eyelets, hems, welds, and attachment points must be designed correctly. Even a high-quality waterproof fabric can leak if seams are poorly constructed or if the product is installed incorrectly.

Greater Strength Than Lightweight Shade Materials

Lightweight shade cloths and thin coated fabrics can be suitable for temporary or low-stress applications, but they may not provide adequate strength for large structures, repeated handling, or areas exposed to wind. The 1000D base fabric and measured tensile and tear performance give this product a stronger foundation for demanding applications.

Its robust construction can reduce the risk of premature damage during transportation and installation. It is also suitable for products that must be folded, unfolded, tensioned, packed, and reused multiple times.

Better Light Control Than Standard PVC Fabric

Standard PVC-coated fabric may reduce light transmission, but it does not necessarily provide the same level of block-out performance. The 99.9% block-out design offers a clear advantage where interior darkness, privacy, glare reduction, or protection from direct sunlight is important.

This performance can be valuable for event tents, hospitality structures, sleeping areas, temporary classrooms, mobile workspaces, exhibition booths, and storage environments. It can also support branding and visual presentation by creating a controlled background for interior lighting or printed graphics.

Resistance to Outdoor Conditions

The stated operating temperature range is approximately -50°C to +70°C. This broad range supports use in regions with cold winters, hot summers, and significant seasonal variation. The material is therefore suitable for international markets with different climates, although the actual service life will depend on exposure, installation, maintenance, formulation, and application.

PVC can also offer resistance to many common chemical substances. The supplied information identifies resistance to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid, and 20% sodium hydroxide under relevant conditions. Chemical performance should always be verified for a specific substance, concentration, temperature, and exposure duration before use in a specialized industrial environment.

Flexible Product Customization

Coated polyester fabric can be processed through sewing, cutting, heat welding, hot air welding, high-frequency welding, and other fabrication methods depending on its construction and the manufacturer’s equipment. This processing flexibility allows the same material family to serve many product designs.

Customers may also request different colors, widths, surface finishes, flame-retardant specifications, environmental compliance requirements, and other functional modifications. The appropriate specification should be selected according to the end use rather than by weight alone.

Advanced Manufacturing Processes

Polyester Yarn and Base Fabric Preparation

Manufacturing begins with the selection and preparation of polyester yarn. Consistent yarn quality is essential because the base fabric determines much of the finished product’s tensile strength, tear resistance, and dimensional stability.

The yarns are arranged into the required warp and weft structure. Production controls help maintain the target 9X9 density and support uniform fabric formation across the roll width. Consistency at this stage reduces variations that could affect coating uptake, finished thickness, tensile performance, and appearance.

The textile may be inspected for broken yarns, weaving defects, contamination, uneven density, and other irregularities before it enters the PVC coating or laminating process. Early inspection helps prevent defects from being concealed by later layers.

PVC Formulation and Additive Control

PVC fabric performance depends not only on the polymer itself but also on the formulation. Plasticizers help provide flexibility, stabilizers support processing and service performance, pigments create color, and other additives may improve ultraviolet resistance, mildew resistance, flame retardancy, or surface behavior.

Formulation control is therefore a major part of product quality. The composition must be matched to the intended thickness, flexibility, weather exposure, processing method, and compliance requirements. A fabric for a short-term indoor display may require a different formulation from a material intended for long-term outdoor use.

For customers concerned with environmental and health requirements, the product can be developed to meet standards such as RoHS, REACH, and EN71-3 when the appropriate specification and testing program are selected. Compliance should be confirmed through current documentation for the exact product version being purchased.

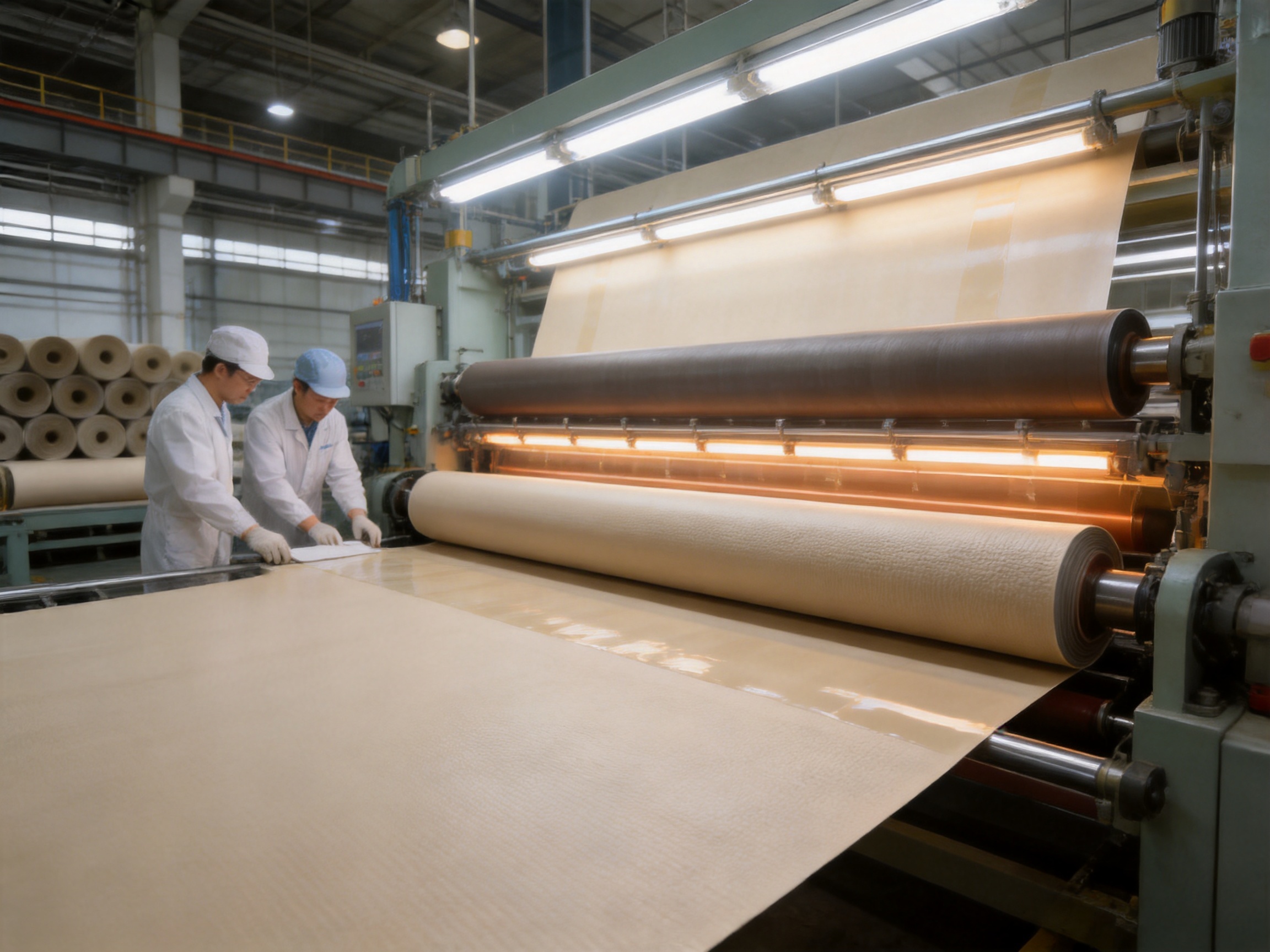

Calendering and Laminating

In PVC fabric production, PVC compounds may be processed into films or layers through controlled heating and calendering. The material is then combined with the polyester base fabric under carefully controlled temperature, pressure, and line-speed conditions.

Proper lamination requires uniform contact between the PVC layer and the textile reinforcement. Insufficient bonding can result in delamination, peeling, bubbling, or reduced service life. Excessive heat or pressure can also affect the base fabric, surface finish, flexibility, or dimensional stability.

The supplied peeling strength value is 40 N/5 cm. This indicates a strong bond between the laminated components under the specified test conditions. Consistent peeling strength helps the finished fabric withstand folding, tension, temperature changes, and fabrication processes.

Thickness and Weight Management

The target thickness is approximately 0.48 mm with a tolerance of plus or minus 3%, while the average finished weight is approximately 540 grams per square meter with a tolerance of plus or minus 3%. Controlling both parameters is important for product performance and manufacturing efficiency.

If the material is too thin, waterproofing, block-out capability, abrasion resistance, and mechanical performance may be reduced. If it is too heavy, transportation costs, handling effort, and the weight of the finished structure may increase. Stable thickness and weight help customers plan cutting layouts, structural loads, packaging, and shipping requirements.

Online Inspection and Laboratory Testing

Advanced fabric production requires both online inspection and laboratory verification. Online systems and trained operators can identify surface defects, wrinkles, pinholes, color variations, edge problems, and coating irregularities during production. Laboratory testing then measures properties such as weight, thickness, tensile strength, tear strength, peeling strength, flame retardancy, and temperature performance.

Testing according to recognized methods gives customers a more reliable basis for comparison. The supplied technical sheet references FZ/T01003, GB/T1040, GB/T16578, and GB/T3917. These methods correspond to measurements involving fabric construction, tensile strength, tearing strength, and peeling or related mechanical performance.

Quality control is not limited to testing a finished sample. A capable manufacturer also manages raw materials, production parameters, equipment condition, batch records, roll identification, and final packaging. This process-oriented approach is essential when customers require repeat orders with consistent performance.

Manufacturing Strengths of Zhejiang MSD Group Share Co., Ltd.

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park in Haining City, Zhejiang Province, China. The company has developed experience in flexible materials and related manufacturing technologies over more than two decades.

The company emphasizes independent innovation and product research and development. This approach allows it to serve multiple application areas rather than relying on a single product category. Its product system includes environmentally friendly decorative materials, functional sports materials, advertising materials, and other flexible materials.

The company’s product range includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and other related products. This broad portfolio supports technical knowledge across PVC formulation, textile reinforcement, coating, laminating, finishing, printing, and application development.

For buyers of tent and tarpaulin fabric, a diversified manufacturer can offer several practical advantages. Customers may be able to source different fabric constructions from one supplier, compare materials for different performance levels, coordinate colors and finishes, and develop complementary products without changing vendors.

Experience with decorative and functional materials also supports the development of fabrics with more than basic waterproofing. Customers may require a balance of opacity, flame retardancy, surface appearance, flexibility, cleanability, strength, and environmental compliance. A manufacturer with capabilities across multiple product types is better positioned to evaluate these requirements together.

Application-Oriented Product Development

The company’s emphasis on research and development supports the creation of materials for specific use conditions. A tent fabric used for camping may have different requirements from a fabric used for a large event structure, industrial cover, truck curtain, or temporary warehouse.

Application-oriented development considers the entire product life cycle. It includes how the fabric is stored, cut, welded, sewn, installed, cleaned, folded, transported, and eventually reused or replaced. This perspective helps avoid selecting a material based on one attractive specification while overlooking other practical requirements.

Export Market Experience

The 16oz 1000D 9X9 block-out fabric has been sold in the United States, Canada, and Mexico for many years. Experience in these markets indicates familiarity with customers that evaluate outdoor fabrics according to demanding commercial, technical, and logistical expectations.

North American applications may include seasonal tents, event shelters, agricultural covers, industrial tarpaulins, vehicle covers, awnings, and temporary structures. These uses often require reliable roll packaging, consistent specifications, predictable lead times, and responsive communication in addition to the fabric’s physical performance.

International customers may also need technical documents, product samples, test reports, compliance declarations, packaging information, and support with application selection. A manufacturer with export experience can help organize these requirements more effectively.

Applications in Tents and Temporary Structures

Camping and Recreational Tents

For camping tents, the fabric’s waterproofing helps protect occupants from rain and damp conditions. Its high block-out performance can also make the interior more comfortable during bright daylight, especially when the tent is used for sleeping or resting.

The strong polyester reinforcement helps the tent withstand handling, pole tension, wind loads, and repeated packing. The material can be fabricated into roof panels, sidewalls, entrance sections, storage compartments, and other components depending on the design.

When used for recreational products, manufacturers should consider ventilation carefully. A highly opaque and waterproof fabric can limit natural air exchange, so vents, mesh panels, and appropriate openings may be required to manage condensation and interior temperature.

Event and Hospitality Tents

Event tents, wedding structures, exhibition shelters, and hospitality spaces require an attractive appearance as well as reliable performance. The smooth PVC surface can be easier to clean and maintain than an untreated textile. The high block-out level can help create a controlled interior atmosphere for dining, presentations, product displays, or entertainment.

Flame-retardant options may be particularly important for public events. Depending on the market, venue, and local regulations, customers may request classifications such as B1, B2, M1, M2, NFPA-701, or C 19. The required classification must be specified and verified for the exact material and construction used in the finished product.

The fabric can also serve as a background for printing, branding, decorative panels, partitions, and visual displays, subject to the selected surface finish and printing method.

Temporary Buildings and Workspaces

Temporary buildings often need wall and roof materials that are light enough to handle but durable enough for repeated installation. Block-out fabric can help reduce glare and improve privacy, while waterproofing supports protection from changing weather conditions.

Potential uses include temporary offices, construction-site shelters, mobile workshops, emergency accommodation, storage enclosures, and field-service structures. Structural engineering remains essential because the fabric itself is only one part of the overall system. Frames, anchors, cables, fasteners, seams, and drainage must all be properly designed.

Applications Beyond Tents

Industrial Tarpaulins

Industrial tarpaulins are used to cover machinery, materials, equipment, construction supplies, and temporary storage areas. They may be exposed to abrasion, dirt, rain, sunlight, and repeated handling. The 1000D polyester reinforcement and PVC surface make this fabric suitable for many demanding cover applications.

The material can be manufactured into flat covers, fitted covers, curtains, partitions, and large protective sheets. Reinforced hems, webbing, eyelets, buckles, ropes, and welded seams can be incorporated according to the intended load and installation method.

Truck Covers and Vehicle Curtains

Transport covers must resist wind pressure, vibration, folding, and frequent loading operations. A PVC laminated fabric can provide a cleanable, waterproof exterior while the polyester base gives the cover mechanical strength.

For vehicle applications, designers should evaluate the required flexibility at low temperatures, resistance to abrasion from loading equipment, attachment methods, and compatibility with printing or branding. The stated temperature range can support use across a wide range of climates, but actual performance should be validated through application-specific testing.

Awnings and Shade Structures

The 99.9% block-out property makes the material suitable for awnings and shade structures where users require strong protection from direct sunlight. It can provide shade for patios, outdoor dining areas, markets, entrances, recreational facilities, and temporary commercial spaces.

Unlike open mesh shade materials, a block-out fabric can provide greater privacy and more complete visual separation. It can also help reduce the direct exposure of furniture, displays, and interior surfaces to sunlight.

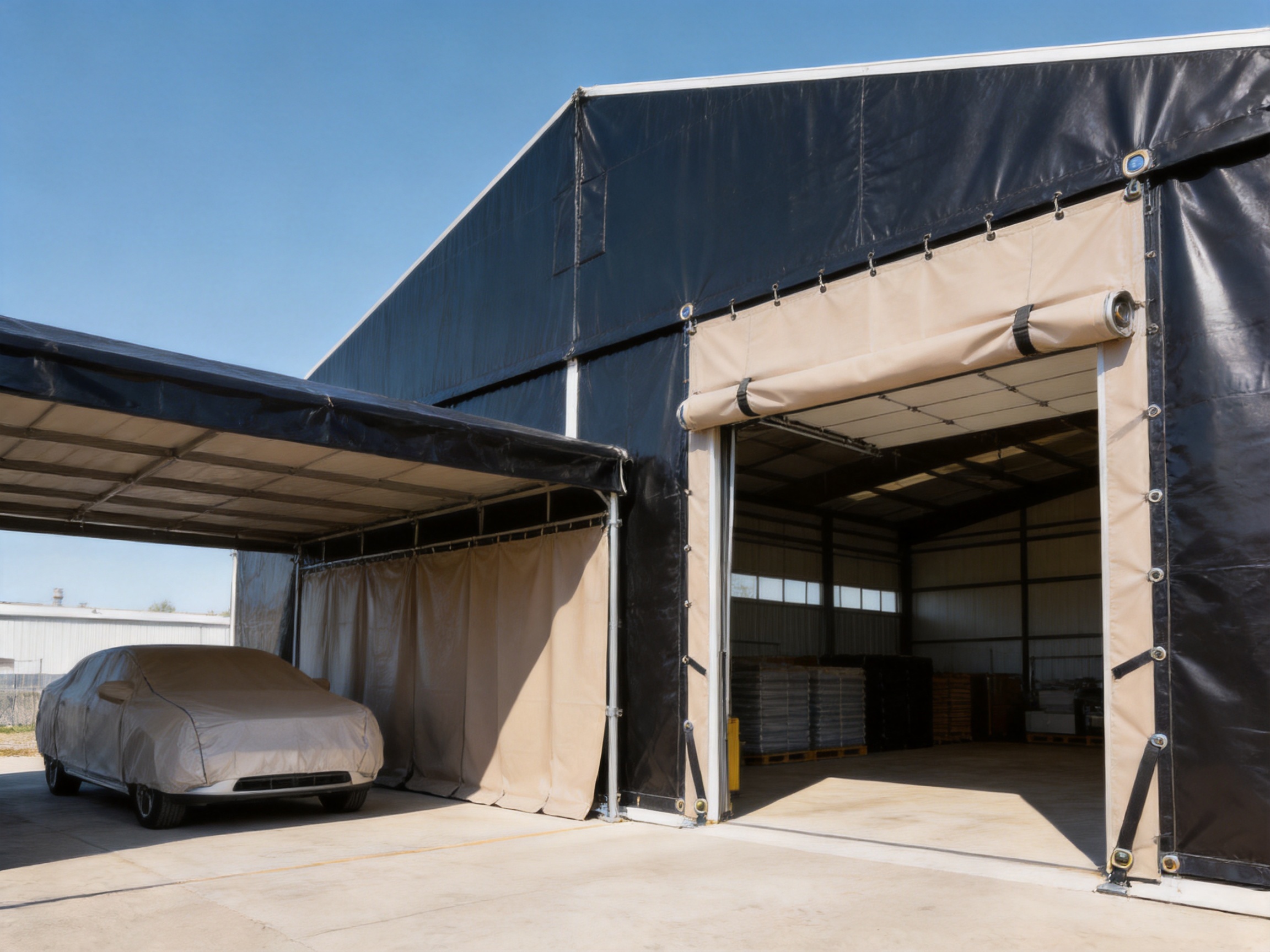

Carports and Equipment Shelters

Carports and equipment shelters require protection from rain, sunlight, dust, and weather. The fabric can be used for roof panels, side curtains, end walls, or removable covers. Its relatively manageable weight allows large panels to be handled more easily than many rigid alternatives.

For permanent or semi-permanent installations, the structure must be designed to distribute tension evenly and prevent water pooling. Proper slope, drainage, edge reinforcement, and anchoring will improve the life of the completed shelter.

Exhibition and Display Enclosures

Exhibition structures often need lightweight panels with a neat appearance, strong opacity, and easy maintenance. The block-out fabric can help hide support frames, cables, stored materials, and back-of-house areas. It can also provide a uniform surface for decorative treatment or selected printing applications.

Because the material is available as a flexible roll product, it can be cut into panels of different sizes and fabricated into walls, ceilings, curtains, partitions, and display features.

Fabrication and Installation Considerations

Cutting

Cutting should be carried out using equipment and procedures appropriate for PVC-coated textile. Clean cutting helps prevent uneven edges and supports accurate seam alignment. For large production runs, cutting plans should account for fabric width, pattern direction, seam allowances, reinforcement zones, and possible defects identified during inspection.

Sewing and Welding

The suitable joining method depends on product design, equipment, seam requirements, and the specific fabric formulation. Sewing can be used with appropriate needles, thread, seam tape, and reinforcement. Heat welding or high-frequency welding may create strong, waterproof seams when the material and equipment are compatible.

Before mass production, manufacturers should test seam strength, air or water leakage, peel resistance, visual appearance, and flexibility. Welding parameters such as temperature, pressure, speed, and dwell time must be adjusted to the fabric thickness and construction.

Edge Reinforcement

Edges and attachment points often receive higher loads than the center of a panel. Hemming, webbing, ropes, tapes, or additional PVC reinforcement can help distribute these loads. Eyelets and fasteners should be positioned far enough from the edge and supported by suitable reinforcement patches.

Storage and Maintenance

Finished fabric rolls should be stored in a clean, dry, and ventilated area away from direct sunlight, sharp objects, excessive heat, and incompatible chemicals. During transport, the rolls should be protected against crushing, water exposure, and unnecessary friction.

Finished products should be cleaned with suitable mild cleaning agents and soft tools. Harsh solvents, abrasive brushes, and untested chemicals may damage the PVC surface or affect flexibility. Before folding a product for long-term storage, it should be cleaned and dried thoroughly to reduce the risk of mildew and odor.

Quality and Compliance Options

Outdoor applications may be subject to different regulations depending on the country, building type, public-access requirements, and product category. A fabric used in a private camping tent may not face the same requirements as a fabric used in a public event structure.

Flame-retardant options listed for this product include B1, B2, M1, M2, NFPA-701, and C 19. These classifications should not be treated as interchangeable. Each classification is associated with a particular testing system or market requirement, and the buyer should identify the exact standard required by the project.

Environmental and product-safety requirements may include RoHS, REACH, and EN71-3. These standards address different concerns, so compliance should be confirmed through current test reports or declarations for the specific material, color, formulation, and production batch where necessary.

Customers should also consider ultraviolet exposure, mildew risk, low-temperature flexibility, high-temperature stability, color fastness, coating adhesion, and printing performance. A complete technical evaluation is more reliable than selecting a fabric based only on its nominal weight or denier.

Why This Fabric Is a Competitive Choice

The product’s competitive value comes from the combination of several properties rather than from one isolated specification. A fabric may be strong but not sufficiently waterproof. Another may be waterproof but too light for repeated industrial use. A third may offer shade but not adequate privacy or block-out. This material is designed to bring these functions together.

Its 1000D polyester reinforcement supports high tensile and tear strength. The 9X9 construction provides a balanced textile structure. The PVC lamination provides a waterproof and protective surface. The 99.9% block-out performance supports shade, privacy, and glare control. The approximately 0.48 mm thickness and 540 grams per square meter weight provide a practical balance between robustness and handling.

The product also offers a broad temperature range, options for flame-retardant performance, potential chemical resistance, and the ability to incorporate additives for ultraviolet, mildew, frost, antistatic, and antibacterial properties. This combination can reduce the need for separate materials across different product lines.

In addition, manufacturing experience in related PVC and textile products can support more efficient technical communication. Customers can discuss not only the fabric but also printing, welding, finishing, color, surface treatment, and related flexible-material requirements with a supplier familiar with the wider production process.

How to Select the Correct Specification

Buyers should begin by defining the application and expected service conditions. Important questions include whether the fabric will be used temporarily or permanently, whether it will be exposed to strong wind, whether it must be flame retardant, whether it will be printed, and whether it will be folded and transported frequently.

The required width and roll length should be confirmed because these affect cutting efficiency and seam quantity. Large panels may benefit from wider rolls, while smaller products may prioritize handling convenience.

Color and surface finish should be selected according to appearance, solar performance, cleanability, and printing requirements. Dark colors may improve visual block-out, while light colors may reflect more solar radiation. The best choice depends on the structure, climate, and intended interior environment.

Customers should request samples before approving bulk production. Sample evaluation may include visual inspection, water testing, folding, welding trials, printing tests, low-temperature flexibility checks, and measurements of weight and thickness.

For large projects, buyers should define acceptable tolerances, packaging specifications, roll identification, inspection procedures, and documentation requirements in advance. Clear technical communication helps avoid misunderstandings between the fabric supplier and the finished-product manufacturer.

Frequently Asked Questions

What does 1000D mean?

1000D refers to the denier specification of the polyester yarn used in the base fabric. It indicates a relatively heavy and strong yarn suitable for applications requiring resistance to tension, tearing, abrasion, and repeated handling.

What does 9X9 mean?

9X9 refers to the approximate thread density of the base fabric in the warp and weft directions, expressed as threads per inch. The balanced construction supports strength and dimensional stability in both directions.

Does 16oz mean the fabric weighs exactly 16 ounces?

16oz is a commercial product designation, while the supplied technical data sheet gives an average finished weight of 540 grams per square meter with a tolerance of plus or minus 3%. Because ounce specifications can be expressed using different area units, buyers should confirm the exact weight conversion and tolerance with the supplier.

What is the benefit of 99.9% block-out performance?

It means the fabric is designed to block almost all light transmission. This can improve privacy, reduce glare, provide strong shade, and help create a more comfortable interior environment in tents, awnings, exhibition structures, and temporary buildings.

Is the fabric waterproof?

The PVC laminated construction is designed to provide excellent waterproof performance. However, the waterproofness of a finished tent or cover also depends on seam design, welding or sewing quality, fasteners, zippers, installation, and maintenance.

Can the fabric be used in cold climates?

The stated temperature range is approximately -50°C to +70°C. This indicates suitability for a broad range of environmental conditions. Because flexibility can depend on the exact PVC formulation and use conditions, customers should request application-specific testing when the material will be exposed to extreme cold or repeated folding at low temperatures.

Can the fabric be used for public event tents?

It may be suitable for event tents, but public installations often require a specific flame-retardant classification. Options listed for the product include B1, B2, M1, M2, NFPA-701, and C 19. The required standard should be confirmed with the venue, local authority, or project engineer, and documentation should be obtained for the exact product specification.

Can the material resist mildew?

PVC fabric can be formulated with additives to improve mildew resistance. Customers who require this property should specify it when ordering and confirm the relevant test or performance documentation. Good storage and maintenance practices are also important.

Can it be printed?

The suitability for printing depends on the surface finish, ink system, equipment, color, and intended durability. Customers should conduct a print trial before production, particularly when the fabric will be used outdoors or cleaned frequently.

Can it be welded?

Many PVC laminated fabrics can be joined using heat-welding or high-frequency welding equipment. The correct process parameters must be established through testing because temperature, pressure, speed, and dwell time influence seam strength and appearance.

What industries can use this fabric?

Potential industries include outdoor recreation, event rental, hospitality, construction, logistics, transportation, agriculture, industrial storage, exhibition services, advertising, and temporary infrastructure. The final suitability depends on the required performance and local regulations.

What documentation should a buyer request?

A buyer may request a technical data sheet, sample, test reports, flame-retardant documentation, environmental compliance information, packing details, roll dimensions, production tolerances, and quality inspection records. The documentation should correspond to the exact color, coating, weight, and formulation being purchased.

Conclusion

16oz 1000D 9X9 99.9% Block-Out Tent PVC Laminated Polyester Fabric is a versatile material for demanding outdoor and industrial applications. Its high-strength polyester reinforcement, balanced 9X9 construction, PVC protective layers, strong waterproofing, broad temperature range, and very high light-blocking performance make it more capable than basic outdoor textiles.

The material is suitable for tents, awnings, tarpaulins, temporary buildings, vehicle covers, carports, exhibition structures, equipment shelters, and other flexible products that require strength and environmental protection. Optional flame-retardant, ultraviolet-resistant, mildew-resistant, frost-resistant, antistatic, antibacterial, RoHS, REACH, and EN71-3-related specifications can help customers adapt the product to particular markets and applications.

Zhejiang MSD Group Share Co., Ltd. strengthens the product offering through its long-term experience in PVC materials, warp-knitted textiles, flexible films, advertising products, decorative materials, and functional fabrics. Its emphasis on independent innovation, manufacturing experience, product development, and international market service supports customers that need more than a standard commodity fabric.

For the best results, the fabric should be selected according to the complete application, fabricated using tested joining methods, installed with suitable reinforcement and tension control, and maintained according to outdoor-use requirements. When these factors are managed correctly, the product can provide a durable, practical, and visually controlled solution for a wide range of commercial and industrial needs.

References

1. Product Technical Data Sheet, 16oz 1000D 9X9 99.9% Block-Out Tent PVC Laminated Polyester Fabric.

2. FZ/T01003, Textile Fabric Testing and Related Weight and Construction Evaluation Procedures.

3. GB/T1040, Plastics and Polymer Material Tensile Properties Testing Methods.

4. GB/T16578, Textile and Coated Material Tearing Strength Testing Procedures.

5. GB/T3917, Textile Tear and Related Fabric Strength Testing Procedures.

6. NFPA-701, Standard Methods of Fire Tests for Flame Propagation of Textiles and Films.

7. RoHS Requirements for the Restriction of Hazardous Substances in Electrical and Electronic Products.

8. REACH Requirements for the Registration, Evaluation, Authorization, and Restriction of Chemicals.

9. EN71-3, Safety of Toys: Migration of Certain Elements.

10. Manufacturer-provided product and company information for Zhejiang MSD Group Share Co., Ltd.
