1050GSM Colorful Membrane Structure PVC Coated Polyester Fabric for Durable Outdoor Architecture

High-performance membrane structures demand a fabric that can carry load, resist weather, maintain appearance, and remain workable during fabrication and installation. 1050GSM 1000D 30X32 colorful membrane structure PVC coated polyester fabric is engineered for precisely these requirements. Built with a reinforced polyester base fabric and protected by a durable PVC coating, it combines tensile strength, tear resistance, waterproof performance, chemical stability, flame-retardant options, and long-term outdoor usability.

This fabric is designed for applications where ordinary tarpaulin materials or lightweight coated textiles are not enough. It is especially suitable for membrane roofs, tensile canopies, large awnings, architectural shade structures, outdoor commercial spaces, stadium facilities, transportation covers, and weather-resistant enclosures. Its 1050GSM finished weight and 1000D polyester yarn provide a heavy-duty structure that supports demanding projects while still offering flexibility for cutting, welding, shaping, and installation.

One of the defining advantages of this product is its colorful membrane structure concept. Traditional membrane architecture often relies heavily on white or light-colored fabric. While white remains popular for brightness and heat reflection, modern architectural and commercial projects increasingly require richer colors, stronger visual identity, and greater design flexibility. This fabric can be customized in multiple colors, allowing designers, contractors, and project owners to create structures that are not only protective and durable but also visually distinctive.

Product Overview

1050GSM 1000D 30X32 colorful membrane structure PVC coated polyester fabric is a composite textile made from high-strength polyester yarn and PVC coating. The polyester base acts as the structural reinforcement, while the PVC surface provides waterproofing, anti-fouling performance, weather resistance, and surface durability. Together, these layers create a fabric suitable for long-term outdoor service.

The specification “1000D” refers to the denier of the yarn used in the base fabric. A 1000D yarn is strong and suitable for heavy-duty industrial fabric applications. The “30X32” density indicates a high thread count structure, contributing to dimensional stability and reliable mechanical performance. The finished weight of 1050GSM shows that the product is thick, substantial, and built for demanding use.

In architectural membrane projects, material failure can lead to safety concerns, high maintenance costs, and early replacement. For that reason, the fabric used must offer balanced performance: strong enough to withstand tension, stable enough to resist deformation, coated well enough to prevent water penetration, and finished properly enough to maintain surface quality. This product addresses those needs through its reinforced structure, optimized coating formulation, and optional surface treatments such as acrylic or PVDF.

Compared with many standard PVC tarpaulin fabrics, this 1050GSM membrane fabric offers a higher level of strength and stability. Compared with lighter advertising fabrics, it provides much stronger load-bearing capacity and better resistance to tearing. Compared with some architectural materials that offer limited color flexibility, it can support customized colorful solutions without sacrificing performance.

Key Technical Data

The following table summarizes the main technical parameters of the fabric. These values help project engineers, fabricators, and purchasers evaluate whether the material fits the requirements of architectural and industrial applications.

Structural Advantages of the 1000D Polyester Base

The core of this fabric is its 1000D polyester base. Polyester is widely used in industrial coated fabrics because of its high tensile strength, good dimensional stability, resistance to stretching, and compatibility with coating processes. In this product, the polyester base fabric works as the load-bearing skeleton. The PVC coating protects and enhances the textile, but the polyester yarn gives the fabric its essential mechanical strength.

A high-denier yarn is particularly important in membrane structures because these applications require the fabric to remain tensioned over frames, cables, or supporting systems. A weak base fabric can elongate excessively, deform under wind load, or tear around welded seams and fasteners. The 1000 x 1000D yarn specification gives the fabric the reinforcement needed to handle demanding architectural and industrial environments.

The 30 x 32 thread density also contributes to performance. A denser base fabric improves resistance to tearing and helps the coating form a more stable composite layer. It also improves the balance between machine direction and cross direction strength. This balance matters because membrane structures experience stress from multiple directions, including wind uplift, rain load, thermal expansion, installation tension, and movement caused by supporting structures.

Compared with fabrics made with lower-denier yarns, this material offers greater strength reserve. Compared with loosely woven coated materials, it provides better dimensional stability. Compared with low-cost alternatives that focus only on surface coating, this product is engineered from the textile base upward, resulting in a fabric that performs as a complete structural composite.

PVC Coating Performance

The PVC coating gives the fabric its waterproof surface, chemical resistance, flame-retardant potential, color capability, and weathering protection. PVC is valued in coated technical textiles because it can be formulated with additives to meet different performance demands. These additives can improve UV resistance, mildew resistance, frost resistance, anti-static behavior, antibacterial properties, and flame-retardant performance.

For outdoor structures, waterproofing is essential. Rainwater penetration can damage goods, disrupt public areas, cause structural inconvenience, and reduce the service life of supporting components. The PVC coating forms a continuous barrier that prevents water from passing through the fabric. This makes the material suitable for canopies, covered walkways, roof membranes, transport covers, and outdoor venues.

PVC also provides strong chemical resistance. The material is known for resistance to many aggressive chemical environments, including certain acids and alkaline solutions. This is useful in industrial areas, transportation applications, coastal environments, and urban locations where surfaces may be exposed to pollutants, cleaning agents, or chemical residues.

The coating also supports easy cleaning. Dust, dirt, and organic contamination can accumulate on outdoor fabrics over time. A properly finished PVC surface helps reduce staining and makes routine washing more effective. When paired with acrylic or PVDF treatment, the fabric can achieve better surface durability, improved anti-fouling performance, and longer-lasting appearance.

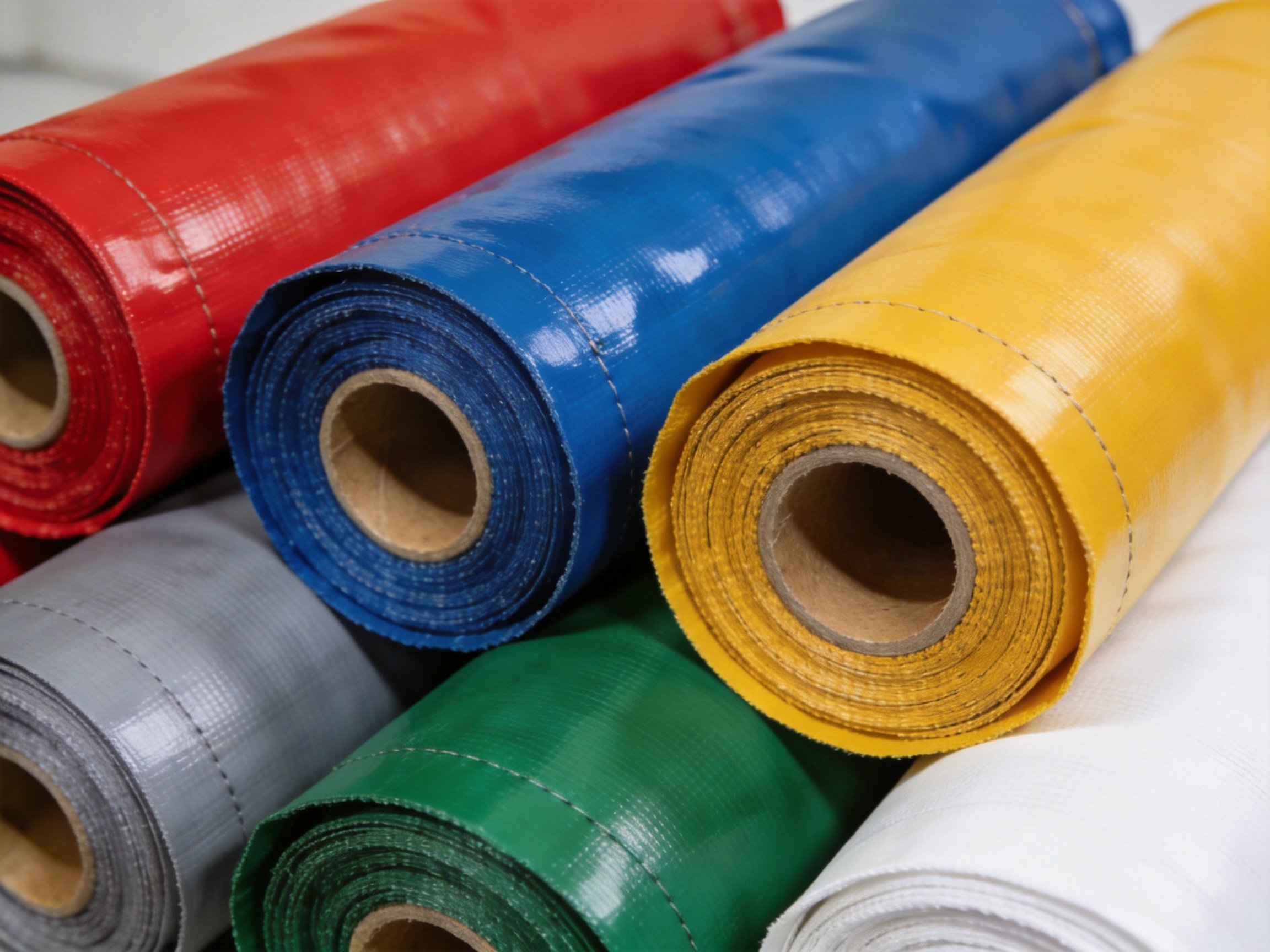

Colorful Membrane Structure for Modern Design

A major advantage of this product is color flexibility. Many membrane structures use white fabric because it is classic, bright, and widely accepted. However, design requirements are changing. Shopping centers, tourist attractions, sports facilities, amusement parks, hotels, transportation hubs, and public landscapes increasingly require visual identity. Colorful membrane fabric gives architects and project developers more freedom to create memorable spaces.

Color can be used to match a building facade, support brand identity, improve wayfinding, create thematic environments, or make a structure more attractive from a distance. For example, a recreational area may use bright colors to create energy and friendliness, while a cultural venue may choose deeper or more refined tones. Commercial spaces may use brand-related colors to strengthen recognition. Public shade projects may use color to integrate with landscaping and urban planning.

Compared with competitors that only provide basic white or limited stock colors, this fabric supports customized color solutions. The ability to combine structural performance with color choice is important because many projects cannot compromise safety or durability for appearance. This product allows both. It offers a high-strength membrane base while still supporting aesthetic customization.

Color consistency is also an important manufacturing capability. In large membrane projects, different rolls may be welded together or installed in visible sections. If color variation is not controlled, the final appearance can be inconsistent. Advanced manufacturing and quality control processes help maintain color stability across production batches, improving project results and reducing installation risk.

Advantages Over Common Competitor Materials

Not all coated fabrics are equal. Some are designed for short-term covers, some for advertising, some for lightweight awnings, and some for heavy architectural structures. Selecting the wrong product can lead to early cracking, tearing, fading, leakage, or deformation. The 1050GSM 1000D 30X32 fabric stands out because it is positioned as a high-strength, long-service membrane material.

Higher Strength Than Lightweight PVC Fabrics

Lightweight PVC fabrics may be suitable for temporary covers or economical shading, but they often lack the tensile and tear strength needed for large membrane projects. With tensile strength values of approximately 4500 N/5cm in the machine direction and 4200 N/5cm in the cross direction, this fabric provides much stronger structural capability than many low-weight alternatives.

Its tearing strength, approximately 600 N/5cm in the machine direction and 580 N/5cm in the cross direction, helps resist damage propagation. This is important because outdoor fabrics can experience localized stress from wind, installation tension, sharp contact points, or accidental impact. A fabric with poor tear resistance may fail rapidly once damaged. This material is engineered to resist such propagation and maintain safer performance.

Better Durability Than Low-Coating Alternatives

Some competitor fabrics reduce cost by using thinner coatings or less controlled coating layers. While such products may look similar when new, they may age faster under UV exposure, rain, pollution, and temperature cycling. A strong PVC coating with optional surface treatment provides better protection and longer usable life.

The 1050GSM finished weight indicates a substantial coating and base combination. This does not merely make the fabric heavier; it reflects a more robust structure capable of withstanding demanding conditions. For long-term installations, the initial cost difference between standard and heavy-duty fabric is often less significant than the cost of replacement, repair, downtime, and project reputation.

More Design Flexibility Than Traditional White Membrane Fabric

Traditional membrane fabric is often limited in color selection. This product provides colorful options that allow designers to create more expressive structures. The fabric is not limited to functional protection; it becomes part of the visual identity of the project. This makes it a strong choice for commercial, recreational, and public environments where appearance is a major factor.

Stronger Processing Compatibility Than Rigid Materials

Compared with metal sheets, glass, or rigid plastic panels, PVC coated polyester fabric is lighter, more flexible, and easier to shape into curved surfaces. It allows large-span forms, flowing rooflines, and tensioned architectural expressions. It can be cut, welded, folded, rolled, transported, and installed more efficiently than many rigid materials.

For projects that require rapid installation or complex geometry, flexible membrane fabric can reduce structural load and support more creative designs. Its waterproof and flame-retardant options further increase its suitability for practical outdoor use.

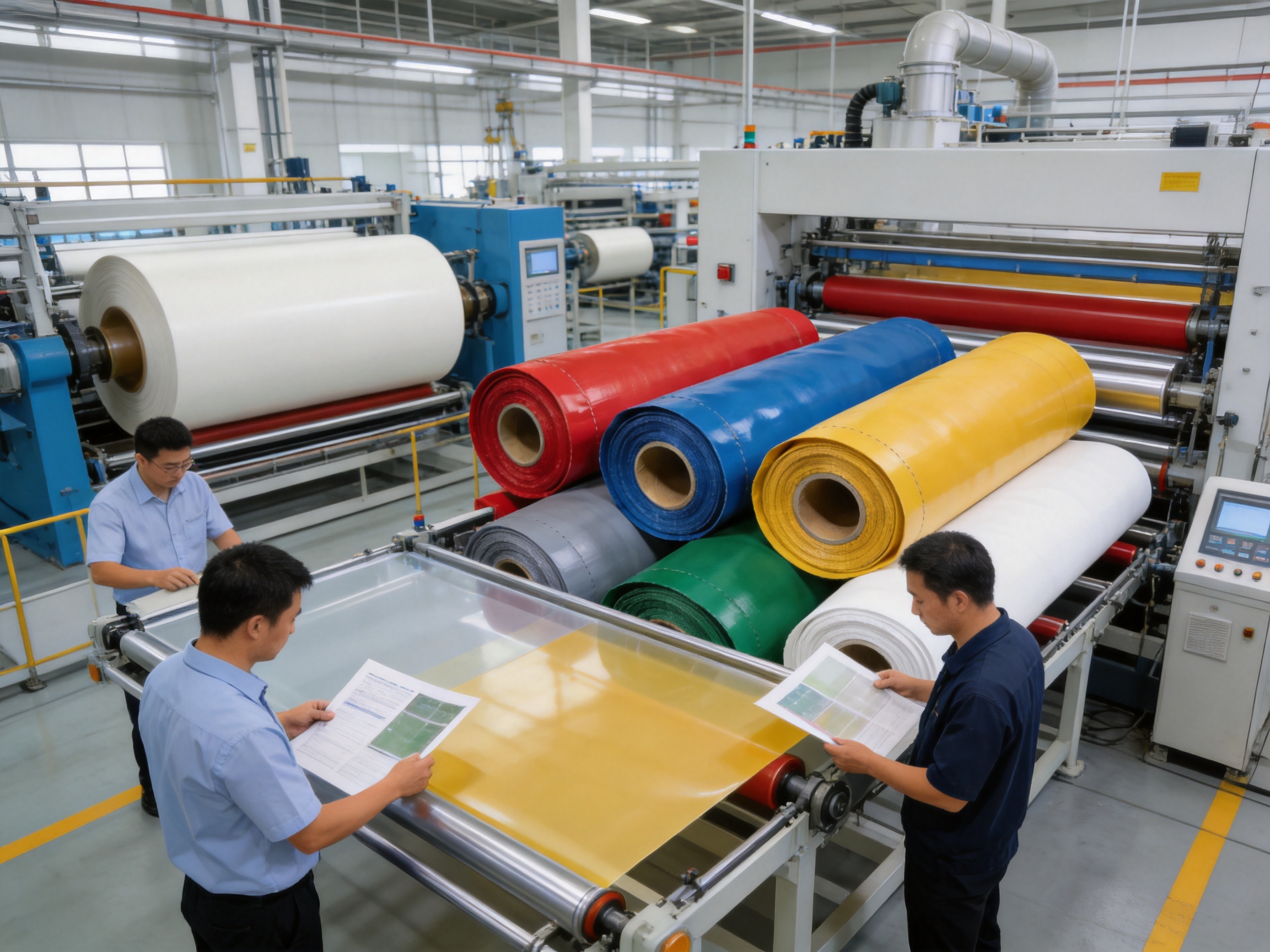

Manufacturing Process and Quality Control Strength

The performance of a PVC coated polyester fabric depends not only on raw material specifications but also on manufacturing precision. Advanced production processes determine whether the coating bonds properly, whether the thickness remains consistent, whether the color is stable, and whether the fabric performs reliably across its full width and length.

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park in Haining City, Zhejiang Province, China. With years of experience in flexible materials, decorative materials, functional sports materials, and industrial coated fabrics, the company has built a product system that includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and related products.

This broad manufacturing background is a major advantage. A company that works across multiple coated and laminated material categories develops stronger knowledge of polymer formulation, textile reinforcement, surface finishing, calendering, lamination, coating stability, quality inspection, and application-specific customization. Such experience supports better product engineering for heavy-duty membrane fabric.

Raw Material Selection

Manufacturing begins with the selection of polyester base fabric and PVC compound. The polyester base must meet requirements for yarn strength, density, uniformity, and dimensional stability. If the base fabric has uneven tension, inconsistent density, or defects in the weave, the finished coated fabric may show weak spots or surface irregularities.

The PVC compound must also be carefully formulated. Plasticizers, stabilizers, pigments, flame-retardant agents, UV absorbers, anti-mildew additives, and other functional components may be used depending on the target application. The correct formulation helps the fabric achieve flexibility, weather resistance, color performance, flame behavior, and processability.

Coating and Lamination Control

During production, the PVC layer must be applied evenly and bonded firmly to the polyester base. Peeling strength is a critical indicator because it reflects the adhesion between textile and coating. The product’s peeling strength value of approximately 100 N/5cm demonstrates strong composite bonding.

Poor bonding can lead to delamination, blistering, water intrusion, and reduced service life. Advanced process control helps prevent these issues by managing temperature, pressure, coating thickness, line speed, and material tension. Consistency is especially important for membrane projects where large fabric sections are welded and tensioned after fabrication.

Surface Treatment Options

Acrylic and PVDF surface treatments improve the fabric’s usability in outdoor environments. Acrylic treatment can enhance surface protection and cleaning performance. PVDF treatment is often selected for higher-end applications that require improved dirt resistance, weatherability, and long-term appearance retention.

Surface finishing also affects welding and fabrication behavior. A well-designed finish must balance anti-fouling performance with practical processing requirements. The manufacturer’s experience in PVC coated and laminated materials supports this balance, helping customers choose the correct surface treatment for their specific application.

Inspection and Testing

Quality control should include weight measurement, thickness measurement, tensile strength testing, tearing strength testing, peeling strength testing, surface inspection, color checking, and roll packaging inspection. For projects requiring special compliance, flame-retardant testing and restricted substance testing can also be arranged according to project needs.

The product can be designed to meet flame-retardant classifications such as B1, B2, M1, M2, NFPA-701, and C 19, depending on specifications and order requirements. For health and environmental considerations, formulations may also be developed to meet requirements such as RoHS, REACH, and EN71-3. These options are valuable for customers working in international markets or public projects with defined material standards.

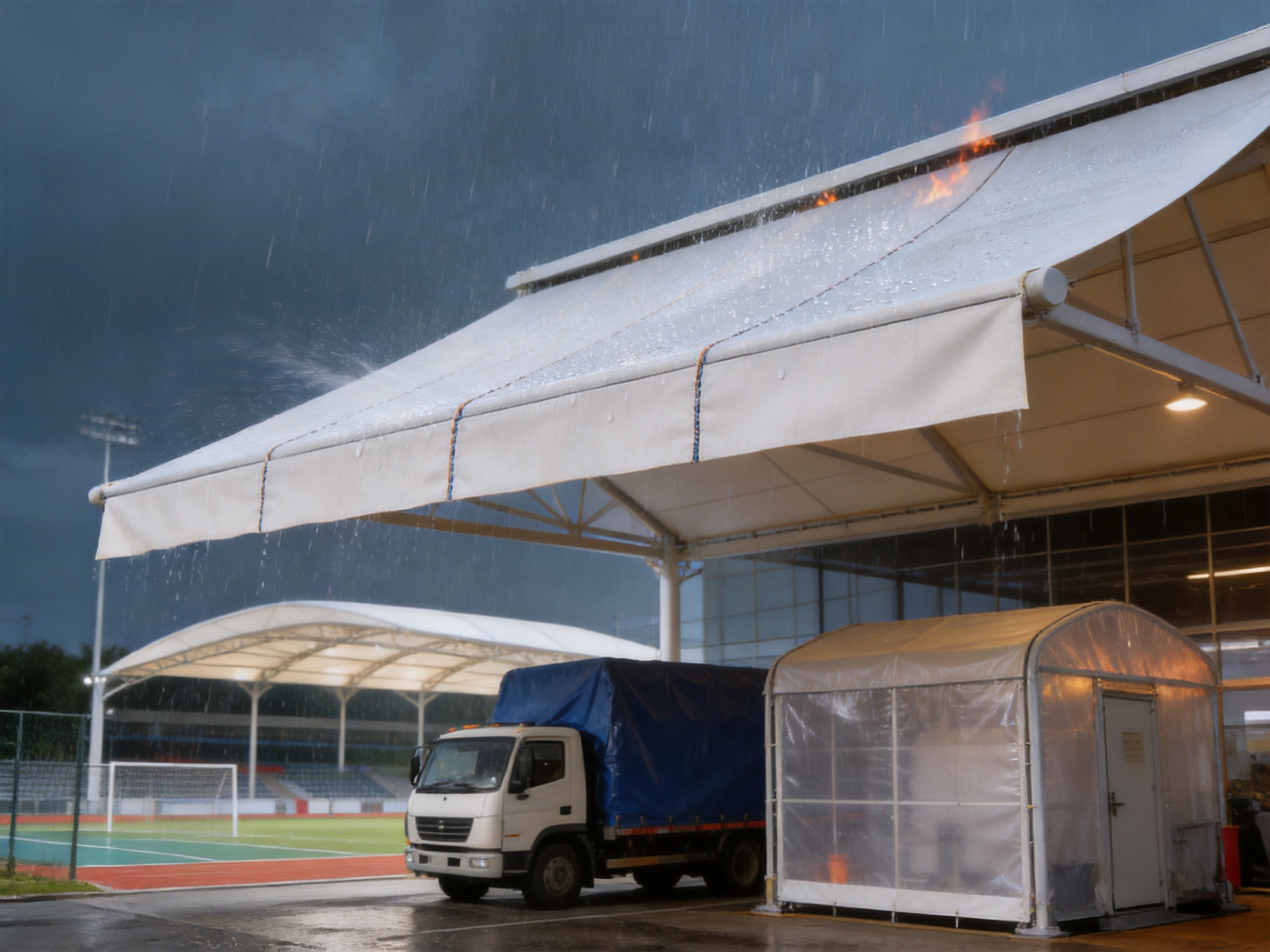

Performance in Harsh Outdoor Environments

Outdoor membrane fabric must survive a complex combination of stress factors. Sunlight, rain, wind, temperature changes, pollution, dust, microorganisms, and mechanical movement can all affect performance. The value of this fabric lies in its ability to resist multiple challenges at the same time.

The temperature range of approximately -50°C to +70°C makes the fabric suitable for diverse climates. In cold regions, flexibility and frost resistance help reduce the risk of cracking. In hot climates, coating stability and UV resistance help slow aging. In rainy environments, waterproofing and mildew resistance are crucial. In urban environments, chemical resistance and cleanability help maintain appearance.

Wind is a major concern for membrane structures. When a membrane is tensioned correctly, it can distribute loads efficiently. However, the fabric itself must have sufficient tensile strength and tear resistance. This product’s reinforced polyester base supports the tensioned design concept and reduces risk under dynamic weather conditions.

UV exposure is another important factor. Sunlight can degrade many polymer surfaces over time, causing brittleness, fading, and surface chalking. PVC formulations can be enhanced with UV-resistant additives, while surface treatments can provide additional protection. This helps the material maintain both performance and appearance during outdoor use.

Applications in Architecture and Industry

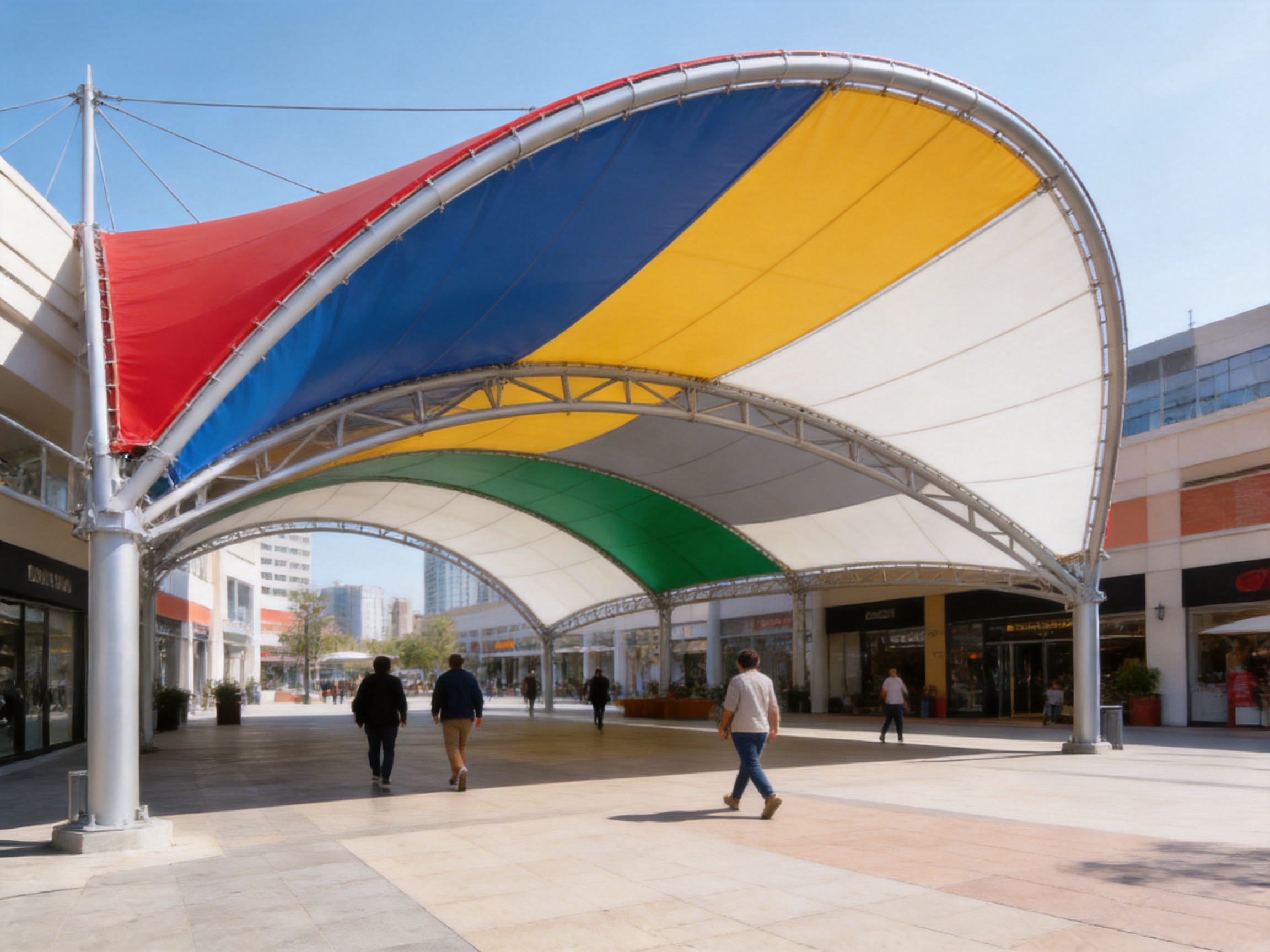

Membrane Structure Roofs

The product is especially suitable for architectural membrane roofs. These structures are widely used in commercial plazas, sports venues, exhibition areas, parking zones, public walkways, hotel entrances, garden landscapes, and transportation stations. The fabric provides waterproof protection while enabling attractive curved and tensioned forms.

Its colorful options allow the roof to become part of the architectural language rather than a purely functional cover. Designers can create structures that stand out in public spaces, coordinate with surrounding buildings, or express a specific theme.

Awnings and Canopies

For awnings and canopies, the fabric offers strength, shade, waterproofing, and visual appeal. It can be used for storefronts, outdoor dining areas, leisure spaces, entrance covers, and pedestrian shelters. Its high tear resistance is valuable in places exposed to wind and repeated movement.

Outdoor Advertising and Display Structures

Although heavier than standard banner material, this fabric can be used in demanding outdoor display structures where durability is more important than lightweight handling. It is suitable for long-term installations, exhibition coverings, and branded outdoor environments where color and surface quality matter.

Sports Facilities

Sports facilities often require large weather-resistant covers for spectator areas, training spaces, swimming pools, and temporary event zones. The fabric’s waterproofing, tensile strength, and flame-retardant options make it suitable for such public-use environments. Color customization can also support team, venue, or event identity.

Transportation Covers

The fabric can be used for tarpaulins and covers for trucks, ships, and other transport-related applications. Its resistance to rain, sunlight, chemical exposure, and mechanical stress supports protective covering needs. The strong polyester base helps resist tearing during use and handling.

Industrial Protection

In industrial settings, the material can serve as a durable cover or enclosure fabric. Chemical resistance, waterproofing, and mechanical strength are valuable for protecting equipment, materials, and working areas. Flame-retardant options can be selected where safety requirements apply.

Fabrication and Installation Benefits

For fabricators, a membrane material must not only perform after installation but also process reliably in the workshop. This fabric can be cut, welded, and shaped for different structural designs. PVC coated fabrics are commonly joined by hot-air welding, high-frequency welding, or other suitable techniques depending on equipment and project requirements.

Strong peeling strength supports reliable seam performance, while consistent thickness helps maintain predictable welding behavior. Stable base fabric density helps reduce distortion during cutting and assembly. These properties reduce production errors and improve installation efficiency.

The fabric’s flexibility allows it to be packed and transported in rolls, which simplifies logistics compared with rigid roof panels. On site, fabricated membrane panels can be tensioned over frames or support systems to create large covered spaces. This can shorten installation time and reduce the need for heavy structural components.

For contractors, fewer material failures mean less rework. For owners, better durability means reduced maintenance and longer replacement intervals. For designers, the fabric enables more freedom in form and color. These combined benefits make it more than a simple covering material; it is a practical architectural system component.

Flame-Retardant and Compliance Options

Safety is essential in public and commercial structures. PVC itself has flame-retardant characteristics, and with suitable additives the material can be formulated to meet higher flame-retardant requirements. Available classifications may include B1, B2, M1, M2, NFPA-701, and C 19, depending on project specification and testing requirements.

Flame-retardant performance is especially important for sports facilities, exhibition halls, event spaces, public shelters, commercial canopies, and building-related installations. Selecting the correct flame-retardant level should be based on local regulations, project type, building codes, and customer requirements.

Beyond flame performance, international buyers may need materials aligned with RoHS, REACH, EN71-3, or other standards related to restricted substances and safety. The ability to formulate and supply according to these requirements is a competitive advantage, especially for customers selling into regulated markets.

Sustainability and Responsible Material Design

Modern buyers increasingly consider environmental and health factors in material selection. PVC coated polyester fabric is a durable material, and durability itself is an important sustainability factor because longer service life can reduce replacement frequency and material waste. A fabric that performs for a longer period can lower the total environmental burden associated with repeated manufacturing, transportation, installation, and disposal.

Polyester fibers and PVC materials can be designed within responsible production frameworks. Formulation choices can support compliance with restricted-substance requirements, and process control can reduce waste during manufacturing. When project requirements call for specific environmental standards, material formulation and testing can be adjusted accordingly.

The company’s broad product platform in decorative, sports, and flexible materials supports continuous innovation in functional surfaces, coating systems, and compliant formulations. This helps customers select materials that match both technical and responsible sourcing expectations.

Why Manufacturer Strength Matters

In heavy-duty coated fabric, the supplier’s capabilities matter as much as the product specification. A data sheet may list weight and strength, but actual project success depends on stable production, consistent quality, technical communication, customization capability, and delivery reliability.

Zhejiang MSD Group Share Co., Ltd. has developed through continuous research and development since 2002. Its product range covers multiple application scenarios, including advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and other flexible materials. This diversified experience allows the company to understand different market requirements and apply cross-category technical knowledge to membrane fabric production.

The company’s location in Haining City’s warp knitting industrial area provides access to a strong textile manufacturing ecosystem. Such an industrial environment supports material sourcing, technical talent, process development, and supply-chain efficiency. For customers, this can translate into more stable production and better support for customized orders.

Independent innovation is another important strength. Coated fabric markets are competitive, and customers increasingly require materials with special colors, surface treatments, flame-retardant grades, weather resistance, environmental compliance, and application-specific performance. A manufacturer that emphasizes technology and product innovation is better positioned to respond to these needs.

Selection Guidance for Buyers

When selecting this fabric for a project, buyers should evaluate application conditions, required service life, local climate, structural design, flame-retardant standards, color requirements, surface treatment preferences, and fabrication method. A membrane roof in a coastal area may require strong UV and anti-mildew performance. A public sports facility may require specific flame-retardant certification. A commercial canopy may prioritize custom colors and surface cleanliness.

Buyers should also consider whether acrylic or PVDF surface treatment is more suitable. Acrylic may be selected for general protection and cost-effective performance. PVDF may be preferred for higher-end projects where dirt resistance and long-term appearance are especially important.

For large projects, sample testing and prototype fabrication are recommended. Testing can confirm welding behavior, color matching, surface finish, and mechanical performance. Proper installation design is equally important. Even a high-quality fabric must be tensioned and supported correctly to achieve its full performance potential.

Maintenance Recommendations

Routine maintenance helps extend service life and preserve appearance. Surfaces should be cleaned periodically according to local pollution levels. Mild cleaning agents and soft tools are generally preferred. Harsh solvents or abrasive methods should be avoided unless approved for the specific surface treatment.

Inspection should focus on seams, edges, fastener areas, tension points, and locations exposed to abrasion. Early identification of minor damage can prevent larger issues. Drainage should also be considered in membrane design because long-term water pooling can increase stress on the fabric and supporting structure.

Proper maintenance is one of the reasons high-quality membrane fabric offers strong life-cycle value. The combination of strong base fabric, protective PVC coating, and suitable surface treatment provides a reliable foundation, while regular care helps preserve that performance over time.

Q&A Section

What is 1050GSM 1000D 30X32 PVC coated polyester fabric?

It is a heavy-duty coated textile made with a 1000D polyester base fabric and PVC coating. The 1050GSM weight indicates a thick and durable finished fabric, while the 30X32 density reflects a strong woven structure suitable for membrane architecture and industrial covers.

What makes this fabric suitable for membrane structures?

It combines high tensile strength, strong tear resistance, waterproof PVC coating, flame-retardant options, outdoor weather resistance, and dimensional stability. These qualities allow it to perform well in tensioned roofs, canopies, awnings, and large outdoor structures.

How does it compare with ordinary PVC tarpaulin?

Ordinary PVC tarpaulin may be suitable for general covering, but this fabric is heavier, stronger, and better suited for structural applications. Its 1000D base fabric, 1050GSM weight, and high tensile values provide a more reliable solution for demanding outdoor use.

Can the fabric be customized in different colors?

Yes. One of the major advantages of this product is colorful customization. It allows designers and project owners to move beyond traditional white membrane structures and create visually distinctive architectural or commercial spaces.

What surface treatments are available?

Acrylic and PVDF surface treatments are available according to project requirements. These treatments can improve surface protection, weatherability, anti-fouling properties, and long-term appearance.

Is the fabric waterproof?

Yes. The PVC coating provides strong waterproof performance, making the fabric suitable for roofs, canopies, tarpaulins, and other applications that require rain protection.

Can it meet flame-retardant standards?

The fabric can be designed with flame-retardant options such as B1, B2, M1, M2, NFPA-701, and C 19, depending on customer and project requirements. Buyers should confirm the required standard before ordering.

What temperature range can it handle?

The fabric is designed for a temperature range of approximately -50°C to +70°C. This makes it suitable for many cold, temperate, and warm outdoor environments.

What are the main applications?

Main applications include membrane structure roofs, awnings, canopies, outdoor advertising structures, sports facility covers, transportation tarpaulins, ship covers, truck covers, industrial protection, and commercial shade systems.

Why is manufacturer experience important for this product?

Heavy-duty coated fabric requires precise control of yarn quality, coating formulation, thickness, adhesion, color consistency, and surface treatment. An experienced manufacturer with broad flexible-material capabilities can provide more stable quality, better customization, and stronger technical support.

Conclusion

1050GSM 1000D 30X32 colorful membrane structure PVC coated polyester fabric is a high-performance solution for projects that require strength, durability, waterproofing, flame-retardant options, and design flexibility. Its reinforced polyester base provides the mechanical foundation, while the PVC coating delivers weather resistance, chemical stability, waterproof performance, and surface protection.

The product offers clear advantages over many competitor materials. It is stronger than lightweight coated fabrics, more durable than low-coating alternatives, more colorful than traditional white-only membrane materials, and more flexible in design than rigid construction materials. Its suitability for membrane roofs, awnings, canopies, sports facilities, transportation covers, and industrial protection makes it a versatile choice for demanding outdoor applications.

Backed by advanced manufacturing processes, coating expertise, customization capability, and long-term experience in flexible materials, the product represents a strong balance of engineering performance and architectural possibility. For buyers seeking a reliable PVC coated fabric with both practical strength and visual freedom, this 1050GSM colorful membrane fabric is a compelling solution.

References

GB/T1040, Plastics: Determination of Tensile Properties.

GB/T16578, Test Methods Related to Tear Resistance of Flexible Materials.

GB/T3917, Textiles: Tear Properties and Related Testing Methods.

FZ/T01003, Textile Testing Methods for Fabric Structure, Weight, and Thickness.

NFPA 701, Standard Methods of Fire Tests for Flame Propagation of Textiles and Films.

REACH Regulation, European Union Framework for Registration, Evaluation, Authorisation and Restriction of Chemicals.

RoHS Directive, European Union Restriction of Hazardous Substances Framework.

EN71-3, Safety of Toys: Migration of Certain Elements.
