PVC Front Projection Film Projector Screen Fabric: Optical Precision, Durable Performance, and Flexible Installation

PVC front projection film projector screen fabric is a specialized display material developed for projection systems in which the projector and audience are positioned on the same side of the screen. It combines the flexibility of a roll-based PVC material with the optical control required for professional visual presentation. By using a matte white, light gray, ultra-matte, or micro-perforated surface, the film can be adapted to home theaters, conference rooms, classrooms, museums, retail environments, temporary events, and projection-mapping installations.

Unlike ordinary white fabric, painted walls, basic vinyl sheets, or rear projection screens, a purpose-designed front projection film is engineered to manage reflected light, image uniformity, surface glare, color consistency, and dimensional stability. These characteristics determine whether a projected image appears sharp and natural or suffers from hot-spotting, visible waves, washed-out blacks, color shifts, and distracting reflections.

The material described in this article is based on a PVC construction with optical microstructures or matte white coatings. It offers a controlled gain range of approximately 0.8 to 1.5, a wide viewing angle of up to 160 degrees, standard roll widths from 1.2 to 2.5 meters, and continuous production widths of up to 3.2 meters. It is also available in B1 fire-rated configurations, 4K UHD-compatible surfaces, UV-stabilized formulations, custom-gain versions, and perforated options for acoustic transparency.

For buyers, system integrators, architects, rental companies, and projection professionals, the value of this type of screen material lies not only in its basic PVC composition. Its performance depends on formulation design, calendering or coating accuracy, embossing control, tension behavior, quality inspection, roll handling, and application-specific customization. A reliable manufacturer must therefore combine polymer expertise, optical-material development, production discipline, and application support.

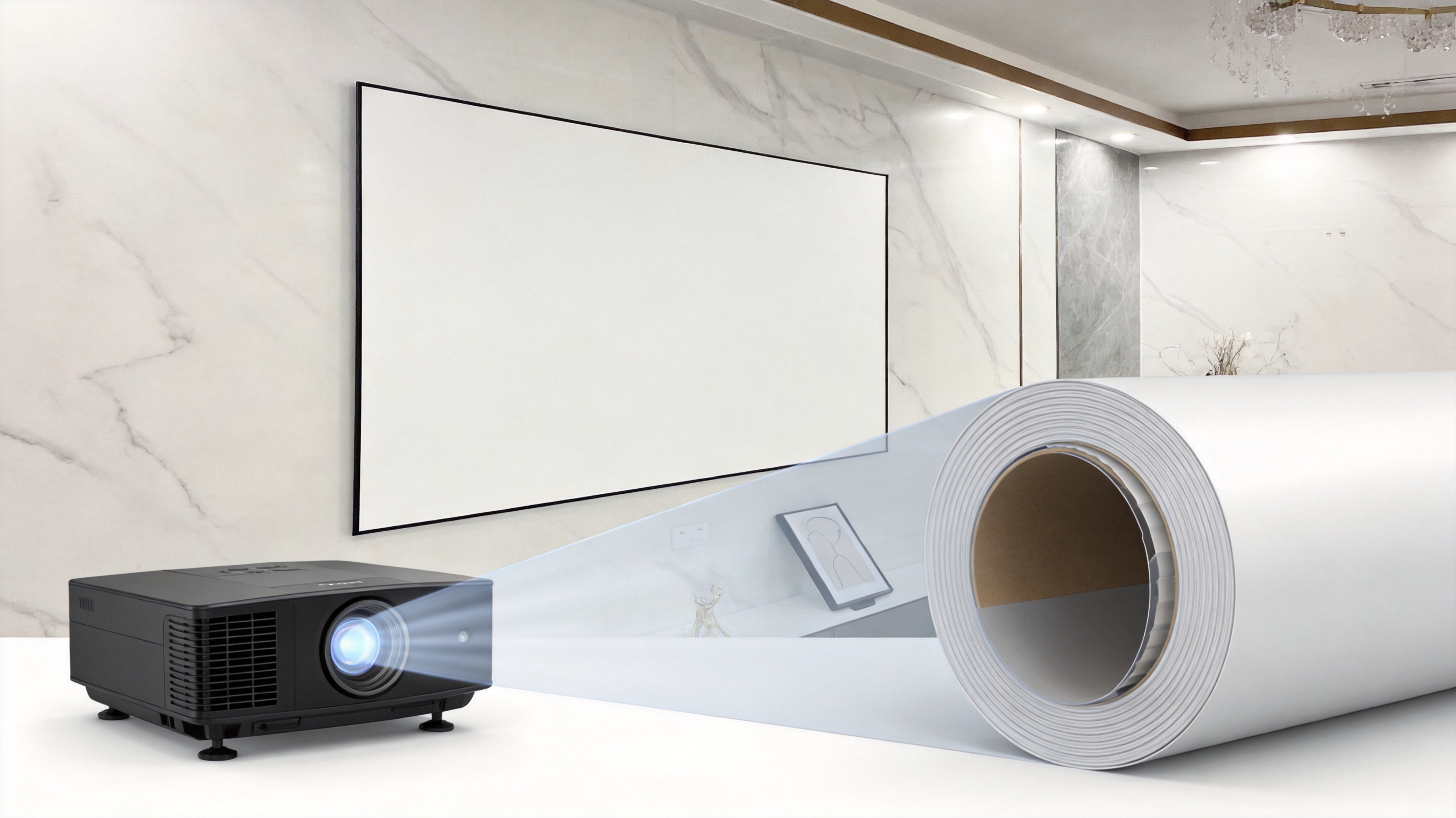

PVC Front Projection Film Projector Screen Fabric

What Is PVC Front Projection Film?

PVC front projection film is a flexible screen material designed to reflect projected light toward viewers located in front of the screen. The projector sends light onto the viewing surface, and the surface diffuses or redirects that light in a controlled manner. The objective is to preserve image brightness and sharpness while limiting glare, hot-spotting, and uneven color reproduction.

The film is manufactured from a PVC-based structure that may include a supporting layer, optical surface layer, backing layer, stabilizers, pigments, and optional acoustic or ambient-light-rejection elements. The exact layer construction can be adjusted according to the intended application. A matte white structure is generally suitable for controlled dark-room projection, while a light gray or gray-backed version may improve perceived contrast in rooms with moderate ambient light.

Front projection film does not need open space behind the screen. This is a major difference from rear projection material, which must allow the projector’s light to pass through the screen from the rear. Because front projection film reflects light back toward the audience, it can be attached to a wall, stretched over an aluminum frame, installed in a fixed screen assembly, or used in a portable projection structure.

The material can be supplied in seamless rolls for large-format screen fabrication. Where a screen exceeds the maximum continuous production width, multiple panels can be joined by high-frequency welding. When the weld is properly aligned and positioned, the seam has minimal visual impact during projection. This makes the material practical for large venues and immersive installations that require dimensions beyond standard screen sizes.

Optical Microstructure and Controlled Reflection

The viewing surface incorporates embossed micro-patterns generally ranging from 50 to 150 microns. These microstructures influence the way light is distributed across the viewing cone. Instead of producing a narrow, intense reflection that can cause a bright central spot, the matte surface diffuses light more evenly across a broad area.

Controlled reflection is important when a projection screen will be viewed by a large audience or from multiple seating positions. A narrow viewing angle may produce brightness differences between the center and sides of the screen. By contrast, a wide viewing angle helps viewers experience a more consistent image regardless of their position.

The available gain range of 0.8 to 1.5 allows the screen material to be selected according to projector output, room lighting, viewing distance, and screen size. Lower-gain surfaces prioritize broad diffusion and reduced glare. Higher-gain versions can provide greater apparent brightness when the installation requires additional reflected light, provided the screen is matched correctly to the projector and viewing geometry.

Front Projection Compared with Rear Projection

Rear projection systems are useful when the projector must be hidden behind the screen or when the front viewing area must remain free of equipment. However, rear projection typically requires a dedicated space behind the screen, careful control of ambient light in the projection zone, and sufficient clearance for the projector’s throw path.

Front projection film is more flexible in standard rooms. It can be mounted directly against a wall or tensioned in a shallow frame. This reduces space requirements and simplifies architectural integration. It is particularly suitable for conference rooms, classrooms, home theaters, retail spaces, and temporary event structures where rear clearance is unavailable.

Front projection also permits the use of gray-backed or ambient-light-rejection constructions. These versions absorb or block part of the unwanted light entering the screen structure, helping maintain darker black areas when moderate ambient illumination is present. The specified light-rejection efficiency for the gray-backed version is approximately 65 percent under 100 lux background illumination.

Key Technical Specifications

Performance must be evaluated as a complete system rather than by a single specification. Gain, viewing angle, thickness, weight, tensile strength, surface finish, fire classification, and projector compatibility all influence the result. The following table summarizes the primary characteristics of this PVC front projection film.

Parameter	Specification or Option	Application Significance
Material base	PVC-based flexible projection film	Provides durability, cleanability, and installation flexibility
Gain range	0.8–1.5	Supports controlled brightness and reflection behavior
Viewing angle	Up to 160 degrees	Helps maintain image consistency for wide audiences
Standard width	1.2–2.5 meters	Suitable for common screen and roll-fabrication requirements
Maximum seamless width	Up to 3.2 meters	Reduces the need for welded joints in large screens
Total thickness	0.28–0.42 millimeters	Balances flexibility, handling, and dimensional stability
Weight	380–520 GSM	Supports robust fabrication while remaining manageable
Tensile strength	At least 220 N/5 cm in warp and weft	Supports tensioned-frame installation
Elongation at break	Not more than 25 percent	Helps limit excessive deformation during handling
Operating temperature	-10°C to +50°C	Suitable for many indoor and temporary installation conditions
Fire classification	B1 option	Supports projects requiring self-extinguishing PVC materials
Resolution compatibility	4K UHD compatible	Supports high-definition projection without visible moiré patterns
Surface finishes	Matte white, light gray, ultra-matte, micro-perforated	Allows the material to be matched to room and acoustic conditions
Roll lengths	20, 30, or 50 meters	Provides flexible purchasing and fabrication options
Core diameter	76 millimeters inner diameter	Compatible with standard roll-handling practices

These values should be treated as technical reference points for product selection. The final performance of a completed projection screen also depends on projector brightness, lens type, throw ratio, room lighting, screen size, mounting tension, backing construction, and viewing distance. Project designers should confirm the appropriate finish and gain before placing a large production order.

Advantages over Conventional Screen Materials

More Consistent Image Distribution

A conventional fabric, painted wall, or unengineered PVC sheet may reflect light irregularly. Surface fibers, coating variation, wrinkles, and inconsistent gloss can create visible brightness differences. The optical microstructure of a purpose-made projection film is designed to produce more controlled diffusion. This improves the consistency of brightness and color across the screen.

The specified color uniformity of ΔE 2.5 or lower across the full surface indicates a strong focus on consistent visual reproduction. Although the final result depends on the projector and environment, a uniform screen surface gives the projection system a more stable foundation for accurate color presentation.

Reduced Hot-Spotting

High-lumen projectors can expose weaknesses in reflective screen materials. If the surface is too glossy or directional, the center of the screen may appear significantly brighter than the edges. This hot-spotting is especially distracting in business presentations, cinema scenes with large bright areas, and immersive projection displays.

The matte white surface and embossed micro-patterns help reduce intense specular reflection. The material is designed to maintain a smooth visual appearance under projectors with high light output. This gives it an advantage over ordinary glossy vinyl, untreated PVC, and improvised projection surfaces.

Wide Viewing Angle

A viewing angle of up to 160 degrees is beneficial in conference rooms, lecture halls, museums, and event spaces where viewers are not seated directly in front of the screen. A wide half-gain cone helps reduce the brightness drop experienced by people sitting toward the sides.

This feature also gives interior designers greater freedom when positioning seating, walkways, exhibits, and furniture. The screen does not need to be treated as a narrow viewing corridor, which can simplify the layout of multipurpose spaces.

Support for 4K UHD Content

Modern projection systems increasingly deliver 4K UHD content, fine text, detailed technical drawings, and high-resolution video. Screen materials with coarse texture, irregular gloss, or unsuitable perforation patterns can soften details or create moiré artifacts.

The smooth optical construction of this film is specified as 4K UHD compatible and designed to avoid visible moiré patterns. This makes it suitable for high-resolution home cinema, digital signage, museum content, professional presentations, and projection mapping in which image detail is important.

Improved Maintenance

The viewing side includes a cross-linked acrylic top coat that helps protect the optical surface from ordinary dust, fingerprints, and light handling marks. Routine cleaning can be performed with a dry microfiber cloth. For deeper cleaning, a diluted isopropyl alcohol solution at approximately 30 percent concentration can be used without damaging the optical microstructure, provided the cleaning method is controlled.

This cleanable surface offers a practical advantage over delicate coated papers, untreated projection fabrics, or screens that require special repainting after minor contamination. The material is also described as waterproof, stain-resistant, and wrinkle-resistant, making it easier to maintain over repeated use.

Flexible Fabrication and Installation

The film can be fabricated into fixed screens, portable structures, tensioned frames, wall-mounted displays, and large-format projection surfaces. It supports spring or spline attachment methods and can be joined through high-frequency welding when larger dimensions are required.

Because the film is supplied in rolls, converters and screen manufacturers can cut it according to project dimensions. This reduces dependence on one fixed screen size and allows the same material family to support multiple markets.

Surface Finish Options for Different Projection Environments

Matte White Finish

Matte white is the standard finish for controlled projection environments such as dedicated home theaters, dark classrooms, presentation rooms with managed lighting, and cinema-style installations. It provides broad light diffusion and a natural appearance without requiring additional screen paint after installation.

Its gain can be selected within the controlled product range according to projector output and screen dimensions. A matte white screen is often the most balanced choice when the installation prioritizes wide viewing angles, natural color, and reduced glare.

Light Gray Finish

Light gray versions are intended for installations with moderate ambient light. The gray tone and backing construction can help improve perceived black levels by reducing the visual effect of unwanted room illumination. This is useful in conference rooms with windows, retail spaces, multipurpose halls, and home theaters that cannot be completely darkened.

The light gray finish may also be considered for ultra-short-throw systems. The material can accept projection from throw ratios of approximately 0.19 to 0.5, and the gray version may reduce perceived brightness falloff at extreme projection angles. Projector and screen compatibility should still be verified through a sample evaluation before final installation.

Ultra-Matte Finish

Ultra-matte surfaces are suited to dark-room use where the main objective is controlled, glare-free image presentation. They are useful when the projector has sufficient brightness and the audience may include viewers seated close to the optical axis or at wide side angles.

The reduced surface reflection of an ultra-matte finish can make long viewing sessions more comfortable. It also limits reflections from ceiling lamps, wall fixtures, and other low-level light sources.

Micro-Perforated Finish

Micro-perforated film is designed for applications requiring acoustic transparency. Small perforations allow sound from speakers positioned behind the screen to pass toward the audience. This supports immersive theaters, auditoriums, exhibition installations, and integrated audiovisual systems in which the sound source must remain visually hidden.

Perforated materials require careful projector and screen selection. The perforation pattern, viewing distance, projector resolution, and installation tension must be coordinated to prevent visible texture or interference. When used correctly, the acoustic option can provide a clean relationship between visual and audio design.

Manufacturing Process and Quality Control

The performance of projection film begins with manufacturing control. Optical screen material cannot be treated as ordinary decorative vinyl because small variations in thickness, gloss, pigment dispersion, embossing, or tension behavior may become visible when enlarged by a projector.

PVC Formulation Development

The production process starts with formulation design. PVC resin is combined with carefully selected plasticizers, stabilizers, pigments, processing aids, and functional additives. The formulation must provide flexibility without excessive elongation, durability without brittleness, and a stable surface that can accept the required optical texture.

For long-term indoor performance, UV absorbers and hindered amine light stabilizers are included in the PVC formulation. Accelerated aging testing based on ISO 4892-2 is specified to show a color change below ΔE 2.0 after 2,000 hours of xenon arc exposure. In typical indoor conditions without direct sunlight, visible yellowing is expected to remain minimal for approximately seven to ten years.

Formulation development also determines whether the material can meet a B1 fire classification. A self-extinguishing PVC base can support projects in public buildings and commercial environments where fire performance is part of the material specification.

Compounding and Dispersion

After weighing and batching, the raw materials are compounded to distribute additives and pigments evenly. Uniform dispersion is essential for color consistency and optical stability. Poor dispersion may cause streaks, specks, weak areas, or differences in reflected brightness across the finished roll.

Advanced manufacturing requires controlled temperature, mixing time, shear conditions, and feeding rates. These variables affect the thermal history of the PVC and help prevent degradation during processing. Production records can be used to trace each batch and compare it with approved reference samples.

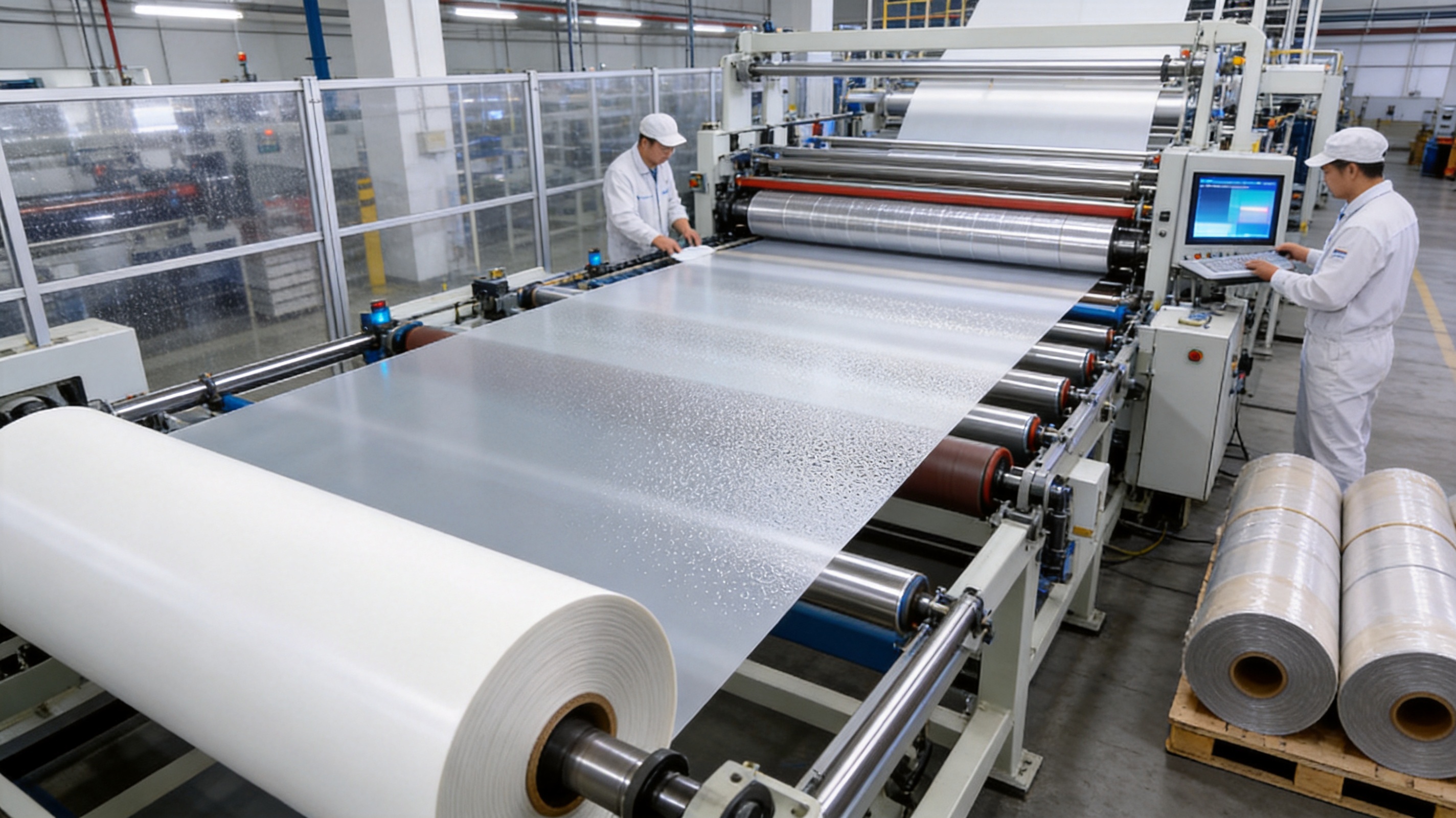

Calendering or Layer Formation

The compounded PVC can be processed into a film through controlled layer-forming equipment such as calendering lines or related coating and laminating systems. Thickness must remain within the target range of 0.28 to 0.42 millimeters. A stable thickness profile supports predictable tension behavior and consistent optical performance.

Layer construction may include a front optical layer, a structural PVC layer, a backing layer, and optional gray or acoustic components. The backing layer helps manage light penetration and can improve black-level reproduction in ambient-light conditions. For non-coated versions, a black felt or closed-cell foam backing panel may also be installed behind the screen during frame preparation to prevent light bleed-through.

Embossed Surface Engineering

The surface texture is one of the most important stages in projection-film production. Embossing rollers or controlled texturing systems create micro-patterns generally measuring between 50 and 150 microns. The pattern must be sufficiently uniform to diffuse light while retaining image sharpness.

Too much surface texture can soften fine details or become visible at short viewing distances. Too little texture can increase glare and hot-spotting. The manufacturer therefore needs accurate roller preparation, temperature management, pressure control, and line-speed coordination.

Surface inspection may include gloss measurement, optical gain testing, visual examination under projected light, and comparison with approved samples. A screen material can appear visually acceptable under ordinary room lighting yet reveal defects when illuminated by a high-output projector. Projection-based inspection is therefore especially valuable.

Acrylic Top-Coat Application

The cross-linked acrylic surface layer provides additional protection for the optical face. Coating uniformity affects cleanability, surface feel, gloss, and optical behavior. The top coat must bond securely without filling or obscuring the intended microstructure.

Coating conditions should be controlled for viscosity, application weight, drying or curing temperature, and line speed. The finished surface is evaluated for adhesion, appearance, stain resistance, and compatibility with recommended cleaning agents.

Dimensional and Mechanical Testing

Mechanical testing confirms that the film can be tensioned and handled without unacceptable deformation. The specified tensile strength is at least 220 N/5 cm in both warp and weft directions, while elongation at break is limited to 25 percent or less.

Dimensional stability is particularly important for tension-frame screens. When installed correctly, the material is expected to retain flatness within approximately 2 millimeters per linear meter. The recommended maximum tension is 1.2 kN/m, which helps prevent edge distortion and excessive stress on the film.

Testing may include tensile strength, elongation, tear behavior, heat aging, low-temperature flexibility, surface adhesion, fire performance, and roll inspection. These tests help identify whether the material is suitable for fixed installation, portable use, repeated fabrication, or demanding commercial applications.

Roll Winding and Packaging

Even a well-manufactured film can be damaged during winding, storage, or transport. The projection surface should be rolled inward to protect the optical face. A 76-millimeter inner core supports stable winding and handling. Rolls are supplied in lengths of 20, 30, or 50 meters, depending on project requirements.

Packaging should protect the roll from crushing, moisture, contamination, and sudden temperature changes. Storage is recommended at temperatures from 5°C to 35°C, horizontally on flat pallets. No more than five rolls should be stacked high, reducing the risk of deformation to the embossed optical surface.

Manufacturing Strengths and Product Development Capability

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in Haining City, Zhejiang Province, within the Warp Knitting Industrial Park. The company has developed a broad flexible-material portfolio that includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and related products.

This product diversity is relevant to projection-film production because many technical capabilities are shared across flexible materials. Polymer formulation, coating control, calendering, laminating, fabric reinforcement, surface treatment, roll handling, and quality management can support the development of specialized projection surfaces.

The company emphasizes independent innovation and treats research and development as a core part of competitiveness. For buyers, this means that product development can be approached as a technical project rather than only as a standard commodity purchase. Requirements such as custom gain, special widths, fire classification, gray backing, perforation, UV stabilization, or large-format welding compatibility can be discussed according to the application.

A manufacturer with experience across decorative, advertising, sports, architectural, and outdoor materials is also better positioned to understand the practical challenges of installation. Projection screens must remain flat, clean, dimensionally stable, and visually consistent. These requirements overlap with the production demands of other premium flexible materials, especially where roll quality and long-term durability are important.

Manufacturing strength is also reflected in the ability to provide seamless rolls up to 3.2 meters wide. Wider screens can be fabricated from several panels through high-frequency welding. The weld line should be carefully controlled so that it produces minimal image interruption. Maintaining pattern alignment and using consistent welding parameters are essential for professional results.

Customization is another important strength. A single screen specification cannot meet every projection environment. Projectors vary in brightness, lens design, throw ratio, resolution, and color output. Rooms vary in ambient light, seating arrangement, wall color, acoustic requirements, and installation depth. Offering several finishes and custom-gain options enables the manufacturer to provide a more application-specific solution.

Installation Design and Tensioning Procedure

Frame Preparation

For a tensioned installation, an extruded aluminum frame with a minimum depth of 25 millimeters is recommended. The frame must be square, with corner tolerance controlled within approximately 1 millimeter. A frame that is not square can transfer distortion to the film and create diagonal waves or uneven edges.

The wall or backing structure should be checked before the screen is installed. Uneven supports can create pressure points behind the film. A backing panel made from black felt or closed-cell foam may be used behind non-coated versions to reduce light bleed-through and improve the apparent depth of dark image areas.

Attachment Methods

The film is compatible with spring and spline attachment systems. Spring systems distribute tension around the perimeter and make it easier to adjust the screen during installation. Spline systems can provide a clean edge finish when the frame has a suitable retaining channel.

Regardless of the attachment method, the installer should avoid pulling one corner to full tension before the opposite side is connected. Uneven tension can create diagonal stress, edge distortion, and localized brightness changes. The material should be positioned and gradually tensioned in a balanced sequence.

Recommended Tensioning Sequence

Installation should begin at the center of each side, followed by gradual movement toward the corners. A manual roller stretcher can help apply even tension without creating sharp localized pulls. The objective is a flat, drum-like surface rather than maximum force.

The recommended maximum tension is approximately 1.2 kN/m. Excessive tension may damage the edge, distort the frame, or change the surface structure. After installation, the screen should be checked with a straightedge. The recommended deviation is below 3 millimeters per meter for the completed installation.

Once the screen is mounted, the projector should be aligned with the screen plane. Keystone correction should be minimized where possible because excessive digital correction can reduce image resolution. The projector’s height, horizontal position, throw ratio, and lens shift should be confirmed before finalizing the screen dimensions.

High-Frequency Welded Seams

For screens wider than 3.2 meters, multiple panels can be joined with high-frequency welded seams. The weld should run vertically when possible, and the optical pattern should remain aligned across the joined panels. The welding temperature, pressure, dwell time, and electrode condition must be controlled to prevent visible ridges or uneven reflection.

Before producing a large screen, it is good practice to project a test image onto a welded sample. A uniform gray field, fine grid, white field, and dark scene can reveal seam visibility, brightness change, and image distortion more effectively than ordinary room lighting.

Applications Across Commercial and Residential Markets

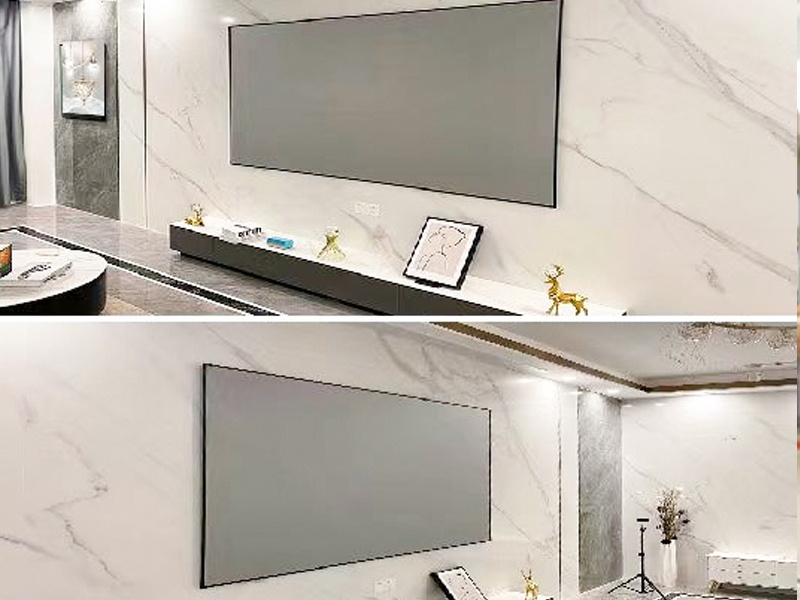

Home Theater Rooms

Dedicated home theaters benefit from the natural diffusion and wide viewing angle of the matte white or ultra-matte finish. The material can be stretched over a fixed frame to create a clean, architectural appearance. Micro-perforated versions may be selected when speakers need to be placed behind the screen.

For rooms with windows or low-level ambient illumination, the light gray finish can improve perceived contrast. The correct gain should be selected according to projector brightness and screen size rather than simply choosing the highest available gain.

Conference and Meeting Rooms

Conference rooms often require a screen that can be viewed from long tables and side seating. The wide viewing angle helps maintain image consistency during presentations. The washable surface is valuable in high-use environments where fingerprints and dust may accumulate around the screen edges.

The film can be installed as a wall-mounted screen or tensioned frame. Its shallow installation depth is useful when meeting rooms have limited space or when the screen must integrate with architectural wall panels.

Classrooms and Interactive Displays

Educational environments require legible text, diagrams, and video from different seating positions. A uniform, low-glare surface helps students view content without distracting reflections from ceiling lighting. The 4K-compatible construction also supports high-resolution instructional content.

Because the material is waterproof and cleanable, it can be maintained in classrooms, laboratories, training centers, and shared teaching spaces. Installation design should account for repeated contact near the screen perimeter and protect the edges with a suitable frame.

Museums and Immersive Installations

Museums use projection to create immersive rooms, historical reconstructions, interactive exhibits, and large-scale visual storytelling. These installations may require custom sizes, multiple screen planes, welded panels, or carefully controlled gray surfaces.

The film’s flexible roll format allows it to follow a planned wall or frame geometry more easily than rigid panels. Its optical uniformity supports multi-projector installations, although edge blending and projector calibration remain important parts of the system design.

Retail Window Projection Mapping

Retail displays often operate under ambient light and must attract attention from multiple viewing directions. A light gray or custom-gain finish may help preserve contrast while maintaining a wide viewing area. The material can be incorporated into temporary campaigns, seasonal displays, product launches, and projection-mapped storefronts.

Retail installations should protect the film from sharp objects, direct physical impact, and uncontrolled outdoor exposure. UV stabilization helps with light resistance, but long-term outdoor use should be evaluated separately according to local climate and exposure conditions.

Temporary Events and Rental Screens

Portable projection screens used for exhibitions, conferences, festivals, and corporate events require a balance of weight, strength, rollability, and visual performance. The film’s roll configuration and flexible installation options support rapid fabrication and transport.

Rental operators should establish procedures for inspection after every event. Creases, punctures, edge damage, stains, and incorrect winding can reduce the useful life of a projection screen. Proper storage on a stable core is especially important when the material will be installed and removed repeatedly.

Maintenance, Cleaning, and Storage

Routine Cleaning

Dust accumulation can reduce apparent gain and image sharpness. The screen should be cleaned every three to six months in normal indoor use, with more frequent cleaning in dusty commercial environments. A clean, dry, anti-static microfiber cloth should be used first.

For fingerprints or stubborn marks, distilled water containing approximately 0.5 percent neutral soap can be applied to a soft cloth. The surface should then be wiped with a clean damp cloth and dried immediately. Cleaning should be performed gently, using straight strokes rather than aggressive circular scrubbing.

Cleaning Products to Avoid

Abrasive powders, rough paper towels, strong solvents, concentrated alcohol, ammonia-based cleaners, and unapproved chemical sprays may damage the acrylic top coat or alter the optical microstructure. Cleaning agents should never be poured directly onto the screen.

Before using any cleaning solution over a large area, the installer or operator should test it on a small inconspicuous section or a spare sample. This is particularly important for light gray, ultra-matte, and micro-perforated finishes.

Storage and Transport

During storage and transport, the film should be rolled with the printed or projection surface facing inward. The roll should remain on its core and be protected from crushing. Horizontal storage on flat pallets is recommended, with a storage temperature between 5°C and 35°C.

Rolls should not be placed near heaters, direct sunlight, corrosive chemicals, or sources of moisture. Stacking should be limited to five rolls high to avoid pressure deformation. Before installation, the material should be allowed to acclimate to the installation room so that temperature differences do not create unnecessary tension changes.

Repair of Small Punctures

Small punctures under approximately 5 millimeters can be repaired by applying clear PVC repair tape to the rear side. The front optical surface should not be covered with ordinary tape because the repair may create a visible reflection or interfere with image diffusion.

For larger damage, a patch can be cut from spare material. The edges of the patch may be beveled at approximately 45 degrees before hot-air welding. A suggested welding temperature is around 180°C, but the actual temperature and dwell time should be confirmed using a test piece and the equipment manufacturer’s recommendations.

Welding should be carried out from the rear whenever possible. Direct welding on the optical front face can permanently alter the surface texture and produce an obvious image defect.

How to Select the Correct Projection Film

The first selection factor is room lighting. In a dedicated dark room, matte white or ultra-matte film may provide the most natural result. In rooms with moderate ambient illumination, light gray or gray-backed material may improve perceived contrast. A screen cannot eliminate all ambient light, so lighting control remains important even when an ambient-light-rejection version is selected.

The second factor is projector brightness. A high-gain material is not automatically better. If the projector is already bright and the room is small, excessive gain may increase hot-spotting or reduce viewing uniformity. Lower-gain surfaces may be more comfortable and more consistent for a wide audience.

The third factor is projector type. Standard-throw and long-throw projectors generally provide greater flexibility in screen selection. Ultra-short-throw projectors require careful attention to surface texture, viewing angle, and reflection geometry. A sample test is recommended before large-scale production.

The fourth factor is screen size. Larger screens require appropriate projector brightness, stable frame construction, and adequate tension. If the required width exceeds the seamless production limit, panel joining should be planned during the design stage rather than treated as a last-minute modification.

The fifth factor is sound integration. If speakers must be hidden behind the screen, the micro-perforated option may be appropriate. Acoustic transparency must be evaluated alongside image quality because perforation can influence brightness, resolution, and viewing distance.

The sixth factor is regulatory compliance. Public venues, schools, museums, and commercial buildings may require a specific fire classification. The B1-rated option provides a solution for projects that specify a self-extinguishing PVC base, subject to confirmation of local certification requirements.

Performance Testing and Project Acceptance

Professional project acceptance should include both material testing and complete-system evaluation. A projection screen may meet its material specification yet perform differently if it is installed with poor tension, exposed to excessive ambient light, or paired with an unsuitable projector.

Visual inspection should examine the entire screen for scratches, wrinkles, stains, pinholes, uneven coating, edge distortion, and color variation. The screen should then be tested with white, black, gray, red, green, blue, and fine-detail images. Uniform fields can reveal gain variation, while dark scenes can show light bleed-through and contrast limitations.

For tensioned screens, the installer should measure sag and edge straightness. Deviation should remain below the specified installation tolerance. The frame should also be checked for squareness, and the attachment points should be inspected for equal distribution of tension.

Optical testing may include gain measurement, viewing-angle analysis, contrast evaluation, color-uniformity measurement, and inspection for moiré. The stated contrast maintenance target is at least 1200:1 under a 2,000-lumen projection condition. Actual contrast will also depend on projector contrast, room reflections, screen size, and ambient light.

Fire classification, tensile strength, dimensional stability, and aging data should be documented where required by the project. Batch records and retained samples can help with quality traceability, especially for large commercial installations involving multiple screen panels or repeat orders.

Why Material Engineering Matters to Buyers

Purchasing a projection screen material solely by price can create hidden costs. A low-cost film may require more frequent replacement, produce an uneven image, show visible seams, or be difficult to tension. It may also lack reliable technical data for gain, viewing angle, fire performance, and aging behavior.

Material engineering provides a more predictable basis for project planning. Buyers can compare products according to measurable performance rather than appearance alone. A manufacturer that can provide multiple finishes, custom gain, fire-rated options, perforated structures, and large seamless widths can reduce the need to source separate materials for different applications.

Technical communication is equally important. Projection material should be selected through dialogue between the film manufacturer, screen fabricator, projector supplier, installer, and end user. Information about throw ratio, brightness, screen size, room lighting, seating layout, acoustic requirements, and installation method allows the material to be specified correctly.

The flexible-material experience of Zhejiang MSD Group Share Co., Ltd. supports this type of project-oriented cooperation. Its product portfolio covers a variety of PVC films, coated fabrics, architectural materials, advertising materials, and functional flexible products. This broad base allows the company to combine production scale with application-specific development.

Its location in Haining’s Warp Knitting Industrial Park also places the company within an established manufacturing environment for flexible materials and textile-related technologies. Alongside independent research and development, this industrial setting supports access to production experience, technical collaboration, and supply-chain resources.

Environmental and Service Considerations

Durability is one part of sustainable material use. A projection screen that remains flat, cleanable, and visually stable for many years does not need to be replaced as frequently as an unstable or easily damaged alternative. UV stabilizers and controlled PVC formulation can help extend service life in indoor installations and reduce visible color change.

Efficient roll production can also reduce material waste when the screen is cut according to project dimensions. Seamless widths up to 3.2 meters reduce the number of joints required for many installations. When welding is necessary, careful panel planning can reduce offcuts and simplify fabrication.

Responsible use also requires correct end-of-life planning. Project owners should consult local waste-management requirements for PVC materials, coatings, adhesive residues, and welded components. The environmental profile of the finished installation depends on the complete construction, including frame, backing, adhesives, hardware, and transportation.

From a service perspective, supplying installation guidance, cleaning instructions, storage recommendations, repair methods, and technical data is as important as supplying the roll itself. Clear documentation reduces avoidable damage and helps installers achieve the performance demonstrated during material testing.

Frequently Asked Questions

Can PVC front projection film be used with an ultra-short-throw projector?

Yes. The matte white surface is designed to accept projection from approximately 0.19 to 0.5 throw ratios without significant hot-spotting under suitable conditions. For ultra-short-throw systems, the light gray finish may help reduce perceived brightness falloff at extreme angles. The projector, lens, screen size, and installation geometry should be tested together before final approval.

What is the maximum seamless screen width?

Continuous production supports widths of up to approximately 3.2 meters. Screens wider than this can be fabricated by joining multiple panels with high-frequency welding. The seam should be aligned vertically where possible, and the optical pattern should be matched across the joint. Proper welding and projector alignment are necessary to minimize seam visibility.

Will the projection surface yellow over time?

The PVC formulation includes UV absorbers and hindered amine light stabilizers. Accelerated xenon-arc aging based on ISO 4892-2 is specified to show a color change below ΔE 2.0 after 2,000 hours. In typical indoor installations without direct sunlight, visible yellowing is not expected for approximately seven to ten years, although actual service life depends on exposure and maintenance.

Is the material suitable for 4K UHD projection?

Yes. The projection surface is specified as 4K UHD compatible and designed to avoid visible moiré patterns. Image quality also depends on projector resolution, lens quality, screen tension, viewing distance, perforation selection, and the cleanliness of the optical surface.

Can the screen be washed?

The screen should not be machine-washed or soaked. Light dust can be removed with a dry anti-static microfiber cloth. For deeper cleaning, use distilled water with approximately 0.5 percent neutral soap, followed by a clean damp cloth and immediate drying. A diluted isopropyl alcohol solution around 30 percent may be used for some deeper marks, but testing on a small area is recommended first.

How should the material be stored?

Roll the material with the projection surface facing inward and keep it on a stable 76-millimeter core. Store rolls horizontally on flat pallets at temperatures from 5°C to 35°C. Avoid moisture, direct sunlight, heating equipment, and excessive stacking. Stacking more than five rolls high may deform the optical surface.

Can damaged areas be repaired?

Small punctures under approximately 5 millimeters can be repaired with clear PVC repair tape applied to the rear side. Larger damage may require a patch cut from spare material and welded with hot air. The repair should be performed on the rear side whenever possible, because welding or taping the optical front surface can create visible image defects.

Is a backing panel required?

A black felt or closed-cell foam backing panel is recommended behind non-coated versions to reduce light bleed-through. Gray-backed versions already incorporate light-absorbing layers that help improve black-level reproduction in moderate ambient light. The appropriate backing construction should be confirmed according to the selected finish.

What fire classification is available?

A B1 fire-rated option is available. It uses a self-extinguishing PVC base and may be suitable for projects requiring improved fire performance. Buyers should confirm the exact test report and local regulatory requirements for the intended building or venue.

Can the gain be customized?

Custom gain is available for projects with specific projector brightness, screen size, viewing angle, or ambient-light requirements. Customization should be evaluated using project information and sample testing because gain affects brightness, reflection distribution, and viewing uniformity.

What installation method is recommended?

A tensioned aluminum frame with spring or spline attachment is recommended for a flat, professional screen. The frame should be at least 25 millimeters deep and square within approximately 1 millimeter. The fabric should be attached from the center of each side outward toward the corners, using even tension rather than excessive force.

Where is the material manufactured?

The product is supplied by Zhejiang MSD Group Share Co., Ltd., a flexible-material manufacturer established in 2002 and headquartered in Haining City, Zhejiang Province, China. The company operates within the Warp Knitting Industrial Park and develops a broad range of PVC films, coated fabrics, architectural materials, and functional flexible products.

Conclusion

PVC front projection film projector screen fabric offers a practical and technically controlled alternative to ordinary fabric, painted walls, untreated vinyl, and rear projection materials. Its front-reflective design eliminates the need for rear clearance, while the optical microstructure helps manage gain, glare, hot-spotting, and viewing-angle uniformity.

The combination of 4K UHD compatibility, available gain from 0.8 to 1.5, viewing angles up to 160 degrees, flexible roll widths, B1 fire-rated options, washable surface protection, UV stabilization, and micro-perforated acoustic versions allows the material to serve a wide range of projection environments.

Its success in a completed installation depends on correct selection and professional handling. Projector specifications, ambient lighting, throw ratio, screen dimensions, frame accuracy, tension, backing, cleaning, and storage must all be considered. When these factors are coordinated, the film can provide a flat, durable, and visually consistent projection surface for residential, commercial, educational, cultural, and event applications.

The manufacturing capabilities of Zhejiang MSD Group Share Co., Ltd. add further value through PVC formulation expertise, optical-surface development, flexible-material production, customization, roll manufacturing, and application support. For buyers seeking a screen material that combines optical performance with fabrication flexibility, this PVC front projection film represents a strong option for both standard and specialized display projects.

References

1. Internal product technical information for PVC Front Projection Film Projector Screen Fabric.

2. ISO 4892-2, Plastics—Methods of Exposure to Laboratory Light Sources—Part 2: Xenon-Arc Lamps.

3. General principles of projection-screen gain, viewing-angle measurement, and reflected-light distribution.

4. Technical guidance for PVC film calendering, coating, embossing, and flexible-material quality control.

5. Installation and maintenance recommendations for tensioned projection screens and aluminum frame systems.

6. Fire-performance classification principles for flexible polymeric materials used in interior applications.

Product: PVC Front Projection Film Projector Screen Fabric
