610gsm Printable Laminated Backlit Flexible Banners: Performance, Manufacturing Quality, and Display Advantages

In modern advertising, visual impact must be combined with durability, print quality, installation convenience, and reliable performance in changing environments. A backlit banner is not simply a printed sheet. It is a carefully engineered flexible material designed to distribute light, support high-resolution graphics, resist mechanical stress, and maintain a professional appearance throughout its service life. The 610gsm Printable Laminated Backlit Flexible Banner is developed for applications that require strong visual communication together with dependable physical performance.

With a total weight of 610 grams per square meter, a 500x500 denier base fabric, an 18x12 thread configuration, and a PVC film structure, this banner is designed to provide a balanced combination of strength, flexibility, printability, and weather resistance. Its laminated construction supports demanding advertising applications, while the backlit design helps printed graphics appear brighter and more vivid when illuminated from behind.

This type of banner is suitable for illuminated signs, retail displays, exhibition structures, shopping mall promotions, transit advertising, commercial facades, event backdrops, and other applications where graphics must remain visible during both daytime and nighttime operation. Its available width range of 1.02 to 5.1 meters also allows it to serve both compact display systems and large-format advertising installations.

The product is manufactured by Zhejiang MSD Group Share Co., Ltd., a flexible materials producer based in Haining, Zhejiang Province, China. Since its establishment in 2002, the company has developed product capabilities covering advertising flex banners, PVC calendered films, ceiling films, drop stitch fabrics, sunshade fabrics, waterproof fabrics, mesh fabrics, tarpaulins, and related flexible materials. This broad production background is important because it brings experience in polymer films, coated textiles, laminating, industrial finishing, and application-specific material development.

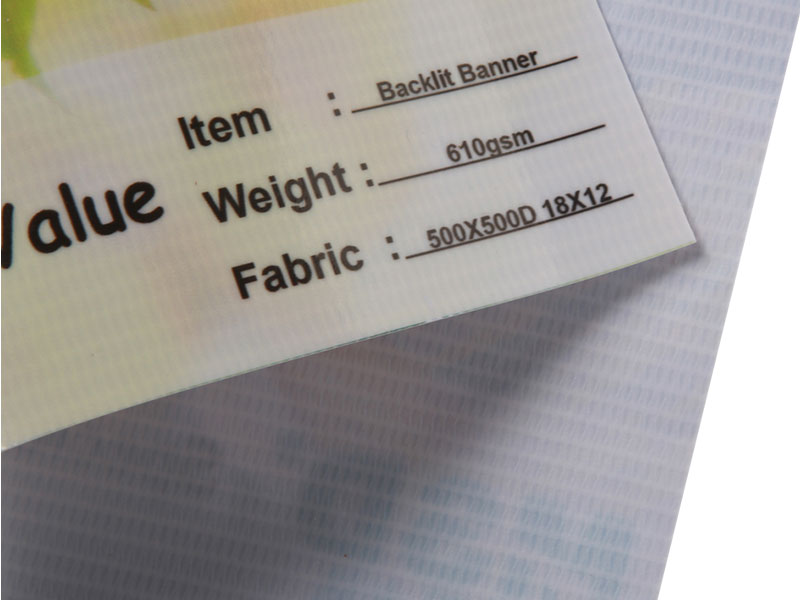

610gsm Printable Laminated Backlit Flexible Banners

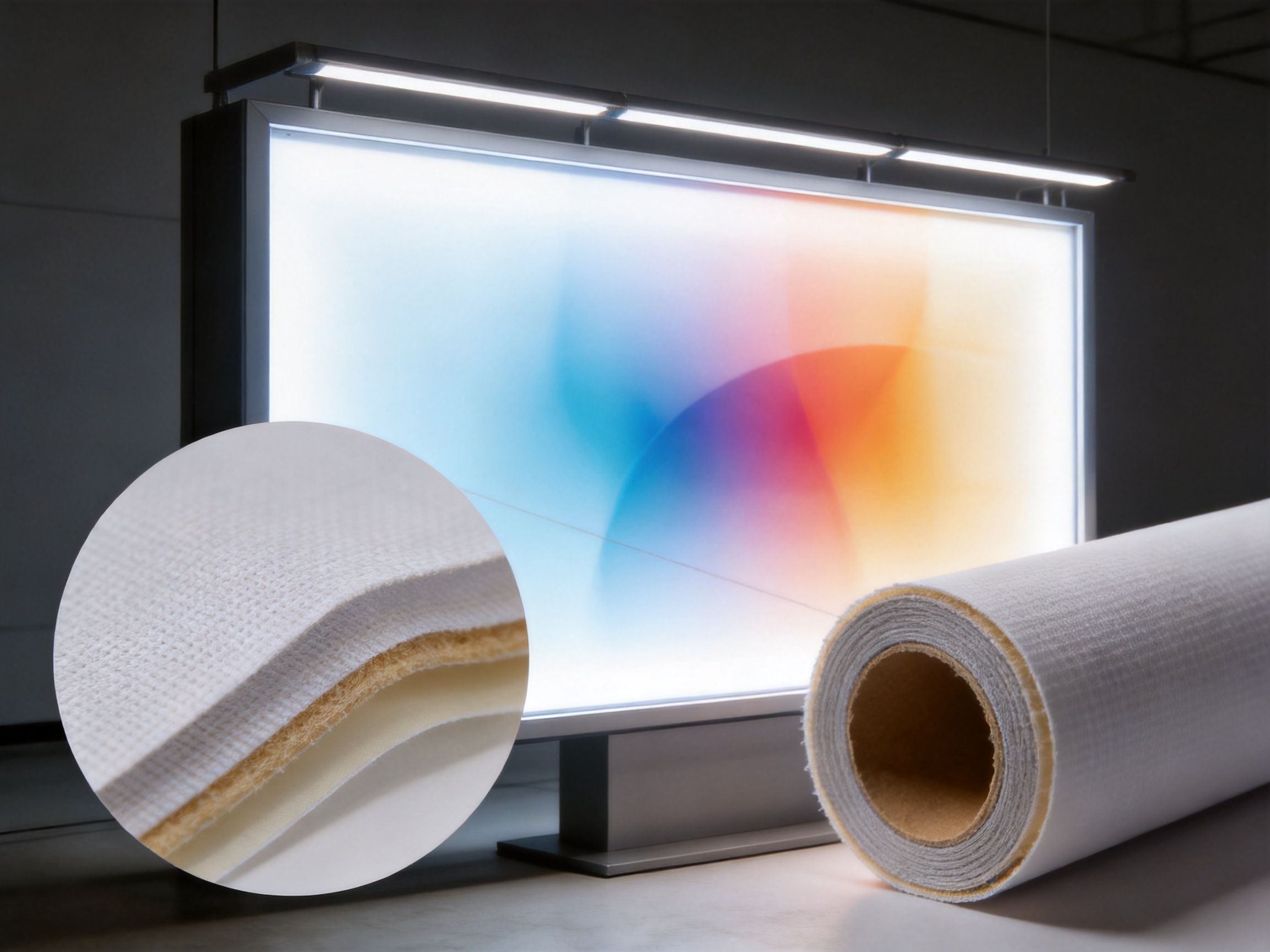

1. Understanding the Construction of a 610gsm Backlit Banner

The performance of a flexible banner depends on more than its surface appearance. Its structure normally consists of a woven base fabric, PVC coating or film layers, printing-compatible surfaces, and, in laminated products, bonding interfaces that join the different layers into a stable composite. Each component contributes to the final product.

1.1 High-strength woven base fabric

The basic fabric specification is listed as 500x500 denier. Denier describes the linear density of the yarn used in the textile structure. A 500x500 construction indicates that both the warp and weft systems use substantial yarn dimensions, creating a supportive framework for the PVC layers and printed graphics.

The reported thread configuration is 18x12 threads per square inch. This construction provides a practical balance between tensile strength, dimensional stability, flexibility, and coating coverage. A suitable thread count helps the material resist deformation when it is tensioned across a frame or installed over a large sign structure.

The textile core is particularly important for wide-format banners. When a banner is several meters wide, it may experience wind pressure, handling stress, folding during transport, and repeated tension at hems or fixing points. A stable woven base helps distribute these forces rather than allowing them to concentrate in the printed or laminated surface.

1.2 PVC film layers

PVC is used as the film component of the banner. It is widely applied in outdoor graphics because it can be formulated for flexibility, weather resistance, surface smoothness, and compatibility with different printing technologies. In this product, PVC contributes to the barrier properties of the banner while also supporting the smooth visual surface required for printed advertising.

The PVC layer helps limit the penetration of moisture and protects the internal textile structure. It also provides a consistent surface for ink reception. When the film is properly formulated and processed, the surface can retain clear colors, sharp text, and graphic details without immediately becoming rough or uneven during handling.

1.3 Laminated construction

Lamination joins the textile and film components through controlled heat, pressure, and bonding conditions. The purpose is to create a strong, stable composite instead of a loosely assembled material. Proper lamination supports the integrity of the product during printing, fabrication, installation, and long-term use.

One of the key indicators of laminated quality is peeling strength. The product data lists a peeling strength of 60 N/5 cm according to DIN53357. This value indicates that the layers are designed to resist separation when the banner is exposed to tension, flexing, temperature changes, and routine handling.

A strong laminated interface is especially valuable around sewn hems, welded edges, eyelets, pole pockets, and other fabricated areas. These locations may experience concentrated stress. If the layers separate easily, the banner can lose its appearance and structural stability. A reliable lamination process reduces this risk.

1.4 Backlit optical performance

The banner is designed for backlit applications, meaning that light is positioned behind the material. The printed graphic is viewed as light passes through or is diffused by the flexible banner. This creates a strong illuminated effect that can make colors more noticeable and improve nighttime visibility.

Backlit graphics require a material surface that can receive ink evenly while maintaining a controlled relationship between opacity and light transmission. If the material is too opaque, the illumination may appear weak. If it is too transparent or uneven, bright spots and shadows can appear behind the graphic. A properly engineered backlit banner helps create a more consistent visual field.

The laminated structure also supports dimensional stability. A material that changes shape excessively under heat can cause wrinkles, uneven tension, or graphic distortion when the lighting system is operating. Stable construction is therefore important for both appearance and maintenance.

2. Main Technical Specifications

The following table summarizes the principal specifications supplied for the product. Actual production values may be confirmed through the technical data sheet, sample approval, and project-specific quality documentation.

Item	Unit	Reference Test	Data
Basic fabric	Denier	DIN60001	500x500
Threads per square inch	Threads/in²	DIN53853	18x12
Total weight	g/m²	DIN53352	610
Total weight	oz	Product specification	18
Film	—	—	PVC
Tensile strength, lengthwise	N/5 cm	DIN53354	1,650
Tensile strength, crosswise	N/5 cm	DIN53354	1,900
Tearing strength, lengthwise	N/5 cm	DIN53363	550
Tearing strength, crosswise	N/5 cm	DIN53363	510
Peeling strength	N/5 cm	DIN53357	60
Temperature resistance	°C	DIN53372	-30 to +70
Available width	m	Product specification	1.02 to 5.1
Fire-retardant options	—	Available by request	B1, M2, B2, DIN75200, NFPA701

With a listed total weight of 610gsm, the product is positioned as a substantial, heavy-duty banner material. The approximate 18-ounce specification provides an additional customary weight reference for buyers who work with imperial units. The heavier construction can provide a more substantial feel than lightweight banner products and can be advantageous when a sign must remain stable across a large frame.

3. Advantages of the 610gsm Construction

3.1 Stronger support for large-format graphics

Large graphics are more demanding than small posters because the material must remain stable across a greater surface area. Any stretching, sagging, or waviness becomes more visible as the banner grows. The 500x500 denier woven base and 610gsm total weight help provide support across wide installations.

The listed tensile strength is 1,650 N/5 cm in the lengthwise direction and 1,900 N/5 cm in the crosswise direction. These values indicate a strong material capable of handling substantial tension when fabricated and installed correctly. The higher crosswise value may be useful in applications where the banner is tensioned laterally across a frame.

Compared with lightweight materials, a heavy-duty laminated banner may provide better resistance to deformation during installation. It can also create a more uniform surface for printed content, particularly when the graphic includes large areas of solid color, fine lettering, or high-contrast imagery.

3.2 Improved resistance to tearing

Tensile strength describes the force required to pull the material apart, while tearing strength describes resistance to the growth of an existing cut or tear. Both properties matter in practical use. A small incision caused by handling, an eyelet, or accidental contact can become a larger failure if the material has poor tear resistance.

The product lists tearing strength of 550 N/5 cm lengthwise and 510 N/5 cm crosswise. These values support the product’s suitability for banners that must be fabricated, transported, tensioned, and exposed to outdoor conditions.

Even with strong tear resistance, correct fabrication remains essential. Reinforced hems, suitable welding or sewing techniques, properly spaced eyelets, and appropriate frame tension help ensure that the material’s strength is used effectively.

3.3 Better durability in outdoor environments

Outdoor advertising materials may encounter sunlight, rain, wind, dust, humidity, temperature variation, and repeated cleaning. The PVC film and laminated textile structure are intended to withstand these common conditions better than many indoor-only display materials.

The specified temperature resistance range of -30°C to +70°C provides a broad operating window for many climates. This range is useful for installations exposed to cold winter conditions, hot summer surfaces, illuminated sign heat, and normal transportation or storage variations.

Temperature resistance does not mean that every installation will perform identically in every climate. Actual service life also depends on ultraviolet exposure, local wind loads, cleaning chemicals, installation tension, frame design, and the duration of exposure. Nevertheless, the stated range demonstrates that the material is designed for more than short-term indoor display use.

3.4 Flexible handling and installation

Although the banner is heavy-duty, it remains a flexible material. It can be rolled for transportation and handled during installation without the rigidity associated with rigid signboards. This reduces the logistical complexity of producing and moving large graphics.

Flexibility is especially valuable for curved display structures, temporary exhibitions, portable advertising frames, and installations where the graphic must be replaced regularly. A flexible banner can adapt to the shape of a suitable support system while maintaining a continuous graphic field.

The combination of flexibility and strength is an important competitive advantage. Some rigid materials offer excellent dimensional stability but require more costly transportation and specialized mounting. Some lightweight flexible materials are easy to handle but may lack the strength and visual stability needed for larger displays. A 610gsm laminated banner seeks to balance these two needs.

4. Printing Advantages and Graphic Quality

4.1 Smooth surface for printed images

The product is described as printable and suitable for processes such as inkjet printing and screen printing. A smooth and consistent PVC surface helps the ink form clean edges and maintain color density. This is important for corporate graphics, retail promotions, directional signs, event branding, and high-resolution photographic images.

A stable surface also helps reduce visual defects caused by uneven coating or excessive texture. Fine text, logos, product photography, gradients, and detailed illustrations can be reproduced with greater clarity when the substrate is properly matched to the ink and printing equipment.

4.2 Suitable for illuminated color effects

Backlit printing changes the way color is perceived. Graphics that look satisfactory under front lighting may appear too dark or washed out when illuminated from behind. Backlit banner materials are selected to support a more effective relationship between ink density, material transmission, and the intensity of the light source.

When the printing profile is correctly adjusted, the illuminated graphic can appear more vivid and attention-grabbing than an unlit sign. This is especially useful in shopping centers, airports, entertainment venues, transportation areas, storefronts, and public spaces where advertising competes with other visual information.

Printers should conduct a test before a large production run. The final appearance depends on ink type, printer settings, color profile, graphic density, lighting distance, light source color temperature, and the design of the sign box. A sample allows the printer and end user to confirm color, brightness, seam position, and overall visual uniformity.

4.3 Reduced need for separate rigid panels

Flexible backlit banners can replace certain rigid illuminated panels in applications where a lightweight, rollable, or changeable graphic is preferred. The material can be produced in large widths and installed over an appropriate supporting frame, reducing the number of visible joints in the graphic.

Fewer joints can create a cleaner visual presentation, particularly when displaying large photographs, architectural imagery, or continuous brand artwork. The absence of multiple hard panels may also simplify graphic replacement when campaigns change frequently.

4.4 Printing process compatibility

Before production, users should verify printer compatibility, ink adhesion, curing requirements, and surface treatment. Depending on the printing system, recommended options may include solvent, eco-solvent, UV, or other technologies approved for the specific material. Screen printing may be selected for certain high-volume or spot-color applications.

Proper preparation is important. The roll should be stored in a clean, dry area and allowed to reach the working environment before printing. Dust, condensation, excessive pressure, or improper winding can influence print quality. The printed material should also be handled according to the curing and drying recommendations of the ink supplier.

5. Manufacturing Process and Quality Control

The final performance of a laminated backlit banner is determined by the consistency of its manufacturing process. A strong product requires coordination between yarn selection, textile construction, PVC formulation, coating, lamination, surface finishing, slitting, winding, and inspection.

5.1 Textile preparation

Manufacturing begins with the preparation of the woven base fabric. Yarn selection affects denier, strength, flexibility, and dimensional stability. The specified 500x500 denier structure is produced through controlled warp and weft insertion, with attention to thread density and fabric uniformity.

During textile production, the fabric must be monitored for broken yarns, open areas, uneven tension, contamination, and construction variation. Any defect in the base fabric can influence coating coverage or become visible in the final banner. Consistent textile preparation therefore provides the foundation for later processing.

The company’s location in Haining’s Warp Knitting Industrial Park provides access to a developed textile manufacturing environment. This regional industrial base supports technical cooperation, equipment access, material sourcing, and experience in textile-based flexible products.

5.2 PVC formulation and processing

PVC flexible films are formulated with resin, plasticizers, stabilizers, pigments, and performance additives. The formulation must be selected according to the required flexibility, surface quality, weather resistance, printability, and end use.

For a backlit banner, the formulation must also support an appropriate optical effect. The material should provide a controlled appearance when illuminated while retaining enough opacity and surface consistency for printed graphics. Excessive variation in additives, pigment dispersion, or film thickness can result in uneven appearance, inconsistent printing, or changes in flexibility.

During processing, temperature, pressure, line speed, and film thickness must be controlled. Stable processing helps produce a uniform film with predictable physical properties across the full roll width.

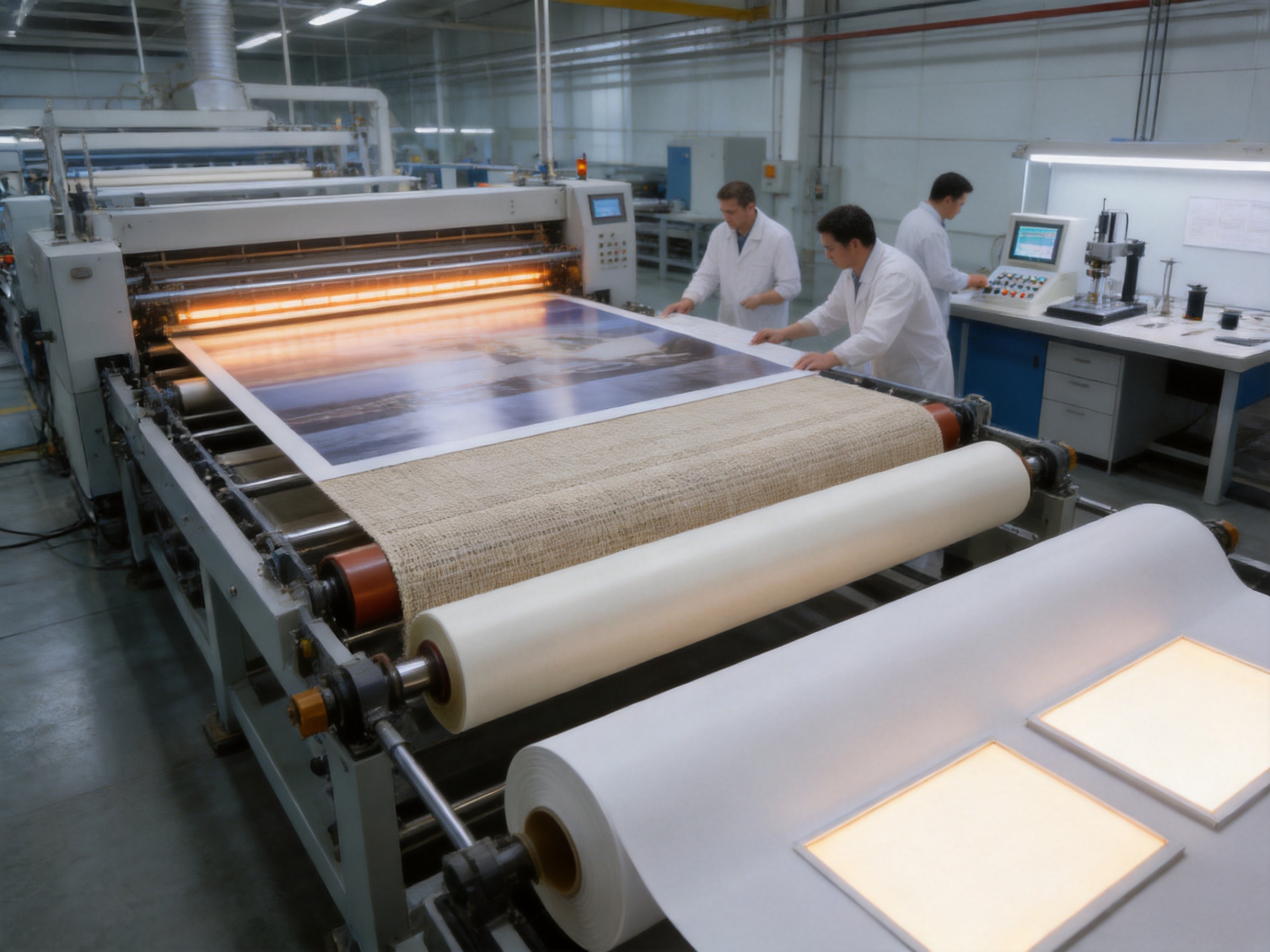

5.3 Coating and lamination

The woven fabric and PVC layers are combined through a controlled coating or lamination process. The goal is to achieve a strong bond without damaging the textile, distorting the film, or introducing excessive internal stress.

Heat and pressure must be balanced carefully. Insufficient heat or pressure may produce weak bonding and low peeling strength. Excessive heat may affect the PVC formulation, reduce flexibility, create surface defects, or distort the textile structure. A modern production line therefore requires accurate control of temperature zones, nip pressure, web tension, and line speed.

The reported peeling strength of 60 N/5 cm reflects the importance of interlayer adhesion. Quality control can include peel testing at defined intervals, visual checks for bubbles or delamination, and inspection of the surface for wrinkles, contamination, pinholes, and coating inconsistency.

5.4 Surface finishing for printability

After lamination, the surface may receive finishing or treatment intended to improve ink adhesion and graphic consistency. The exact treatment depends on the printing technology and the desired product specification.

Surface finishing must be uniform across the roll. A small variation may cause differences in ink absorption or curing, which can become visible as bands, color shifts, or inconsistent gloss. For wide-format applications, uniformity is particularly important because the viewer may observe the entire graphic from a short distance.

5.5 Width control and roll preparation

The available width range is listed as 1.02 to 5.1 meters. Producing wide rolls requires careful control of edge alignment, web tension, thickness, and winding pressure. A roll that is not wound evenly can develop telescoping, edge damage, or wrinkles during transportation and printing.

Roll preparation should include protective packaging suitable for the material weight and shipping conditions. Clear labeling of width, length, batch information, production date, and handling instructions helps customers manage inventory and trace production lots.

5.6 Laboratory and production testing

Physical testing supports consistency between production batches. Tensile, tear, peel, weight, thickness, temperature, and visual tests can be used to confirm that the product meets the agreed specification.

Testing according to recognized methods such as DIN53354, DIN53363, DIN53357, DIN53352, and DIN53372 provides a structured basis for evaluating performance. These test methods do not eliminate the need for application testing, but they help establish repeatable quality indicators.

For projects requiring fire performance, the appropriate classification or certification should be confirmed before ordering. The product information indicates that options can reach B1, M2, B2, DIN75200, and NFPA701 requirements. Certification availability may depend on the exact formulation, construction, production batch, and destination-market documentation.

6. Manufacturing Strengths of the Producer

A material producer with experience across several flexible product categories can bring useful technical knowledge to the development of backlit banners. Zhejiang MSD Group Share Co., Ltd. has a product portfolio that includes advertising flex banners, PVC calendered films, PVC ceiling films, drop stitch fabrics, sunshade fabrics, waterproof PVC fabrics, mesh fabrics, and tarpaulins.

This range indicates experience with different polymer structures, textile substrates, coating methods, and application requirements. Advertising materials need smooth surfaces and reliable printability, while tarpaulins and waterproof fabrics require barrier performance and mechanical durability. Knowledge gained across these categories can support more informed material design.

6.1 Independent product development

The company emphasizes independent innovation and product development. For customers, this can be valuable when a standard product is not sufficient for a particular display system. Project requirements may involve special widths, fire-retardant performance, different surface effects, specific light transmission behavior, or customized packaging.

Internal development capabilities can shorten communication between application needs and production adjustments. Instead of treating every requirement as a simple trading specification, an experienced manufacturer can evaluate the interaction between fabric, PVC film, lamination, printing, and installation.

6.2 Product system covering multiple applications

The company’s three-dimensional product system includes environmentally friendly decorative materials, functional sports materials, and other flexible materials. This broad approach supports material development for indoor, outdoor, architectural, commercial, and specialized applications.

For buyers, a diversified manufacturing base may simplify supplier management. A customer sourcing several flexible materials can potentially work with one experienced producer for different product categories, while still requesting separate technical data and quality standards for each application.

6.3 Industrial location and supply-chain access

Haining is recognized for textile and warp-knitting production. Operating within this industrial environment can support access to textile engineering, technical labor, equipment maintenance, raw material suppliers, and manufacturing services.

Proximity to related industries may also assist in production coordination and technical problem solving. For large orders, this industrial ecosystem can be useful when customers require consistent supply, stable lead times, and scalable production capacity.

6.4 Export-oriented product communication

International customers often require information in multiple measurement systems, standardized test references, fire-retardant options, available widths, and practical installation guidance. A manufacturer serving overseas markets must be able to communicate product limits and performance characteristics clearly.

Technical communication should include a current specification sheet, sample approval procedures, packing details, production tolerances, recommended printing methods, and storage instructions. These documents help printers, sign fabricators, installers, and purchasing teams coordinate their work.

7. Competitive Advantages Compared with Alternative Banner Materials

7.1 Versus lightweight PVC banners

Lightweight PVC banners may be less expensive and easier to transport, but they can be less suitable for large, long-term, or highly visible installations. They may show more movement in wind, offer less resistance to tearing, or appear less substantial when tensioned across a broad frame.

The 610gsm construction provides additional material mass and a stronger textile foundation. This can improve the banner’s stability and perceived quality. For short-term indoor campaigns, a lighter product may be adequate. For demanding illuminated displays, the heavier laminated construction can offer a more durable solution.

7.2 Versus paper-based backlit media

Paper-based backlit materials can provide excellent short-term image quality but may be more sensitive to moisture, tearing, and handling damage. They are generally better suited to controlled indoor environments and temporary promotional campaigns.

A PVC laminated banner offers greater resistance to humidity and physical handling. This makes it more appropriate for storefronts, transport areas, exhibition halls with frequent installation changes, and outdoor sign systems where moisture exposure is possible.

7.3 Versus rigid acrylic or polycarbonate panels

Rigid panels can provide excellent flatness and a polished appearance, but they require more storage space, protective packaging, and careful transportation. Large rigid panels can also be difficult to move through doors, elevators, and narrow access routes.

A flexible banner can be rolled and transported more efficiently. It can also be replaced without removing a large rigid panel system, depending on the frame design. This flexibility may reduce installation time and improve campaign changeover efficiency.

7.4 Versus mesh banners

Mesh banners are designed to allow air to pass through the printed material. They can be useful on construction fences, building facades, and windy locations. However, their open structure may reduce image density and backlit uniformity.

A laminated backlit banner is intended for situations where graphic clarity and illuminated visual impact are more important than maximum wind permeability. Site conditions should always be evaluated before selecting the material. In high-wind areas, structural engineering and an appropriate product design remain essential.

7.5 Versus non-laminated coated fabrics

Non-laminated coated fabrics may offer suitable performance in certain applications, but the absence of a separate laminated structure can limit interlayer design options. A laminated product can be engineered with a textile core and film surfaces selected for different functions, including strength, printability, barrier performance, and appearance.

The listed peel strength demonstrates that the laminated interface is treated as a measurable performance feature rather than an incidental part of the construction. This can provide confidence when the banner will be folded, tensioned, or fabricated repeatedly.

8. Applications Across Commercial and Public Environments

8.1 Retail and shopping mall displays

Retail environments often require advertising that remains attractive throughout the day and becomes more prominent after dark. Backlit banners can be installed in light boxes, illuminated frames, entrance features, promotional walls, and seasonal display systems.

The material’s printable surface supports frequent campaign changes. A retailer can produce graphics for new product launches, holiday promotions, clearance events, brand activities, and store openings. When the frame remains in place, only the graphic may need to be replaced.

8.2 Exhibition and trade-show graphics

Exhibitions require lightweight displays that can be installed quickly and transported between venues. A rollable flexible banner can be more convenient than a rigid graphic panel, particularly when the exhibition stand includes a large illuminated wall or curved structure.

The 610gsm structure provides a professional appearance and can help the graphic remain stable when properly fixed. It can be used for company messages, product images, large logos, architectural backgrounds, and information panels.

8.3 Storefront and building signage

Illuminated storefront displays are commonly viewed from different distances and angles. The graphic must be bright enough to attract attention without appearing uneven or distorted. A wide-format backlit banner can create a continuous advertising surface across a storefront or facade.

For permanent or semi-permanent installations, the support frame, drainage, ventilation, lighting distance, and fixing method should be designed together with the banner. The material is one part of a complete sign system and should not be treated as a substitute for proper structural planning.

8.4 Transportation and public spaces

Airports, stations, terminals, and public venues often use illuminated advertising because visibility is important in large, busy environments. The banner’s strong print surface and substantial construction can support high-impact graphics in areas where signs are exposed to frequent handling or changing environmental conditions.

Fire-retardant requirements may apply in transportation and public buildings. Buyers should identify the applicable local standard at the beginning of the project and request the correct certification for the final construction.

8.5 Events and entertainment venues

Concerts, festivals, sports events, product launches, and cultural programs often need large graphics that can be installed quickly and removed after the event. A flexible banner offers a practical combination of visual scale and transportability.

Backlighting can improve the atmosphere of a venue and create a stronger visual focus for entrances, stages, sponsor walls, ticketing areas, and photo opportunities. The material can also support graphics that are changed from one event to the next.

8.6 Outdoor promotional campaigns

Outdoor campaigns may be placed on temporary frames, roadside structures, building walls, or promotional towers. The weather-resistant PVC structure and broad temperature range can support outdoor use when the installation is correctly designed and maintained.

For windy or exposed locations, the installer should calculate the expected wind load and select a suitable frame, fixing system, and installation method. The banner’s strength contributes to performance, but no flexible textile should be installed without considering the forces generated by the site.

9. Fabrication, Installation, and Maintenance Recommendations

9.1 Preparing the graphic

Before printing, verify the roll width, usable print width, surface direction, and required finished dimensions. Allow sufficient bleed for hemming, welding, sewing, or mounting. Important text and logos should be positioned away from edges, seams, eyelets, and tension points.

For double-sided or multi-panel projects, confirm image orientation and seam placement before production. A physical sample is recommended when the final sign will be illuminated, because backlighting can change the perceived density and color of the printed artwork.

9.2 Handling during printing

The material should be kept clean and protected from sharp objects. Operators should avoid dragging the surface across rough floors or equipment edges. Excessive creasing can damage the appearance of the film and may affect the final illuminated result.

Printer settings should be adjusted to the specific ink and equipment. Excessive ink deposition can reduce the desired light effect or extend drying time. Insufficient ink may produce weak colors when the graphic is viewed under illumination. Controlled testing is the most reliable way to establish the correct production profile.

9.3 Welding and sewing

Depending on the sign system, the banner may be finished with heat-welded hems, sewn hems, rope edges, pole pockets, hook-and-loop attachments, or eyelets. The selected method should match the expected load and the frame design.

Welded seams require controlled temperature, pressure, and speed. Sewing requires suitable thread, stitch spacing, and edge reinforcement. Eyelets should be installed with appropriate spacing and reinforced patches where necessary. Poor fabrication can reduce the practical performance of even a strong raw material.

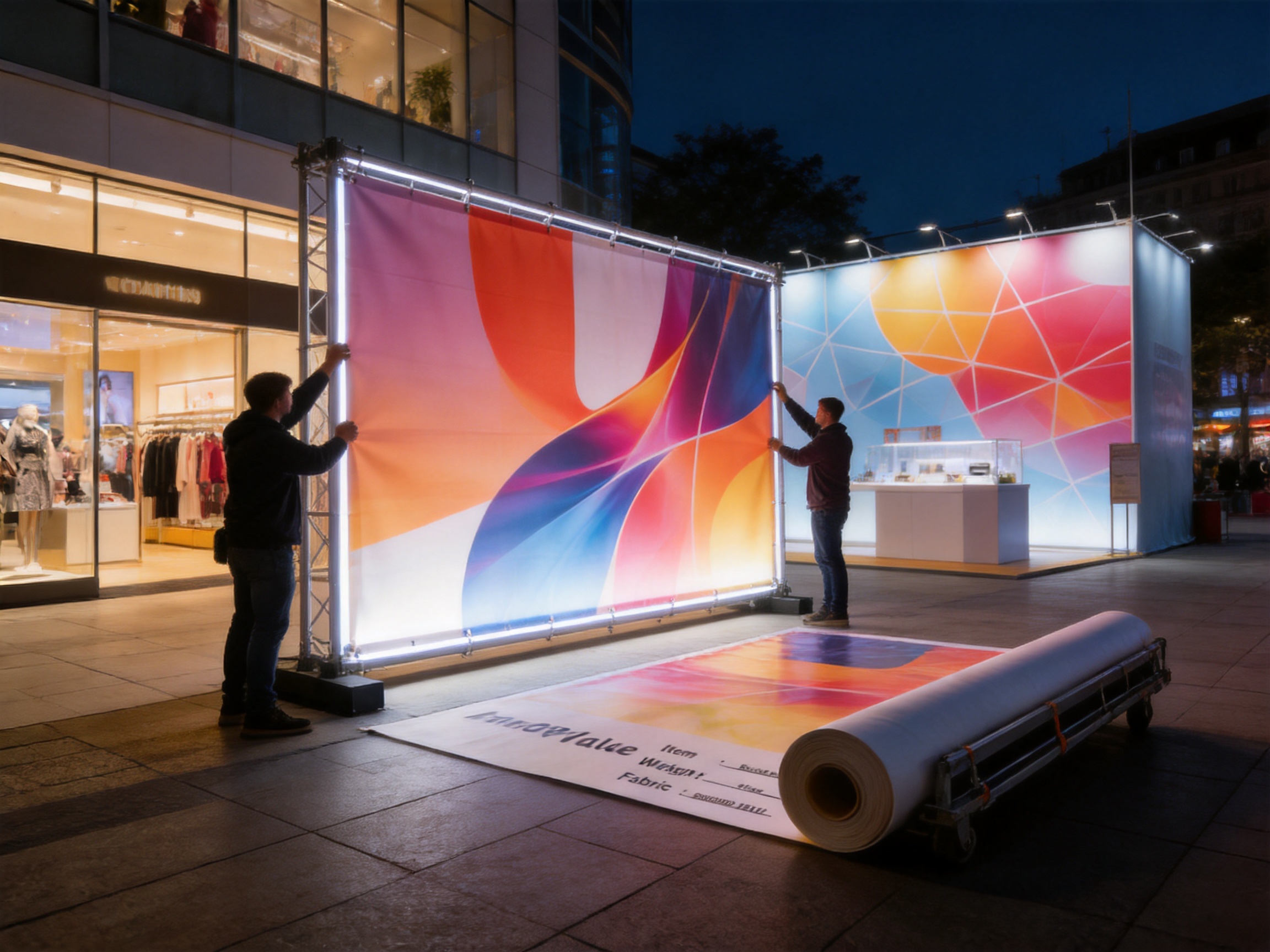

9.4 Tensioning and frame installation

A backlit banner should be tensioned evenly so that the surface remains smooth without excessive stretching. Uneven tension can create wrinkles, shadows, and local stress around fixing points. The frame should be square, stable, and free of sharp edges that could damage the material.

The lighting system should be positioned to provide consistent illumination across the entire graphic. The distance between lamps and the banner, the type of light source, ventilation, and access for maintenance all influence the final appearance.

9.5 Cleaning and storage

Routine cleaning can usually be carried out with water and a soft cloth or sponge. Mild cleaning solutions may be used if approved for the specific surface. Abrasive pads, aggressive solvents, and sharp tools should be avoided because they may damage the PVC film or printed image.

When the banner is removed, it should be cleaned, dried, and rolled rather than folded sharply whenever possible. It should be stored away from direct sunlight, excessive heat, moisture, and heavy objects. Correct storage helps preserve the surface and reduces installation problems during the next use.

10. Fire-Retardant and Compliance Considerations

Fire performance is often a critical requirement for indoor public spaces, exhibitions, shopping centers, transportation buildings, and event venues. The product information indicates that fire-retardant options can reach B1, M2, B2, DIN75200, and NFPA701 requirements.

These classifications and test references are not interchangeable. Different countries, building codes, and project owners may require specific standards. Buyers should identify the required test method, classification, product construction, and certificate format before placing an order.

Fire performance may be influenced by the exact PVC formulation, coating weight, textile structure, printing ink, lamination method, and finishing process. A certificate for an unprinted material may not automatically cover every printed or fabricated configuration. Project documentation should therefore be reviewed carefully.

For international projects, the purchasing team, printer, sign contractor, and building authority should agree on the required compliance documents. The manufacturer can then confirm whether the requested version is available and whether additional testing is needed for the final application.

11. Sustainability and Responsible Material Selection

Material selection should consider the entire service cycle, including production, transport, use, cleaning, replacement, and disposal. A durable banner that remains attractive for a longer period may reduce the frequency of replacement compared with a material that fails prematurely.

The 610gsm structure is designed for durability and repeated handling. This can be beneficial in applications where graphics are changed but the material or frame is reused. Customers should nevertheless develop a responsible end-of-life plan in accordance with local waste regulations and available recycling systems.

Responsible sourcing also includes accurate specification, controlled production, and reduced waste during printing. Correctly measuring the sign, optimizing nesting, testing color before a full run, and ordering the appropriate width can reduce offcuts and rejected graphics.

When environmental attributes are important, customers should request current information about formulation, restricted substances, packaging, production controls, and available environmental documentation. Environmental claims should be based on verifiable product-specific evidence rather than general assumptions about PVC materials.

12. How to Select the Correct Specification

Although the 610gsm version is a versatile heavy-duty product, not every project requires the same construction. Buyers should evaluate the following factors before confirming an order.

12.1 Display location

Determine whether the banner will be installed indoors, outdoors, in a climate-controlled environment, or in a location exposed to direct weather. Outdoor and semi-outdoor applications generally require stronger consideration of temperature, moisture, wind, ultraviolet exposure, and fixing methods.

12.2 Lighting system

Confirm whether the graphic will be illuminated from the rear, front, or both directions. The distance between the light source and the banner can influence brightness uniformity. The material specification should be matched to the intended light box or frame rather than selected in isolation.

12.3 Graphic dimensions

Large-format projects may benefit from the product’s available width of up to 5.1 meters. Confirm the required finished size, overlap, seam direction, and installation tolerances. Wide-width production can reduce the number of seams, but access and handling requirements should also be considered.

12.4 Expected service duration

Temporary campaigns, seasonal promotions, semi-permanent displays, and long-term outdoor signage may require different material choices. The 610gsm construction is suitable for demanding use, but the expected duration should be discussed with the manufacturer so that the correct surface, formulation, and warranty conditions can be evaluated.

12.5 Fire requirements

Identify the exact standard required by the building owner or local authority. If a fire-retardant version is needed, request the relevant documentation before printing and installation. Confirm that the certificate applies to the product construction and intended use.

12.6 Printing method

Provide information about the printer model, ink technology, curing system, print width, and intended viewing distance. Compatibility testing helps prevent problems such as poor adhesion, excessive ink absorption, uneven color, or insufficient brightness after illumination.

13. Recommended Quality-Assurance Workflow

A professional project should use a step-by-step quality workflow rather than relying only on the product name or nominal weight.

First, review the technical data sheet and confirm the required construction, width, weight, fire classification, and surface type. Second, request a physical sample or small test roll. Third, print a representative image containing solid colors, gradients, small text, and photographic detail. Fourth, evaluate the printed sample under the actual or simulated lighting system.

Next, conduct a fabrication trial using the intended hem, welding, sewing, or eyelet process. Check the finished graphic for wrinkles, seam visibility, edge distortion, and fixing-point strength. If the project is large, inspect a production roll before full conversion. Finally, document the approved material, color profile, installation method, and acceptance criteria.

This workflow is useful because banner performance depends on the interaction between material, ink, equipment, lighting, fabrication, and installation. A technically suitable substrate can still produce unsatisfactory results if any of these variables are overlooked.

14. Frequently Asked Questions

What does 610gsm mean?

610gsm means that the material weighs approximately 610 grams per square meter. It indicates a substantial construction, but weight alone does not describe the entire product. Fabric denier, thread count, PVC formulation, lamination strength, coating uniformity, and surface finish also influence performance.

Is this banner suitable for outdoor use?

Yes, it is designed for outdoor advertising and other demanding applications. Its PVC laminated construction, tensile strength, tear resistance, and stated temperature resistance support outdoor use. The installation must still account for wind load, ultraviolet exposure, drainage, frame design, and local climate.

Can it be used for backlit signs?

Yes. The material is specifically designed for backlit applications. It can be installed in illuminated frames or light boxes where the light source is positioned behind the printed graphic. A printing and lighting test is recommended to confirm brightness and color results.

Which printing methods can be used?

The product is described as suitable for inkjet and screen printing. The exact ink technology should be confirmed with the manufacturer and printer because surface treatment, curing conditions, and color settings may vary by equipment.

What widths are available?

The listed width range is 1.02 to 5.1 meters. The exact available width, tolerance, roll length, and usable print width should be confirmed for each order.

What do 500x500D and 18x12 indicate?

The 500x500D specification refers to the denier construction of the base fabric, while 18x12 refers to the thread configuration per square inch. Together, these details describe the textile support structure of the banner.

What is the difference between tensile strength and tearing strength?

Tensile strength measures the force required to pull the material apart in a controlled test. Tearing strength measures resistance to the growth of a cut or tear. Both are important for banners because the material may experience general tension as well as localized damage around hems, eyelets, and handling points.

What is peeling strength?

Peeling strength measures the force required to separate laminated layers. The product lists a peeling strength of 60 N/5 cm under DIN53357. A higher peel resistance generally indicates stronger interlayer bonding, although practical performance also depends on fabrication and installation.

Can the banner be welded or sewn?

It can be fabricated using methods appropriate for PVC laminated materials, including welding and sewing. The preferred method depends on the frame design, expected load, edge finish, and available equipment. A fabrication trial is recommended before mass production.

Is a fire-retardant version available?

Fire-retardant options can reach B1, M2, B2, DIN75200, and NFPA701 requirements according to the supplied product information. The exact certification should be confirmed for the required market and final product configuration.

How should the printed banner be stored?

Store it in a clean, dry, temperature-controlled area away from direct sunlight, sharp objects, moisture, and excessive heat. Roll the material with the appropriate surface orientation and avoid sharp folding whenever possible.

How can color and brightness be checked?

Print a test section using the intended printer, ink, and color profile. View it under the actual lighting system or a realistic simulation. Check both unlit and illuminated appearance, along with brightness uniformity, color density, fine text, and photographic detail.

What information should be provided when requesting a quotation?

Provide the required width, roll length, total quantity, intended application, printing method, fire classification, color or surface requirements, delivery destination, packaging expectations, and target delivery schedule. This information allows the manufacturer to recommend the most suitable production specification.

15. Purchasing and Project Support

For professional purchasing, the product should be evaluated as part of the complete advertising system. The banner, printing process, lighting equipment, frame, fabrication method, and site conditions all influence the final result. A manufacturer that can discuss these factors provides more value than a supplier that quotes only by weight.

Zhejiang MSD Group Share Co., Ltd. maintains manufacturing operations at No. 11 Hongqi Road, Warp Knitting Industrial Park, Haining City, Zhejiang Province, China. The company can be contacted through its sales department for samples, technical data, customized requirements, production discussions, and order coordination.

Customers should request a current product data sheet and clarify all project-specific requirements before production. Important points include material tolerance, usable width, roll length, packaging, printing compatibility, fire documentation, warranty terms, and recommended installation procedures.

For recurring advertising programs, it may be useful to approve a master sample and establish a standard purchasing specification. This can help maintain consistent appearance across different campaigns, production batches, locations, and installation periods.

16. Conclusion

The 610gsm Printable Laminated Backlit Flexible Banner is a strong option for illuminated advertising systems that require a combination of graphic quality, structural stability, flexibility, and outdoor durability. Its 500x500 denier base fabric, 18x12 thread construction, PVC film layers, 610gsm weight, and laminated structure are designed to support demanding wide-format applications.

The listed tensile strength of up to 1,900 N/5 cm, tear resistance of up to 550 N/5 cm, peeling strength of 60 N/5 cm, and temperature resistance from -30°C to +70°C demonstrate a product developed for more than short-term decorative use. Its printable surface supports inkjet and screen printing, while its backlit design helps illuminated graphics become brighter and more visually prominent.

Compared with lightweight banners, paper-based media, rigid panels, and non-laminated alternatives, this construction offers a useful balance of durability, rollability, image continuity, and installation convenience. Its broad width range supports both medium-sized signs and very large advertising displays.

The strength of the finished material also depends on manufacturing control. Textile preparation, PVC formulation, lamination, surface treatment, width control, roll winding, laboratory testing, and fire-performance verification must all be managed carefully. The producer’s experience in advertising materials, PVC films, waterproof fabrics, tarpaulins, mesh fabrics, and other flexible products provides a technical foundation for consistent product development.

For the best result, buyers should confirm the intended lighting system, printing process, fire requirements, installation environment, and service duration before ordering. With appropriate specification, fabrication, and maintenance, this banner can provide a durable and visually effective platform for retail, exhibition, event, architectural, transportation, and outdoor advertising applications.

References

1. Product technical information for 610gsm Printable Laminated Backlit Flexible Banners, including fabric construction, weight, strength, temperature resistance, width, and fire-retardant options.

2. DIN53352, textile and coated-fabric weight testing reference.

3. DIN53354, tensile strength testing reference for coated fabrics.

4. DIN53357, peeling strength testing reference for laminated materials.

5. DIN53363, tearing strength testing reference for flexible coated materials.

6. DIN53372, temperature resistance testing reference for coated fabrics.

7. DIN60001, textile denier and basic fabric specification reference.

8. DIN53853, thread-count testing reference for textile structures.

9. NFPA701, fire propagation testing reference for textiles and films.

10. General principles of wide-format digital printing, flexible sign fabrication, backlit display design, and outdoor graphic installation.

Product: 610gsm Printable Laminated Backlit Flexible Banners
