2600GSM PVC Knitted Drop Stitch Fabric for High-Pressure Inflatable Sports and Leisure Equipment

In the fast-developing market for inflatable sports, water recreation, training equipment, and portable leisure products, material performance determines product reliability. A stand-up paddle board must stay rigid on the water, an air track must provide controlled rebound during training, a sports mattress must absorb impact safely, and an inflatable structure must resist pressure, abrasion, moisture, temperature change, and repeated handling. For these demanding applications, 2600GSM PVC knitted drop stitch fabric offers a practical balance of strength, dimensional stability, pressure resistance, and manufacturing versatility.

This material is designed for inflatable products that require flat, rigid, and load-bearing surfaces after inflation. Unlike ordinary inflatable fabric, which expands into rounded forms, drop stitch fabric contains thousands of internal threads connecting the top and bottom layers. When air pressure is introduced, these threads limit expansion and help the structure maintain a controlled shape. The result is a fabric system that can be inflated into boards, mattresses, tracks, walls, decks, platforms, roofs, and other stable forms.

With a finished fabric weight of 2600GSM, 500 x 500D base fabric yarn, strong tensile performance, a top and bottom thickness of approximately 1.3 mm each, and recommended working pressure around 15 PSI, this PVC knitted drop stitch fabric is suitable for a wide range of inflatable sports and leisure products. With appropriate product design and processing, it can withstand inflation pressures up to 30 PSI, giving manufacturers a strong material foundation for premium inflatable applications.

The following article examines the product’s structure, performance advantages, typical uses, competitive strengths, manufacturing process, quality control philosophy, customization options, and frequently asked questions. It also highlights how advanced production capability and material innovation contribute to more reliable inflatable products for global buyers, product designers, and OEM manufacturers.

2600GSM SUP, Sports Mattress And Air Track PVC Knitted Drop Stitch Fabric

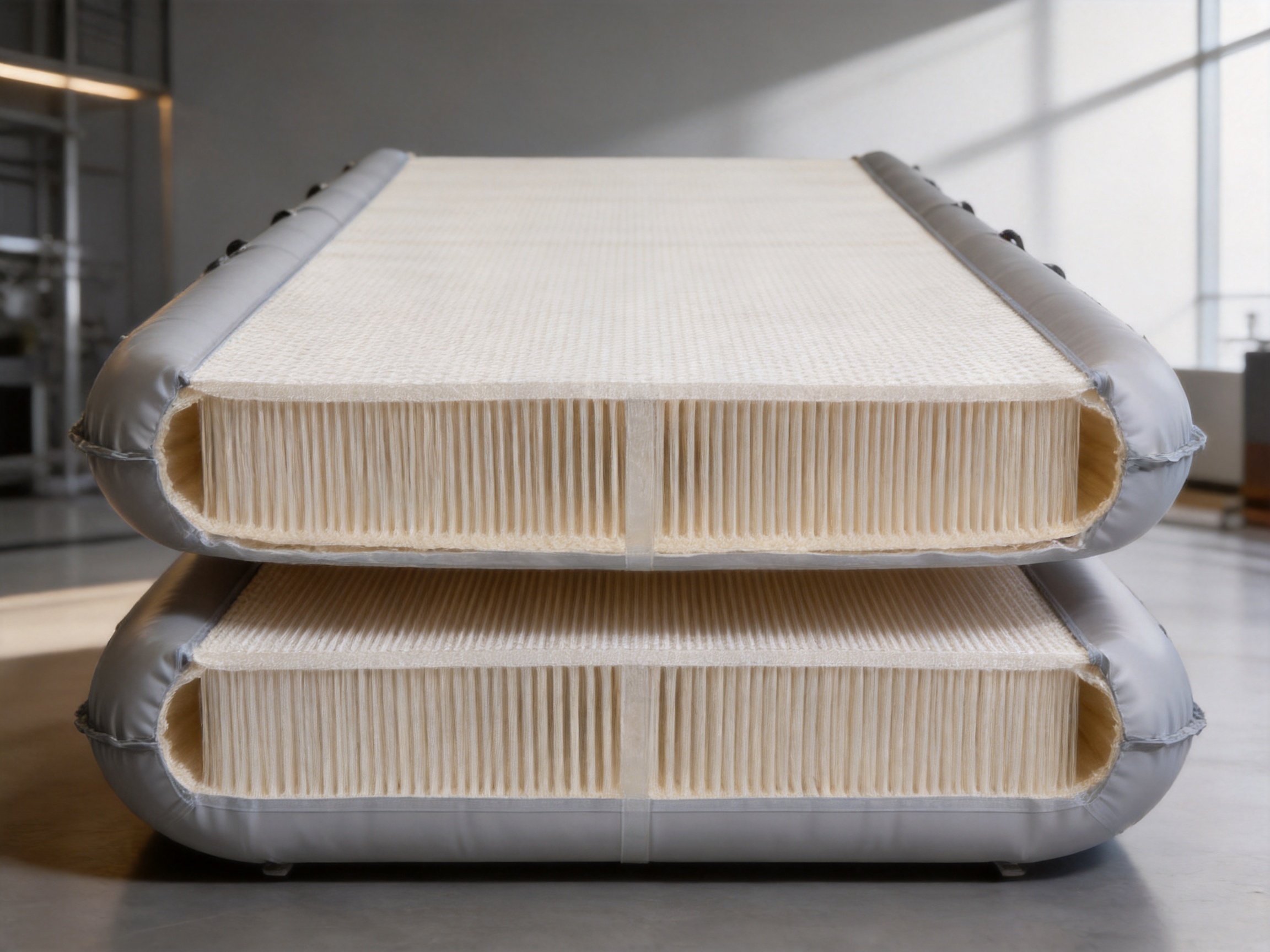

Understanding PVC Knitted Drop Stitch Fabric

PVC knitted drop stitch fabric is a composite inflatable material formed by connecting two surface layers with a large number of high-strength internal threads. These vertical or near-vertical threads hold the upper and lower fabric surfaces in position when the product is inflated. Instead of ballooning outward like a conventional air chamber, the material becomes firm and relatively flat, allowing it to be used in applications where stability and load-bearing performance are essential.

The outer surfaces are typically laminated or coated with PVC layers. PVC provides waterproof performance, airtight sealing capability, weldability, abrasion resistance, and compatibility with high-frequency welding or thermal bonding techniques. The internal drop stitch yarns provide the dimensional control that makes the inflated product rigid. The knitted construction contributes to flexibility during storage and handling while maintaining the ability to become firm after inflation.

The 2600GSM specification indicates a heavy-duty construction. GSM, or grams per square meter, is a common measurement of material weight. A 2600GSM fabric is significantly stronger and more substantial than many lightweight inflatable materials. This heavier structure is valuable for applications such as SUP boards, gym air tracks, floating platforms, inflatable mats, rescue mattresses, SPA walls, and even inflatable boat components.

In practical terms, the fabric combines two important but often competing properties: flexibility before inflation and rigidity after inflation. It can be rolled, transported, processed, cut, welded, and assembled in a factory, yet once sealed and inflated, it forms a stable structure capable of supporting people, equipment, and dynamic movement.

Key Product Specifications

The technical profile of 2600GSM PVC knitted drop stitch fabric gives manufacturers a clear basis for evaluating performance. The following table summarizes the key properties provided for this material.

These values show that the fabric is engineered for applications requiring both mechanical strength and environmental durability. The combination of high fabric weight, strong tensile performance, stable thickness, broad temperature tolerance, and optional chemical compliance makes it suitable for international markets where durability and safety expectations continue to rise.

Structural Advantages Over Conventional Inflatable Materials

Conventional inflatable fabrics are often suitable for simple tubes, cushions, toys, and basic air chambers. However, they are not always appropriate when the final product must remain flat, stiff, and stable under pressure. In contrast, drop stitch fabric provides a reinforced internal structure that allows inflatable products to behave more like rigid platforms while remaining portable and deflatable.

The greatest advantage is shape control. When ordinary airtight fabric is inflated, internal air pressure forces the material outward in all directions, creating a rounded shape. This is acceptable for a buoyancy tube or basic cushion, but not for a paddle board, training track, or floating platform. Drop stitch threads restrict vertical expansion and preserve the designed thickness of the product. This makes it possible to create SUP boards, sports mattresses, and air tracks with consistent height and usable flat surfaces.

Another advantage is pressure tolerance. The fabric’s reinforced structure allows the product to accept higher air pressure compared with many ordinary inflatable fabrics. A higher pressure produces greater rigidity, which is especially important for paddling efficiency, gymnastic stability, and load-bearing performance. With recommended working pressure around 15 PSI and processing possibilities up to 30 PSI, this fabric gives manufacturers a broader design range.

Durability is also enhanced. The PVC-coated surface helps resist water penetration, abrasion, UV exposure, and outdoor contamination. For products used near pools, lakes, beaches, gyms, training centers, campsites, and rescue environments, this protection is essential. The fabric can be cleaned more easily than many textile-only materials, and the PVC surface is compatible with sealing and welding methods commonly used in inflatable product manufacturing.

Compared with low-weight drop stitch materials, the 2600GSM construction provides a heavier and more robust option. Lightweight fabrics may be attractive for ultra-portable products, but they can sacrifice stiffness, puncture resistance, and long-term service life. For professional, commercial, or heavy-duty consumer equipment, a stronger fabric can reduce warranty issues and improve customer satisfaction.

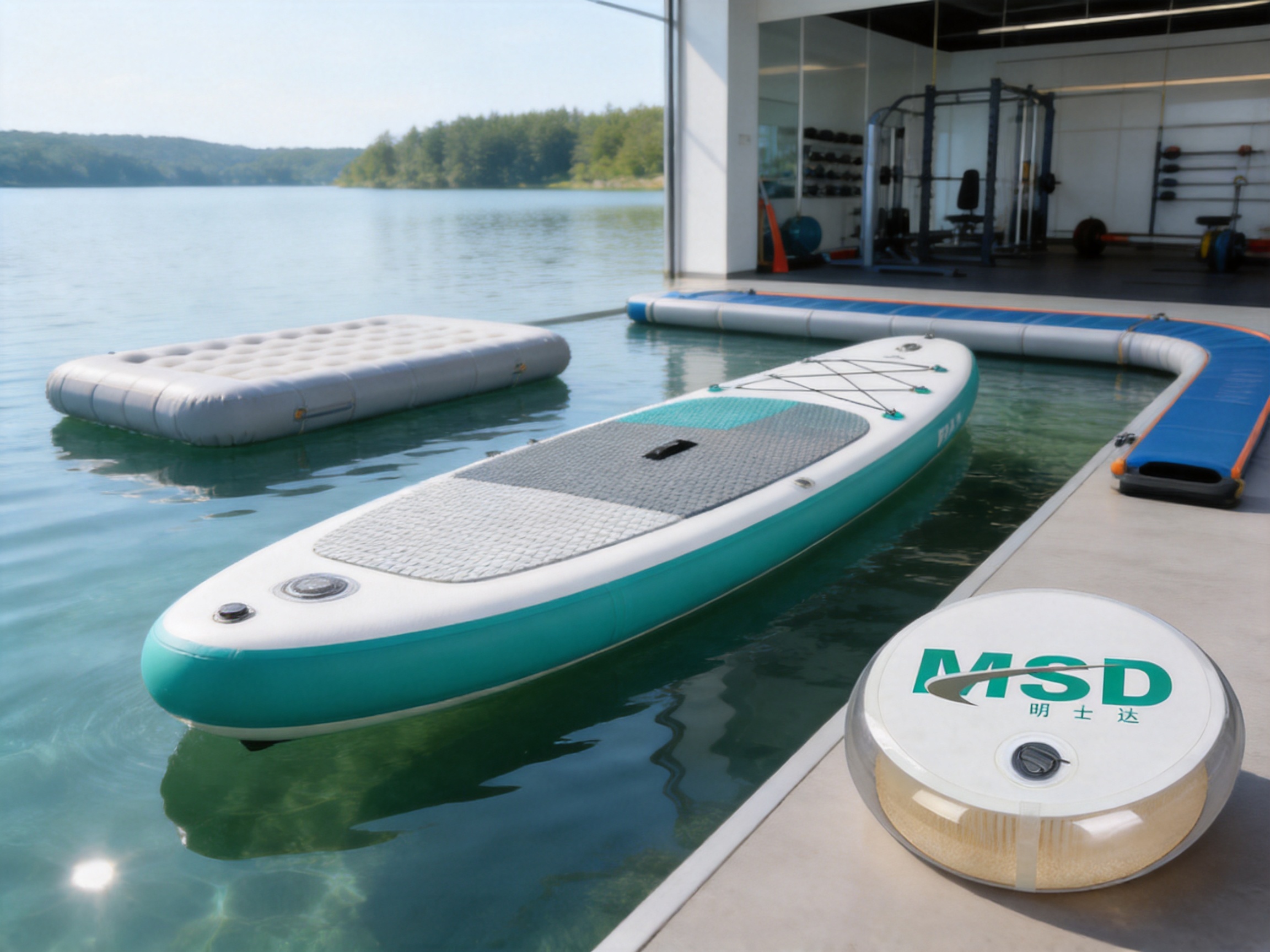

High Strength for Stand-Up Paddle Boards

Stand-up paddle boards are among the most recognized applications for drop stitch technology. A quality inflatable SUP must be rigid enough to support a rider, resist bending, track efficiently on water, and withstand repeated inflation, deflation, rolling, carrying, and outdoor exposure. The 2600GSM PVC knitted drop stitch fabric provides the structural foundation needed for such products.

In SUP construction, fabric stiffness directly affects paddling performance. A board that flexes excessively wastes energy because each paddle stroke causes the board to bend rather than move forward efficiently. With strong drop stitch threads and heavy-duty PVC surfaces, the board can maintain a firmer shape at proper pressure. This improves stability for beginners, responsiveness for recreational users, and load capacity for larger riders or gear.

Water resistance is equally important. SUP boards are continuously exposed to fresh water, salt water, sunlight, sand, and impact from docks, stones, and transport surfaces. PVC-coated drop stitch fabric helps protect the internal structure from moisture and abrasion. When combined with proper edge reinforcement and professional welding or bonding, it supports long product life.

The available height options, such as 10 cm, 12 cm, 15 cm, and beyond, allow manufacturers to design boards for different riding styles. A thinner board may be suitable for lightweight users or compact applications, while a thicker board may provide additional buoyancy and rigidity. The fabric’s technical range makes it adaptable for all-around boards, touring boards, yoga boards, fishing platforms, and multi-person leisure boards.

Another advantage is portability. Traditional rigid boards offer strong performance but require large storage areas and special transport arrangements. Inflatable SUP boards made from drop stitch fabric can be deflated and packed into a bag. This creates value for urban users, travelers, rental businesses, and outdoor brands targeting convenience without sacrificing performance.

Impact Absorption for Sports Mattresses and Air Tracks

Sports mattresses and air tracks require a different type of performance from SUP boards. While boards prioritize stiffness and water performance, training mats must provide controlled rebound, shock absorption, and safety. The 2600GSM PVC knitted drop stitch fabric can be used to create stable inflatable training surfaces that help reduce impact during gymnastics, martial arts, cheerleading, fitness drills, rehabilitation exercises, and school sports activities.

The fabric’s internal thread structure helps maintain a uniform surface. This is important because athletes need predictable support when jumping, landing, rolling, or tumbling. Uneven inflation or excessive deformation can increase the risk of injury. Drop stitch construction allows the air track to remain flat and responsive, giving athletes confidence during practice.

Pressure adjustability is another major benefit. By changing inflation pressure within the recommended range, users can tune the feel of the mattress or track. A slightly lower pressure may provide more cushioning for beginners or rehabilitation exercises, while a higher pressure may deliver stronger rebound for advanced gymnastics practice. This flexibility gives product designers and end users more control than many foam-based systems.

Compared with traditional foam mats, inflatable air tracks made from PVC drop stitch fabric can be deflated for storage. Large foam blocks consume significant space in training centers and can be difficult to transport. Inflatable products offer a more efficient alternative, especially for mobile coaching, home training, temporary events, and schools with limited storage.

Durability also matters in gym environments. Equipment may be dragged, folded, stepped on, cleaned frequently, and exposed to sweat or cleaning agents. A PVC surface is easy to wipe and maintain. Optional anti-fungal treatment can further enhance suitability for humid gyms, aquatic training areas, and shared sports facilities.

Applications Beyond SUP and Air Tracks

Although the product title highlights SUP boards, sports mattresses, and air tracks, 2600GSM PVC knitted drop stitch fabric is not limited to those categories. Its structure makes it useful wherever an inflatable item must maintain a controlled shape, provide rigidity, and resist pressure.

SPA walls are one example. Portable SPA products need strong, insulating, and stable walls that hold water pressure while remaining comfortable and easy to assemble. Drop stitch fabric can help form a firm wall structure that supports the water volume and improves product appearance compared with soft rounded chambers.

Inflatable tents and shelters can also benefit from the material. In certain designs, drop stitch panels may be used for floors, walls, structural elements, or pressure-supported sections. The result can be a more stable shelter with reduced setup complexity compared with pole-based structures.

Floating tanks, floating platforms, and water recreation decks are additional uses. Because drop stitch fabric can form flat inflated panels, it is well suited for floating surfaces where people need to stand, sit, or move safely. The heavy-duty 2600GSM construction is especially valuable in commercial recreation, rental equipment, and resort applications.

Lifesaving mattresses and rescue equipment may also use drop stitch technology. In rescue conditions, equipment must be buoyant, visible, firm, and reliable. The fabric’s pressure resistance and structural stability help create platforms that can support people in water rescue or emergency transfer situations.

Inflatable boats can incorporate drop stitch material in floors, decks, hull sections, or specialized designs. Some boats can use a very high proportion of drop stitch material, depending on engineering requirements. This offers the possibility of lightweight, portable, and rigid-feeling boat structures.

Why 2600GSM Matters

Fabric weight is not the only measure of quality, but it is an important indicator of material robustness. A 2600GSM PVC knitted drop stitch fabric provides a substantial structure for demanding applications. This heavier fabric can offer advantages in puncture resistance, stiffness, dimensional stability, and perceived product quality.

For manufacturers, choosing the correct GSM is a balance. A lighter fabric can reduce shipping weight and make final products easier to carry. However, if the fabric is too light for the application, it may deform, wear prematurely, or fail under repeated use. A heavier fabric such as 2600GSM is well suited for products where durability and high-pressure performance are more important than minimal weight.

In commercial rental markets, durability is especially important. Rental SUP boards, gym air tracks, and floating mats are used by many people with different levels of care. Products may be exposed to rough surfaces, improper storage, high user loads, and frequent cleaning. A robust fabric helps reduce maintenance costs and extends service life.

For premium retail products, the heavier material can also improve customer confidence. Users often judge quality through stiffness, surface feel, edge stability, and long-term appearance. A board or air track made with strong drop stitch fabric can feel more stable and professional, supporting stronger market positioning.

Pressure Performance and Dimensional Stability

One of the most important selling points of this material is its ability to support high-pressure inflation. The recommended pressure is around 15 PSI for many applications, while the fabric can be processed for inflation up to 30 PSI depending on the final product design, welding quality, valve system, reinforcement method, and safety standards.

Pressure performance depends not only on the fabric itself but also on the complete manufacturing system. The material must have strong surface layers, stable internal threads, reliable adhesion, and consistent thickness. During product fabrication, seams and accessories must be designed to handle the intended load. A high-quality fabric gives manufacturers the foundation they need, but professional assembly is also essential.

Dimensional stability means the inflated product maintains its designed height and shape. Available heights include 5, 7, 8, 10, 12, 15, 20, 30, and 50 cm, allowing a broad range of finished product designs. A 5 cm panel may be used for compact mats or thin structures, while 20 cm or greater heights can support special platforms, walls, or high-buoyancy designs.

Stable height is critical for modular products. For example, multiple air tracks may be connected in a training space, or floating platforms may be assembled in a larger layout. Consistent panel dimensions help ensure smooth transitions, better user experience, and more professional appearance.

Surface Protection: Water Resistance, UV Resistance, and Easy Maintenance

The PVC surface layer plays a major role in the fabric’s practical performance. For water sports and outdoor recreation, water resistance is fundamental. The material must prevent water from entering the fabric system and must maintain sealing performance when exposed to wet environments.

UV protection is also valuable. Outdoor products may spend long hours under sunlight. Without appropriate protection, surfaces can fade, become brittle, or lose mechanical performance over time. PVC formulations can be designed to provide better resistance to sunlight exposure, helping extend product service life.

Cleaning and maintenance are important for both consumer and commercial users. SUP boards may collect mud, salt, algae, or sand. Gym mats may collect sweat, chalk, dust, or disinfectant residue. A smooth PVC surface can be wiped clean more easily than many porous textile surfaces. This improves hygiene and reduces maintenance labor.

Optional anti-fungal treatment is beneficial for humid regions, marine environments, swimming facilities, and rental operations where products may be stored while damp. Anti-fungal performance can help reduce odor, staining, and microbial growth, especially when combined with proper drying and storage practices.

Comparison With Competing Material Options

When compared with ordinary PVC inflatable fabric, 2600GSM PVC knitted drop stitch fabric offers superior shape stability and rigidity. Ordinary inflatable fabric is appropriate for rounded chambers but cannot easily create flat high-pressure structures. Drop stitch construction solves this problem through internal thread reinforcement.

When compared with low-density drop stitch fabric, the 2600GSM option provides a heavier-duty solution for demanding markets. Lower weight materials may be suitable for entry-level or lightweight products, but they may not deliver the same stiffness, wear resistance, or premium feel. For high-use products, the heavier specification can provide a better long-term value proposition.

When compared with rigid boards or solid foam equipment, inflatable drop stitch products offer major logistical advantages. They can be deflated, rolled, packed, shipped more compactly, and stored in smaller spaces. This reduces barriers for consumers and distributors. It also supports e-commerce sales because packaged dimensions can be more manageable than rigid products.

When compared with traditional foam sports mats, inflatable drop stitch mattresses and air tracks provide adjustable pressure and portability. Foam mats have fixed density and thickness, while air-supported products can be tuned to user preference. This adaptability is valuable for families, clubs, schools, and professional training centers.

When compared with some textile-reinforced rubberized materials, PVC drop stitch fabric is often easier to weld and process in inflatable product manufacturing. PVC’s compatibility with high-frequency welding, heat bonding, and adhesive systems gives manufacturers flexibility in production line design.

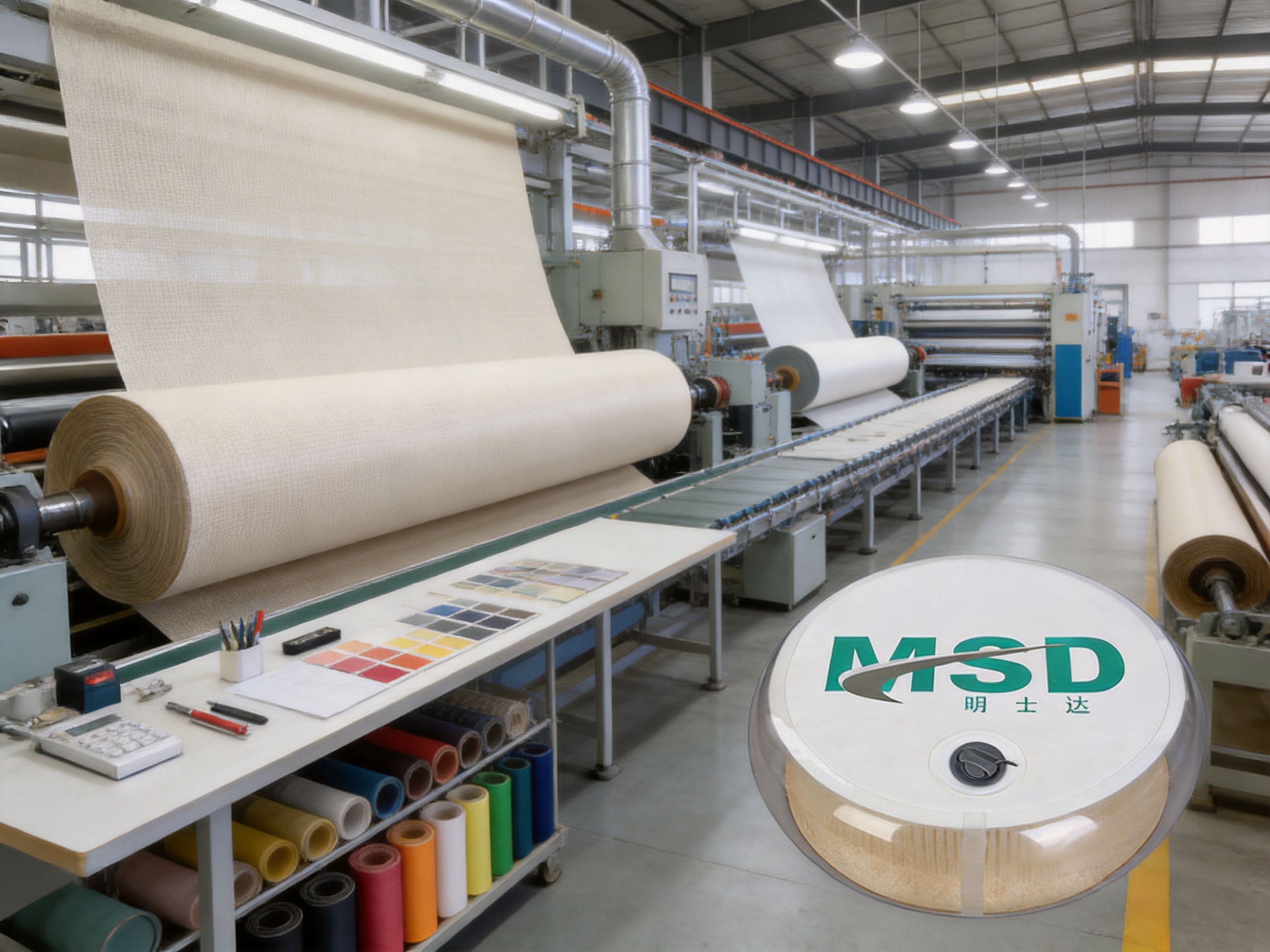

Advanced Manufacturing Strengths Behind the Fabric

High-quality drop stitch fabric requires more than raw material selection. It depends on integrated manufacturing capability, process control, textile knowledge, PVC formulation expertise, lamination or coating precision, and strict inspection. Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park of Haining City, Zhejiang Province, China. Its long-term focus on independent innovation and product development supports a broad product system covering functional sports materials, decorative materials, and flexible industrial fabrics.

The company’s experience in PVC coated fabric, PVC laminated fabric, calendered film, ceiling film, advertising flex banner, sunshade fabric, waterproof fabric, mesh fabric, tarpaulin, and drop stitch fabric provides a strong technical foundation. These product categories share important manufacturing knowledge, including polymer processing, textile reinforcement, surface finishing, coating uniformity, color control, and roll-to-roll production management.

For drop stitch fabric, manufacturing begins with yarn and base fabric control. Yarn quality affects tensile strength, dimensional stability, and consistency. The 500 x 500D base fabric yarn and 16 x 22 thread density require controlled weaving or knitting conditions. Yarn tension must be managed carefully so that the finished fabric maintains uniform structure across the full width and length.

PVC formulation is another key area. The PVC layer must be flexible enough to fold and roll, strong enough to resist abrasion, compatible with welding, and stable under temperature variation. Optional requirements such as REACH compliance, 16P-free formulation, anti-fungal properties, color fastness, and UV resistance require careful additive selection and process discipline.

Coating or lamination precision determines surface quality and adhesion. The top and bottom layers must achieve controlled thickness, approximately 1.3 mm each, within stated tolerance. Uneven coating can create weak points, affect appearance, and reduce pressure performance. Advanced roll-to-roll processing equipment helps maintain uniformity.

Peeling strength is especially important because drop stitch fabric is a composite material. The stated peeling strength of 100 / 120 N/5cm reflects the need for strong bonding between layers. If adhesion is insufficient, delamination may occur during inflation, bending, or long-term use. Proper temperature, pressure, curing, and material compatibility are all necessary to achieve stable peel performance.

Process Control From Raw Materials to Finished Rolls

A reliable drop stitch fabric production system includes multiple checkpoints. The first checkpoint is raw material inspection. Yarn, PVC resin, plasticizers, stabilizers, pigments, additives, and base fabric components must meet internal standards before entering production. Consistency at this stage reduces variation later.

The second checkpoint is textile formation. The internal drop stitch structure must be uniform. If thread distribution is inconsistent, the finished inflatable product may show uneven surfaces, weak zones, or inconsistent rebound. Advanced knitting or textile equipment helps maintain repeatability.

The third checkpoint is PVC layer preparation. Calendering, coating, or lamination conditions must be controlled for temperature, pressure, viscosity, speed, and thickness. Stable PVC processing ensures smooth surfaces and predictable physical properties.

The fourth checkpoint is bonding. The top and bottom PVC-coated structures must bond securely with the fabric system. Bonding parameters must be optimized to prevent weak adhesion, overheating, surface defects, or internal stress. This step is critical for pressure resistance.

The fifth checkpoint is curing and stabilization. After lamination or coating, the fabric may require cooling, aging, or stabilization to ensure final dimensions and surface properties are consistent. Proper winding tension is important to prevent wrinkles, telescoping, or deformation in roll form.

The sixth checkpoint is finished fabric inspection. Weight, thickness, tensile strength, peeling strength, appearance, color, and surface defects can be checked according to relevant standards and customer requirements. For export customers, optional compliance testing can be arranged based on target market needs.

The final checkpoint is packaging and logistics. Heavy-duty rolls must be packaged to prevent contamination, moisture damage, compression marks, and transportation abrasion. Good packaging preserves the value created during manufacturing.

Quality Assurance for International Buyers

International buyers require stable quality across repeated orders. A sample may perform well, but commercial success depends on batch-to-batch consistency. This is why quality assurance is one of the most important advantages a manufacturer can offer.

For 2600GSM PVC knitted drop stitch fabric, quality assurance includes control of fabric weight, thickness, width, color, adhesion, tensile strength, and surface finish. Because inflatable products are often safety-related, consistency is essential. A weak roll can create problems throughout a production batch of SUP boards or air tracks.

Testing according to standards such as FZ/T01003, GB/T6672-2001, GB/T1040, and GB/T3917 provides measurable data. These methods help buyers compare materials and verify that fabric performance aligns with specifications. Although final product performance also depends on customer fabrication, reliable base material greatly reduces risk.

Color fastness of minimum grade 6 supports outdoor and consumer applications where appearance matters. Fading can reduce perceived product quality, especially in retail markets. Strong color control helps brands maintain consistency across product lines.

Optional REACH and 16P-free specifications are important for buyers selling into markets with strict chemical regulations or consumer safety expectations. These options allow customers to select formulas suited to their market requirements rather than relying on a one-size-fits-all material.

Customization for Product Designers and OEM Manufacturers

One of the strengths of PVC knitted drop stitch fabric is its adaptability. Product designers can select height, color, surface finish, compliance options, and performance treatments according to the intended application. This flexibility supports OEM and ODM development for outdoor brands, sports equipment companies, aquatic product manufacturers, and industrial inflatable producers.

Height customization is especially significant. A SUP board may require a specific thickness to balance buoyancy and riding feel. An air track may need a height that provides safe rebound while remaining easy to store. A SPA wall or floating platform may require greater height for insulation, load capacity, or visual design. Available heights from 5 cm to 50 cm offer broad design freedom.

Color customization supports brand identity. Sports and leisure equipment is highly visual, and attractive colors can improve retail appeal. Color fastness helps maintain appearance after use.

Surface properties can be adjusted for different environments. A smoother surface may be suitable for easy cleaning. A textured or specially treated surface may improve grip, depending on downstream product design. Anti-fungal treatment may be selected for marine or humid applications.

Chemical compliance can also be customized. Buyers serving Europe may request REACH-related options. Customers targeting children’s products, fitness products, or sensitive consumer markets may request phthalate-restricted or 16P-free formulas. These options help finished product manufacturers meet regional expectations.

Design Considerations for Finished Products

Although the fabric provides a strong base, finished product performance depends on correct design and fabrication. Manufacturers should consider panel dimensions, seam layout, valve placement, edge reinforcement, user load, inflation pressure, safety factors, and intended environment.

For SUP boards, the designer must consider board length, width, thickness, rocker, fin system, deck pad bonding, handle placement, D-rings, and sidewall reinforcement. The drop stitch core provides rigidity, but the rails and seams are equally important for air retention and structural strength.

For air tracks, the designer must consider landing zones, connection strips, handles, valves, repair kits, and surface grip. Pressure recommendations should be clearly communicated to end users. Overinflation or underinflation can affect safety and performance.

For sports mattresses, product designers must balance cushioning and support. A mat used for children’s play may require a different pressure and thickness than a mat used for martial arts or rehabilitation. Drop stitch height selection becomes a key design decision.

For floating platforms and rescue products, buoyancy, stability, visibility, attachment points, and emergency use conditions are critical. Designers may need additional reinforcement, reflective features, or specialized accessories.

For inflatable boats and structural products, engineering requirements are even more demanding. Load distribution, seam strength, abrasion protection, and pressure release systems should be evaluated carefully. The fabric can support advanced designs, but professional engineering remains essential.

Environmental and Regulatory Options

Modern buyers increasingly evaluate materials not only by strength and cost but also by chemical responsibility and regulatory compatibility. Optional REACH compliance and 16P-free formulas allow customers to choose material specifications aligned with target market requirements.

REACH is associated with chemical safety expectations in the European market. Although exact compliance depends on final formulation and documentation, offering REACH-related options gives buyers a pathway to meet regulatory demands.

16P-free formulas address concerns about restricted phthalates. For consumer products, sports equipment, and family leisure products, phthalate control can be an important selling point. Buyers should confirm the exact test requirements for their market and request suitable documentation during procurement.

Durability also contributes to sustainability in a practical sense. A longer-lasting product reduces replacement frequency and waste. Stronger fabric, better adhesion, UV resistance, and anti-fungal options all help extend service life when products are used and maintained properly.

Advantages for Brands, Importers, and Distributors

Brands benefit from using a fabric that supports premium product positioning. A SUP board or air track made with strong 2600GSM drop stitch fabric can be marketed around stability, durability, portability, and professional performance. These are attributes that consumers understand and value.

Importers benefit from consistent material supply and technical support. When sourcing inflatable products or raw fabric, importers need suppliers who can maintain quality across orders, provide specification data, and support customization. Manufacturing experience in PVC coated and laminated materials adds confidence.

Distributors benefit from reduced after-sales problems. Material failure can lead to returns, complaints, and brand damage. A robust fabric can help finished product factories produce more reliable goods, especially when combined with strong fabrication techniques.

OEM manufacturers benefit from processing compatibility. PVC surfaces are familiar to many inflatable product factories and can be welded or bonded with established methods. This reduces production learning curves and supports efficient scaling.

Retailers benefit from products that are easy to demonstrate and store. Inflatable SUP boards, air tracks, and sports mats made from drop stitch fabric can be compactly packaged while offering impressive inflated performance. This combination is well suited for online and offline sales channels.

Practical Maintenance Recommendations

Proper care helps extend the service life of products made with 2600GSM PVC knitted drop stitch fabric. End users should inflate products to the recommended pressure and avoid exceeding limits provided by the finished product manufacturer. Overinflation, especially under hot sunlight, can create excessive stress.

After use in salt water, products should be rinsed with fresh water and dried before storage. Salt and sand can accelerate surface wear and damage accessories. For gym products, surfaces should be wiped with appropriate mild cleaning agents and dried regularly.

Sharp objects should be avoided. Although the fabric is strong, no inflatable material is completely puncture-proof. Users should check the ground or water entry area for rocks, glass, shells, metal edges, or other hazards.

Storage should be in a cool, dry area away from direct sunlight and heat sources. Products should not be stored under heavy compression for long periods. If stored while damp, microbial growth may occur even with treated materials, so drying remains important.

Regular inspection is recommended for seams, valves, handles, and high-wear areas. Small damage should be repaired promptly according to the finished product manufacturer’s instructions. Early maintenance can prevent larger failures.

Q&A: Common Questions About 2600GSM PVC Knitted Drop Stitch Fabric

What is 2600GSM PVC knitted drop stitch fabric?

It is a heavy-duty inflatable composite fabric made with PVC-coated surface layers and internal drop stitch threads connecting the top and bottom layers. When inflated, the material forms a firm, flat, and stable structure suitable for SUP boards, air tracks, sports mattresses, floating platforms, SPA walls, and other inflatable products.

Why is drop stitch fabric better than ordinary inflatable fabric for SUP boards?

Ordinary inflatable fabric tends to expand into rounded shapes under pressure. Drop stitch fabric uses internal threads to control expansion, allowing the board to remain flat and rigid. This improves paddling stability, load support, and overall performance.

What does 2600GSM mean?

2600GSM means the finished fabric weighs approximately 2600 grams per square meter, with a tolerance of ±3%. This indicates a heavy-duty construction suitable for demanding inflatable applications.

What pressure can this material support?

The recommended pressure for many applications is around 15 PSI. With suitable processing, design, welding, and reinforcement, the material can be used in products designed for inflation up to 30 PSI. Final safe pressure depends on the finished product structure.

What are the main applications?

Main applications include stand-up paddle boards, sports mattresses, gymnastics air tracks, SPA walls, inflatable tents, floating tank roofs, lifesaving mattresses, floating platforms, inflatable boat components, and other high-pressure inflatable structures.

Is the fabric suitable for outdoor use?

Yes. The PVC surface provides water resistance and can be formulated for UV protection and outdoor durability. Proper cleaning, drying, and storage are still important for long service life.

Can the fabric be customized?

Yes. Available customization options may include height, color, surface finish, anti-fungal treatment, REACH-related formulation, 16P-free formulation, and other specification adjustments based on order requirements.

What heights are available?

Available heights include 5 cm, 7 cm, 8 cm, 10 cm, 12 cm, 15 cm, 20 cm, 30 cm, and 50 cm. The correct height depends on the intended product, load requirements, and performance goals.

Is it easy to maintain?

Yes. The PVC surface can be wiped clean and rinsed after use. Users should avoid sharp objects, dry the product before storage, and inspect seams and valves regularly.

Why choose a manufacturer with broad PVC fabric experience?

Drop stitch fabric quality depends on yarn control, PVC formulation, coating or lamination precision, adhesion, testing, and roll-to-roll consistency. A manufacturer with long-term experience in PVC coated fabric, laminated fabric, waterproof fabric, tarpaulin, flex banner, and functional sports materials is better positioned to control these factors.

Conclusion

2600GSM PVC knitted drop stitch fabric is a high-performance material designed for inflatable products that require strength, rigidity, durability, and portability. Its internal drop stitch structure allows inflated products to maintain flat and stable shapes, while its PVC-coated surfaces provide water resistance, processability, abrasion protection, and easy maintenance.

For SUP boards, the material supports better stiffness, buoyancy, and paddling confidence. For sports mattresses and air tracks, it provides controlled rebound, impact absorption, and space-saving storage. For SPA walls, inflatable tents, floating platforms, lifesaving mattresses, and boat components, it offers structural possibilities that ordinary inflatable fabric cannot easily achieve.

The 2600GSM weight, 500 x 500D base yarn, strong tensile values, broad temperature range, optional REACH and 16P-free formulas, minimum color fastness grade of 6, and optional anti-fungal treatment make the fabric suitable for demanding consumer, commercial, and industrial markets. Its available height range gives designers flexibility to create products from thin mats to thick platforms.

Beyond the material itself, advanced manufacturing capability is essential. Controlled yarn selection, precise PVC formulation, stable coating or lamination, strong bonding, strict testing, and professional roll handling all contribute to finished fabric quality. Zhejiang MSD Group Share Co., Ltd., with its experience in PVC coated fabric, PVC laminated fabric, drop stitch fabric, waterproof fabric, tarpaulin, flex banner, ceiling film, and other flexible materials, provides a manufacturing foundation that supports reliable product development and global supply.

As inflatable sports and leisure products continue to evolve, material choice will remain a critical factor in product success. For buyers seeking a strong, versatile, and high-pressure inflatable fabric, 2600GSM PVC knitted drop stitch fabric offers a compelling combination of performance, customization, and manufacturing reliability.

References

GB/T1040, Plastics: Determination of Tensile Properties.

GB/T6672-2001, Plastics Film and Sheeting: Determination of Thickness by Mechanical Scanning.

GB/T3917, Textiles: Tear Properties of Fabrics.

FZ/T01003, Textile Testing Method for Fabric Density and Related Physical Properties.

European Chemicals Agency, REACH Regulation Guidance for Chemical Safety in Articles.

ASTM International, Standard Practices for Coated Fabrics and Inflatable Product Materials.

Industrial Textile Research Publications on PVC-Coated Fabrics, High-Frequency Welding, and Drop Stitch Composite Structures.
