High-Performance PVC Rigid Printable Film for Precision Graphics and Flat Applications

PVC rigid printable film is a dependable substrate for businesses that require sharp graphics, stable dimensions, reliable ink adhesion, and clean fabrication. Designed for high-definition digital printing, this semi-rigid to rigid PVC material provides a flat, opaque surface for signage, point-of-purchase displays, industrial labels, decorative panels, packaging components, and other visual communication products.

Unlike flexible PVC films that must be tensioned or mounted to prevent curling, rigid printable film maintains its shape during printing, cutting, routing, drilling, laminating, and installation. This structural stability helps reduce distortion, registration errors, surface waviness, and production waste. It also supports efficient flatbed workflows in which accurate positioning and repeatable processing are essential.

The material is available in thicknesses from 0.30 mm to 0.80 mm and widths of 1.22 m, 1.37 m, and 1.52 m. With opacity of at least 85 percent, surface energy of at least 38 dynes/cm, a density of approximately 1.38–1.42 g/cm³, and a B1 fire rating under GB 8624, the film can be specified for a wide range of indoor and selected short-term outdoor applications.

Zhejiang MSD Group Share Co., Ltd. develops and manufactures flexible and functional PVC-based materials through a product system that combines material research, process development, quality control, and application support. Its experience in PVC calendered films, advertising materials, waterproof fabrics, ceiling films, mesh products, tarpaulins, and related flexible materials provides a broad technical foundation for producing printable substrates tailored to commercial requirements.

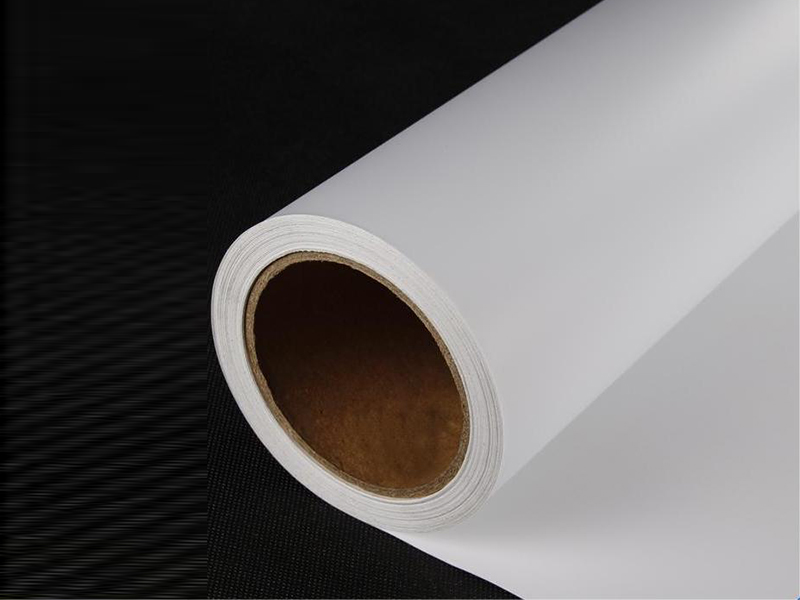

PVC Rigid Printable Film

What Is PVC Rigid Printable Film?

PVC rigid printable film is a dimensionally stable polyvinyl chloride substrate engineered to receive printed graphics while preserving a flat, consistent form. Depending on its thickness and formulation, the product ranges from semi-rigid to rigid. It can be printed, cut, laminated, drilled, routed, folded within appropriate limits, or assembled into finished displays and panels.

The film normally consists of a white opaque PVC base with a print-receptive surface. The white base acts as a neutral background that improves color contrast and reduces show-through from the mounting surface. The printable surface is treated to improve ink wetting and adhesion, allowing printers to achieve more uniform coverage and sharper detail without routinely applying a separate primer.

Gloss, semi-gloss, and matte finishes are available. Gloss surfaces emphasize color depth and visual impact, making them useful for promotional graphics and high-contrast signage. Matte surfaces diffuse reflected light and reduce glare, which is beneficial in retail interiors, exhibitions, offices, museums, and public information areas. Semi-gloss grades provide a balanced appearance for general-purpose applications.

Because the substrate is designed for flat applications, it is especially suitable for UV flatbed printing. It can also be compatible with eco-solvent and latex ink systems when the printer, ink, curing conditions, and surface preparation are properly matched. UV-curable inks generally provide the strongest combination of adhesion, production speed, and durability for this type of substrate.

Key Performance Characteristics

The performance of a printable substrate depends on more than its ability to accept ink. A commercially successful material must remain flat, handle consistently in production, maintain graphic quality after cutting, and deliver predictable performance from one batch to the next. PVC rigid printable film is developed around these requirements.

Dimensional Stability

Dimensional stability is one of the most important advantages of rigid printable film. During printing, materials may experience heat from lamps, drying systems, workshops, or surrounding equipment. Flexible films can expand, contract, curl, or shift under these conditions. A stable rigid substrate minimizes these movements, helping the graphic remain aligned with the original file.

Stable dimensions are particularly important when a project includes multiple passes, white ink, varnish, spot colors, double-sided registration, or post-print cutting. Even a small amount of movement can produce visible misalignment. By maintaining a flatter surface, the film helps printers reduce register shift and improve the repeatability of production.

High-Definition Print Reproduction

The smooth surface supports clear reproduction of fine text, lines, gradients, photographs, logos, and detailed patterns. This is important for directional signage, branded displays, equipment labels, and decorative panels where image clarity affects both appearance and usability.

The white opaque base also improves the visual performance of printed colors. Bright tones appear more vibrant, dark areas retain stronger contrast, and transparent or semi-transparent portions of a design can be controlled more accurately through the printing process. The result is a professional graphic that remains visually consistent across different display environments.

Reliable Ink Adhesion

Surface treatment is used to promote ink wetting and bonding. A properly treated surface allows ink to spread evenly rather than forming isolated droplets or uneven patches. Better wetting contributes to smooth color fields, cleaner edges, and a more uniform finish.

The recommended ink system is UV-curable ink, which cures directly on the substrate and provides strong adhesion and resistance for many indoor and short-term outdoor applications. Eco-solvent and latex inks may also be used, provided that printer settings and ink compatibility are verified. Solvent-based systems may require primer application for optimal adhesion.

Opacity and Color Control

With opacity of at least 85 percent, the white film helps prevent distracting show-through. This is useful when the finished graphic is mounted over a colored wall, display structure, backing board, or previously printed surface. A more opaque substrate gives designers greater control over the final appearance and reduces the influence of the installation background.

Opacity is also valuable in layered display construction. When printed sheets are used with spacers, backlighting controls, mounting frames, or structural components, a stable white base can help keep unwanted visual elements from affecting the printed image.

Processing Flexibility

The material can be processed using rotary cutters, flatbed cutting systems, steel-rule dies, and CNC routers. It can also be drilled for screws, standoffs, hooks, clips, or other hardware. When suitable tools and feed rates are selected, the film can be fabricated with clean edges and minimal chipping.

Processing performance depends on thickness, blade condition, machine calibration, cutting speed, and ambient temperature. Sharp tooling is recommended because dull blades generate excessive heat and force. For routing applications, feed rate and spindle speed should be adjusted according to the film thickness and the desired edge finish.

Technical Specifications

Specifications may vary according to the selected grade, thickness, finish, color, and customer requirements. Commercial users should confirm the applicable technical data sheet before placing a large production order, especially when the material will be used in regulated interiors, demanding industrial environments, or outdoor installations.

Advantages Compared with Flexible PVC Film

Flexible PVC film is valuable for banners, wraps, curtains, membranes, and other applications that require bending or rolling. However, flexibility is not always an advantage. Flat signs, rigid displays, control panels, and decorative boards often require a material that resists curling and maintains its shape without tensioning.

Rigid printable film offers greater flatness during printing. Flexible material may move as the print head passes over it, particularly if it is not perfectly tensioned or vacuum-held. Rigid film reduces this movement and can simplify setup on flatbed equipment.

Rigid film also reduces the need for additional backing structures. A flexible print often requires a board, frame, adhesive mounting system, or tensioning hardware to remain flat. A rigid sheet can frequently be printed, cut, and installed with fewer structural components. This can reduce assembly time and make the finished product easier to handle.

Another advantage is fabrication accuracy. Flexible film can stretch during cutting or mounting, which may alter the final shape of a graphic. Rigid PVC remains more predictable when cut with a digital cutter, die, or router. This is important for repeated signs, matched panels, shelf talkers, and components that must fit into a frame or housing.

Rigid film can also offer a more substantial appearance. Customers often associate flatness and stiffness with quality in premium point-of-purchase displays, retail graphics, equipment labels, and architectural panels. The material feels more like a finished board than a temporary flexible sheet.

Advantages Compared with Paper and Cardboard Substrates

Paper and cardboard are economical choices for many short-term graphics, but they are vulnerable to moisture, edge damage, bending, and surface deformation. PVC rigid printable film is better suited to environments where the substrate may encounter humidity, cleaning, repeated handling, or moderate mechanical stress.

The PVC structure does not absorb water in the same way as paper-based materials. This helps preserve flatness and graphic presentation in retail, hospitality, transport, and industrial environments. It also allows the film to be wiped clean when the correct finish and ink system are selected.

Compared with cardboard, PVC film generally provides more consistent dimensional behavior. Cardboard can swell or warp when exposed to changing humidity. Rigid PVC is less affected by ordinary indoor humidity changes, making it more suitable for long-term interior displays and panels.

The material is also useful when clean edges and drilled holes are required. Paper-based boards may crush, delaminate, or fray during machining. PVC can be cut, drilled, and routed with suitable tools to create a cleaner finished component.

Advantages Compared with Conventional Plastic Sheets

Not every plastic sheet is optimized for printing. Some general-purpose sheets have low surface energy, causing ink to bead, scratch, or peel. Others may warp under print-lamp heat or have a surface that produces inconsistent color. PVC rigid printable film is specifically developed to combine print receptivity with structural stability.

The controlled surface energy of at least 38 dynes/cm supports more uniform ink wetting than untreated plastic. This reduces the risk of poor coverage and adhesion problems. The film can therefore help printers achieve a more predictable result without extensive surface preparation.

The material’s availability in multiple thicknesses also gives converters more freedom. A thin 0.30 mm grade may be suitable for lightweight display inserts, labels, and flexible-flat components. Thicker grades up to 0.80 mm provide increased stiffness for signs, panels, and more substantial display structures.

In addition, the range of gloss, semi-gloss, and matte surfaces allows the visual finish to be selected without changing to an entirely different material family. This helps standardize purchasing and production across projects with different appearance requirements.

Manufacturing Process and Material Engineering

The quality of rigid printable film depends on the relationship between formulation, surface treatment, thickness control, cooling, winding, inspection, and packaging. A strong manufacturing system must control each stage because small variations in one process can affect printing, cutting, or final installation.

Raw Material Selection

PVC resin and selected additives are combined to create the required balance of rigidity, toughness, opacity, surface behavior, and processability. Stabilizers help support performance during processing and use. Impact modifiers and processing aids may be selected according to the required thickness and application. Pigments are controlled to produce a consistent white base and uniform appearance.

Raw materials should be evaluated before production. Important checks can include identity, appearance, moisture condition, batch information, and compatibility with the target formulation. Consistent raw material management provides a stable foundation for consistent finished film.

Compounding and Mixing

During compounding, the material components are dispersed throughout the PVC system under controlled conditions. Uniform mixing is important because uneven additive distribution can lead to differences in color, stiffness, surface energy, or print behavior.

Temperature, mixing time, feed rate, and material sequence are managed to produce a homogeneous compound. The objective is to obtain a formulation that can be processed smoothly while maintaining the properties required by printers and converters.

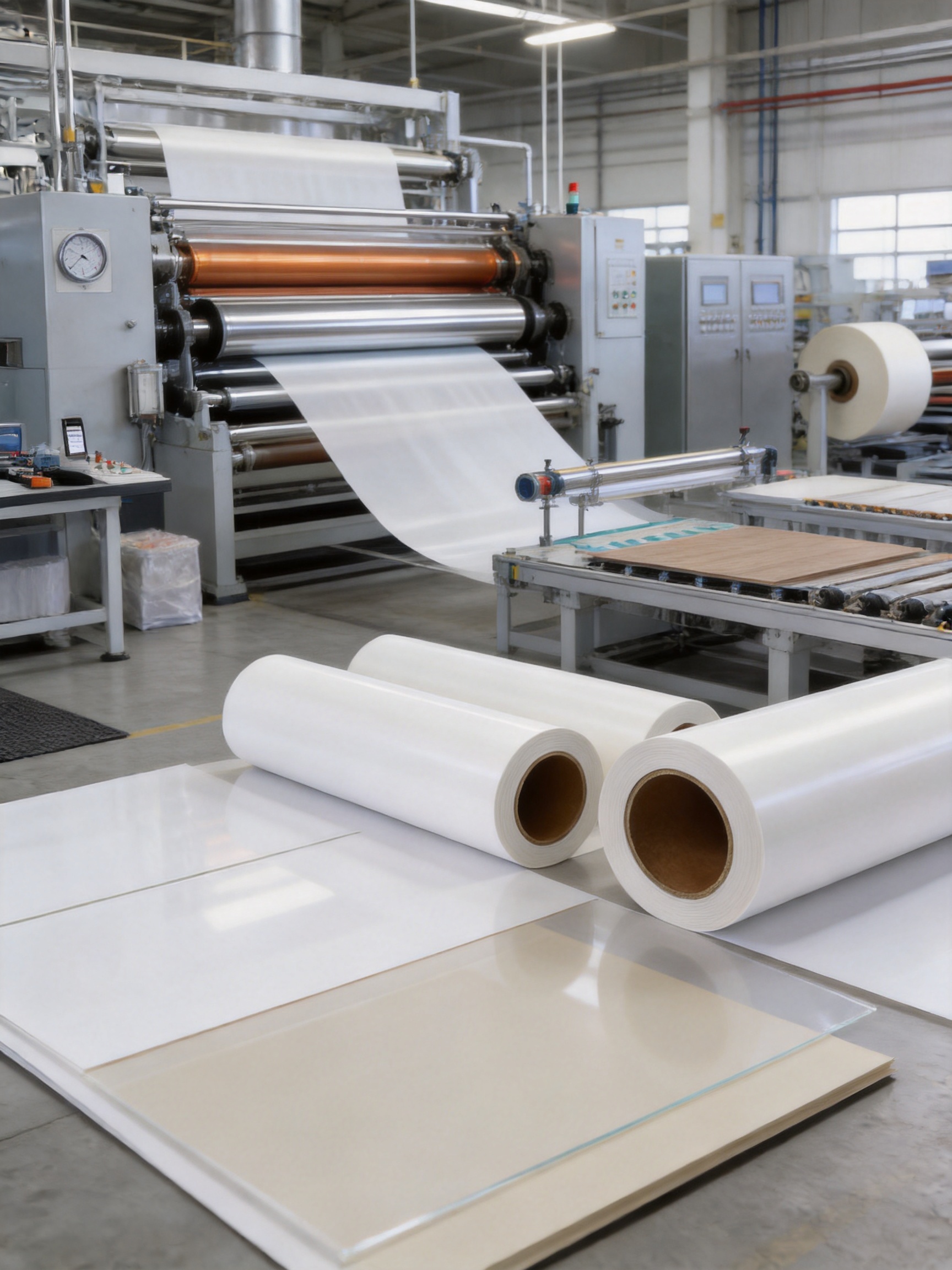

Calendering and Sheet Formation

Calendering is a key process for producing PVC film with controlled thickness and a smooth surface. The prepared compound passes through heated rolls that shape it into a continuous sheet. Roll temperature, pressure, speed, and gap influence the final thickness, surface appearance, and internal structure.

For a printable rigid grade, calendering must be balanced carefully. Excessive heat may affect stability or surface behavior, while insufficient heat can produce poor fusion and nonuniformity. Precise roll-gap control helps maintain thickness consistency across the width of the film.

Advanced production lines use process monitoring to identify changes during sheet formation. Operators and quality personnel can review thickness, appearance, edge condition, and surface uniformity as the film is produced. Early detection helps reduce the amount of material affected by an out-of-specification condition.

Surface Treatment

Surface treatment improves the film’s ability to receive ink. The treatment is designed to raise or stabilize surface energy so that ink spreads evenly and bonds more effectively. Treatment intensity must be controlled because insufficient treatment may cause adhesion problems, while excessive treatment can affect appearance or consistency.

Surface energy testing provides a practical quality-control reference. The stated target of at least 38 dynes/cm indicates that the material is prepared for improved ink wetting. Printers should still perform a compatibility test using their specific ink, curing system, and production settings before full-scale use.

Cooling, Trimming, and Winding

Controlled cooling helps stabilize the sheet after it leaves the forming section. Uneven cooling can create internal stress, curling, or dimensional variation. Proper trimming removes irregular edges and produces a usable web width for wide-format printing and converting.

The film may be supplied flat or rolled with suitable core support. Roll tension must be managed carefully to avoid telescoping, edge damage, or deformation. For rigid or thicker grades, packaging design is especially important because the material must be protected during transport and storage.

Inspection and Release

Finished material can be inspected for thickness, width, opacity, surface energy, density, appearance, edge quality, and print performance. Visual inspection may identify scratches, inclusions, bubbles, surface marks, color differences, or roll defects.

Quality release procedures help ensure that only material meeting the defined requirements is delivered. Batch identification and production records also improve traceability, allowing technical teams to investigate questions and support customers more efficiently.

Manufacturing Strengths and Company Capabilities

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park in Haining City, Zhejiang Province, China. The company has developed a broad portfolio of environmentally friendly decorative materials, functional sports materials, advertising substrates, and other flexible materials.

This diversified product structure is a manufacturing strength because printable rigid film shares important technical foundations with other PVC products. Experience in PVC calendering, coating, laminating, surface modification, color control, and roll handling can be applied to the development and production of specialized printable substrates.

The company emphasizes independent innovation and product research and development. For customers, this can support more than the purchase of a standard material. It may also enable discussions about thickness, width, finish, opacity, surface treatment, packaging, and application-specific performance.

MSD’s wider product system includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and related products. This experience reflects an ability to work with multiple polymer structures and application environments rather than focusing on a single narrow product category.

The company reports compliance with RoHS, REACH, ISO 9001, ISO 14001, and other standards. These certifications and declarations are important indicators of structured quality management, environmental responsibility, and controlled production. Customers should request current certificates and product-specific documentation when a project requires formal compliance verification.

From a buyer’s perspective, an experienced manufacturer can provide advantages in supply continuity, product customization, technical communication, and quality consistency. These factors are often as important as the basic material specifications because the success of a print project depends on repeatable performance over multiple production batches.

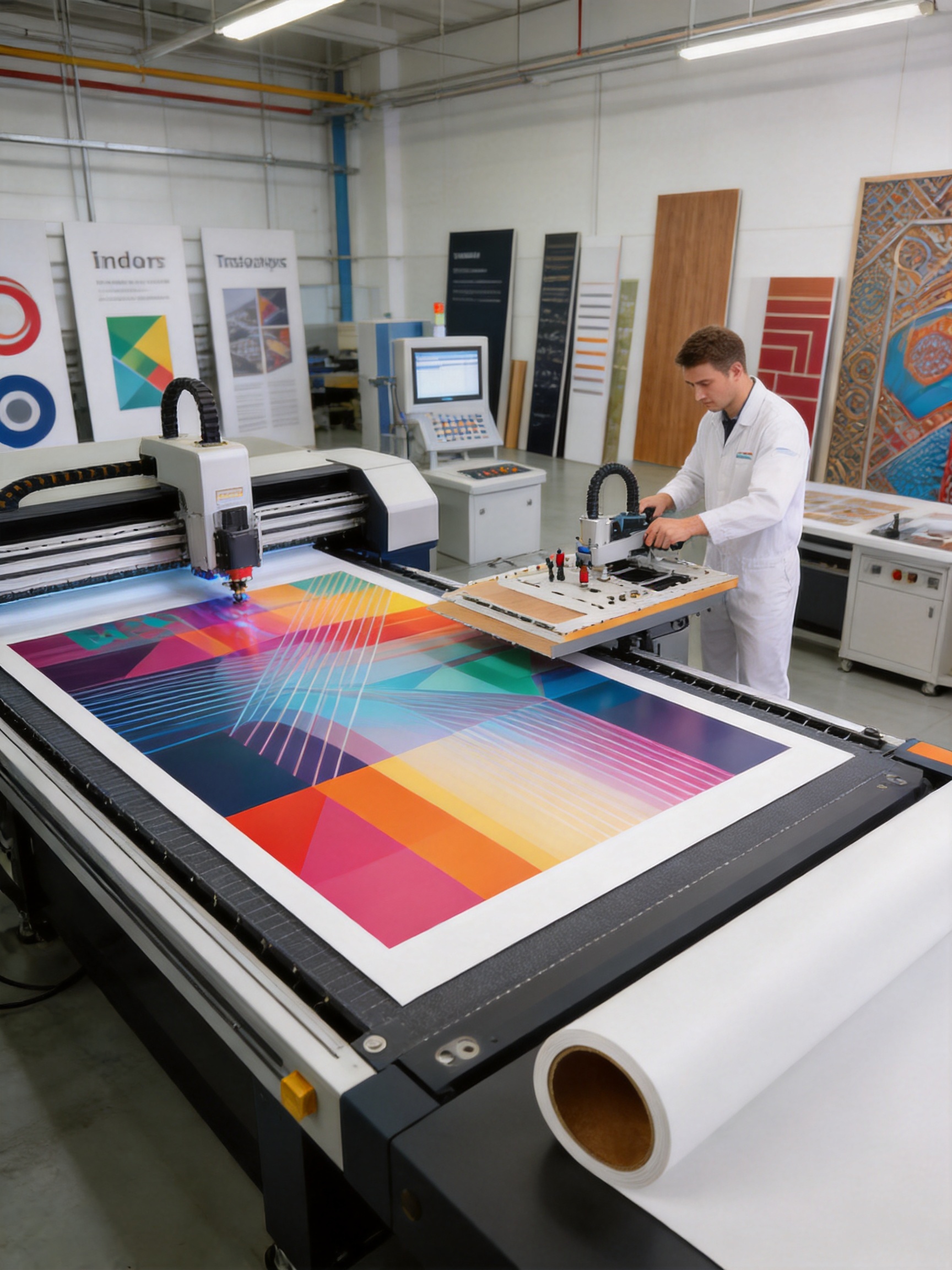

Printing Compatibility and Workflow Recommendations

Before printing, allow the film to acclimate for approximately 24 hours at 20–25°C. Acclimation helps the material reach a stable condition after transport or storage. It is especially useful when the film moves between different climates or when printing requires tight registration.

The printing room should be clean and reasonably controlled. Dust, oil, moisture, and fingerprints can interfere with ink adhesion. Operators should handle the film by its edges when possible and avoid dragging the printable surface across rough worktables.

UV-curable inks are generally the preferred option. They cure rapidly under UV lamps and can provide a durable printed surface. Printer settings should be adjusted according to the selected thickness, surface finish, ink brand, lamp condition, and image coverage. Excessive ink deposition can affect curing and surface appearance.

Eco-solvent and latex inks may also be used. A small test print should be examined for adhesion, drying, color, scratching, and resistance to handling. Because ink formulations vary, compatibility should never be assumed solely from the general ink category.

Solvent-based inks may require a primer for improved bonding. Primer selection, application rate, drying time, and coating uniformity should be validated before production. A poorly applied primer can create as many problems as an untreated surface.

For multi-layer graphics or applications that require high visual protection, lamination can be applied after printing. Lamination may improve resistance to abrasion, cleaning, moisture, and short-term outdoor exposure. The laminating adhesive should be compatible with the film surface and printed ink.

Cutting, Routing, Drilling, and Fabrication

Rigid printable film is suitable for rotary cutting, flatbed cutting, steel-rule die cutting, and CNC routing. The correct process depends on thickness, shape complexity, production volume, and required edge quality.

For digital cutting, the blade should be sharp and correctly aligned. Cutting pressure must be high enough to separate the film without crushing the edge. Excessive pressure may create deformation around small details, while insufficient pressure can leave uncut sections.

Steel-rule dies are effective for repeated shapes and higher-volume production. The die design should account for material thickness, corner radius, internal openings, and waste removal. Small or intricate shapes may require a trial run to optimize stripping and prevent distortion.

CNC routing can be used for thicker grades or larger panels. Tool selection and machine settings should be matched to the film. A suitable combination of spindle speed, feed rate, pass depth, and chip evacuation helps prevent melting, chipping, or rough edges.

Drilling is possible when holes are required for mounting hardware. Backing support should be used where practical, especially for thin grades. Clean drill bits and moderate feed pressure help reduce cracking or deformation around the hole.

After fabrication, remove dust and loose particles before assembly. If the product will be laminated, mounted, or bonded, the surface should be clean and dry. Adhesive compatibility should be tested on the selected finish because gloss and matte surfaces can behave differently.

Application Areas

Indoor Signage

The film is suitable for indoor wayfinding signs, promotional panels, room identification, safety graphics, and information boards. Its flatness supports a clean professional appearance, while the white base provides strong contrast for text and symbols.

Point-of-Purchase Displays

Retail displays require graphics that attract attention and withstand repeated handling. Rigid printable film can be used for shelf talkers, counter displays, product information panels, promotional cards, and temporary merchandising structures.

Trade Show Graphics

Exhibitions often require lightweight, easy-to-assemble graphics with consistent color and clean edges. The material can be printed and cut into display components, header panels, directional signs, or branded inserts.

Industrial Labels and Control Panels

Industrial applications benefit from the film’s dimensional stability and compatibility with detailed printing. It can be used for equipment labels, control-panel overlays, identification plates, operating instructions, and warning graphics when the selected ink and protective finish meet the environmental requirements.

Architectural Panels and Decorative Cladding

Printed rigid PVC can support decorative wall panels, interior cladding elements, visual partitions, and custom design features. Matte surfaces may be preferred where glare must be controlled, while gloss can create a stronger decorative effect.

Packaging and Premium Presentation

Some packaging and presentation products require more stiffness and moisture resistance than paper-based materials can provide. The film may be used for premium boxes, display cases, product inserts, sample boards, and reusable presentation components.

Short-Term Outdoor Graphics

Short-term outdoor use of up to approximately six months may be possible when UV-resistant inks and suitable lamination are used. Outdoor performance depends on sunlight, temperature, moisture, wind, mounting method, graphic coverage, and exposure duration.

For permanent outdoor installation, an exterior-grade version with enhanced UV stabilizers is recommended. A project-specific evaluation should be completed before the material is used in demanding outdoor conditions.

Storage, Handling, and Installation

Store the film flat when possible. If it is supplied in rolls, use a suitable core support and prevent excessive compression. Keep the material away from direct sunlight, heat sources, water, and chemicals. Storage areas should be clean, dry, and maintained at a stable temperature.

Do not place heavy objects on top of the film. Excessive pressure can create impressions, edge damage, or permanent deformation. When moving large rolls or sheets, use equipment and methods that support the material across its width.

Before printing, inspect the surface for dust, scratches, contamination, or visible defects. If the film has been stored for an extended period, perform a small adhesion test before beginning a major order.

During installation, ensure that the mounting surface is clean, dry, smooth, and structurally suitable. Mechanical fasteners, double-sided tapes, pressure-sensitive adhesives, standoffs, clips, and frames may be used according to the design. The selected installation method should account for the film thickness and the weight of the finished panel.

For outdoor installation, protect the printed surface with a compatible laminate when appropriate. Edge sealing or protected mounting may also help reduce the effect of moisture and contaminants. Avoid installing the film outside when the surface temperature is outside the recommended application conditions.

Quality Control for Professional Buyers

Professional buyers should evaluate the material through both specification review and application testing. A technical data sheet confirms nominal values, but print testing reveals how the film behaves with a particular printer and ink system.

Recommended checks include thickness uniformity, roll or sheet width, opacity, surface appearance, surface energy, ink adhesion, color reproduction, cutting quality, and dimensional change after printing. For outdoor or industrial projects, additional tests may include abrasion, cleaning resistance, humidity exposure, temperature cycling, and light resistance.

When purchasing repeatedly, retain approved samples from earlier batches for comparison. A reference sample can help identify changes in color, gloss, stiffness, surface treatment, or print performance. Batch numbers should be recorded with production orders.

Customers who require special dimensions, packaging, or surface finishes should communicate the complete application requirements before production. Important information includes printer type, ink system, graphic size, expected service life, installation method, indoor or outdoor exposure, fire requirements, and estimated order volume.

Sustainability and Compliance Considerations

PVC products should be evaluated within the requirements of the intended market and application. RoHS and REACH compliance can be important for products used in regulated supply chains. ISO 14001 certification reflects the presence of an environmental management system, while ISO 9001 supports systematic quality management.

Compliance documentation should be current and relevant to the specific product. Buyers should request declarations, test reports, safety documentation, or certification records where necessary. The final product may also include inks, laminates, adhesives, fasteners, or other components that require separate evaluation.

Material efficiency is another sustainability consideration. Dimensional stability and accurate cutting can help reduce rejected sheets and production waste. Selecting the appropriate thickness also avoids using more material than necessary for the required stiffness and service life.

At the end of service, recycling options depend on local infrastructure, contamination, printed layers, laminates, adhesives, and product construction. Commercial users should follow applicable regional waste-management requirements and consider designing displays for disassembly where practical.

How to Select the Correct Grade

Start by defining the required stiffness. Lightweight signs, inserts, and labels may use a thinner grade, while larger panels and freestanding structures may need additional thickness. The finished dimensions and mounting method should be considered together because a large unsupported panel may require greater rigidity.

Next, select the surface finish. Gloss is appropriate for high-impact color and strong visual depth. Matte is more suitable where glare reduction is important. Semi-gloss is a versatile choice for general signage and display work.

Choose the width according to the printer and finished graphic size. The available widths of 1.22 m, 1.37 m, and 1.52 m support common wide-format workflows. Selecting a suitable width can reduce joins, edge waste, and the number of cutting operations.

Confirm the printing system and ink. UV-curable inks are recommended for the strongest general performance, while eco-solvent and latex systems should be tested. If solvent-based inks are required, confirm whether primer is necessary.

Finally, define the service environment. Indoor applications may require only print adhesion and cleanability. Outdoor, industrial, or public-facing applications may require lamination, UV-resistant inks, fire documentation, chemical resistance, or additional testing.

Frequently Asked Questions

Can PVC rigid printable film be used outdoors?

It can be used outdoors for short periods, generally up to approximately six months, when UV-resistant inks and suitable lamination are applied. Outdoor life depends on climate, sunlight, moisture, temperature, wind, installation, and graphic protection. For permanent exterior use, an exterior-grade film with enhanced UV stabilizers should be selected.

What is the difference between rigid and flexible PVC film?

Rigid PVC film maintains a flat shape and resists curling, making it suitable for flatbed printing, signs, panels, and structured displays. Flexible PVC film bends and rolls, which is useful for banners, wraps, curtains, and tensioned graphics. The correct choice depends on whether the application requires flexibility or dimensional stability.

Which ink is recommended?

UV-curable ink is generally recommended because it offers strong adhesion and rapid curing. Eco-solvent and latex inks may also be compatible after testing. Solvent-based inks may require primer to achieve reliable bonding.

Can the film be die-cut?

Yes. The material can be processed with steel-rule dies, rotary cutters, flatbed cutting systems, and CNC routers. Sharp tools and suitable machine settings are important for achieving clean edges without chipping, melting, or delamination.

Can it be routed and drilled?

Yes. The film can be routed and drilled when the tooling and process settings are selected according to the thickness. Backing support, sharp tools, controlled feed rates, and appropriate cutting depth help improve the finished result.

Does the film require a primer before printing?

The treated surface is designed to promote ink adhesion without routinely requiring primer for compatible UV, eco-solvent, or latex systems. However, ink formulations differ. A production test should be completed, and solvent-based systems may require primer for optimal adhesion.

Which finish should be selected for retail displays?

Matte is often preferred for retail environments with strong overhead lighting because it reduces glare. Gloss can provide more vivid color and visual impact, while semi-gloss offers a balanced appearance. The choice should reflect the lighting, viewing distance, cleaning requirements, and design style.

How should the film be stored?

Store sheets flat or rolls with core support in a clean, dry area away from direct sunlight and heat. Avoid heavy loads on top of the material. Allow approximately 24 hours of acclimation at 20–25°C before printing.

Is the material fire rated?

The stated fire classification is B1 according to GB 8624. Fire requirements vary by country, building type, installation method, and end-use category, so project-specific documentation should be confirmed before specification.

Can the film be laminated?

Yes. Lamination is recommended for many outdoor and high-contact applications. The laminate and adhesive should be compatible with the film finish and printed ink. A small trial should be carried out to check bonding, appearance, flatness, and edge behavior.

What information should be provided when requesting a quotation?

Provide the required thickness, width, finish, color, estimated quantity, roll or sheet format, printing technology, ink type, intended application, indoor or outdoor service conditions, fire requirements, and packaging preferences. Complete information helps the manufacturer recommend the most suitable grade.

Why This Substrate Is a Strong Commercial Choice

PVC rigid printable film combines the visual quality of a print-receptive surface with the structural benefits of a stable plastic sheet. It reduces many of the difficulties associated with curling, stretching, background show-through, and inaccurate fabrication. This makes it a practical choice for printers, sign manufacturers, display builders, industrial suppliers, and interior product manufacturers.

The product’s main competitive advantage is its balance of properties. It is not simply a rigid sheet, nor is it merely a printable coating. It is engineered as a complete substrate system that supports printing, cutting, routing, mounting, and presentation. The thickness range and surface-finish options further improve its suitability for different production requirements.

For manufacturers and distributors, the value also comes from supply capability. A producer with experience across PVC films, advertising materials, functional fabrics, ceiling products, and related flexible materials can apply broader process knowledge to product development and quality management. Zhejiang MSD Group Share Co., Ltd.’s long-term manufacturing history, independent innovation focus, and reported ISO and environmental compliance provide a foundation for serving both standard and customized requirements.

When paired with suitable inks, correct processing, and appropriate protection, the material can deliver a clean, stable, and professional finished graphic. For projects where flatness, color accuracy, fabrication precision, and dependable handling matter, PVC rigid printable film is a strong alternative to flexible films, paper-based boards, and untreated plastic sheets.

Conclusion

PVC rigid printable film is designed for applications that demand reliable printing and a stable finished form. Its 0.30–0.80 mm thickness range, 1.22–1.52 m width options, opacity of at least 85 percent, surface energy of at least 38 dynes/cm, and B1 fire rating create a practical technical profile for signage, displays, labels, decorative panels, packaging, and selected short-term outdoor graphics.

The film’s smooth print-receptive surface supports UV, eco-solvent, and latex workflows, while its rigid structure helps reduce distortion and register shift. Gloss, semi-gloss, and matte finishes enable designers to match the material to lighting and visual requirements. Cutting, drilling, routing, and lamination further expand the product’s fabrication possibilities.

Supported by controlled compounding, calendering, surface treatment, cooling, winding, inspection, and quality management, the product can provide consistent performance for demanding commercial users. Through technical development and a broad PVC manufacturing background, Zhejiang MSD Group Share Co., Ltd. is positioned to support customers seeking a dependable printable substrate and application-specific material solutions.

References

GB 8624, Classification for Burning Behavior of Building Materials and Products.

ISO 9001, Quality Management Systems — Requirements.

ISO 14001, Environmental Management Systems — Requirements with Guidance for Use.

European Union Restriction of Hazardous Substances requirements, commonly known as RoHS.

European Union Registration, Evaluation, Authorisation and Restriction of Chemicals requirements, commonly known as REACH.

Technical data and application guidance for PVC rigid printable film, manufacturer-supplied product information.

Wide-format digital printing process guidelines for UV-curable, eco-solvent, and latex ink systems.

General principles of polymer film calendering, surface treatment, dimensional stability, and converting.
