High Strength Membrane Structure PVC Coated Polyester Fabric for Demanding Architectural and Industrial Applications

In modern construction, outdoor engineering, temporary infrastructure, and heavy-duty industrial protection, fabric is no longer a simple covering material. It is a structural component, a weather barrier, a printable surface, a flame-retardant layer, and a long-term investment in safety and performance. The 1300GSM 1500D 30x32 high strength membrane structure PVC coated polyester fabric is designed for exactly these demanding conditions. With a heavy finished weight, high-denier polyester reinforcement, balanced warp and weft density, strong tensile performance, excellent tear resistance, and optional surface treatments such as acrylic or PVDF, this material is built for projects where ordinary tarpaulin or lightweight coated fabric is not enough.

This fabric belongs to the category of tent fabric and tarpaulin fabric, but its performance level extends far beyond general-purpose covers. It is especially suitable for membrane structure buildings, large-scale tensile architecture, architectural roofing, awnings, carports, industrial shelters, temporary warehouses, exhibition tents, sports facilities, large billboards, and other applications that require high mechanical strength and long outdoor service life. The core specification, 1300GSM 1500D 30x32, communicates the most important advantages of the fabric: substantial coating weight, strong polyester base yarn, and dense fabric construction. Together, these elements produce a robust composite material that can resist tension, tearing, weather exposure, and repeated use.

The product is based on a reinforced polyester fabric coated with PVC. Polyester provides dimensional stability and mechanical strength, while the PVC coating contributes waterproofing, flame-retardant performance, chemical resistance, weather resistance, weldability, and surface functionality. Through careful formulation and processing, the material can also be enhanced with anti-UV, anti-mildew, anti-frost, anti-static, antibacterial, and higher-level flame-retardant properties. For projects with health, environmental, or export requirements, formulations can be developed to comply with standards such as RoHS, REACH, and EN71-3.

1300GSM 1500D30X32 High Strength Membrane Structure PVC Coated Polyester Fabric

Product Overview

The 1300GSM 1500D 30x32 high strength membrane structure PVC coated polyester fabric is a premium coated textile engineered for applications where strength and durability are decisive. The term “1300GSM” refers to the finished weight of approximately 1300 grams per square meter. This high gram weight indicates a substantial coating and reinforcement structure, making the fabric suitable for large structures and heavy-duty outdoor use. The “1500D” yarn specification means the base fabric uses high-denier polyester yarn, providing superior tensile strength compared with lighter 500D, 840D, or 1000D alternatives. The “30x32” density refers to warp and weft thread counts per inch, supporting stable performance in both machine direction and cross direction.

In many real-world projects, the fabric must handle wind load, installation tension, rainwater pressure, temperature changes, abrasion, folding, welding, and long-term exposure to sunlight. A lighter fabric may be acceptable for temporary covers or low-load applications, but membrane structures and large outdoor systems require a more stable and stronger material. This product is developed to meet those requirements by combining a dense polyester base fabric with a heavy PVC coating and optional functional surface treatment.

The fabric can be used in fixed structures as well as movable or temporary systems. For membrane structure roofs, it provides tensile strength and dimensional stability. For large tents and temporary warehouses, it provides waterproof protection and reliable fabrication performance. For advertising applications, it offers a broad, smooth surface suitable for visual presentation. For sunshade and protection facilities, it delivers shelter, weather resistance, and long service potential.

Key Technical Specifications

The following technical data summarizes the main properties of the product. Actual values may vary according to color, surface treatment, production batch, project requirements, and customized formulation, but the data reflect the standard performance level of this heavy-duty membrane structure fabric.

Why 1300GSM Matters

Finished weight is one of the most direct indicators of a coated fabric’s strength potential and service suitability. At 1300GSM, this product is significantly heavier than many standard PVC tarpaulins or light architectural fabrics. The additional material mass supports better resistance to physical stress, increased coating coverage, improved waterproofing, and stronger long-term durability. In membrane structures, where the fabric may remain under tension for years, a higher weight can contribute to improved stability and resistance to deformation.

Compared with lighter competitors, a 1300GSM fabric provides a more substantial barrier against wind, rain, abrasion, and mechanical damage. Thin fabrics can be easier to handle, but they may show limitations when used in permanent or semi-permanent outdoor structures. They may tear more easily at stress points, show faster coating wear, or suffer from reduced dimensional stability. The 1300GSM construction is intended for projects where the fabric is expected to perform not merely as a cover, but as a dependable engineering material.

The heavier coating also helps protect the polyester yarn from environmental exposure. In coated fabrics, the base fabric is the strength skeleton, while the PVC layer is the protective skin. If the coating is too thin or inconsistent, the base fabric may be more vulnerable to moisture, UV radiation, contamination, and abrasion. A well-controlled high-weight coating improves protection, appearance, weldability, and the overall service life of the finished material.

The Advantage of 1500D Polyester Reinforcement

The 1500D polyester yarn is one of the most important reasons this fabric can deliver tensile strength values of approximately 6000 N/5cm in both machine direction and cross direction. Denier describes yarn thickness and mass. Higher-denier yarns generally provide higher strength and better resistance to rupture, especially when properly woven and coated. In comparison with lower-denier fabrics, 1500D reinforcement gives the material a stronger structural foundation.

Polyester is widely used in coated fabrics because it provides a favorable combination of strength, flexibility, dimensional stability, and compatibility with PVC coating systems. It resists stretching better than many alternative fibers and maintains stable performance under outdoor conditions. For architectural membrane applications, this stability is essential because the fabric must maintain shape under continuous tension.

The 1500 x 1500D base fabric construction means strong yarn is used in both warp and weft directions. This balanced reinforcement is valuable in real applications because loads do not always occur in a single direction. Wind uplift, installation tension, snow load, water accumulation, frame movement, and dynamic stress can affect the fabric from multiple angles. A balanced fabric can help reduce weak-direction failure and provide more predictable performance for designers, fabricators, and installers.

The Meaning of 30x32 Density

The 30x32 density specification refers to the number of yarns per inch in the warp and weft directions. A dense base fabric improves mechanical performance, dimensional stability, coating support, and resistance to tearing. If the base fabric is too open, coating penetration and surface consistency may become harder to control, and the final fabric may show reduced tear resistance or uneven strength distribution. With a 30x32 density, the fabric offers a stable textile skeleton suitable for heavy PVC coating and high-strength applications.

This density also supports a balanced surface. For printing, welding, coating uniformity, and visual appearance, a stable woven structure is beneficial. In large architectural projects, even small inconsistencies can become visible across wide surfaces. A dense base fabric supports smoother coating distribution and a more professional finished appearance.

Compared with loosely woven competitors, this construction can offer stronger resistance to localized damage. When tearing begins in a loose structure, yarns may shift more easily, allowing damage to spread. In a denser construction, yarns are better supported, and the coating can bond more consistently around the fabric structure. This contributes to the product’s tearing strength of approximately 1000 N/5cm in both directions.

PVC Coating Performance

PVC, or polyvinyl chloride, is a widely used coating material for industrial fabrics because it offers a strong combination of waterproofing, flexibility, flame-retardant potential, chemical resistance, processability, and cost-performance. In this product, PVC forms the functional surface layer around the polyester reinforcement. The coating protects the textile base, seals the fabric against water, improves weather resistance, and allows the material to be welded into large panels or complex shapes.

The PVC material can be formulated for flame retardancy, chemical resistance, and mechanical durability. It can resist exposure to various acids and alkalis under appropriate conditions, including concentrated hydrochloric acid, high-concentration sulfuric acid, nitric acid, and sodium hydroxide solutions as noted in the material description. This chemical resistance is valuable for industrial covers, storage applications, and outdoor environments where pollutants or cleaning agents may contact the surface.

The coating also contributes to electrical insulation performance and overall mechanical strength. With appropriate additives, the fabric can be improved for UV resistance, mildew resistance, frost resistance, static resistance, antibacterial performance, and enhanced flame retardancy. This ability to customize the formulation is a major advantage over generic fabrics that are sold only in fixed specifications without adaptation to project environments.

Weather Resistance for Outdoor Longevity

Outdoor fabric must withstand far more than occasional rain. It must tolerate ultraviolet radiation, temperature cycles, wind, dust, biological contamination, cleaning, and long-term mechanical stress. The 1300GSM PVC coated polyester fabric is built for these conditions. Its operating temperature range of approximately -50℃ to +70℃ allows it to function in cold, temperate, and hot climates. This makes it suitable for a wide range of regions and seasonal conditions.

Anti-UV additives can help slow degradation caused by sunlight. Without sufficient UV protection, some coated fabrics may become brittle, discolored, or weakened over time. Anti-mildew additives are useful in humid environments where moisture and organic contamination can encourage microbial growth. Anti-frost performance is valuable in cold climates, where flexibility and coating integrity may be challenged by low temperatures.

For membrane structures, weather resistance is not a luxury feature. It is essential. A roof or canopy may be installed at height and remain exposed for years. Replacement can be costly, disruptive, and technically challenging. By selecting a fabric with high strength, heavy coating, and appropriate surface treatment, project owners can reduce maintenance pressure and improve long-term reliability.

Flame-Retardant Options for Safety-Critical Projects

Many applications for this fabric involve public spaces, temporary events, commercial buildings, sports facilities, exhibition halls, and large tents. In such environments, flame-retardant performance may be required by regulation or project specification. This product can be manufactured to meet several flame-retardant classifications, including B1, B2, M1, M2, NFPA-701, and C 19, depending on the project requirement and formulation.

Flame retardancy in PVC coated fabric is achieved through material formulation and controlled production. The purpose is not only to reduce ignition risk, but also to control flame spread and improve safety performance during fire exposure. For public membrane structures and large tents, this is one of the most important selection factors. A low-cost fabric without verified flame-retardant performance may not be suitable for regulated applications, even if it appears visually similar.

The ability to offer multiple flame-retardant options gives project buyers flexibility. Different markets and applications may require different test methods and classifications. A supplier with formulation knowledge and production control can help customers select a fabric aligned with local standards, building codes, and project specifications.

Acrylic and PVDF Surface Treatments

Surface treatment plays a major role in outdoor fabric performance. The product can be supplied with acrylic or PVDF surface treatment. Acrylic treatment improves surface protection, dirt resistance, and appearance retention for many general outdoor applications. PVDF treatment provides a higher level of surface performance, especially for architectural projects requiring improved anti-soiling properties, weatherability, and easier cleaning.

PVDF-treated fabrics are often preferred for long-term membrane structures because the surface can better resist contamination and maintain appearance under outdoor exposure. In urban environments, dust, exhaust particles, rain marks, and airborne pollution can gradually affect the appearance of fabric structures. A high-performance surface treatment helps reduce dirt adhesion and simplifies maintenance.

Compared with untreated or basic coated fabrics, acrylic and PVDF surface treatments provide clear advantages. They help extend visual life, improve cleanability, and support long-term performance. For large membrane roofs, stadium coverings, shopping mall canopies, and exhibition structures, appearance is part of the value. A fabric that remains cleaner and more stable over time can protect the architectural image of the project.

Waterproofing and Weldability

One of the main reasons PVC coated polyester fabric is widely used in tents, tarpaulins, and membrane structures is its waterproof performance. The PVC coating creates a continuous barrier that prevents water penetration. When properly fabricated, welded seams can also provide strong waterproof joints. This is a major advantage over stitched-only materials, where needle holes may create leakage paths unless additional sealing is applied.

The 1.00mm thickness and heavy coating structure support reliable high-frequency welding, hot-air welding, and other fabrication methods commonly used for PVC coated fabrics. Strong weldability is important because large structures are usually assembled from multiple panels. The final performance of the structure depends not only on the base fabric but also on seam strength, dimensional accuracy, and fabrication quality.

In comparison with fabrics that have weak coating adhesion or inconsistent coating thickness, this product offers a better foundation for fabrication. Peeling strength of approximately 100 N/5cm indicates good bonding between the PVC coating and polyester base. Strong coating adhesion helps reduce delamination risk during welding, folding, tensioning, and long-term use.

Mechanical Strength in Real Applications

The tensile strength of 6000 N/5cm in both MD and CD directions demonstrates the product’s suitability for high-load applications. Machine direction and cross direction strength are both important because structural loads vary across the fabric. In a membrane roof, for example, tension may be applied along designed cable lines, edge reinforcements, and frame connections. Wind and rain may create additional stress patterns. Balanced strength helps ensure that the fabric behaves predictably during installation and service.

Tear strength is also critical. Many fabric failures begin with a small cut, puncture, or local stress concentration. If the material has poor tear resistance, minor damage can spread quickly. This product’s tear strength of approximately 1000 N/5cm in both directions provides improved resistance to tear propagation. For construction sites, temporary warehouses, outdoor covers, and event tents, where accidental abrasion or puncture may occur, tear resistance can be the difference between a repairable incident and a major failure.

Competitor products with lower yarn denier, lighter coating, or less balanced fabric density may achieve acceptable performance in simple covering applications but can fall short in membrane structures or heavy outdoor engineering. This product is designed to reduce that risk by delivering a strong textile base, heavy PVC protection, and controlled bonding performance.

Manufacturing Strength: From Yarn Selection to Finished Fabric

High-performance coated fabric begins with the correct selection of raw materials. The polyester yarn must meet strength and consistency requirements. The base fabric must be woven with stable density and controlled tension. The PVC formulation must match the intended application, whether the project emphasizes flame retardancy, UV resistance, low-temperature flexibility, environmental compliance, surface appearance, or chemical resistance.

Advanced manufacturing involves more than simply applying PVC to cloth. It requires precise control of coating thickness, temperature, speed, tension, curing, cooling, surface finish, and final inspection. If any step is poorly controlled, the fabric may suffer from uneven thickness, weak adhesion, surface defects, dimensional instability, or inconsistent color. For heavy-duty membrane fabric, process stability is especially important because the material is used in large panels where defects can cause costly waste.

The manufacturer behind this product operates from the warp knitting industrial center of Haining City, Zhejiang Province, China, and has developed flexible material expertise since 2002. Long-term specialization in PVC coated fabric, PVC laminated fabric, tarpaulin, waterproof fabric, mesh fabric, flex banner, ceiling film, drop stitch fabric, and related materials supports strong technical understanding across multiple coated textile categories. This broad product system allows the company to apply knowledge from architectural, advertising, sports, and industrial materials to improve product performance.

Advanced Coating and Lamination Capabilities

The production of PVC coated polyester fabric generally includes base fabric preparation, PVC formulation, coating or lamination, heating, surface treatment, cooling, winding, inspection, and packing. In a high-quality production system, these steps are supported by modern equipment and technical monitoring. Accurate coating control ensures that the fabric reaches the target weight of 1300GSM within tolerance. Consistent thickness helps maintain uniform mechanical performance and appearance.

For PVC laminated fabric, layers are bonded together under controlled heat and pressure. For PVC coated fabric, liquid or paste PVC is applied to the textile base and processed to form a durable coating. Both technologies require strong understanding of polymer behavior, fabric tension, and adhesion mechanisms. The company’s experience as both a PVC coated fabric manufacturer and PVC laminated fabric supplier is an advantage because it can select or adjust processing routes according to product requirements.

Surface treatment is another key stage. Acrylic or PVDF layers must be applied consistently to provide the expected anti-soiling and weathering performance. Poor surface treatment can result in uneven gloss, weak durability, or reduced cleanability. Advanced manufacturing control helps ensure that the final fabric is not only strong but also suitable for architectural appearance requirements.

Quality Control and Testing

A technical fabric must be supported by measurable quality control. The product data include tests for base fabric density, finished fabric weight, thickness, tensile strength, tearing strength, peeling strength, temperature range, flame-retardant options, and surface treatment. These parameters are important because they directly influence real-world performance.

Weight and thickness testing verify that the coating process is stable and that the finished fabric meets specification. Tensile testing evaluates the ability of the fabric to resist pulling forces. Tear testing evaluates resistance to damage propagation. Peeling strength testing evaluates adhesion between coating and base fabric. Flame-retardant testing confirms that the product meets required safety classifications when specified.

In professional production, quality control also includes visual inspection, surface defect detection, color consistency review, roll length verification, width control, packing inspection, and documentation. For large projects, batch consistency is especially important. A membrane roof or large tent may require many rolls of fabric. If color, thickness, or surface finish varies significantly between rolls, the final structure may show visible differences or inconsistent performance. A mature manufacturer understands these risks and controls production accordingly.

Advantages Over Ordinary Tarpaulin Fabric

Ordinary tarpaulin fabric is often selected based on low price and basic waterproofing. For simple short-term covers, that may be enough. However, for membrane structures, large tents, industrial shelters, and long-term outdoor applications, ordinary tarpaulin may not provide sufficient strength, stability, or surface durability. The 1300GSM 1500D 30x32 fabric is different because it is engineered as a heavy-duty technical material.

First, the 1500D yarn gives it a stronger base than many standard tarpaulins. Second, the 30x32 fabric density offers a stable reinforcement structure. Third, the 1300GSM finished weight provides a heavy protective coating. Fourth, the balanced MD and CD tensile strength supports reliable performance under multidirectional loads. Fifth, optional flame-retardant, anti-UV, anti-mildew, anti-frost, anti-static, antibacterial, acrylic, and PVDF functions make the product more adaptable to professional projects.

In addition, ordinary tarpaulins may not be designed for architectural appearance. They may show more visible texture, lower surface stability, weaker cleanability, or reduced long-term color retention. For projects where the fabric is visible to the public, such as stadiums, exhibition centers, shopping malls, and commercial canopies, the surface quality matters. This product is suitable for projects where both engineering function and appearance must be considered.

Advantages Over Lightweight Membrane Fabrics

Some membrane fabrics are lighter and easier to handle, but they may be less suitable for high-load or long-term applications. A lighter material can reduce installation effort and structural load, but it may also reduce tensile strength, tear resistance, abrasion resistance, and coating life. The best fabric choice always depends on project design, but when strength and durability are priorities, this 1300GSM fabric offers clear advantages.

The high finished weight supports stronger performance in demanding environments. The strong yarn and dense base fabric improve resistance to stretching and tearing. The heavy PVC coating protects the reinforcement and supports reliable welding. For large membrane structures, industrial covers, and long-term shelters, these benefits can reduce maintenance costs and improve safety margins.

Competitor lightweight fabrics may be suitable for small awnings, short-term tents, or low-load covers. However, when used beyond their design limits, they may experience edge tearing, seam failure, deformation, coating cracking, or premature weathering. This heavy-duty fabric is designed to help avoid such problems in applications where a stronger material is justified.

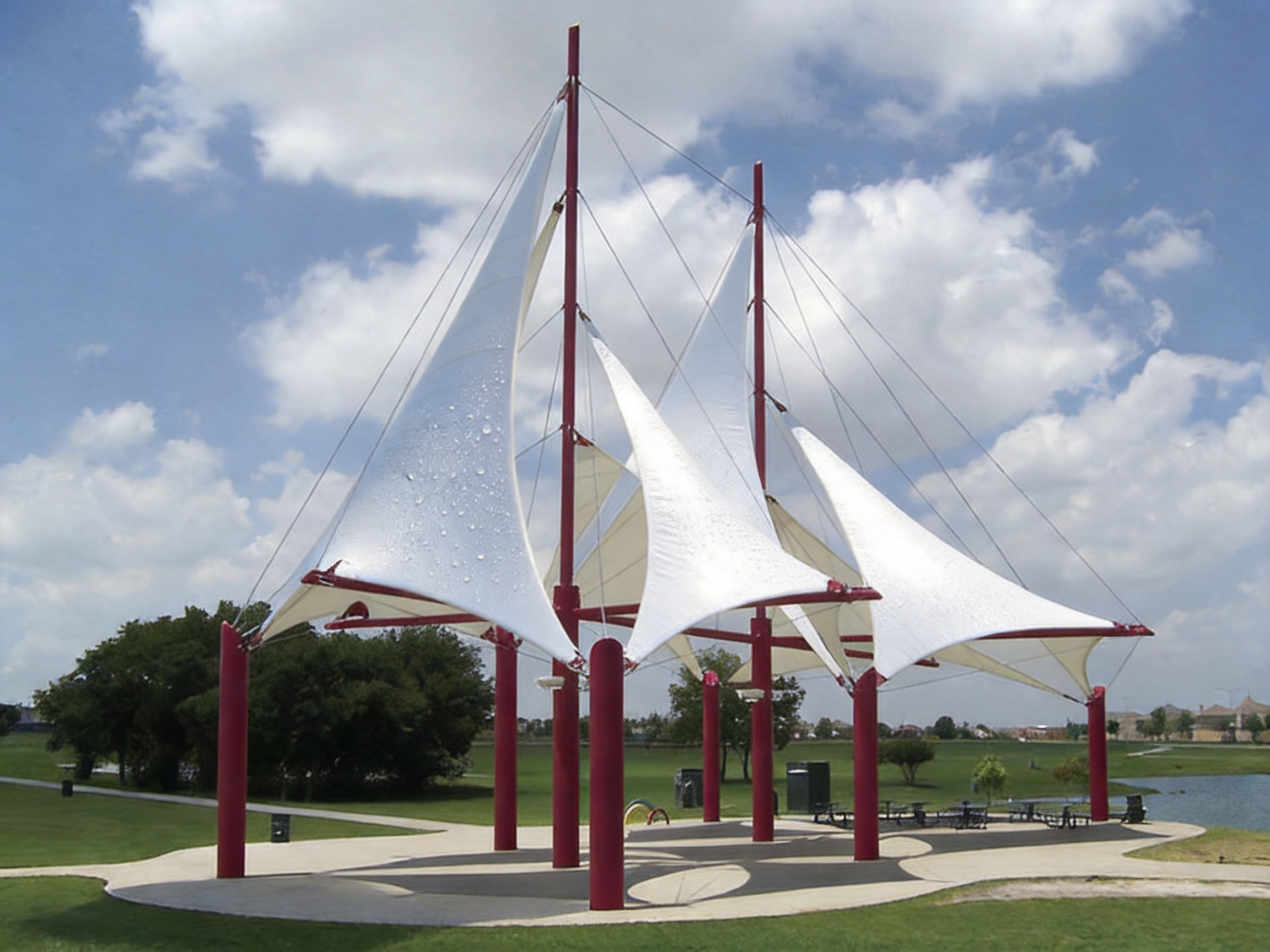

Application in Membrane Structure Buildings

Membrane structure buildings are one of the most important applications for this product. These structures use tensioned fabric as a roof, facade, canopy, or enclosure. They are valued for lightweight design, attractive shapes, wide-span capability, natural light control, and efficient installation. However, they place significant demands on the fabric. The material must carry tension, resist weather exposure, maintain shape, and preserve appearance.

The 1300GSM 1500D 30x32 fabric is especially suitable for membrane structure roofs, architectural awnings, entrance canopies, public walkways, sports facility covers, exhibition halls, commercial centers, parking structures, and outdoor gathering spaces. Its high strength makes it suitable for large spans and tensioned systems. Its waterproof PVC coating protects the space below. Its surface treatment options help maintain appearance. Its flame-retardant options support safety compliance.

Architects and engineers often choose membrane structures for their visual impact. The fabric surface becomes part of the building identity. Therefore, material selection affects not only structural function but also aesthetics and maintenance. A high-performance fabric can help preserve the intended design over time.

Application in Temporary Structures

Temporary structures require materials that are strong, practical, and fast to fabricate. Exhibition tents, temporary warehouses, emergency shelters, disaster relief tents, event halls, and construction covers must be installed quickly and often under challenging conditions. The fabric must resist handling damage, weather exposure, folding, transportation, and repeated installation.

This PVC coated polyester fabric provides the heavy-duty performance needed for demanding temporary structures. Its tear resistance helps protect against accidental damage during installation and use. Its waterproof coating protects goods, people, and equipment. Its weldability allows fabricators to produce large panels, reinforced edges, doors, windows, and special shapes. Its flame-retardant options are important for public events and emergency facilities.

Compared with lighter temporary tent fabrics, this material offers increased robustness and longer potential service life. For rental tent companies, logistics operations, emergency management organizations, and industrial users, durability can be more important than the lowest initial cost. A stronger fabric can withstand more installation cycles and reduce replacement frequency.

Application in Sunshade and Protective Facilities

Sunshade and protective facilities include awnings, carports, swimming pool covers, outdoor corridors, agricultural covers, storage covers, and machinery protection systems. These applications expose fabric to sun, rain, wind, dust, and mechanical contact. A fabric that combines UV resistance, waterproofing, tear resistance, and surface durability is essential.

The 1300GSM fabric provides strong protection for these uses. For carports and outdoor shelters, it resists rain and sunlight while maintaining tension over frames. For swimming pool covers, it provides a durable barrier that can resist moisture and outdoor exposure. For industrial protection, it shields equipment, materials, and work areas from weather and contamination.

Compared with thinner covers, this heavy-duty fabric offers greater resistance to abrasion and tearing. This is especially useful in applications where the fabric may rub against frames, edges, or stored goods. With proper design and fabrication, reinforced edges and welded seams can further improve service performance.

Application in Advertising and Large Visual Displays

Although the product is primarily positioned as a high-strength membrane and tarpaulin fabric, it can also be used for large advertising cloths, signs, and logos. The PVC surface can support printing and visual presentation, allowing clear images and text when matched with appropriate printing technology and surface preparation. For large outdoor advertising, strength and weather resistance are important because the banner may be exposed to wind, rain, and sunlight.

Large advertising installations often fail at edges, eyelets, seams, or high-stress corners. A stronger fabric can help reduce these risks. The product’s high tensile and tear strength make it suitable for oversized graphics where wind load and mounting tension are concerns. Its waterproof coating and weather-resistant formulation also support outdoor use.

For projects that require both visual communication and structural reliability, this fabric offers an advantage over lighter banner materials. While lightweight flex banners may be more economical for short-term advertising, heavy-duty PVC coated polyester fabric is better suited for large, exposed, or long-duration installations.

Environmental and Health-Related Customization

Modern buyers increasingly require materials that meet health, safety, and environmental expectations. The fabric can be produced to meet RoHS, REACH, and EN71-3 requirements when specified. These standards are especially relevant for export markets, public spaces, consumer-adjacent applications, and projects where material compliance documentation is required.

RoHS compliance addresses restrictions on certain hazardous substances. REACH relates to chemical safety and registration requirements in the European market. EN71-3 concerns migration of certain elements and is commonly associated with toy safety, but it can also be requested for materials used in sensitive environments. The ability to adjust formulations for these standards reflects manufacturing flexibility and technical capability.

Environmental responsibility in coated fabric production also involves efficient manufacturing, stable quality to reduce waste, long service life to reduce replacement frequency, and proper material selection for the intended use. A durable fabric that performs for a longer period can reduce total material consumption over the project life cycle.

Customization Possibilities

Different projects require different fabric properties. A stadium canopy may prioritize PVDF surface treatment and high flame-retardant classification. A temporary warehouse may prioritize tear strength and waterproofing. A cold-region shelter may require low-temperature flexibility. A public event tent may require flame retardancy and clean appearance. An industrial cover may require chemical resistance and abrasion durability.

The product can be customized through formulation, surface treatment, flame-retardant level, color, width, roll length, and other project-related parameters. This customization capability is one of the strongest advantages over generic competitors. Instead of forcing a single standard product into every application, a technically capable manufacturer can adjust the material to match the application environment.

Customization also supports fabricators. Different fabrication methods may require particular welding behavior, surface finish, or flexibility. By communicating with the manufacturer early, fabricators can select a fabric that performs well in cutting, welding, folding, sewing reinforcement, edge finishing, and installation.

Company Manufacturing Strength and Industry Experience

The manufacturer was established in 2002 and is located in the Warp Knitting Industrial Park of Haining City, Zhejiang Province, China. This location is known for textile and warp knitting industry development, providing access to relevant supply chains, skilled labor, and manufacturing knowledge. More than two decades of experience in flexible materials gives the company a strong foundation for producing PVC coated fabric and related products.

The company has developed a three-dimensional product system integrating environmentally friendly decorative materials, functional sports materials, and other flexible materials across multiple application scenarios. Its main products include advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and other coated or flexible materials. This broad product range supports cross-category innovation. Knowledge gained from waterproof fabrics, advertising materials, decorative films, and sports fabrics can be applied to improve membrane structure fabrics.

Independent innovation has been an important part of the company’s development. In coated fabric manufacturing, innovation may include formulation improvement, coating process optimization, surface treatment development, environmental compliance, mechanical performance enhancement, and product adaptation for new applications. This focus on research and development helps the company respond to changing market needs and compete with suppliers that rely only on standard commodity products.

Why Manufacturing Process Matters to Buyers

When buyers compare PVC coated fabrics, they may first look at weight, thickness, and price. These are important, but they do not tell the whole story. Two fabrics with similar listed specifications can perform very differently if the manufacturing process is different. Coating uniformity, adhesion, yarn quality, density control, additive dispersion, surface treatment quality, and inspection standards all influence performance.

A fabric with poor coating adhesion may delaminate during welding or use. A fabric with inconsistent thickness may show weak spots. A fabric with unstable base construction may deform under tension. A fabric with inadequate UV protection may age prematurely. A fabric with poor surface treatment may become dirty quickly or lose appearance. These problems may not be obvious during purchasing, but they can cause major costs after installation.

Advanced manufacturing reduces these risks. By controlling raw materials, production parameters, testing, and final inspection, the manufacturer can deliver more consistent rolls and more dependable performance. For professional buyers, this consistency is often more valuable than a small initial price difference.

Total Value Compared with Low-Cost Competitors

Low-cost competitors may offer fabrics with lower weight, lower yarn denier, reduced coating thickness, limited flame-retardant performance, or minimal surface treatment. Such products may appear economical at first. However, if the fabric fails early, requires frequent repair, becomes dirty quickly, or cannot meet project safety requirements, the total cost becomes much higher.

The 1300GSM 1500D 30x32 PVC coated polyester fabric offers value through durability, strength, customization, and professional manufacturing support. It can reduce replacement frequency, improve safety, support better appearance retention, and provide more reliable fabrication. For large structures, the cost of fabric is only one part of the total project cost. Design, fabrication, transportation, installation, maintenance, downtime, and replacement are also significant. Choosing a stronger fabric can protect the entire investment.

For membrane structures, the consequences of material failure can be serious. Repairs may require equipment, labor, safety measures, and operational interruption. In public spaces, failure can also affect reputation and safety. Therefore, the right fabric should be selected based on performance and service requirements, not price alone.

Guidance for Selecting This Fabric

This fabric is recommended when the project requires high tensile strength, high tear resistance, reliable waterproofing, strong coating adhesion, flame-retardant options, outdoor weather resistance, and long-term durability. It is especially suitable for medium to large membrane structures, architectural awnings, heavy-duty tents, temporary warehouses, industrial covers, carports, pool covers, and large outdoor advertising systems.

Before ordering, buyers should clarify several project details. These include intended application, expected service life, local climate, wind load, snow load, flame-retardant standard, color, surface treatment preference, printing requirements, fabrication method, roll width, and compliance requirements. This information helps the manufacturer recommend the most suitable version of the fabric.

For architectural projects, designers and engineers should also consider structural calculations, pre-stress design, seam layout, edge reinforcement, connection details, drainage design, maintenance access, and cleaning procedures. Even the strongest fabric must be used correctly to achieve the best performance.

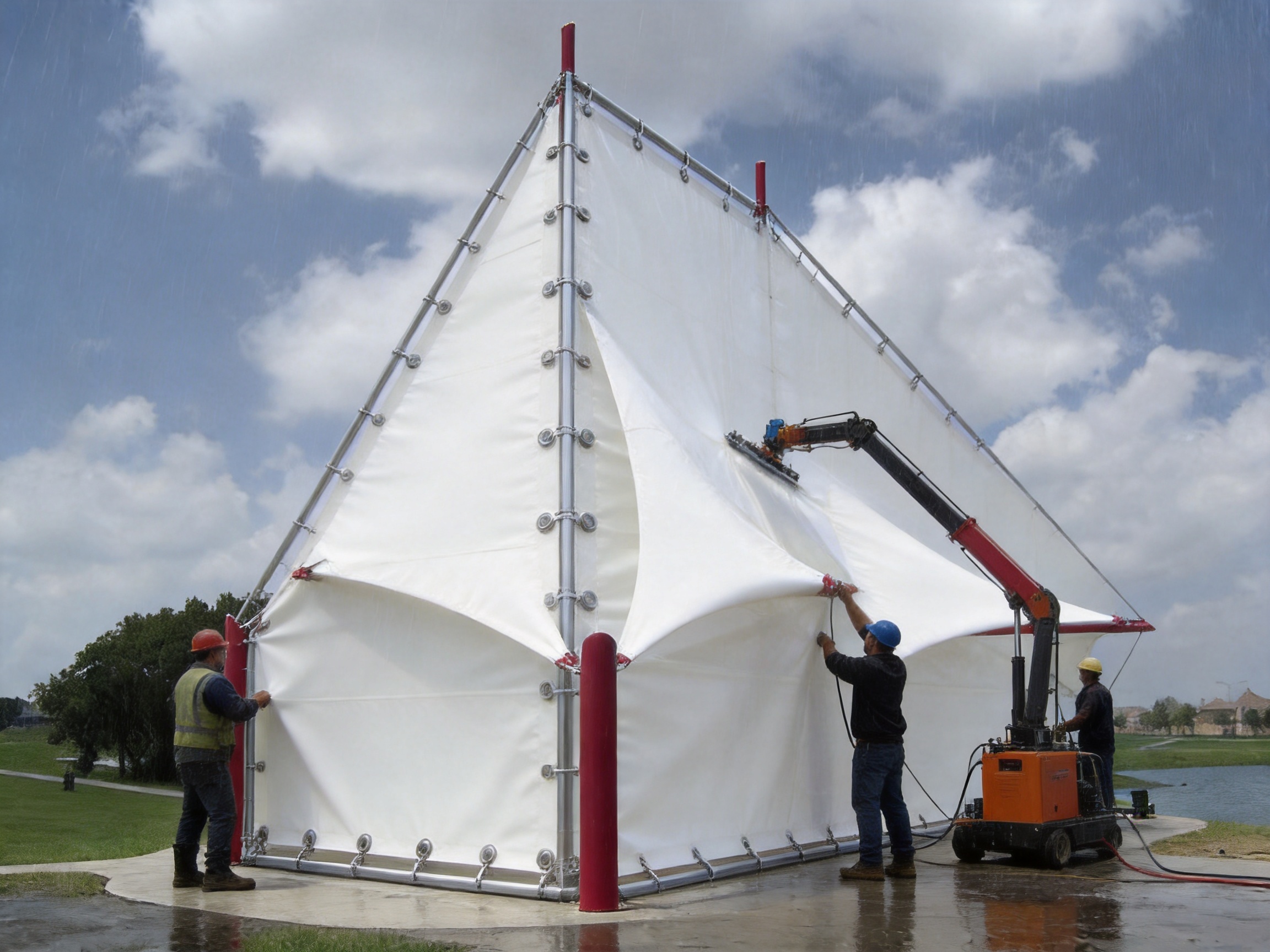

Installation and Maintenance Considerations

Proper installation is essential for membrane and tarpaulin fabric performance. The fabric should be handled carefully to avoid cuts, punctures, and contamination. During installation, tension should be applied according to design requirements. Excessive localized stress should be avoided, especially around corners, seams, eyelets, and connection points. Reinforcement should be used where the fabric connects to frames or hardware.

For welded structures, seam quality is critical. Welding temperature, pressure, speed, and overlap width should be controlled according to fabric behavior and equipment conditions. Test welds are recommended before mass fabrication. Finished seams should be inspected for strength, continuity, and waterproofing.

Maintenance should include periodic cleaning, inspection of seams and edges, removal of sharp debris, and repair of small damage before it expands. Mild cleaning methods are preferred, and harsh chemicals should be avoided unless confirmed compatible with the fabric surface. PVDF-treated surfaces may be easier to clean and may retain appearance better in polluted environments.

Frequently Asked Questions

What does 1300GSM mean?

1300GSM means the finished fabric weighs approximately 1300 grams per square meter. This high weight indicates a heavy-duty coated fabric with substantial reinforcement and PVC coating, suitable for demanding outdoor and structural applications.

What does 1500D mean?

1500D refers to the denier of the polyester yarn used in the base fabric. Higher denier generally means stronger yarn. In this product, 1500 x 1500D polyester reinforcement supports high tensile strength in both warp and weft directions.

What does 30x32 density mean?

30x32 means the base fabric has approximately 30 threads per inch in one direction and 32 threads per inch in the other direction. This dense construction supports dimensional stability, coating uniformity, tear resistance, and balanced strength.

Is this fabric suitable for permanent membrane structures?

Yes. The fabric is designed for high-strength membrane structure applications such as roofs, awnings, canopies, stadium covers, exhibition halls, and commercial architectural structures. Project engineers should confirm structural requirements, flame-retardant standards, and surface treatment options before final selection.

Can the fabric be used for temporary tents and warehouses?

Yes. Its waterproofing, tear resistance, tensile strength, and weldability make it suitable for temporary warehouses, exhibition tents, disaster relief tents, event structures, and industrial shelters.

What flame-retardant standards are available?

The fabric can be produced with flame-retardant options such as B1, B2, M1, M2, NFPA-701, and C 19, depending on project requirements and confirmed formulation.

What is the difference between acrylic and PVDF surface treatment?

Acrylic treatment provides useful surface protection and improved outdoor performance for many applications. PVDF treatment offers higher anti-soiling performance, weather resistance, and cleanability, making it suitable for long-term architectural membrane projects.

Can the fabric meet environmental or health-related standards?

Yes. The formulation can be adjusted to meet requirements such as RoHS, REACH, and EN71-3 when specified. Buyers should communicate compliance requirements before production.

How does this fabric compare with ordinary PVC tarpaulin?

Compared with ordinary tarpaulin, this fabric offers higher yarn strength, heavier finished weight, denser construction, stronger tensile and tear resistance, optional advanced surface treatment, and better suitability for structural or long-term outdoor applications.

Is the fabric printable?

Yes. The PVC surface can be suitable for large advertising cloths, logos, and visual displays when matched with appropriate printing technology. Printing requirements should be confirmed according to surface treatment and ink system.

What temperature range can it withstand?

The product is designed for a temperature range of approximately -50℃ to +70℃, making it suitable for many cold, temperate, and hot outdoor environments.

Why is peeling strength important?

Peeling strength reflects the adhesion between the PVC coating and polyester base fabric. Strong adhesion helps prevent delamination during welding, folding, tensioning, and long-term use.

Conclusion

The 1300GSM 1500D 30x32 high strength membrane structure PVC coated polyester fabric is a professional-grade material for projects that require more than basic waterproof covering. Its high finished weight, strong 1500D polyester reinforcement, dense 30x32 base fabric, balanced tensile strength, high tear resistance, reliable coating adhesion, flame-retardant options, weather resistance, and acrylic or PVDF surface treatments make it suitable for demanding architectural, industrial, temporary, protective, and advertising applications.

Its advantages over ordinary tarpaulin and lightweight competitors are clear. It offers stronger mechanical performance, better suitability for large structures, improved durability, and greater customization potential. For buyers who value long-term reliability, safety compliance, and professional appearance, this fabric provides a strong total-value solution.

Behind the product is a manufacturer with long-term experience in PVC coated fabric, PVC laminated fabric, waterproof fabric, tarpaulin, flex banner, ceiling film, drop stitch fabric, and related flexible materials. With a foundation in independent innovation, advanced manufacturing processes, formulation flexibility, and quality control, the company is well positioned to support demanding projects in domestic and international markets.

For membrane structures, outdoor shelters, temporary buildings, protective covers, and large visual systems, material choice determines performance. Selecting a high-strength PVC coated polyester fabric is not only a purchasing decision; it is an engineering decision that affects safety, service life, maintenance, and project value.

References

GB/T1040, Plastics: Determination of Tensile Properties.

GB/T16578, Test Method for Tearing Strength of Textile Fabrics and Coated Materials.

GB/T3917, Textiles: Tear Properties of Fabrics.

FZ/T01003, Textile Testing Standard for Fabric Structure, Weight, and Dimensional Parameters.

NFPA 701, Standard Methods of Fire Tests for Flame Propagation of Textiles and Films.

European Chemicals Agency, REACH Regulation Guidance for Chemical Safety and Compliance.

RoHS Directive, Restriction of Hazardous Substances in Electrical and Related Material Applications.

EN71-3, Safety of Toys: Migration of Certain Elements.

Architectural Fabric Structures: Design, Materials, and Performance Considerations.

Industrial Coated Textiles: PVC Coating, Lamination, Surface Treatment, and Quality Control Practices.

Product: 1300GSM 1500D30X32 High Strength Membrane Structure PVC Coated Polyester Fabric
