850 GSM 1000D 23×23 99.9% Block-Out PVC Coated Polyester Fabric for Party Tents

Large-format tents and temporary structures must perform far beyond the requirements of ordinary outdoor textiles. They need to withstand repeated installation, tensioning, folding, transport, wind exposure, rain, sunlight, temperature changes, and intensive public use. At the same time, event organizers increasingly expect a tent interior to provide privacy, thermal comfort, controlled lighting, and a clean architectural appearance. The 850 GSM 1000D 23×23 PVC coated polyester fabric has been developed to address these combined demands.

This heavy-duty tent fabric combines a dense 1000D polyester base cloth with a 23×23 yarn construction and a substantial PVC coating system. Its 99.9% block-out performance prevents almost all visible light from passing through the material, while its waterproof, UV-resistant, antifungal, and flame-retardant characteristics make it suitable for demanding temporary and semi-permanent structures. The material is commonly used for marquee tents, party tents, royal tents, exhibition structures, storage marquees, sports facilities, and other large-scale covered spaces.

Manufactured by Zhejiang MSD Group Share Co., Ltd., a flexible materials producer established in 2002, this fabric reflects a combination of high-strength textile engineering, PVC coating expertise, quality control, and application-oriented product development. The company operates in Haining’s Warp Knitting Industrial Park in Zhejiang Province, an important Chinese manufacturing center for technical textiles and flexible materials.

Unlike lightweight tent cloths that prioritize low cost or easy handling, this specification is designed for projects where structural reliability, light control, fire performance, and long-term outdoor service are more important than minimizing material weight. Its high fabric mass and dense construction provide a robust foundation for welded, sewn, or otherwise fabricated tent systems.

850GSM 1000D23X23 Party Tent 99.9％ Block-Out Frame Retardant PVC Coated Polyester Fabric

Product Overview

The 850 GSM 1000D 23×23 fabric is a PVC coated polyester textile intended for professional tent and tarpaulin applications. “850 GSM” refers to the nominal finished weight of approximately 850 grams per square meter. This high basis weight indicates a thick, substantial material with a large quantity of PVC coating surrounding and protecting the polyester reinforcement.

The “1000D” designation identifies the approximate denier of the polyester yarn used in the base fabric. Denier is a linear density measurement for fibers and yarns. A 1000-denier yarn is significantly more robust than the finer yarns used in lightweight banners, disposable covers, or basic recreational canopies. The heavier yarn supports higher tensile strength and improved resistance to puncture, tearing, seam stress, and mechanical handling.

The 23×23 construction indicates a base fabric density of approximately 23 warp threads by 23 weft threads per inch. This relatively tight and balanced weave improves dimensional stability. When the fabric is tensioned across a large tent frame, the balanced construction helps control elongation in both principal directions, reducing distortion and preserving the intended geometry of the structure.

The material is coated with PVC on both sides. PVC, or polyvinyl chloride, creates a continuous protective barrier around the polyester base cloth. The coating provides resistance to water penetration, environmental contamination, abrasion, and many common outdoor stresses. Depending on the required finish, the surface may receive an acrylic or PVDF treatment to improve cleanability, weathering behavior, and resistance to surface contamination.

A key feature of this product is its 99.9% block-out construction. The material allows only approximately 0.1% light transmission under the stated specification. This near-total opacity is achieved through an integrated blackout layer within the coated structure. The result is a dark, private interior that is substantially less affected by sunlight, nearby lighting, and external shadows than ordinary single-layer PVC fabrics.

The fabric can also be produced with flame-retardant formulations and tested according to requirements such as B1, B2, M1, M2, NFPA 701, and C 19, subject to the precise formulation, destination market, and certification arrangement. Buyers should always confirm the required standard, test report, and production specification before placing an order because fire classifications are not automatically interchangeable between countries or test systems.

Technical Data and Performance Indicators

The following table summarizes the principal technical information supplied for this fabric. Average values are provided for product selection and engineering reference. Actual values may vary slightly according to color, coating formulation, production width, finishing treatment, and testing conditions.

Some project documents may list alternative tensile or service-temperature values, such as approximately 3000/2800 N per 5 cm for warp and weft or a working range of approximately -30°C to +70°C. These differences can result from different production batches, test standards, formulation choices, or commercial specification formats. For structural design, the buyer should use the confirmed technical data sheet and third-party test documentation for the exact material being ordered.

Why 850 GSM Construction Matters

Fabric weight is one of the most visible differences between professional tent textiles and lightweight canopy materials. At approximately 850 grams per square meter, this fabric contains a substantial PVC coating and a strong polyester reinforcement. The additional material mass contributes to a more solid hand feel, improved opacity, better resistance to surface wear, and greater tolerance of repeated fabrication and installation.

A heavier fabric is often better suited to large structures because large roof panels and sidewalls are subjected to considerable tension. Wind pressure can cause repeated movement, while installation crews may pull, fold, weld, clamp, and reposition the material. A light textile may be easier to lift, but it can be more vulnerable to stretching, edge damage, and localized stress. The 850 GSM grade offers a stronger balance for projects where the cover itself is an important part of the structural envelope.

The higher mass also contributes to a more stable internal environment. Although the fabric is not a substitute for insulation, its thick coated structure and near-total block-out performance reduce direct solar radiation. This can help limit solar heat gain and improve the comfort of occupants, especially when the tent is used during bright daytime conditions.

Material weight must nevertheless be considered during transport and installation. The specification is intended for professional tent manufacturers and installers with suitable handling equipment, welding tools, sewing systems, lifting procedures, and frame engineering. The correct choice depends on the span, panel dimensions, wind zone, fixing system, expected service life, and local regulations.

High-Strength 1000D Polyester Reinforcement

The polyester base cloth is the primary reinforcement within the coated composite. Polyester is widely used in architectural membranes, truck covers, tarpaulins, advertising structures, and industrial textiles because it provides a useful combination of tensile strength, dimensional stability, flexibility, and cost efficiency.

The 1000D yarn construction gives the fabric a strong internal skeleton. When a coated panel is pulled across a frame, the polyester yarns carry much of the tensile load while the PVC coating protects the yarns and distributes local stress. This composite action is more effective than relying on a PVC film alone, particularly when the material must span a large area or resist wind-induced movement.

The stated tensile strength is approximately 3400 N/5 cm in the machine direction and 3200 N/5 cm in the cross direction. These values demonstrate the material’s capacity to resist pulling forces along both principal axes. The relatively balanced results are important for tent panels because stress does not always occur in only one direction. Roof sections, sidewalls, corners, hems, and attachment points can experience multidirectional loading during assembly and use.

Tensile strength should not be considered in isolation. Design performance also depends on seam strength, weld quality, edge reinforcement, eyelet or buckle design, panel geometry, pretension, frame spacing, drainage, and anchoring. A strong base fabric can still fail if it is cut incorrectly, tensioned unevenly, welded at an unsuitable temperature, or attached to an under-designed structure.

Tear Resistance and Peeling Strength

Tearing strength is particularly important in tent applications because damage may begin at a small cut, puncture, corner, eyelet, seam, or handling point. Once a tear starts, a material with poor tear resistance can fail rapidly under tension. The stated tearing strength of approximately 320 N/5 cm in the machine direction and 300 N/5 cm in the cross direction provides meaningful resistance against the propagation of localized damage.

This characteristic is valuable during loading, unloading, fabrication, and installation. Tent panels are often moved across metal frames, folded on site, or temporarily placed on rough ground. Although careful handling is always required, a strong coated textile offers a greater margin of safety against accidental damage than a thin, lightly coated fabric.

Peeling strength is another important indicator for coated textiles. The stated value of approximately 100 N/5 cm reflects the adhesion between coating layers and the reinforced fabric system under the specified test method. Good interlayer adhesion helps prevent delamination, separation, or peeling when the textile is folded, tensioned, exposed to temperature changes, or subjected to repeated handling.

Peeling performance is especially relevant to welded seams and fabricated components. A coating that remains firmly integrated with the base cloth supports reliable hot-air or high-frequency welding, depending on the manufacturing process and material formulation. Fabricators should validate welding parameters with sample tests before production, particularly when using a new color, surface finish, or customized formulation.

99.9% Block-Out Performance

Complete or near-complete opacity is one of the main reasons to select this grade over conventional tent fabric. With approximately 99.9% light blockage and only around 0.1% light transmission, the material prevents most daylight from entering through the roof and walls. This creates a more controlled interior environment for events, exhibitions, storage, and specialized facilities.

For party tents and wedding marquees, block-out performance improves privacy and visual presentation. External streetlights, vehicle headlights, sunlight, and surrounding structures are less likely to create distracting shadows or silhouettes. Interior lighting becomes more effective because it is not competing with uncontrolled daylight entering through the fabric.

For exhibition structures, the blackout layer can help create a professional presentation space. Product displays, projection systems, digital signage, photography areas, and brand installations often benefit from reduced glare and controlled illumination. A darker interior may also make illuminated graphics and display screens appear more vivid.

For storage marquees, reduced light transmission can protect certain goods from direct solar exposure. Products that may degrade, discolor, dry out, or overheat under intense sunlight can benefit from a shaded enclosure. The actual temperature and storage performance still depend on ventilation, insulation, internal heat sources, local climate, and the design of the building system.

Block-out performance also supports daytime sleeping areas, temporary medical spaces, backstage facilities, sports enclosures, and other applications where occupants require visual separation from the outside environment. It is important to distinguish optical block-out from thermal insulation: the fabric blocks light extremely effectively, but additional insulation or climate-control measures may be needed where strict temperature control is required.

Waterproofing and Outdoor Weather Resistance

The PVC coating forms a continuous water-resistant surface on both sides of the fabric. When seams, hems, corners, and penetrations are properly designed and fabricated, the finished textile can provide effective protection against rain and moisture. This makes it suitable for outdoor tents, temporary warehouses, event shelters, vehicle covers, and tarpaulin-style structures.

Waterproof performance depends on more than the coating itself. Correct panel overlap, seam welding, edge finishing, drainage design, and adequate roof tension are essential. If roof sections are left slack, water may pool on the surface. Standing water adds weight and can place excessive stress on the fabric, seams, frame, and anchoring system. Proper installation tension helps water run off and reduces mechanical fatigue.

The material is also designed for outdoor exposure. PVC-coated polyester can resist common environmental stresses such as rain, wind-driven dust, and sunlight. Acrylic or PVDF surface treatments may further improve resistance to dirt retention, weathering, and surface contamination. PVDF finishes are often selected where long-term appearance and cleanability are especially important, while acrylic treatments may provide a practical balance between performance and cost.

Outdoor weathering is influenced by geographic location, ultraviolet intensity, temperature cycles, pollution, humidity, cleaning practices, and installation duration. No flexible textile should be regarded as immune to aging. Regular inspection is recommended, particularly at seams, corners, hems, attachment points, and areas that remain under constant tension.

Flame-Retardant Options and Fire Safety

Public event tents and temporary structures may be subject to strict fire-safety rules. Flame-retardant PVC formulations are available for this fabric, with potential classifications or testing references including B1, B2, M1, M2, NFPA 701, and C 19. These designations relate to different regional or industry fire-test systems and should not be treated as identical.

The purpose of flame-retardant treatment is to reduce ignition risk, slow flame spread, limit burning behavior, and encourage self-extinguishing after the ignition source is removed, depending on the applicable test. This can provide valuable additional protection in environments where cooking equipment, electrical systems, lighting, heating appliances, pyrotechnics, or large numbers of occupants are present.

Fire performance must be verified for the exact finished fabric. Colorants, coatings, back treatments, welding, printing, cleaning agents, and aging can influence test results. A certificate for one construction or batch should not automatically be applied to another material. Project managers should request the appropriate test report, classification document, or conformity statement for the destination country.

Fire-retardant fabric is only one component of a safe tent system. Safe design also requires compliant electrical installations, adequate emergency exits, fire extinguishers, appropriate cooking arrangements, safe heaters, clear evacuation routes, and trained personnel. The fabric should be specified as part of a complete risk-management program rather than as a replacement for other safety measures.

Advantages Compared with Conventional Tent Fabrics

Greater Opacity Than Standard PVC-Coated Textiles

Many standard PVC-coated polyester fabrics provide weather protection but allow noticeable daylight transmission. This may be acceptable for open-air shelters, but it can be a disadvantage when privacy, projection quality, temperature control, or visual presentation is important. The 99.9% block-out construction offers a clear advantage in these applications by reducing uncontrolled light to an extremely low level.

Higher Strength Than Lightweight Canopy Materials

Lightweight tent fabrics are easy to transport and can be suitable for short-duration, low-stress applications. However, they may offer less resistance to tear propagation, seam loading, abrasion, and repeated installation. The 1000D base cloth and 850 GSM finished construction provide a more substantial solution for large party tents, commercial marquees, and structures expected to operate under demanding conditions.

More Balanced Performance Than Uncoated Polyester

Uncoated polyester can be breathable and lightweight, but it generally cannot provide the same level of waterproofing, blackout, surface protection, and cleanability as a double-sided PVC coated composite. The coated construction is better suited to situations where the tent must serve as a protective envelope rather than simply a decorative canopy.

More Flexible Than Rigid Temporary Building Panels

Rigid panels can provide insulation and strong physical protection, but they require more complex transport, lifting, and assembly. Flexible fabric panels can be rolled, folded, welded, and adapted to curved or irregular structures. The 850 GSM grade offers a practical middle ground: it is robust enough for industrial use while retaining the logistical advantages of a flexible textile.

Better Long-Term Surface Appearance with Protective Lacquer

Acrylic or PVDF surface treatments can improve the appearance and maintainability of the finished fabric. The treated surface is less likely to retain environmental pollutants and can generally be cleaned with mild soap and water. This is an advantage over untreated materials that may accumulate dirt quickly or become difficult to restore after prolonged outdoor exposure.

Manufacturing Process and Quality Control

The performance of PVC coated polyester fabric depends on the entire manufacturing chain. A strong yarn alone does not guarantee a reliable finished textile. The base cloth, coating formulation, blackout layer, bonding process, surface finish, curing conditions, inspection system, and final packaging must all be controlled.

Polyester Yarn Preparation

Production begins with the selection and preparation of high-tenacity polyester yarn suitable for a 1000D construction. Yarn quality affects tensile strength, elongation, uniformity, and the ability of the base cloth to maintain consistent dimensions. Careful control of yarn tension and winding helps reduce variations that could later appear as uneven density or coating defects.

Base Fabric Weaving

The prepared yarns are woven into the specified 23×23 construction. Warp and weft density must be managed consistently across the production width. Stable weaving conditions help maintain balanced strength and reduce variations in openness, weight, and dimensional behavior.

Inspection at this stage can identify broken yarns, loose threads, density irregularities, weaving marks, contamination, and other defects before coating. Detecting problems early improves production efficiency and reduces the risk of defects being hidden inside the finished composite.

PVC Formulation and Mixing

The PVC coating compound is prepared by combining resin with appropriate plasticizers, stabilizers, pigments, processing aids, and functional additives. For flame-retardant products, fire-performance additives are incorporated according to the required formulation. The composition must be carefully mixed to achieve consistent viscosity, color, flexibility, adhesion, and coating behavior.

Different applications may require different balances of flexibility, abrasion resistance, flame retardancy, cold-temperature performance, surface appearance, and weatherability. A party tent intended for frequent folding may require a different formulation emphasis from a semi-permanent storage structure that remains tensioned for several years.

Coating and Lamination

The polyester base cloth passes through a controlled coating or lamination line where PVC layers are applied to one or both sides. The blackout layer is integrated into the construction to provide the stated 99.9% light-blocking performance. Coating thickness, line speed, temperature, pressure, and bonding conditions must be controlled to produce a uniform composite.

Uniform coating is important for several reasons. It affects final weight, thickness, waterproofing, tensile behavior, surface appearance, welding performance, and light transmission. Excessive variation may cause weak areas, visible color differences, poor welding, or inconsistent block-out performance.

Surface Finishing

After the main coating operation, an acrylic or PVDF surface treatment may be applied. This finishing layer can improve resistance to dirt, weathering, abrasion, and surface contamination. It can also support easier cleaning and help preserve the appearance of the finished material during outdoor use.

Online and Final Inspection

Modern production control typically combines visual inspection with physical testing. Finished rolls may be checked for width, weight, thickness, color consistency, coating uniformity, surface defects, adhesion, tensile strength, tear strength, and light transmission. Flame-retardant performance is assessed according to the relevant test system when that option is specified.

Roll packaging is also important. The fabric should be wound securely and protected against moisture, contamination, and mechanical damage during storage and transportation. Clear labeling can identify the product grade, color, roll length, production batch, and other information needed for traceability.

Manufacturing Strengths of the Producer

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in Haining, Zhejiang Province. Its location in the Warp Knitting Industrial Park places the company within a concentrated technical-textile manufacturing environment with access to textile engineering resources, industrial supply chains, production talent, and related processing capabilities.

The company has developed a product system covering environmentally friendly decorative materials, functional sports materials, and other flexible materials. Its product portfolio includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, and PVC tarpaulin. This broad experience is relevant to the manufacture of coated tent fabric because many of the underlying technologies involve polymer formulation, textile reinforcement, surface treatment, dimensional control, and roll-to-roll processing.

An important strength is the company’s stated emphasis on independent innovation. Technical textiles must evolve in response to changing regulations, customer requirements, installation methods, environmental expectations, and application conditions. In-house research and development allows a manufacturer to adjust coating recipes, improve surface finishes, develop special functional layers, and optimize products for different markets.

Product diversification also supports application-specific development. A supplier that works across decorative, advertising, sports, waterproof, and industrial material categories can draw on experience from multiple sectors. For example, knowledge of graphic-surface quality may support cleaner tent finishes, while experience with waterproof fabrics can contribute to improved coating integrity and seam performance.

For international buyers, manufacturing strength should be evaluated together with documentation, production consistency, communication, lead time, customization capability, and after-sales support. The ability to provide confirmed technical data, sample material, test reports, color matching, roll specifications, and fabrication guidance can be as important as the headline strength values.

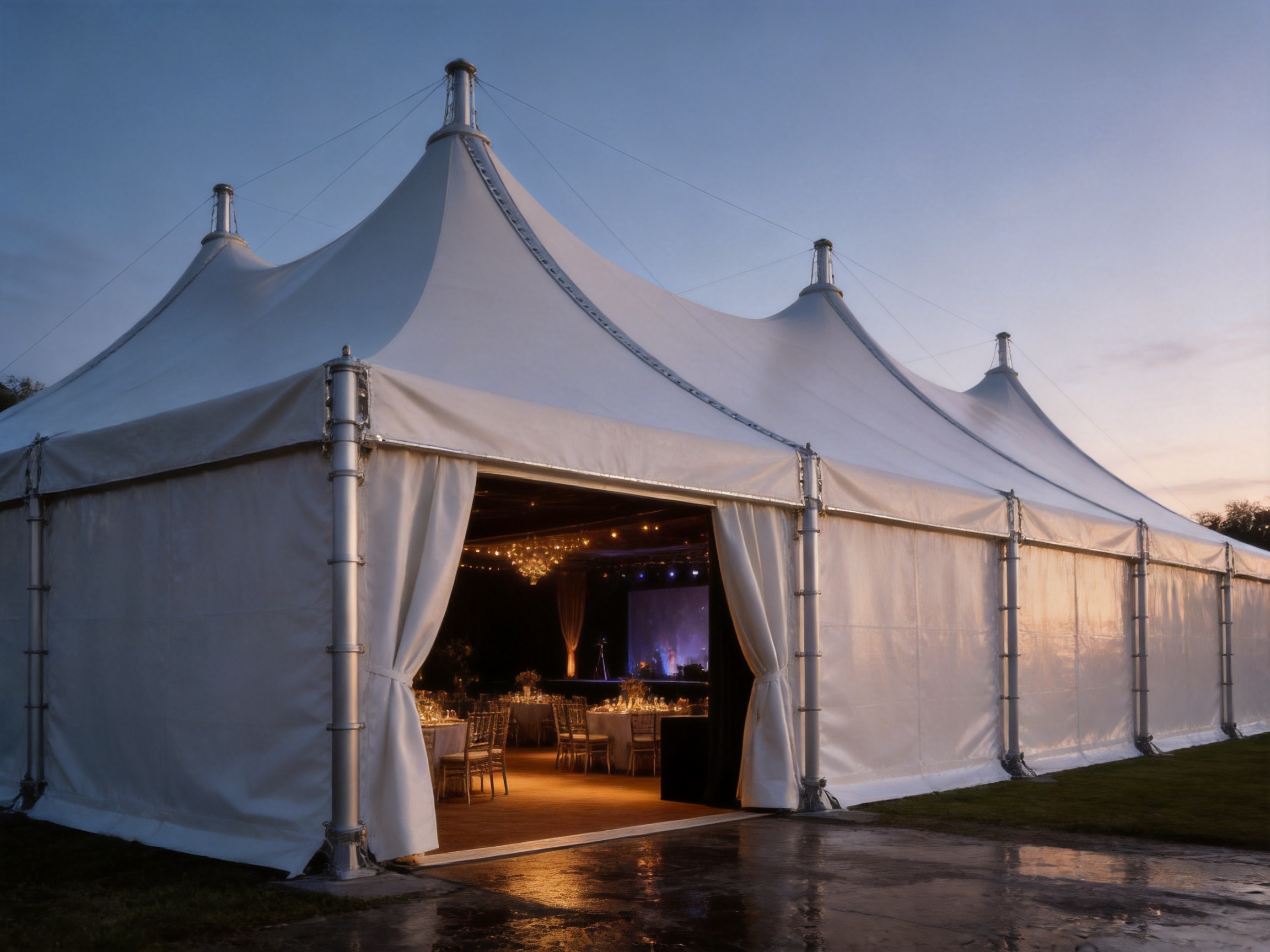

Applications in Commercial Party Tents

Commercial party tents require materials that look presentable while tolerating repeated use. Wedding venues, corporate hospitality areas, festivals, restaurants, sports clubs, and event rental companies often install and dismantle structures many times each year. The fabric must withstand folding, transport, tensioning, cleaning, and exposure to changing weather conditions.

The 99.9% block-out layer is particularly valuable for weddings and evening events. It supports controlled interior lighting and limits visibility from outside. This can create a more intimate atmosphere and improve the appearance of decorative lighting, projection, stage lighting, and illuminated signs.

The high-strength base fabric is suitable for large roof panels and sidewalls where wind movement can repeatedly stress seams and attachment points. Acrylic or PVDF finishing can help maintain a clean appearance when the tent is used in dusty outdoor environments or exposed to pollutants from traffic and nearby industrial activity.

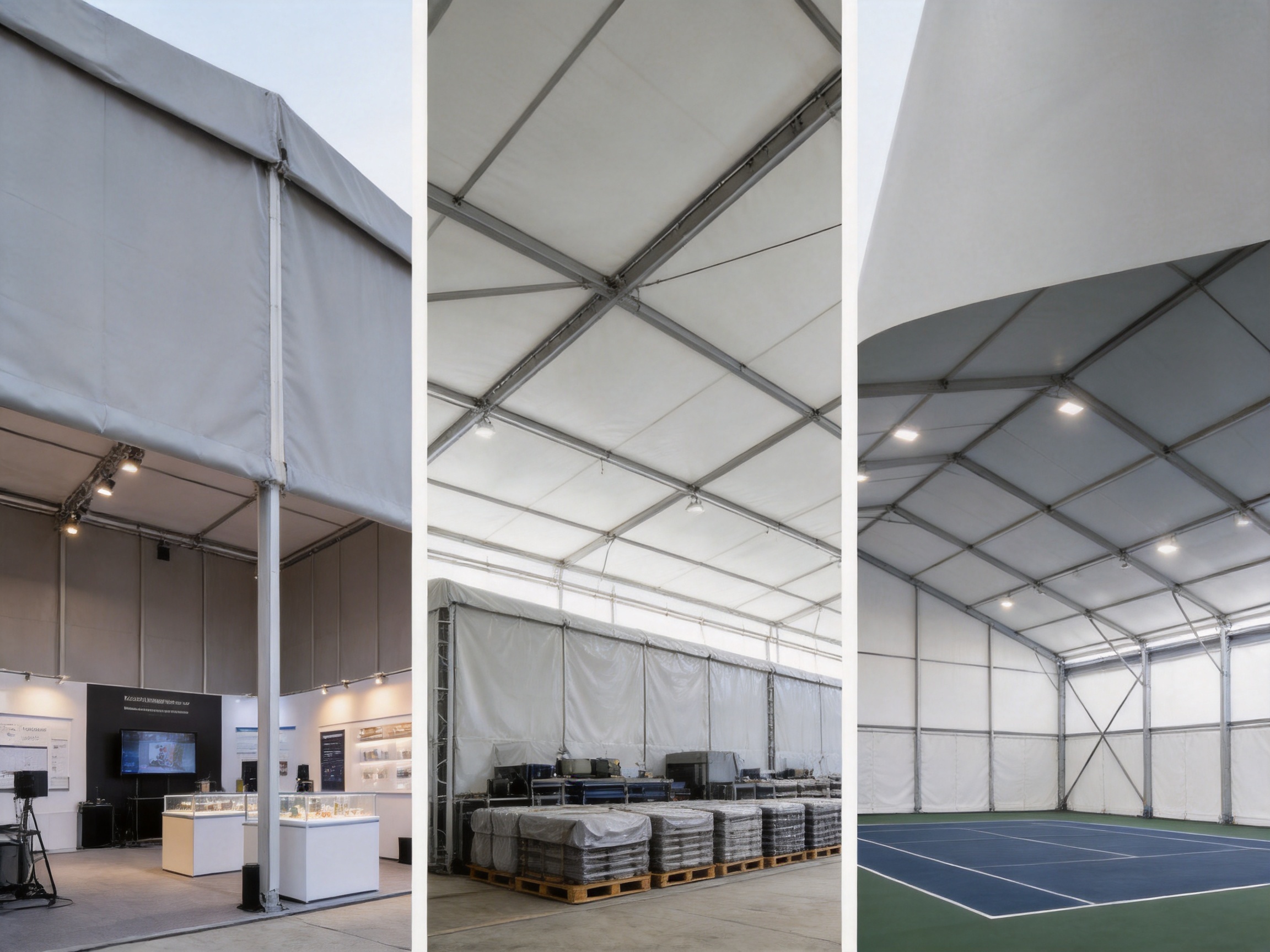

Applications in Exhibitions and Trade Shows

Outdoor exhibition structures often combine branding, product presentation, lighting, digital displays, and visitor circulation. Uncontrolled daylight can reduce the visibility of screens and projected images, while external shadows can interfere with a carefully designed interior. Near-total block-out allows exhibitors to create a more consistent visual environment.

The smooth coated surface can also support printed graphics, depending on the selected finish and printing system. Before large-scale printing, the converter should verify ink compatibility, adhesion, color reproduction, drying behavior, and resistance to handling. The fabric may be used for roof panels, wall panels, partitions, entrance structures, or removable branded sections.

Because trade-show installations are often transported between venues, the material’s tear resistance and coating adhesion are important. Proper rolling, protective interleaving where necessary, and avoidance of sharp folds can help preserve the finish over repeated use.

Applications in Storage Marquees

Temporary storage marquees provide additional covered capacity without the cost and construction time associated with a permanent building. They may be used for agricultural goods, event equipment, vehicles, machinery, packaged products, or materials awaiting processing.

The waterproof PVC coating protects contents from rain, while the block-out layer reduces direct sunlight. The heavy-duty polyester reinforcement is appropriate for structures that remain erected for extended periods, although the final service life depends on frame design, environmental exposure, ventilation, cleaning, and maintenance.

Storage operators should consider condensation management. A waterproof tent can limit external water entry, but temperature differences between the interior and exterior may cause condensation. Adequate ventilation, drainage, and climate management are necessary when storing moisture-sensitive goods.

Applications in Sports and Recreational Facilities

Temporary sports halls, training facilities, event courts, and covered recreational areas can benefit from a fabric that limits glare and improves visual consistency. The near-blackout construction can reduce distracting light patterns across playing surfaces and help create a controlled environment for spectators, cameras, and digital displays.

The material may be considered for temporary sports halls, padel courts, practice areas, equipment shelters, and supporting hospitality zones. The frame and anchoring system must be engineered for the relevant wind, snow, and occupancy loads. Fabric performance cannot compensate for inadequate structural design.

Fabrication, Welding, and Installation Considerations

Professional conversion of heavy PVC coated fabric requires equipment and process control appropriate to the material thickness and coating chemistry. Common fabrication methods may include hot-air welding, high-frequency welding, sewing, mechanical fastening, or combinations of these techniques.

Welding temperature, pressure, speed, and nozzle condition should be adjusted through trial samples. A visually acceptable weld is not necessarily a structurally reliable weld. Peel testing and destructive sample evaluation can help confirm that the seam meets the required performance. Production staff should also inspect for under-welding, overheating, wrinkles, contamination, and incomplete bonding.

Edges and corners deserve special attention because they frequently receive concentrated loads. Hemming, webbing, reinforcement patches, ropes, buckles, eyelets, and welded attachment strips can distribute stress and reduce the risk of local failure. The design should avoid sharp transitions and unnecessary stress concentrations.

During installation, the fabric should be kept away from sharp metal edges, unfinished welds, abrasive surfaces, and contaminated ground. Panels should be lifted rather than dragged whenever possible. Tension must be applied evenly to prevent localized overloading. After installation, installers should check roof drainage, seam alignment, attachment security, and areas where wind may cause rubbing or flutter.

Cleaning, Storage, and Maintenance

Cleaning

Routine cleaning should generally use clean water, mild soap, and a soft brush or sponge. Aggressive solvents, abrasive powders, and harsh chemical cleaners may damage the PVC coating, surface lacquer, printed layer, or flame-retardant performance. A small concealed area should be tested before any full-surface cleaning program.

High-pressure washing should be avoided unless specifically approved for the exact material and finish. Excessive pressure can force water into seams, lift surface treatments, roughen the coating, or create localized damage. Cleaning should be carried out from a stable and safe position with appropriate fall-protection procedures for large structures.

Drying and Storage

The fabric should be completely dry before it is folded or rolled for long-term storage. Moisture trapped between layers can encourage mildew, microbial growth, odor, staining, and coating deterioration. If a tent is dismantled after rain, it should be temporarily spread or loosely arranged in a ventilated location until dry.

For storage, rolls should be protected from direct sunlight, standing water, excessive heat, and sharp objects. Avoid placing heavy equipment on top of stored rolls. Excessive compression can create permanent creases or damage edges. Storage records should identify the date of removal, condition of the fabric, cleaning status, and any areas requiring repair.

Inspection

Regular inspection should include seams, welds, hems, corners, fastener points, roof valleys, drainage areas, and locations exposed to constant rubbing. Look for cuts, punctures, coating cracks, delamination, excessive stretching, discoloration, and changes in flexibility.

Long-term exposure in regions with very high ultraviolet intensity may gradually affect PVC flexibility even when the fabric is UV-resistant. After several years of continuous use, more frequent inspections are advisable. Small defects should be repaired promptly using compatible materials and approved repair procedures before they expand under tension.

How to Select the Correct Specification

Before ordering, buyers should define the intended application, expected service duration, climate, structure size, installation frequency, required color, printing requirements, fire standard, and fabrication method. A party-rental company that erects and dismantles tents weekly may require a different surface and flexibility balance from a storage operator that leaves a structure in place for several years.

Important purchasing questions include whether the specified weight is nominal or guaranteed, whether the blackout rate is measured on the finished color, which flame standard applies, what temperature range is confirmed, whether the material is compatible with the intended welding equipment, and what roll widths and lengths are available.

Buyers should also request a physical sample. A sample allows inspection of color, hand feel, thickness, gloss, opacity, surface texture, welding behavior, and print compatibility. For regulated projects, sample testing and third-party certification may be necessary before mass production.

It is also advisable to confirm tolerances and inspection procedures. The supplied average values are useful for comparison, but engineering decisions should be based on guaranteed specifications and documented test methods. Differences in test standards can produce different numerical results, so data should always be compared on an equivalent basis.

Environmental and Operational Considerations

The long service life of a durable tent fabric can reduce the frequency of replacement and the material consumption associated with short-lived covers. Proper maintenance, repair, and responsible storage can extend usable life. When the fabric eventually reaches the end of service, local recycling and waste-management options should be evaluated according to the PVC and polyester composite construction.

Operational efficiency also matters. A reliable fabric can reduce downtime caused by leaks, repairs, premature tearing, or poor appearance. For event-rental companies, this may improve asset utilization. For industrial users, it can help maintain covered capacity and protect stored goods. For exhibitions, repeatable appearance and predictable fabrication can simplify installation planning.

Environmental performance should be assessed as part of the complete product life cycle. This includes raw materials, manufacturing energy, transportation, use duration, cleaning, repairability, and final disposal. Buyers seeking specific environmental certifications or restricted-substance compliance should request the relevant documentation for the selected product and market.

Frequently Asked Questions

What is the primary use of this fabric?

The primary use is the manufacture of heavy-duty party tents, marquee tents, royal tents, exhibition structures, storage marquees, sports enclosures, and other large temporary or semi-permanent covered structures.

What does 99.9% block-out mean?

It means the finished fabric is designed to block approximately 99.9% of light, allowing only about 0.1% light transmission under the stated specification. Actual results may vary according to color, measurement conditions, and test method.

Is the fabric waterproof?

The PVC-coated construction is designed to provide waterproof performance when properly fabricated and installed. Seam welding, edge finishing, roof tension, drainage, and maintenance are essential to the waterproof performance of the completed tent.

Can the fabric be used outdoors year-round?

It is designed for outdoor applications and has resistance to water, UV exposure, fungal growth, and temperature variation. Year-round use should be evaluated according to local climate, wind and snow loads, installation quality, maintenance, and the confirmed technical specification.

Is flame-retardant material available?

Flame-retardant options are available, with possible references including B1, B2, M1, M2, NFPA 701, and C 19. The required classification must be confirmed for the destination market and exact finished product. Buyers should request current test documentation.

How strong is the fabric?

The supplied technical data lists tensile strength of approximately 3400 N/5 cm in the machine direction and 3200 N/5 cm in the cross direction. Tearing strength is approximately 320 N/5 cm and 300 N/5 cm respectively. Seam design and installation quality also have a major influence on finished-structure strength.

Can the fabric be welded?

Heavy PVC coated fabrics are commonly converted using professional welding equipment. The correct temperature, speed, pressure, and tool configuration must be established through sample trials because welding parameters vary with equipment, color, coating formulation, and ambient conditions.

What surface treatments are available?

Acrylic and PVDF surface treatments are identified in the product information. These finishes can improve resistance to dirt, weathering, and surface contamination. The appropriate treatment depends on the intended service environment and appearance requirements.

How should the fabric be cleaned?

Use mild soap and water with a soft brush or sponge. Avoid solvent-based cleaners, abrasive products, and unapproved high-pressure washing. Always test the cleaning method on a small area before treating the entire fabric.

How should the material be stored?

Store the fabric in a clean, dry, ventilated location away from direct sunlight, standing water, excessive heat, and sharp objects. Ensure the material is completely dry before folding or rolling it for long-term storage.

Is the fabric suitable for projection or digital displays?

Its near-total block-out performance can create a controlled interior environment for projectors, digital displays, and illuminated exhibits. The final visual result depends on the interior lighting design, surface color, screen system, and installation layout.

Can it protect stored goods from sunlight?

The 99.9% block-out construction greatly reduces direct light transmission and can help protect light-sensitive goods from sunlight. It does not automatically provide insulation or precise temperature control, so ventilation and climate-management measures may still be required.

What should buyers confirm before placing an order?

Buyers should confirm finished weight, thickness, color, roll width, roll length, block-out performance, flame standard, tensile and tear values, temperature range, surface treatment, welding compatibility, packaging, and the test documents required for the project.

Conclusion

The 850 GSM 1000D 23×23 PVC coated polyester fabric is a high-performance solution for professional party tents and demanding temporary structures. Its combination of a strong polyester reinforcement, dense 23×23 construction, substantial PVC coating, 99.9% block-out performance, high tear resistance, waterproofing, surface protection, and flame-retardant options gives it advantages over lighter or less specialized tent textiles.

The fabric is particularly well suited to applications requiring privacy, controlled lighting, improved solar protection, and dependable outdoor durability. It can support commercial party tents, exhibition booths, storage marquees, sports facilities, and other structures where the cover must perform as a functional architectural membrane rather than a simple decorative sheet.

Its performance is supported by the manufacturing capabilities of Zhejiang MSD Group Share Co., Ltd., including experience in coated fabrics, PVC films, flexible materials, technical textiles, and application-driven product development. Through controlled yarn preparation, weaving, PVC formulation, coating, blackout-layer integration, surface finishing, and quality inspection, the manufacturer can provide a material designed for consistent professional conversion.

For the best results, the fabric should be selected according to the complete project requirement and used with a properly engineered frame, suitable welding or sewing methods, correct tensioning, effective drainage, and regular maintenance. When these factors are managed together, this heavy-duty block-out fabric provides a strong foundation for reliable, attractive, and versatile tent structures.

References

1. Product Technical Data Sheet, 850 GSM 1000D 23×23 PVC Coated Polyester Fabric.

2. GB/T 1040, Plastics—Determination of Tensile Properties.

3. GB/T 16578, Testing Methods for Tear Strength of Flexible Materials.

4. GB/T 3917, Textile—Tear Properties of Fabrics.

5. FZ/T 01003, Textile Testing Procedures for Fabric Mass and Related Physical Properties.

6. NFPA 701, Standard Methods of Fire Tests for Flame Propagation of Textiles and Films.

7. DIN 4102, Fire Behavior of Building Materials and Building Components.

8. General principles of PVC coated polyester textile fabrication, welding, installation, cleaning, and maintenance.

9. Manufacturer-provided company and product information for flexible materials and technical textile applications.
