0.7mm 850GSM 1000D 23×23 Inflatable Boat PVC Airtight Fabric: Performance, Manufacturing, and Applications

Inflatable boats depend on the performance of their fabric. The material must combine airtightness, mechanical strength, flexibility, resistance to water and chemicals, reliable weldability, and stable performance across changing temperatures. The 0.7mm 850GSM 1000D 23×23 inflatable boat PVC airtight fabric is designed to meet these requirements through a carefully balanced construction comprising a polyester reinforcement base fabric and a durable PVC coating system.

With a finished weight of approximately 850 grams per square meter and a nominal thickness of 0.7 millimeters, this fabric provides a practical balance between durability, handling, manufacturing efficiency, and overall product cost. Its 1000D yarn specification and 23×23 thread density create a strong textile foundation, while the PVC outer layers provide waterproofing, airtightness, weather resistance, and a smooth surface suitable for inflatable boat production.

This grade is positioned as an economical alternative to heavier or more densely woven 850GSM inflatable boat fabrics, including products using a 28×26 construction. The 23×23 specification can reduce material consumption while still delivering substantial tensile and tear strength. As a result, manufacturers can obtain a robust material for many inflatable boat designs without automatically selecting a heavier or more expensive construction.

0.7mm 850GSM 1000D23X23 Inflatable Boat PVC Airtight Fabric

Product Overview

The product is a PVC-coated polyester fabric engineered for inflatable boat tubes, air chambers, floors, seats, accessories, and related airtight structures. The polyester base fabric functions as the structural reinforcement. The PVC coating surrounds the textile core and gives the finished material the properties required for demanding outdoor and aquatic applications.

The material uses 1000-denier yarns in both directions, with a base fabric density of 23 threads per inch in the machine direction and 23 threads per inch in the cross direction. This balanced construction supports strength in both principal orientations. It is particularly useful when the fabric must withstand inflation pressure, repeated folding, handling during transportation, contact with equipment, and movement over water.

The nominal thickness is 0.7 millimeters, with a permitted variation of approximately plus or minus three percent. The finished fabric weight is 850 grams per square meter, also with a permitted variation of approximately plus or minus three percent. These figures indicate a substantial but manageable material that can be processed by boat manufacturers using cutting, high-frequency welding, hot-air welding, heat sealing, or other compatible fabrication methods.

The PVC surface can be formulated with functional additives according to the intended application. Options include anti-mildew treatment, REACH-related compliance support, freedom from selected restricted plasticizers, enhanced flame-retardant performance, ultraviolet resistance, anti-static properties, and antibacterial performance. Availability of a specific option should be confirmed for each order because formulation, testing, and certification requirements can vary by market and application.

Technical Data at a Glance

The following technical data summarizes the listed average values for this inflatable boat fabric. Actual production results may vary within the specified tolerances and should be verified against an approved sample or batch inspection report.

The strength figures are important because inflatable boats are subjected to multiple stresses at the same time. Inflation creates internal pressure, passengers and equipment create localized loading, and contact with docks, banks, sand, or other surfaces can produce abrasion and tearing forces. A fabric with strong performance in both machine and cross directions helps manufacturers design products that are more dependable under multidirectional stress.

Why the 1000D 23×23 Construction Matters

Denier is a measurement associated with the linear density of synthetic yarn. A 1000D yarn is substantially stronger and more robust than many lighter yarns used in general-purpose coated textiles. In this product, 1000D yarns are used in both primary directions of the base cloth. The result is a reinforced fabric capable of supporting a heavy PVC coating while retaining the textile flexibility needed for inflatable structures.

The 23×23 thread density indicates the approximate number of warp and weft threads per inch. A balanced 23×23 construction avoids placing all structural emphasis in one direction. This can be useful for inflatable boat components that are cut into different shapes and then welded or joined along several orientations.

A denser construction is not automatically the best choice for every boat. Higher thread counts can provide additional reinforcement, but they may also increase material consumption, weight, stiffness, and cost. The 23×23 construction provides a deliberate compromise. It is suitable for many recreational, commercial, rescue, fishing, and tender boat applications where manufacturers want reliable performance without selecting the most heavily reinforced specification available.

Compared with an 850GSM 1000D 28×26 product, the 23×23 fabric is described as an economical option. Its lower thread density can support more competitive material pricing and may make the fabric easier to handle during cutting and assembly. For applications where the 23×23 construction satisfies the required strength, pressure retention, and durability targets, it can improve the total cost position of the finished boat.

Benefits of the 0.7mm Thickness

A nominal thickness of 0.7 millimeters gives the fabric a substantial PVC layer and a reinforced textile core without making the material unnecessarily bulky. The thickness is suitable for a wide range of inflatable boat components and can support the creation of seams with appropriate welding equipment and process control.

Thickness influences puncture resistance, coating coverage, surface protection, flexibility, and the behavior of the material during fabrication. A fabric that is too thin may provide insufficient protection in high-contact environments. A fabric that is excessively thick may increase the weight of the boat and require more energy or pressure during welding. The 0.7mm grade offers a useful middle ground for products requiring strength and practicality.

The thickness also contributes to the fabric’s airtight performance after suitable sealing. Airtightness is not achieved by thickness alone. It depends on the PVC formulation, coating uniformity, welding conditions, seam design, and inspection procedures. When the material is processed correctly, the coated structure is intended to retain air and support the buoyancy of the finished inflatable boat.

Mechanical Performance

The listed average tensile strength is 3400 N/5 cm in the machine direction and 3200 N/5 cm in the cross direction. These values indicate that the reinforced fabric can resist significant pulling forces before breaking. The relatively close results in the two directions are consistent with the balanced 1000D 23×23 base-cloth construction.

Tensile strength is relevant during inflation, transportation, lifting, towing, and use. Boat tubes may be pulled against fittings, handles, ropes, and attachment points. Floors and transoms may also transfer loads into adjacent fabric sections. A strong base cloth helps distribute these forces through a larger area instead of concentrating them at a single point.

The listed tearing strength is 280 N/5 cm in the machine direction and 260 N/5 cm in the cross direction. Tear resistance helps limit the growth of a cut or puncture once damage has occurred. Although no coated fabric should be considered immune to sharp objects, higher tear resistance can provide additional time for detection and repair and may reduce the speed at which a small defect develops into a larger failure.

Peeling strength is listed at 140 N/5 cm. This property relates to the adhesion between layers or the resistance of the coated structure to separation. Strong bonding is important because an inflatable boat is repeatedly folded, inflated, deflated, transported, and exposed to moisture. Stable adhesion helps maintain the integrity of the composite structure throughout its service life.

Waterproofing and Airtightness

The central function of inflatable boat fabric is to form air-retaining chambers. PVC is well suited to this role because it can create a continuous coated surface with low permeability when manufactured and sealed correctly. The polyester scrim provides strength, while the PVC layers close the spaces around the reinforcement and establish the barrier needed for air retention.

Boat manufacturers must still qualify the final construction rather than relying only on the raw-material specification. Air retention depends on the design of the chamber, seam geometry, welding temperature, welding speed, pressure, dwell time, surface cleanliness, and the condition of the fabric during assembly. The same fabric can produce different results when processed on different equipment or under different conditions.

For this reason, production teams should conduct seam trials before mass production. Trial sections can be examined for weld width, fusion consistency, peeling resistance, air leakage, dimensional stability, and appearance. The selected process should then be documented so that operators can repeat the result across production batches.

Resistance to Outdoor and Marine Conditions

Inflatable boats operate in environments that combine water, sunlight, temperature changes, dirt, salt, fuel residues, cleaning agents, and mechanical contact. The PVC compound is designed to provide resistance to many of these influences. The product information identifies strong chemical resistance as one of PVC’s advantages and notes resistance to concentrated hydrochloric acid, 90 percent sulfuric acid, 60 percent nitric acid, and 20 percent sodium hydroxide under the stated material context.

These chemical-resistance statements should not be interpreted as permission to expose a finished boat to concentrated chemicals without a compatibility assessment. Actual performance depends on concentration, contact time, temperature, pressure, additives, and the condition of the surface. Nevertheless, the inherent chemical resistance of PVC provides a useful foundation for everyday exposure to water, mild cleaning products, and many outdoor contaminants.

The listed operating temperature range is approximately -50 to +70 degrees Celsius. This broad range can support storage, transportation, and use in varied climates. Extreme temperatures can still affect flexibility, pressure, adhesive behavior, and welding conditions, so boat manufacturers should evaluate the completed product in the environments where it will be sold and used.

Color fastness is listed at a minimum rating of 6. Stable color is valuable for inflatable boats because fading can affect appearance and may indicate excessive exposure to ultraviolet radiation. Color stability also helps manufacturers maintain consistent branding, product identification, and visual quality across production runs.

Optional Functional Treatments

Anti-Mildew Performance

Inflatable boats are frequently stored while damp or in humid environments. Moisture trapped in folds, seams, bags, or enclosed storage areas can create conditions favorable to mildew. An anti-mildew option can provide additional protection for applications where humidity is high or drying conditions are limited.

Anti-mildew treatment is an optional feature and should be selected according to the destination market, storage conditions, and regulatory requirements. Users should also follow suitable care procedures, including rinsing away salt and dirt, allowing the boat to dry before long-term storage, and avoiding prolonged compression while wet.

Flame-Retardant Options

The product description identifies PVC as flame retardant and refers to a flame-retardant value above 40. The exact meaning of a flame-retardant rating depends on the applicable testing standard, specimen construction, and certification procedure. Buyers should request the relevant test report when a formal flame-performance requirement applies.

Flame-retardant performance can be valuable for commercial boats, exhibition equipment, emergency structures, and other products used near heat sources or in regulated environments. It should be considered as part of a complete system assessment because seams, adhesives, accessories, valves, flooring, and other components may have different flame behaviors.

Environmental and Compliance Options

The material can be supplied with optional support for requirements such as REACH and RoHS-related product management. The product information also mentions EN71-3 as a possible standard for health-related consideration and identifies an optional selected restricted plasticizer-free formulation.

Compliance should always be confirmed for the exact formulation and production batch. A general statement about the material family does not replace a current declaration, test report, or certification where one is required. Importers and manufacturers should identify the regulations applying to the destination country before finalizing the specification.

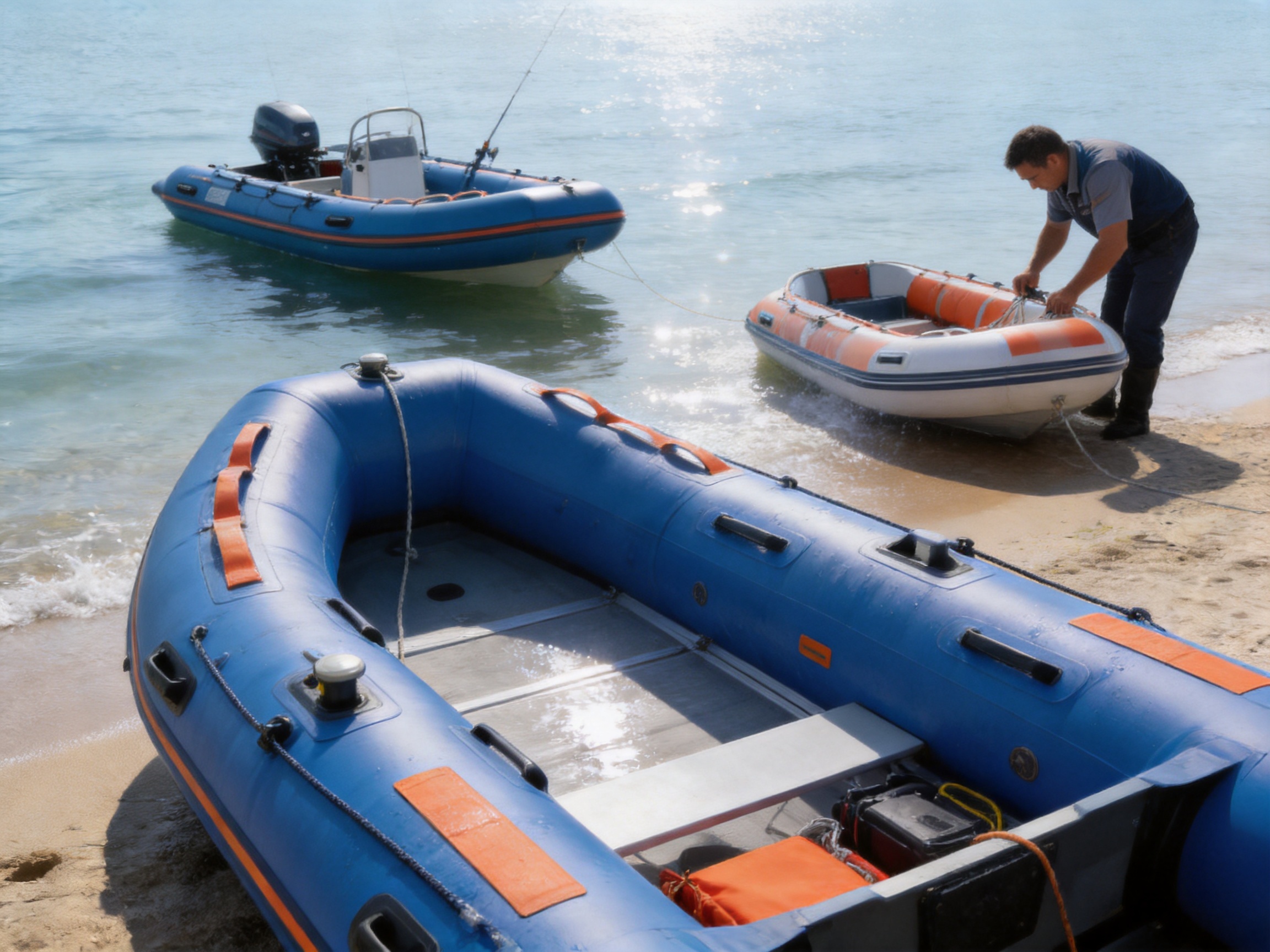

Applications in Inflatable Boat Manufacturing

The fabric is suitable for inflatable boat tubes, side chambers, bow sections, air cushions, splash guards, seats, floor components, storage bags, and related accessories. It may also be used in inflatable kayaks, small rafts, rescue boats, fishing boats, tenders, recreational watercraft, and other airtight products requiring a reinforced PVC surface.

For recreational boats, the material can provide a good balance between portability and durability. A finished boat must be light enough to transport and assemble while remaining sufficiently resistant to everyday abrasion, inflation cycles, and contact with docks or shorelines. The 850GSM weight and 0.7mm thickness are appropriate for many designs in this category.

For fishing boats, the fabric’s resistance to water, outdoor exposure, and ordinary chemical contamination can support repeated use. Fishing equipment can create localized loads and contact with hooks, tools, and hardware, so manufacturers should reinforce high-risk areas separately and use appropriate protective accessories.

For rescue or work boats, the fabric specification should be assessed against the specific operational standard. These boats may experience more frequent inflation cycles, greater loading, harsher storage conditions, and more severe abrasion than recreational products. The 23×23 fabric may be suitable for selected designs, but the final decision should be based on a complete engineering review.

The same coated fabric can also be considered for airtight cushions, inflatable advertising structures, temporary water-related equipment, and specialized flexible containers. Application suitability depends on pressure, geometry, seam design, chemical exposure, expected service life, and applicable regulations.

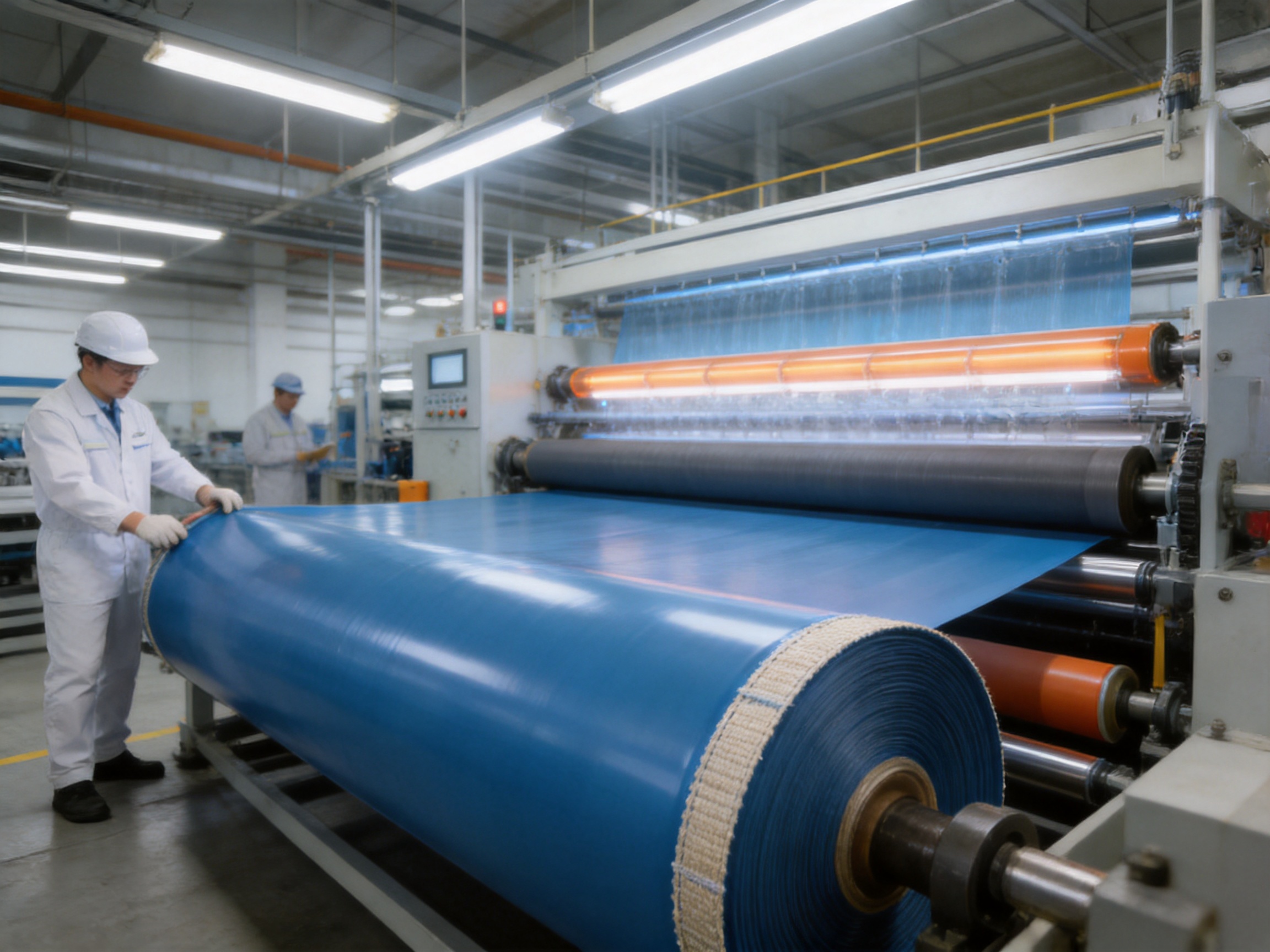

Manufacturing Process and Material Engineering

The quality of a PVC-coated fabric begins with the selection and preparation of the polyester base cloth. The reinforcement must have consistent yarn quality, stable density, controlled width, and sufficient dimensional stability. Any irregularity in the base fabric can influence coating thickness, appearance, tensile performance, and welding behavior.

The base fabric is typically inspected before coating. Inspection may include checking yarn uniformity, thread density, width, surface cleanliness, defects, and roll condition. A controlled inspection stage helps prevent visible textile defects from being carried into the finished coated product.

The PVC compound is prepared by combining PVC resin with plasticizers, stabilizers, pigments, processing aids, and other functional additives required by the product specification. The formulation must be mixed to achieve a consistent dispersion. Poor dispersion can cause color variation, weak areas, surface marks, or unstable physical properties.

Where the customer requests anti-mildew, flame-retardant, anti-static, antibacterial, ultraviolet-resistant, or compliance-related characteristics, the additives must be selected and dosed carefully. Functional additives can influence flexibility, adhesion, surface feel, color, and processing behavior. A competent manufacturer therefore treats formulation development as a controlled technical process rather than simply adding ingredients at the final stage.

The prepared PVC compound is then applied to the polyester reinforcement through an industrial coating or laminating process. The process must control coating weight, temperature, line speed, tension, pressure, and cooling. The purpose is to produce a continuous coating that fully integrates with the base fabric and maintains the target 0.7mm thickness and 850GSM finished weight.

Coating uniformity is especially important for airtight fabric. Local thin spots may reduce puncture resistance or create weak areas in a welded seam. Local thick spots may affect flexibility, appearance, and processing. Continuous monitoring and laboratory verification help keep the finished material within the required tolerance.

After coating, the fabric is cooled, inspected, and wound into rolls. Proper winding prevents telescoping, wrinkles, edge damage, and excessive compression. Roll handling is important because damage caused during packing or transportation can affect downstream cutting and welding, even when the original coating process was satisfactory.

Manufacturing companies with experience across multiple flexible-material categories can use knowledge from related products to improve process control. PVC film, tarpaulin, waterproof fabric, advertising banner, ceiling film, drop-stitch fabric, and inflatable boat fabric each require different performance balances. Experience across these categories can support better formulation control, equipment utilization, color management, and customer-specific development.

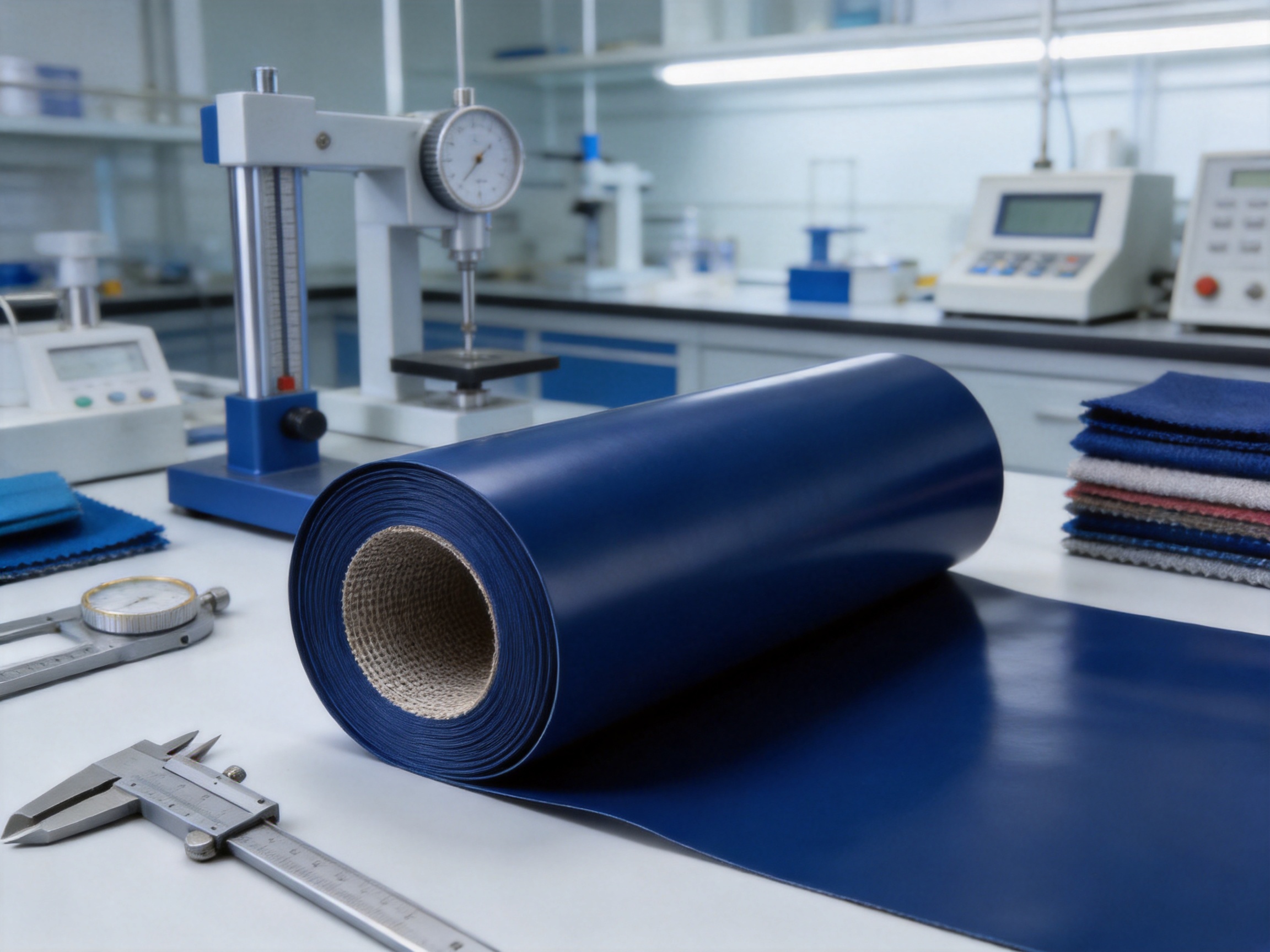

Quality Control from Raw Material to Finished Roll

A reliable quality program should cover the complete production chain. Incoming polyester yarn and base fabric should be checked before entering production. PVC raw materials and additives should be identified and controlled according to the approved formulation. Production parameters should be recorded, and finished rolls should be tested against the agreed technical data sheet.

Weight and thickness are basic but important controls. The fabric should be sampled at several positions across the width and along the roll length because a single measurement may not represent the entire roll. Results should be compared with the target of 850GSM and 0.7mm, allowing for the specified tolerance.

Tensile and tear testing helps confirm the mechanical performance of the reinforced structure. Machine-direction and cross-direction results should both be considered. A significant imbalance may indicate variation in the base cloth, coating process, or sampling location.

Peeling or adhesion testing helps assess the bond between PVC and the polyester reinforcement. Strong adhesion supports folding, welding, inflation, and repeated handling. Surface appearance should also be inspected for pinholes, bubbles, wrinkles, contamination, coating streaks, color variation, and edge defects.

Color fastness and optional functional properties should be tested through the appropriate methods when they are part of the order. If the customer requires REACH, RoHS, EN71-3, restricted-substance, or flame-retardant documentation, the relevant reports should correspond to the actual product formulation rather than a generic product family.

Quality control should continue after production. Rolls should be labeled with product information, batch identification, dimensions, and handling instructions. Traceability allows the manufacturer and customer to investigate any issue by linking the finished fabric to raw materials, production conditions, inspection results, and shipment records.

Advantages Compared with Heavier or More Densely Woven Alternatives

The principal competitive advantage of the 0.7mm 850GSM 1000D 23×23 grade is its balance. It is not presented as the heaviest or most densely woven inflatable boat fabric. Instead, it is developed for buyers who need dependable performance while controlling material cost, weight, and processing requirements.

Compared with an 850GSM 1000D 28×26 fabric, the 23×23 specification uses fewer threads per inch. Where the application does not require the higher density, this can offer a more economical route to a strong coated fabric. The reduced density may also provide a useful degree of flexibility during folding and assembly.

The material can also be advantageous compared with lighter fabrics that may not provide the required resistance to tearing, abrasion, or handling damage. Selecting an 850GSM structure instead of a much lighter material can support a more durable finished product, particularly when the boat will be used repeatedly or in demanding outdoor conditions.

Compared with very thick fabrics, the 0.7mm material may reduce finished-boat weight and make the roll easier to cut, transport, and manipulate. Lower material weight can matter to end users who need to carry an inflatable boat from a vehicle to the water. It may also help manufacturers optimize packaging and shipping volume.

The product’s optional features create another advantage. A manufacturer can order a standard construction for cost-sensitive applications or request additional treatment when the boat will be exposed to mildew, ultraviolet radiation, flame-performance requirements, or restricted-substance regulations. This avoids forcing every customer to pay for features that are unnecessary for a particular market.

Competitive performance should nevertheless be assessed according to the final application. A higher-density construction may be preferable for some heavy-duty or high-pressure boat designs. The correct choice depends on engineering calculations, pressure requirements, expected abrasion, regulatory standards, design life, and the manufacturer’s welding process.

Processing Recommendations for Boat Manufacturers

Before production, the fabric should be stored in a clean, dry location away from direct sunlight, excessive heat, oils, solvents, and sharp objects. Rolls should remain properly supported and should not be dragged across rough floors. Allowing the material to reach the workshop’s normal processing temperature can help stabilize handling behavior.

Cutting patterns should account for the direction of the base fabric. Although the 23×23 construction is balanced, the machine and cross directions should still be identified and recorded. Consistent orientation can improve repeatability across multiple boat components and may help engineering teams compare test results.

Welding parameters should be established through trials using the actual fabric, equipment, and seam design. Temperature, pressure, speed, electrode shape, overlap width, and dwell time can all influence the result. Operators should avoid relying on settings developed for a different PVC thickness or formulation.

Welded seams should be inspected visually and mechanically. A proper seam should have consistent fusion, appropriate width, no unsealed channels, and no excessive burning or distortion. Representative seams can be subjected to peeling or pressure-retention tests. Special attention should be given to corners, valve attachments, handles, lifting points, and areas where several layers overlap.

Fabric surfaces should be clean before welding. Dust, oil, moisture, release agents, and other contamination can interfere with fusion. If the fabric has been stored for an extended period, a small trial should be completed before full production to verify surface condition and welding behavior.

Repairs should use compatible PVC materials and procedures. A repair patch must be large enough to cover the damaged area with an adequate margin and should be applied to a clean, prepared surface. For commercial or safety-critical boats, repair procedures should be documented and verified by trained personnel.

Design Considerations for Inflatable Boats

Fabric selection is only one part of inflatable boat design. Tube diameter, internal pressure, chamber arrangement, floor construction, transom design, valve selection, reinforcement patches, handles, rubbing strakes, and load distribution all affect performance. The 0.7mm 850GSM fabric should be integrated into a design that reflects its mechanical and processing characteristics.

Multi-chamber layouts can improve safety by limiting the effect of a localized puncture. Separate chambers may also allow designers to balance pressure and shape more effectively. Seams between chambers should be designed with sufficient overlap and tested under the intended pressure conditions.

High-wear zones may require additional reinforcement. These areas can include the keel, bottom, bow, stern, seat attachment points, lifting handles, rope lines, and contact zones near the transom. Using the same base fabric with additional protective layers can simplify material management while increasing local durability.

Color selection may influence heat absorption and visual appearance. Light colors can reduce surface temperature in strong sunlight, while darker colors may support particular design or branding requirements. Color fastness, ultraviolet exposure, and cleaning requirements should be discussed when selecting a final color.

The intended inflation pressure should be established by the boat designer and clearly communicated to the user. Overinflation can place unnecessary stress on seams and fittings, while underinflation can reduce handling stability and increase fabric deformation. The fabric specification does not replace the need for a complete pressure and safety assessment.

Environmental Responsibility and Product Longevity

Long service life is one practical aspect of environmental responsibility. A durable inflatable boat fabric can reduce the frequency of replacement, lower material consumption over time, and reduce the resources needed for repeated manufacturing and transportation. Correct cleaning, drying, storage, and repair can further extend the service life of the finished boat.

Material selection should also consider chemical compliance and the destination market. Optional REACH, RoHS-related, EN71-3, and selected restricted-substance requirements can help customers address specific regulatory or purchasing expectations. The precise requirement should be identified before production because different markets may regulate substances and testing methods differently.

At the end of service life, PVC-coated textile can be difficult to separate into its textile and polymer components. Manufacturers can contribute to more responsible use by reducing production defects, optimizing cutting layouts, improving durability, and providing care instructions. Customers should consult local waste-management rules for the handling of used PVC-coated fabric and finished inflatable boats.

Company Manufacturing Strengths

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in Haining City, Zhejiang Province, within the Warp Knitting Industrial Park. This location provides an industrial environment closely associated with textile development, coating, flexible materials, and related manufacturing capabilities.

The company’s product system covers environmentally friendly decorative materials, functional sports materials, and other flexible materials for multiple application scenarios. Its product categories include advertising flex banner, PVC calendered film, PVC ceiling film, drop-stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and other coated or flexible products.

This broad portfolio is relevant to inflatable boat fabric manufacturing because it requires knowledge of different PVC formulations, textile reinforcements, coating weights, surface finishes, dimensional requirements, and end-use conditions. Experience with multiple materials can help technical teams identify practical solutions rather than treating each project as an isolated product.

Independent innovation and product development are identified as important parts of the company’s strategy. For customers, this can support more responsive development of color, thickness, weight, functional additives, compliance options, and application-specific performance. It may also help buyers obtain a material that fits their equipment and market rather than adapting their product to a standard fabric that does not fully meet their needs.

Manufacturing strength is not limited to machinery. It includes raw-material control, formulation knowledge, process discipline, laboratory testing, roll handling, quality documentation, technical communication, and after-sales support. These capabilities are especially important for airtight fabric because small variations in coating or adhesion can affect the final boat’s performance.

The company’s position as a manufacturer and supplier of PVC coated and laminated products enables it to serve customers requiring ongoing supply rather than isolated spot purchases. Consistent batch management, agreed specifications, production planning, and export experience can help inflatable boat manufacturers maintain continuity in their own assembly lines.

Purchasing and Specification Checklist

Before purchasing, buyers should confirm the intended application, finished product design, inflation pressure, expected climate, storage conditions, color, roll width, quantity, and preferred delivery schedule. They should also identify whether the fabric will be welded by high-frequency, hot-air, wedge, or another process.

The buyer should request a current technical data sheet and, where necessary, a physical sample. The sample should be processed using the buyer’s own equipment because welding performance is influenced by the machine and operating parameters. A successful material trial should include both flat-sheet evaluation and representative seams.

Customers should clarify which optional features are required. Anti-mildew treatment may be useful in tropical or humid markets. Flame-retardant performance may be needed for certain commercial or institutional uses. REACH, RoHS-related, EN71-3, or restricted-substance requirements may be required by a retailer, importer, or regulatory authority.

Packaging and roll dimensions should be reviewed in relation to the buyer’s warehouse and cutting equipment. Properly protected rolls should be marked with product name, batch number, color, weight, thickness, length, and other agreed details. Documentation should be retained for incoming inspection and production traceability.

When comparing suppliers, purchasers should evaluate more than price per square meter. Important factors include weight and thickness consistency, tensile strength, tear strength, peeling strength, weldability, color stability, optional compliance, delivery reliability, technical support, and the supplier’s ability to maintain the same specification over repeated orders.

Care and Storage of Finished Products

An inflatable boat made from PVC-coated fabric should be rinsed with clean water after exposure to salt water, mud, sand, or other contaminants. Mild cleaning methods are generally preferable to harsh solvents or abrasive tools. The boat should be dried before folding for long-term storage.

Sharp objects, excessive dragging, and contact with rough surfaces should be avoided. Valves and fittings should be checked regularly, and small cuts or areas of peeling should be repaired before they become larger. The boat should not be stored under excessive weight or in a location where rodents, chemicals, or extreme heat may cause damage.

When the boat is folded, sharp creases should be minimized where practical. Repeated folding along exactly the same line can place stress on the coating and reinforcement. A suitable storage bag can protect the fabric from dirt, sunlight, and accidental abrasion.

Frequently Asked Questions

What is the main use of this fabric?

The primary use is manufacturing inflatable boats and other airtight PVC-coated textile products. It can be used for boat tubes, air chambers, floors, seats, accessories, tenders, rafts, fishing boats, recreational watercraft, and selected commercial or rescue applications.

What do 850GSM and 0.7mm mean?

850GSM means that the finished fabric weighs approximately 850 grams per square meter. The 0.7mm value refers to the nominal thickness of the finished PVC-coated fabric. Both values have a stated tolerance of approximately plus or minus three percent.

What does 1000D 23×23 mean?

1000D refers to the approximate denier specification of the polyester yarn used in the reinforcement. The 23×23 figure indicates an approximate base-fabric density of 23 threads per inch in each principal direction.

Is this fabric airtight by itself?

The PVC-coated fabric is designed for airtight applications, but the performance of the finished boat depends on correct welding, seam design, valves, fittings, and quality control. Manufacturers should conduct air-retention and seam tests using their own production equipment.

How does it compare with 850GSM 1000D 28×26 fabric?

The 23×23 version has a lower thread density than the 28×26 version and is described as a more economical alternative. It can provide a useful balance of strength, flexibility, weight, and cost where the higher-density construction is not required. The correct choice should be based on the finished boat’s engineering and service conditions.

Can the fabric be used in cold climates?

The listed temperature range is approximately -50 to +70 degrees Celsius. However, final-product performance can also depend on pressure, folding, welding, accessories, and storage conditions. Cold-climate users should evaluate the completed boat under realistic operating conditions.

Is anti-mildew treatment available?

Anti-mildew treatment is listed as an optional feature. It may be useful for boats exposed to high humidity or stored in damp conditions. Buyers should specify this requirement when requesting a quotation and confirm the applicable test or documentation.

Are compliance-related options available?

The product information identifies optional REACH support, a selected restricted plasticizer-free option, and the possibility of meeting RoHS and EN71-3 requirements. The exact formulation and current supporting documents should be confirmed for the specific order and destination market.

What welding methods can be used?

The fabric may be compatible with common PVC fabrication methods such as high-frequency welding, hot-air welding, heat sealing, or related processes. Compatibility must be confirmed through trials because equipment settings and seam construction significantly influence results.

What should buyers request before placing an order?

Buyers should request a technical data sheet, sample material, color confirmation, roll dimensions, optional treatment details, compliance documents where required, packaging information, and a clear inspection standard. A production trial is recommended before committing to a large-volume order.

Why is polyester used as the reinforcement?

Polyester provides a strong and flexible textile framework inside the PVC coating. The reinforcement supports tensile and tear performance, helps control dimensional behavior, and enables the coated fabric to withstand inflation, folding, handling, and outdoor use more effectively than an unreinforced PVC sheet.

Can this fabric be customized?

Potential customization may include color, width, surface finish, thickness, coating weight, and functional treatments. Feasibility depends on production planning, minimum order quantity, formulation requirements, and the customer’s technical specification. Custom requirements should be reviewed before sampling.

Conclusion

The 0.7mm 850GSM 1000D 23×23 inflatable boat PVC airtight fabric is a practical material for manufacturers seeking a balanced combination of strength, airtightness, flexibility, weather resistance, and cost control. Its 1000D polyester reinforcement, balanced 23×23 construction, 850GSM finished weight, and 0.7mm thickness make it suitable for many inflatable boat designs and related airtight products.

Its key advantage over a denser 28×26 alternative is economic efficiency where the application does not require the additional thread density. At the same time, it offers considerably more reinforcement and protection than many lightweight coated fabrics. Optional anti-mildew, flame-retardant, ultraviolet, anti-static, antibacterial, and compliance-oriented features allow the specification to be adapted to different markets.

The final performance of any inflatable boat depends on the complete system, including fabric, welding, seam construction, valves, fittings, design, and maintenance. For this reason, buyers should qualify the fabric through samples, production trials, laboratory testing, and clear documentation.

With a manufacturing base in Haining’s Warp Knitting Industrial Park, a product portfolio covering numerous PVC and flexible-material categories, and an emphasis on research and product innovation, Zhejiang MSD Group Share Co., Ltd. is positioned to support customers that require both standard coated fabric supply and application-specific development. A controlled manufacturing process, technical service, and consistent quality management can help boat producers transform this fabric into reliable products for recreational, commercial, fishing, tender, and other water-related applications.
