550 GSM 9×9 General Cover PVC Laminated Fabric: Strength, Weather Protection, and Industrial Versatility

In logistics, agriculture, construction, transportation, warehousing, and outdoor activities, protective fabric must do more than simply cover an object. It must resist rain, dust, sunlight, handling, tension, abrasion, and repeated folding while remaining practical to install and maintain. The 550 GSM 9×9 General Cover PVC Laminated Fabric is designed to meet these everyday demands with a balanced combination of mechanical strength, waterproofing, dimensional stability, and processing flexibility.

With a finished weight of approximately 550 grams per square meter, a 9×9 yarn density, and a 500 × 500 denier polyester base fabric, this material occupies an important position between lightweight cover fabrics and heavier industrial tarpaulins. It provides more substance and durability than many low-weight alternatives while remaining manageable for manufacturing, transportation, sewing, welding, and installation.

The fabric is constructed from a high-strength polyester base cloth reinforced with PVC layers. This structure allows the polyester to provide tensile and tear resistance, while the PVC coating contributes waterproofing, surface protection, chemical resistance, flame-retardant options, and weather-resistant performance. The result is a versatile coated fabric suitable for general-purpose covers and many customized protective applications.

Product Overview

The 550 GSM 9×9 General Cover PVC Laminated Fabric is a PVC laminated cover material produced with a 500 × 500 denier polyester substrate and a 9 × 9 weaving structure. Its standard finished weight is 550 grams per square meter, with a permitted variation of approximately ±3 percent. The standard thickness is about 0.45 millimeters, also with a permitted variation of approximately ±3 percent.

The 9 × 9 construction refers to the number of warp and weft threads per inch. This balanced structure supports consistent performance in both the machine direction and cross direction. The finished fabric is designed for applications where a reliable balance of flexibility, strength, water resistance, and cost efficiency is required.

Unlike an uncoated woven textile, the PVC laminated structure creates a protective barrier on the surface of the polyester base fabric. This barrier helps prevent water penetration and protects the reinforcing yarns from direct exposure to moisture, dirt, and many environmental contaminants. The laminated construction also enables the material to be fabricated into covers, curtains, tarpaulins, protective sheets, partitions, and other flexible products.

Core Technical Characteristics

Property	Unit	Test Method	Average Value
Base Fabric Yarn	Denier	Not specified	500 × 500D
Base Fabric Density	Threads per inch	FZ/T01003	9 × 9
Finished Fabric Weight	g/m²	FZ/T01003	550 ±3%
Thickness	mm	FZ/T01003	0.45 ±3%
Tensile Strength, MD	N/5 cm	GB/T1040	800
Tensile Strength, CD	N/5 cm	GB/T1040	700
Tearing Strength, MD	N/5 cm	GB/T16578	180
Tearing Strength, CD	N/5 cm	GB/T16578	150
Peeling Strength	N/5 cm	GB/T3917	Cannot be peeled
Temperature Range	°C	Not specified	-50 to +70
Anti-Fungal Treatment	—	Not specified	Optional
Anti-UV Treatment	—	Not specified	Optional
Flame-Retardant Options	—	Not specified	M1, M2, B1, B2, NFPA-701

Construction of the Fabric

The performance of a coated fabric depends on the interaction between its base cloth, polymer coating, additives, and finishing process. In this product, the polyester base fabric acts as the internal reinforcement. Polyester is valued for its high strength-to-weight ratio, dimensional stability, resistance to stretching, and suitability for continuous roll production.

The 500 × 500 denier yarn specification indicates a balanced yarn system. Warp and weft yarns work together to distribute loads in two directions. This is important for covers because tension is rarely applied in only one direction. A truck cover, agricultural sheet, or warehouse curtain may be pulled, folded, tied, or exposed to wind from different angles during normal use.

The 9 × 9 weave provides a practical level of fabric density for general cover applications. A more open construction may reduce weight but can offer less support for the coating. A much denser construction may increase weight, stiffness, and cost. The 9 × 9 arrangement is therefore a useful middle-ground structure for customers seeking dependable performance without selecting an unnecessarily heavy material.

The PVC layers are applied to the polyester substrate to form a continuous protective surface. The coating improves waterproofing and creates a surface that can be cleaned more easily than many untreated textiles. Depending on the intended application, the formulation can incorporate additives for ultraviolet resistance, mildew resistance, anti-static behavior, antibacterial performance, low-temperature flexibility, or enhanced flame retardancy.

The supplied technical information identifies the material as laminated fabric and reports a peeling result of “cannot be peeled.” This indicates strong bonding between the PVC layers and the textile base under the stated test conditions. Good bonding is essential because separation between the coating and base cloth can lead to water leakage, surface delamination, cracking, and premature failure.

Advantages Over Conventional Cover Materials

Balanced Strength and Handling

A major advantage of the 550 GSM specification is its balance. Very light cover fabrics may be easy to handle, but they can be more vulnerable to puncture, tearing, wind stress, and repeated abrasion. Heavier fabrics may offer greater mass but can be more difficult to transport, fold, sew, weld, and install. The 550 GSM construction offers a substantial protective material without moving into the handling burden associated with extremely heavy industrial fabrics.

The reported tensile strength is 800 N/5 cm in the machine direction and 700 N/5 cm in the cross direction. These values support demanding general-purpose cover applications where the fabric must tolerate tension during installation and use. The tear strength of 180 N/5 cm in the machine direction and 150 N/5 cm in the cross direction further helps limit the spread of damage if a cut, puncture, or local weakness occurs.

Continuous Waterproof Protection

Waterproofing is one of the primary reasons customers select PVC laminated fabric instead of ordinary woven cloth. The PVC surface forms a continuous barrier that protects covered goods from rain, splashing water, and moisture exposure. This is particularly important for cargo, building materials, agricultural equipment, machinery, and outdoor products that may be stored or transported in changing weather conditions.

The waterproof surface also helps prevent dust and airborne dirt from entering through the fabric structure. Although seams, eyelets, fasteners, and damaged areas must still be designed and maintained correctly, the coated fabric itself provides a strong barrier against common external contaminants.

Improved Weather Resistance

Outdoor fabrics are exposed to ultraviolet radiation, temperature changes, moisture, wind, and repeated cycles of heating and cooling. Standard PVC fabric already provides a protective polymer surface, while anti-UV performance can be added as an optional treatment for applications with prolonged sunlight exposure.

The specified operating temperature range is approximately -50°C to +70°C. Actual performance depends on formulation, color, exposure duration, fabrication method, and application conditions, but this range demonstrates the product’s suitability for many outdoor and industrial environments. Customers working in particularly cold, hot, humid, or high-radiation conditions should confirm the appropriate formulation before production.

Resistance to Common Chemicals

PVC is recognized for its resistance to a range of chemical environments. The product information identifies resistance to concentrated hydrochloric acid, 90 percent sulfuric acid, 60 percent nitric acid, and 20 percent sodium hydroxide. Such information highlights the general chemical-resistance potential of PVC materials, although users should always evaluate the exact concentration, temperature, contact time, mechanical stress, and chemical mixture involved in a specific application.

This characteristic makes PVC laminated fabric useful in environments where the cover may encounter cleaning agents, industrial dust, mild chemical splashes, or contaminated water. It should not be assumed that the fabric is suitable for every chemical service. A sample test and application-specific compatibility review remain advisable for severe exposure.

Optional Functional Treatments

Many cover applications require more than basic waterproofing. The fabric can be specified with optional anti-fungal and anti-UV treatments. Anti-fungal treatment is useful in warm, humid, or poorly ventilated environments where moisture may remain on the surface or within folds during storage.

Anti-UV treatment is valuable for long-term outdoor use. It can help reduce the effects of sunlight on the PVC surface and polyester reinforcement. This is particularly relevant for truck tarpaulins, agricultural covers, outdoor shelters, awnings, and construction covers that remain exposed for extended periods.

Additional options may include anti-static, antibacterial, anti-frost, and enhanced flame-retardant properties, depending on the customer’s technical requirements. The available flame-retardant classifications listed for this product include M1, M2, B1, B2, and NFPA-701. The appropriate classification should be selected according to the project specification and verified through the relevant test documentation.

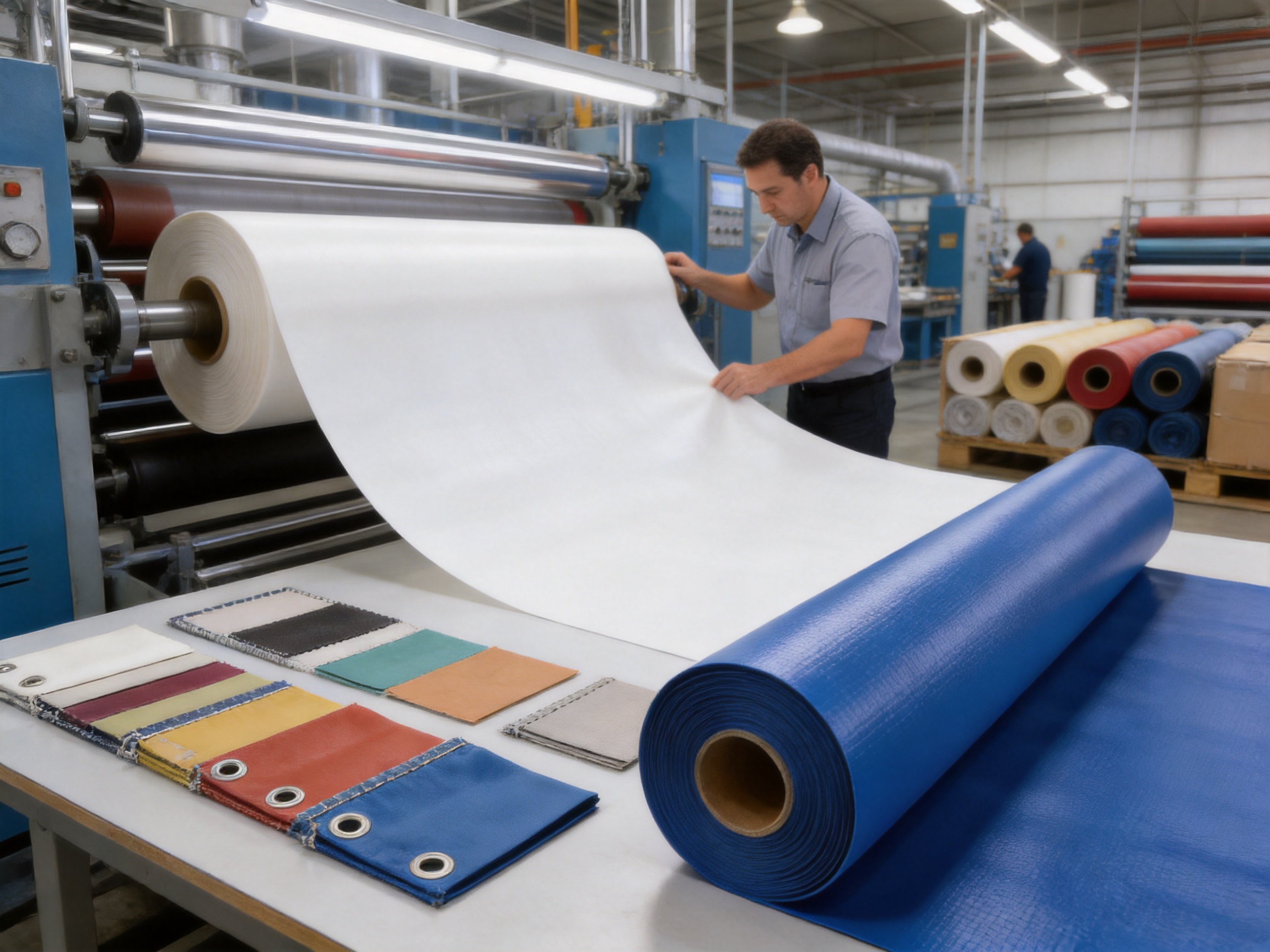

Manufacturing Process and Quality Considerations

Reliable PVC laminated fabric begins with controlled raw materials. The polyester yarn, weaving density, PVC resin, plasticizers, stabilizers, pigments, and functional additives all influence the final product. Consistency in these inputs is important because variations can affect weight, thickness, color, flexibility, adhesion, tensile strength, and weathering performance.

Polyester Base Fabric Preparation

The production process starts with the preparation of the polyester base cloth. High-strength yarns are woven into a balanced 9 × 9 structure. During this stage, attention must be paid to yarn tension, thread spacing, selvage quality, and fabric cleanliness. A stable base cloth supports uniform coating and reduces the possibility of local weak points.

Inspection of the woven substrate may include checks for broken yarns, weaving defects, contamination, uneven density, wrinkles, and width variation. Detecting these issues before lamination helps prevent them from becoming permanent defects in the finished roll.

PVC Formulation and Additive Control

The PVC coating compound is prepared to match the intended performance requirements. The formulation may be adjusted for flexibility, opacity, color, flame retardancy, ultraviolet resistance, mildew resistance, surface feel, and low-temperature behavior. Correct additive dispersion is essential. Poorly dispersed ingredients can create inconsistent appearance and uneven performance across the roll.

For customers who require specific regulatory or environmental performance, formulations may be developed to meet requirements such as RoHS, REACH, or EN71-3, subject to product configuration and testing. These standards should be confirmed through formal documentation for the exact product grade rather than assumed from the general material description.

Lamination and Bonding

During lamination, the PVC layers are combined with the polyester base fabric under controlled temperature, pressure, and line speed. The objective is to achieve a smooth, continuous coating and strong bonding between the layers. Stable process conditions help control finished weight and thickness while reducing air pockets, wrinkles, pinholes, surface marks, and incomplete adhesion.

Strong layer bonding is especially important in products that are folded repeatedly, exposed to wind, or processed by high-frequency welding or heat welding. The reported result that the layers cannot be peeled under the specified test method indicates that the product is designed to maintain structural integrity during normal fabrication and service.

Surface Finishing

Surface finishing influences how the fabric looks, feels, cleans, and performs. A controlled finish can provide an even appearance and support printing, welding, sewing, or other downstream operations. Depending on the order, customers may request customized colors, surface effects, widths, or other finishing requirements.

Color consistency is important when large panels are joined together. A professional manufacturing process should therefore include comparison against approved color standards and inspection under controlled lighting. This is particularly relevant for branded logistics covers, event structures, agricultural installations, and architectural applications where visual uniformity matters.

Inspection and Testing

Quality control should cover both physical properties and visual appearance. Weight and thickness measurements help confirm that the material remains within specification. Tensile and tear testing evaluates the strength of the base fabric and coating system. Peeling or adhesion testing checks whether the layers remain securely bonded.

Additional inspection may include width, roll length, color, surface cleanliness, coating uniformity, pinholes, wrinkles, edge quality, and packaging condition. For customized products, testing may also include ultraviolet exposure, mildew resistance, flame retardancy, low-temperature flexibility, hydrostatic pressure, welding performance, or chemical compatibility.

Zhejiang MSD Group Share Co., Ltd. has operated since 2002 and is based in Haining’s Warp Knitting Industrial Park in Zhejiang Province. The company’s stated development approach emphasizes independent innovation, product research, and the integration of flexible materials for multiple application scenarios. Its broader product system includes advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, and PVC tarpaulin.

This broad product range is relevant to the manufacture of PVC laminated cover fabric because it reflects experience with flexible polymer materials, coated textiles, decorative films, and functional fabrics. A manufacturer working across related material categories can draw on knowledge of PVC formulation, coating behavior, textile reinforcement, surface finishing, and downstream fabrication requirements.

For buyers, manufacturing strength should not be judged only by the product name. It should also be evaluated through technical data, sample approval, production consistency, communication, customization capability, and after-sales support. The product’s listed technical parameters provide a useful starting point for comparing actual performance with project requirements.

550GSM 9X9 General Cover PVC Laminated Fabric

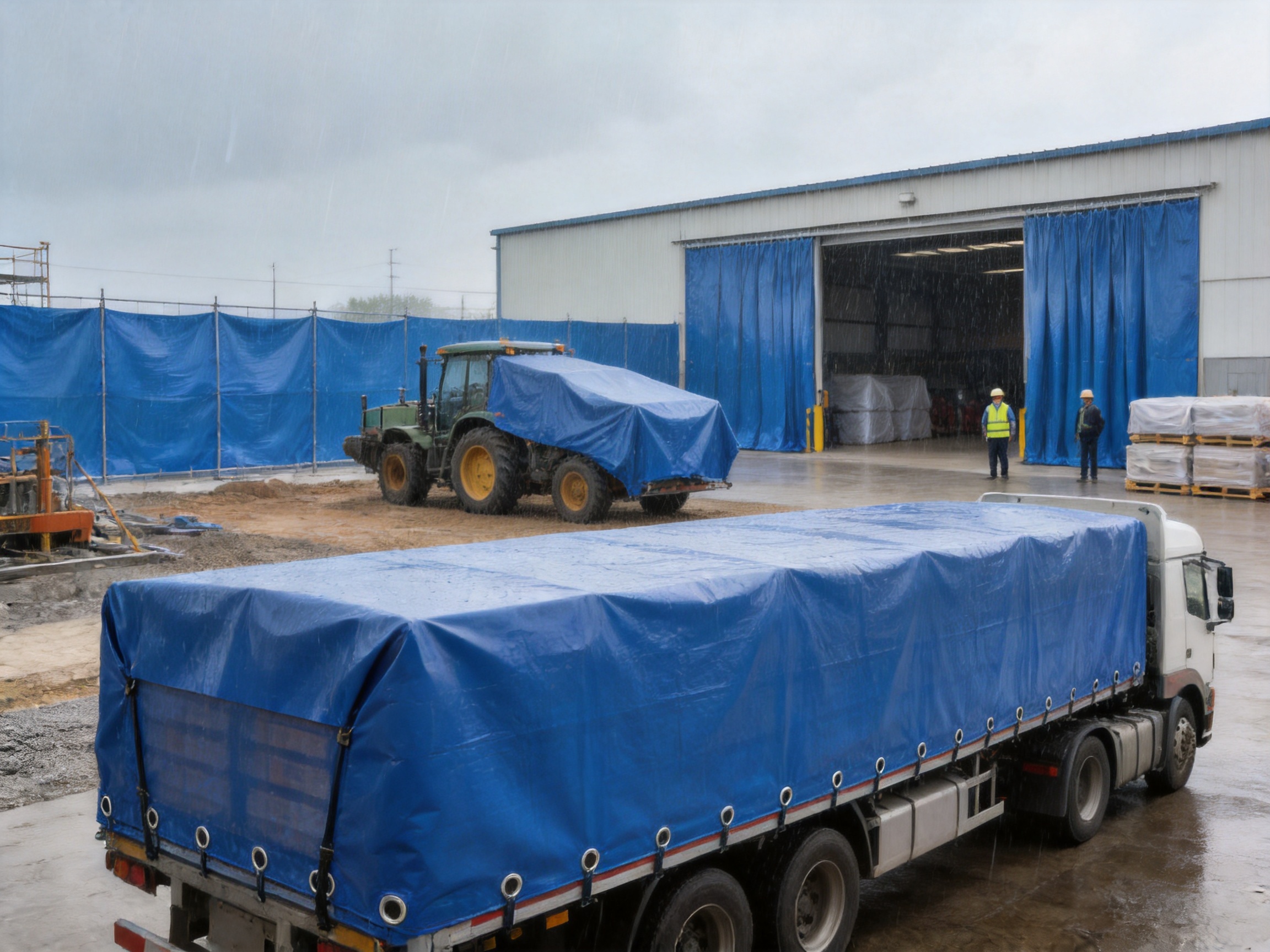

Performance in Major Application Areas

Logistics and Warehousing

In logistics, goods may be exposed to rain, dust, sunlight, loading equipment, and repeated handling. PVC laminated fabric can be fabricated into cargo covers, warehouse curtains, protective partitions, storage covers, and temporary enclosures.

The material’s waterproof surface helps protect packaged goods, pallets, machinery, and construction materials. Its balanced tensile and tear strength supports repeated installation and removal. For warehouse use, the fabric can also be made into removable curtains or dividers that separate work zones while allowing flexible access.

Where goods are stored outdoors, anti-UV and anti-fungal treatments may be valuable. For covers that are frequently folded, the fabric should be stored clean and dry to reduce the possibility of mildew, surface contamination, and crease-related stress.

Agricultural Covers

Agricultural operations often require materials that can tolerate moisture, dirt, fertilizer dust, wind, and changing temperatures. The fabric can be used for equipment covers, crop protection sheets, feed storage covers, temporary shelters, and protective enclosures.

Its waterproof surface helps limit rain penetration, while the polyester reinforcement supports handling and tie-down loads. Anti-fungal treatment may be considered for humid agricultural environments, especially where the cover is likely to be folded before it is completely dry.

When used near crops, livestock, feed, or water systems, the customer should review the formulation and any applicable regulatory requirements. Material suitability depends on direct-contact conditions, exposure duration, cleaning practices, and local agricultural regulations.

Building and Construction

Construction sites require temporary protection against rain, wind, dust, and debris. This PVC laminated fabric can be converted into protective sheets, temporary building covers, equipment covers, waterproof membranes, site partitions, and construction tarpaulins.

The 550 GSM structure provides a practical compromise for installation teams that need a material with substance but still need to cut, fold, transport, and secure large panels. The fabric can be combined with reinforced hems, eyelets, webbing, ropes, buckles, or welded seams to create a complete protective system.

Flame-retardant versions may be appropriate for projects with specific fire-safety requirements. The required classification should be established before production, because a general PVC fabric should not automatically be considered equivalent to a certified flame-retardant construction material.

Transportation and Truck Tarpaulins

Truck and trailer covers must handle wind pressure, vibration, loading operations, and repeated rolling or folding. PVC laminated fabric is widely used for truck tarpaulins and vehicle covering materials because it provides a waterproof barrier while retaining the flexibility needed for installation.

The tensile strength in both directions supports tie-down and tensioning systems. The tear strength helps reduce damage propagation if the cover is caught by equipment or suffers a localized cut. Reinforced hems and properly positioned fastening points are important because stress is concentrated around eyelets, buckles, hooks, and straps.

For transportation applications involving prolonged outdoor exposure, customers may select anti-UV treatment and a color designed to reduce visible dirt or heat absorption. The final service life will also depend on loading practices, contact with sharp cargo, cleaning, folding, and the quality of the fabrication.

Outdoor Activities and Temporary Structures

The fabric can be used in camping tents, awnings, temporary shelters, event covers, outdoor partitions, and related equipment. Its waterproof surface provides protection from rain, while its available flame-retardant options may support certain event or public-space applications.

For tents and awnings, design details are as important as the fabric itself. Seams must be appropriately welded or sewn, corners should be reinforced, and drainage should be considered. A strong fabric cannot compensate for poor structural design, inadequate anchoring, or incorrect installation.

Industrial Protection

Industrial facilities use flexible covers to protect machinery, production lines, stored components, and work areas. The fabric can be used for dust covers, equipment curtains, temporary barriers, maintenance enclosures, and protective screens.

The PVC surface is easy to clean with mild soapy water, which can be useful in dusty or dirty environments. Its chemical resistance supports many general industrial conditions, although a compatibility assessment is necessary when the material will contact aggressive chemicals, oils, solvents, heated liquids, or concentrated chemical vapors.

Fabrication Options and Design Flexibility

The usefulness of a roll of coated fabric depends heavily on how it is converted into a finished product. The 550 GSM material can be cut into panels and assembled through sewing, heat welding, or other suitable fabrication methods. The correct method depends on the design, available equipment, seam strength requirements, and expected exposure.

Welding and Seaming

Welded seams can create a continuous waterproof joint when the correct temperature, pressure, and speed are used. Before mass production, fabricators should test welding conditions because PVC formulations, colors, machine settings, and ambient temperature can influence seam quality.

Sewn seams may be preferred for certain products or for designs that require flexibility and easy repair. In waterproof applications, sewn seams may need sealing tape, an additional flap, or another method of reducing water entry. Reinforcement patches should be used at high-stress locations such as corners, attachment points, and lifting areas.

Edges, Eyelets, and Reinforcements

Large covers commonly require hems, ropes, webbing, eyelets, buckles, snaps, or hook-and-loop fasteners. These components distribute loads and make the cover easier to install. The spacing and placement of eyelets should correspond to the expected wind load and the structure used for support.

Improperly installed fasteners can damage the base cloth and initiate tearing. Reinforcement patches or folded hems can improve performance around these points. The fabric supplier and converter should work together to determine the best reinforcement design for the finished product.

Color and Customization

Color can be customized according to customer requirements. Functional considerations may influence color selection. Dark colors may conceal dirt more effectively, light colors may reflect more solar radiation, and translucent or highly visible colors may serve specific operational or design purposes.

For large projects, color approval should be completed before production. Customers should also consider whether different production batches must match, especially when covers will be installed side by side or replaced over time.

Comparison With Alternative Materials

Compared with uncoated polyester fabric, PVC laminated fabric offers a more continuous waterproof surface and easier cleaning. Uncoated textiles may be breathable and lightweight, but they generally require a separate treatment to achieve comparable water resistance. Their performance can also change significantly after repeated washing, abrasion, and outdoor exposure.

Compared with thin plastic sheets, reinforced PVC fabric offers better tear resistance and handling durability. A thin sheet may be inexpensive for short-term use, but it can be more vulnerable to puncture, wind damage, and stress at tie-down points. The polyester reinforcement in laminated fabric provides a more stable structure for repeated use.

Compared with very heavy tarpaulin, the 550 GSM specification may be easier to handle and more economical for general covers that do not require extreme load capacity. It is therefore suitable for buyers who want dependable performance without selecting the heaviest available material.

Compared with some rubber-coated fabrics, PVC laminated fabric can provide a useful combination of waterproofing, color flexibility, chemical resistance, cleanability, and optional flame-retardant performance. Material selection should nevertheless be based on the actual environment, since rubber-coated products may be preferable for particular high-temperature, oil-contact, or specialized industrial applications.

The strongest advantage of this product is not that it is the best choice for every situation. Rather, it is that its 550 GSM weight, 9 × 9 construction, polyester reinforcement, and PVC surface create a balanced solution for a broad range of general cover requirements. Buyers can then add options such as anti-UV, anti-fungal, or flame-retardant treatments when the application demands them.

Installation, Use, and Maintenance

Installation Guidelines

Before installation, inspect the fabric for visible damage, contamination, sharp objects, and unsuitable folds. The supporting structure should be free from burrs, protrusions, or edges that could puncture the coating. Where contact with a rough frame is unavoidable, a protective strip or additional reinforcement should be considered.

The cover should be tensioned evenly. Excessive tension at one point can transfer stress to eyelets, seams, or corners, while insufficient tension can allow water to pool. Proper drainage and slope are important for outdoor covers because standing water can place a heavy load on the fabric and supporting structure.

Fasteners should be installed at suitable intervals and should not be forced through the fabric without reinforcement. When a cover is used in windy conditions, the complete system—including frame, ropes, straps, fasteners, and anchor points—must be designed for the expected load.

Cleaning

Routine cleaning can normally be performed with clean water and mild soapy water. A soft brush or cloth may be used to remove ordinary dirt. Strongly corrosive detergents, abrasive tools, and solvents should be avoided because they may damage the PVC surface, change the color, or reduce flexibility.

After cleaning, the fabric should be allowed to dry completely before folding or storage. Moisture trapped inside folds can encourage mildew growth, particularly in warm environments. If the cover has been exposed to chemicals, the cleaning procedure should be selected according to the chemical involved and the supplier’s recommendations.

Storage

Store the material in a dry, cool, and clean environment away from direct sunlight and high temperatures. Rolls should be supported properly to prevent deformation. Finished covers should be folded or rolled without sharp creases where possible, and heavy objects should not be placed on top of them for extended periods.

Before long-term storage, remove dirt and moisture. Periodic inspection is recommended for products used outdoors or in industrial environments. Early detection of small cuts, loose eyelets, damaged hems, or coating wear allows repair before the problem becomes larger.

Repair

Minor damage can often be repaired with dedicated PVC repair materials or suitable welding equipment. The damaged area should be cleaned and dried before repair. A patch should extend beyond the damaged region sufficiently to distribute stress, and the repair should be checked for adhesion and water resistance.

Large tears, severe delamination, extensive chemical damage, or structural failure around multiple fasteners may require professional assessment or replacement. Repairs should not be treated as a substitute for correct installation and regular maintenance.

How to Select the Correct Specification

Although 550 GSM 9 × 9 fabric is suitable for many applications, buyers should evaluate several factors before ordering. These include the required service life, exposure to sunlight, temperature, wind, moisture, chemicals, abrasion, folding frequency, and expected mechanical load.

For short-term indoor covers, the standard configuration may be sufficient. For long-term outdoor use, anti-UV treatment should be considered. For humid storage or agricultural environments, anti-fungal treatment may be helpful. For public events, temporary structures, or projects with fire-safety rules, the required flame-retardant classification must be identified at the quotation stage.

Customers should also specify finished width, color, roll length, surface requirements, welding method, printing requirements if applicable, and packaging expectations. If the fabric will be converted into a particular product, providing drawings or samples can help the manufacturer recommend a suitable configuration.

Sampling is an important part of procurement. A sample can be used to verify color, thickness, flexibility, surface appearance, welding behavior, seam construction, and compatibility with existing production equipment. For critical projects, laboratory testing or a production trial may be appropriate before a full-volume order.

Why Work With an Experienced Flexible-Material Manufacturer?

Coated fabric production requires coordination between textile engineering and polymer processing. A supplier may offer a low price while lacking the process control required for stable weight, thickness, adhesion, and color. An experienced manufacturer is better positioned to understand how the base fabric, PVC compound, lamination parameters, and final application interact.

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and has developed a product portfolio covering multiple flexible-material categories. Its location in Haining’s Warp Knitting Industrial Park places it within an important textile and industrial-material manufacturing environment. The company states that it emphasizes independent innovation and continuous research and development.

The company’s product range includes PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, and sunshade fabric. This range supports an understanding of different substrate structures, PVC processing methods, surface functions, and end-use requirements.

For international buyers, supplier capability also includes communication, documentation, customization, packaging, and delivery coordination. Technical data should be available for review, and optional treatments should be clearly identified. Customers should request confirmation that the supplied batch matches the approved specification, particularly when the material will be used in regulated, safety-sensitive, or long-term outdoor applications.

Purchasing Checklist

Before placing an order, buyers can use the following checklist:

1. Confirm the required finished weight and permitted tolerance.

2. Confirm the base yarn specification and weaving density.

3. Review tensile strength and tear strength in both directions.

4. Confirm finished thickness and width.

5. Specify the intended temperature and environmental range.

6. Determine whether anti-UV treatment is required.

7. Determine whether anti-fungal treatment is required.

8. Identify any flame-retardant classification required by the project.

9. Confirm color, roll length, packaging, and labeling requirements.

10. Test welding, sewing, printing, or other downstream fabrication processes.

11. Request relevant inspection or test documentation for the exact product grade.

12. Confirm chemical compatibility if the fabric will contact industrial substances.

13. Review sample appearance, flexibility, adhesion, and waterproof performance.

14. Confirm storage, transportation, and delivery conditions.

Frequently Asked Questions

What does 550 GSM mean?

GSM means grams per square meter. A 550 GSM fabric weighs approximately 550 grams per square meter, subject to the stated tolerance of ±3 percent. The weight includes the polyester base fabric and PVC coating system.

What does 9 × 9 mean?

It refers to the approximate number of warp and weft threads per inch. The 9 × 9 structure provides a balanced woven base for general cover applications.

Is the fabric waterproof?

Yes. The PVC laminated construction is designed to provide a waterproof surface for covers, tarpaulins, protective sheets, and related products. Finished-product waterproofing also depends on seams, fasteners, welding, and installation quality.

Can the fabric be used outdoors?

Yes. It is suitable for many outdoor applications, including truck covers, agricultural covers, tents, awnings, construction protection, and equipment covers. Anti-UV treatment is available as an option for applications involving prolonged sunlight exposure.

What is the temperature range?

The listed temperature range is approximately -50°C to +70°C. Actual performance depends on the formulation, exposure duration, mechanical stress, and application conditions.

Is anti-fungal treatment included as standard?

Anti-fungal treatment is listed as optional. Customers working in humid, warm, or poorly ventilated environments should discuss this requirement before ordering.

Can the fabric be made flame retardant?

Yes. The listed flame-retardant options include M1, M2, B1, B2, and NFPA-701. The required classification should be selected according to the application and confirmed through appropriate testing or documentation.

Can the color be customized?

Yes. Color can be customized according to customer requirements, subject to production conditions and order details. A physical or approved color sample should be used for confirmation on large projects.

Can it be welded?

The PVC-coated structure is generally suitable for compatible heat-welding processes, but the correct settings must be established through testing. Welding performance can vary with equipment, temperature, speed, pressure, color, and fabric configuration.

How should the fabric be cleaned?

Use clean water and mild soapy water. Avoid corrosive detergents, harsh solvents, and abrasive tools. Allow the fabric to dry fully before folding and storing it.

How should finished covers be stored?

Store them in a dry, cool environment away from direct sunlight and high temperatures. Clean and dry the covers before storage, and avoid placing heavy objects on them for long periods.

What applications are most suitable for this product?

Typical applications include logistics covers, warehouse protection, agricultural equipment covers, construction sheets, truck tarpaulins, vehicle covers, tents, awnings, outdoor shelters, industrial dust covers, and temporary partitions.

Is the fabric suitable for severe chemical exposure?

PVC offers resistance to many chemicals, and the product information lists resistance to several strong acids and alkalis. However, suitability depends on concentration, temperature, exposure time, and mechanical conditions. A compatibility test should be completed for severe or continuous chemical exposure.

Why choose this fabric instead of a lighter tarpaulin?

The 550 GSM construction provides a stronger and more substantial material than many lightweight alternatives. It is designed to offer a practical balance between durability, waterproofing, handling, fabrication efficiency, and cost for general cover applications.

Why choose it instead of a heavier industrial fabric?

A heavier fabric may be appropriate for extreme loads, but it can also be more difficult to transport, fold, cut, sew, weld, and install. The 550 GSM specification is a balanced choice when high general-purpose performance is required without unnecessary material weight.

Conclusion

The 550 GSM 9 × 9 General Cover PVC Laminated Fabric is a versatile reinforced material for customers who need dependable waterproof protection, balanced mechanical strength, and flexible customization. Its 500 × 500 denier polyester base fabric provides structural reinforcement, while the PVC layers supply a continuous protective surface with options for anti-UV, anti-fungal, flame-retardant, anti-static, antibacterial, and other functional performance characteristics.

With a reported tensile strength of 800 N/5 cm in the machine direction and 700 N/5 cm in the cross direction, tear strength of 180 N/5 cm and 150 N/5 cm, and a temperature range of approximately -50°C to +70°C, the fabric is suitable for a wide variety of general cover applications. Its 550 GSM weight offers a useful middle ground between lightweight temporary sheets and heavier industrial tarpaulins.

Applications extend across logistics, warehousing, agriculture, construction, transportation, outdoor activities, and industrial protection. The product can be customized in color and enhanced with optional treatments according to project requirements. Proper fabrication, installation, cleaning, repair, and storage are essential to achieving the best service life.

Supported by Zhejiang MSD Group Share Co., Ltd.’s experience in flexible materials, PVC products, coated fabrics, and related textile solutions, this product represents a practical choice for distributors, manufacturers, contractors, logistics companies, agricultural users, and industrial customers seeking a reliable PVC laminated cover fabric.

References

1. Product Technical Data Sheet, 550 GSM 9 × 9 General Cover PVC Laminated Fabric.

2. FZ/T01003, textile fabric testing methods for fabric density, weight, and thickness measurement.

3. GB/T1040, plastics determination of tensile properties.

4. GB/T16578, textile determination of tear strength.

5. GB/T3917, textile determination of tear and peeling-related performance.

6. General technical literature on PVC-coated polyester fabrics and flexible polymer laminates.

7. General guidance on the selection, fabrication, installation, cleaning, and storage of PVC tarpaulin materials.

8. General reference materials concerning M1, M2, B1, B2, and NFPA-701 flame-retardant classifications.

Product: 550GSM 9X9 General Cover PVC Laminated Fabric
