0.52 mm 650GSM Inflatable Seam Tape PVC Airtight Fabric for High-Integrity Inflatable Manufacturing

Inflatable products have become more demanding than ever. Stand-up paddle boards, inflatable boats, kayaks, floating platforms, rescue equipment, air structures, and water toys are expected to be lighter, stronger, more airtight, easier to repair, more weather resistant, and more consistent in production. At the center of this performance requirement is the material used to seal, reinforce, and protect the seams. The 0.52 mm 650GSM 1000D 23X23 Inflatable Seam Tape PVC Airtight Fabric is engineered for exactly this role: it provides dependable seam reinforcement, excellent airtightness, strong physical performance, and stable processing behavior for professional inflatable manufacturing.

This fabric is designed for use with PVC drop stitch fabric and other inflatable PVC structures. It can be applied directly as an outer seam tape on PVC drop stitch fabric, and it can also be used as an inner seam tape when paired with heavier outer tape, such as 0.7 mm material, to create reinforced inflatable products such as premium SUP boards. With a balanced thickness of 0.52 mm and a finished weight of 650GSM, the fabric offers an effective combination of strength, flexibility, durability, and manageable handling during production.

Unlike ordinary PVC tapes that may focus only on basic sealing, this material is built around a reinforced polyester base fabric with PVC coating or lamination technology. The 1000D polyester yarn and 23X23 thread density deliver high tensile strength and tear resistance, while the PVC layer provides waterproofing, airtightness, chemical resistance, weldability, and weather protection. This makes the product suitable for applications where failure at the seam is not acceptable.

Product Overview and Core Value

The 0.52 mm 650GSM Inflatable Seam Tape PVC Airtight Fabric is a specialized reinforced PVC fabric developed for inflatable seam construction. In an inflatable product, the seam area is often the most mechanically stressed region. It must resist air pressure from inside, bending and folding during use, abrasion from the outside environment, and repeated stress during transportation and storage. A reliable seam tape must therefore do more than simply cover a joint. It must integrate with the main fabric, bond securely, maintain airtightness, and preserve flexibility over time.

This product meets these requirements through a combination of material engineering and controlled manufacturing. The polyester base fabric offers dimensional stability and strength. PVC provides airtight and waterproof performance. The 0.52 mm thickness gives the fabric enough body to resist damage while still allowing smooth processing during heat welding, high-frequency welding, or adhesive bonding, depending on the customer’s production method.

The product is especially suitable for inflatable boats, SUP boards, inflatable kayaks, floating docks, inflatable sports platforms, water amusement equipment, and other air-retaining structures. It is also valuable for manufacturers seeking a balance between lightweight construction and reinforced seam reliability. In many inflatable applications, heavier materials increase durability but reduce handling convenience and product portability. This fabric offers a practical middle point: strong enough for demanding use, yet not unnecessarily heavy.

Technical Data Sheet

Why Seam Tape Matters in Inflatable Products

Inflatable structures depend on airtight chambers. When air pressure rises inside the product, the seams carry concentrated stress. The flat surfaces of the main fabric may remain stable, but the bonded seam area must resist peeling, shear, bending, folding, and outward force. If the seam tape is too thin, weak, poorly bonded, or unstable in temperature changes, leakage can occur. Even a small seam failure can compromise the safety, comfort, and lifespan of the final product.

For this reason, seam tape selection is one of the most important decisions in inflatable product engineering. A good seam tape improves air retention, supports pressure stability, prevents water penetration, protects the joint from abrasion, and creates a cleaner finished appearance. In products such as inflatable boats and paddle boards, it also contributes to user confidence. Customers may not always see the engineering behind the seam, but they immediately notice whether a product stays firm, performs consistently, and survives repeated outdoor use.

The 0.52 mm 650GSM PVC airtight fabric is developed to support these requirements. Its high tensile strength values in both machine direction and cross direction help the tape resist pulling forces from multiple angles. Its tear resistance helps prevent local damage from expanding. Its peeling strength supports bonding performance between layers. Its temperature tolerance allows the material to function in cold and warm environments, which is essential for outdoor and marine products.

Key Advantages Over Ordinary Competing Materials

Balanced Thickness for Better Processing and Performance

Some competing seam tape materials are either too light to provide lasting reinforcement or too thick to handle efficiently. A very thin tape may be easy to weld but can lack durability, while a very heavy tape may reduce flexibility and make finished products bulky. The 0.52 mm thickness offers a strong balance. It is thick enough to support structural reinforcement and resist abrasion, while still flexible enough for curved surfaces, corners, rail sections, and edge sealing.

This balance is especially important in drop stitch inflatable products, where seams must follow precise shapes and maintain a smooth profile. During production, the material can be positioned, aligned, and welded with less difficulty than overly rigid alternatives. For manufacturers, this may reduce processing errors, rework, and material waste.

650GSM Weight for Strength Without Excess Burden

At 650 grams per square meter, the fabric has a durable hand feel and strong structural capability. However, it does not add unnecessary weight to the final inflatable product. This is a significant advantage for SUP boards, inflatable kayaks, and portable boats, where users value easy carrying, compact storage, and convenient transportation.

Compared with low-density materials, the 650GSM construction improves confidence in high-stress seam zones. Compared with heavier alternatives, it helps preserve the portability that makes inflatable products attractive in the first place. This makes the material suitable for both professional production and consumer-focused inflatable goods.

1000D Polyester Reinforcement for High Tensile Strength

The 1000D polyester base fabric is a major reason for the product’s reliable mechanical performance. Polyester is widely used in technical textiles because it offers strength, dimensional stability, resistance to stretching, and good compatibility with PVC coating systems. The 1000 x 1000D yarn structure supports high tensile strength, with average values of 3000 N/5cm in the machine direction and 2800 N/5cm in the cross direction.

This strength gives manufacturers a strong platform for seam design. The material can withstand pulling forces from inflation pressure, user load, wave movement, folding, and impact. In comparison, lower-denier fabrics may feel softer but may not provide the same level of long-term reinforcement under repeated stress.

23X23 Thread Density for Stable Fabric Structure

The 23X23 thread density contributes to balanced strength in both directions. A fabric with uneven density may perform well in one direction but poorly in another, creating weaknesses in complex seam layouts. This product’s balanced base fabric structure helps deliver consistent reinforcement whether the tape is used along straight seams, curved rails, corners, or overlapping joint areas.

This structural stability is particularly valuable for inflatable boat fabric and drop stitch fabric applications. Products used on water are exposed to dynamic forces rather than static loads. They flex, twist, bend, and respond to user movement. A stable seam tape helps maintain the integrity of the entire structure.

Excellent Airtight and Waterproof Performance

PVC is naturally suitable for inflatable applications because it can form an airtight and waterproof barrier when processed correctly. The fabric helps prevent air leakage and water infiltration, two critical requirements for inflatable marine and sports products. When used with suitable welding or bonding methods, it supports long-term air pressure retention and reduces the risk of seam failure.

Many ordinary seam materials may initially pass inflation testing but lose performance after folding, UV exposure, temperature cycling, or repeated water contact. This product is designed with durability in mind, making it more suitable for serious inflatable manufacturing.

Material Performance and Functional Benefits

Flame Retardant Potential

PVC material can be formulated with flame retardant properties, with flame retardant values above 40 depending on formulation and customer requirements. This can be important for inflatable structures used in public spaces, commercial water parks, rescue applications, and special industrial environments. While not every customer requires the same flame-retardant level, the ability to customize performance gives manufacturers more flexibility in product development.

Chemical Resistance

The PVC material system offers strong resistance to several chemicals, including concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid, and 20% sodium hydroxide under suitable conditions. This characteristic gives the fabric strong resistance in challenging environments. For inflatable products, chemical resistance may help protect against cleaners, saltwater exposure, industrial contaminants, and various outdoor conditions.

Mechanical Strength

The combination of PVC and reinforced polyester base fabric creates a material that performs well under mechanical stress. The product’s tensile strength, tear strength, and peel strength support its use in pressure-bearing inflatable structures. Mechanical strength is not only about maximum load; it is also about consistency during repeated use. A seam tape must resist fatigue caused by inflation, deflation, folding, rolling, and storage. This fabric is designed to support that repeated cycle.

Electrical Insulation

PVC also has good electrical insulation properties. While inflatable marine products are not always selected for electrical applications, this characteristic demonstrates the broader functional stability of the material. In specialized inflatable structures, industrial air chambers, or technical protective products, insulation behavior may provide additional value.

Optional Functional Additives

The product can be formulated with additives for anti-UV, anti-mildew, anti-frost, anti-static, anti-bacterial, and higher-level flame-retardant performance. This is a major advantage over commodity materials that are offered only in fixed formulations. Different markets have different performance requirements. A tropical water park may prioritize UV and mildew resistance. A cold-climate rescue product may require anti-frost performance. A children’s inflatable product may require compliance with stricter chemical safety standards.

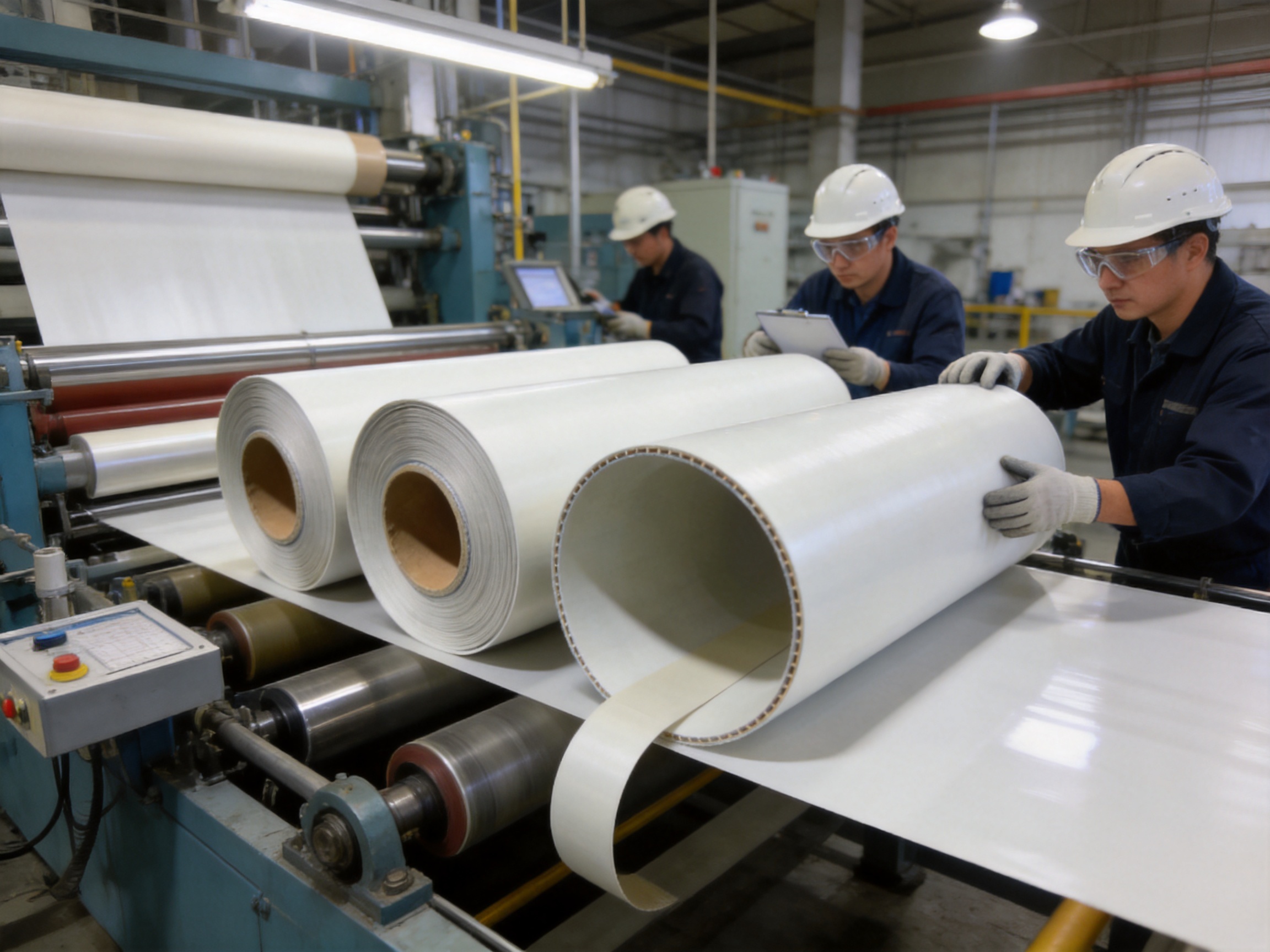

Advanced Manufacturing Processes Behind the Fabric

High-quality inflatable seam tape is not created by raw material selection alone. Manufacturing control is equally important. Zhejiang MSD Group Share Co., Ltd. has developed a comprehensive product system covering PVC coated fabric, PVC laminated fabric, drop stitch fabric, PVC waterproof fabric, tarpaulin, flex banner, calendered film, ceiling film, sunshade fabric, and other flexible materials. This wide material background supports process knowledge that can be applied to inflatable fabric production.

The company’s manufacturing strength begins with technical textile selection. Polyester yarn must be chosen for stable denier, controlled strength, uniform weaving, and compatibility with PVC processing. The 1000D base fabric must be woven to a controlled 23X23 density so that the final product has reliable mechanical properties and dimensional consistency. Any inconsistency at this stage may affect coating uniformity, welding behavior, and seam performance.

After base fabric preparation, PVC formulation is a critical step. The PVC compound may include plasticizers, stabilizers, pigments, flame retardants, UV absorbers, anti-mildew additives, or other functional agents according to the target application. A strong manufacturer must control formulation precision so that the finished material achieves the right balance of flexibility, strength, color, surface finish, and compliance.

Coating or lamination technology then integrates the PVC layer with the polyester reinforcement. Uniform thickness control is essential. If the coating is too thin in some regions, airtightness and durability may suffer. If it is too thick or uneven, welding behavior may become inconsistent and the final roll may be harder to process. The target thickness of 0.52 mm with ±3% tolerance reflects the need for precision production.

Temperature control, line speed, pressure, surface treatment, and curing conditions must be managed carefully. These factors influence adhesion between PVC and base fabric, surface smoothness, dimensional stability, and final mechanical strength. Strong peeling strength depends on good interlayer bonding. Stable tensile and tear strength depend on both the base textile and the quality of PVC integration.

Finished rolls require inspection and testing. Weight, thickness, tensile strength, tear strength, peeling strength, color consistency, surface appearance, and optional chemical compliance may all be checked according to customer requirements. This quality-control approach allows manufacturers using the fabric to reduce risk in their own production lines.

Company Strengths Supporting Product Reliability

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in the Warp Knitting Industrial Park of Haining City, Zhejiang Province, China. The company has developed through continuous research and development, independent innovation, and technical improvement. Its product system integrates environmentally friendly decorative materials, functional sports materials, and other flexible materials across multiple application scenarios.

This background is important for buyers because inflatable fabric is not an isolated product. It benefits from experience in PVC coating, lamination, calendering, waterproof fabric, mesh fabric, tarpaulin, flex banner, and drop stitch systems. A manufacturer with broad experience in flexible PVC materials is better positioned to understand coating adhesion, fabric reinforcement, weather resistance, welding compatibility, and customer-specific customization.

The company’s emphasis on independent innovation supports continuous product improvement. In inflatable fabric markets, requirements change quickly. Customers may request lighter fabrics, stronger seams, improved environmental compliance, brighter colors, better UV resistance, or materials compatible with automated welding equipment. A producer with research and development capability can respond to these changes more effectively than suppliers limited to standard commodity products.

Manufacturing location also supports industrial efficiency. Haining City is known for warp knitting and technical textile activity, giving the company access to textile-related industrial resources, supply chain support, and production expertise. This environment can help improve responsiveness, material development, and production stability.

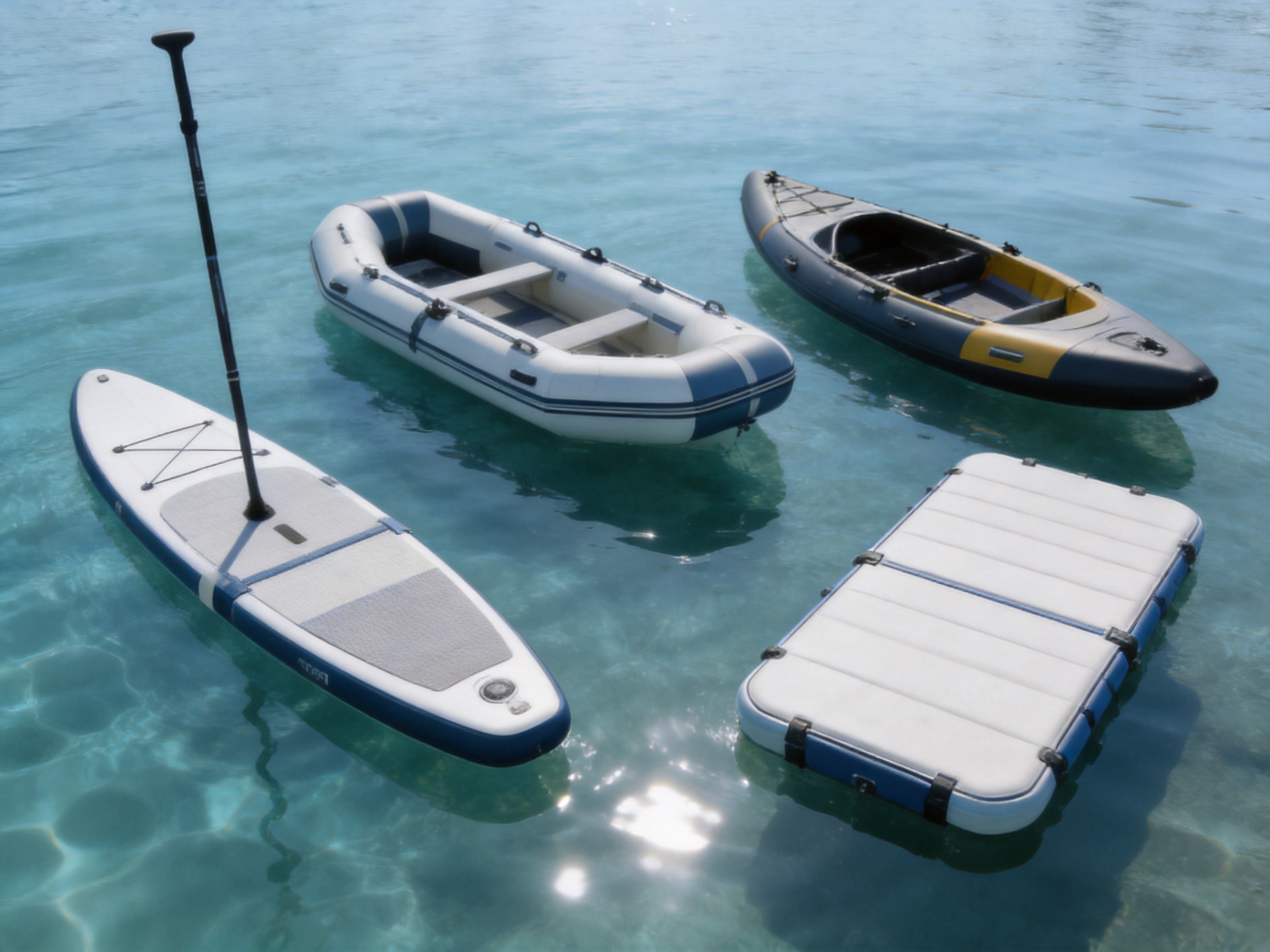

Applications in Inflatable Product Manufacturing

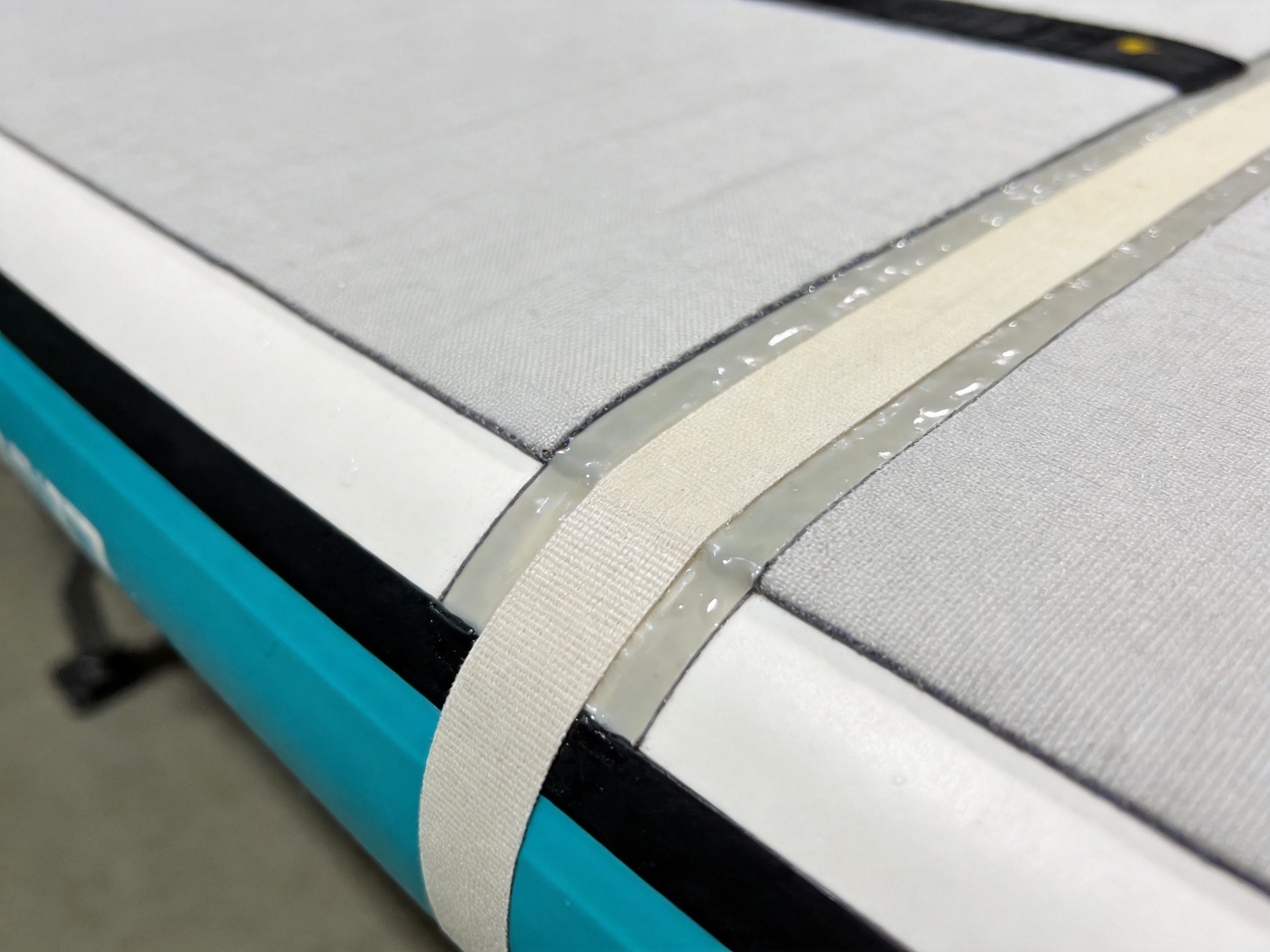

Stand-Up Paddle Boards

SUP boards require strong rail and seam construction. The board must hold high air pressure to maintain rigidity, yet it must remain light enough for users to carry. The 0.52 mm 650GSM seam tape is suitable as outer tape for PVC drop stitch fabric, and it may also be used as inner tape in reinforced rail systems. When combined with heavier outer reinforcement, it can help produce premium boards with improved impact resistance and air retention.

Inflatable Boats

Inflatable boats face abrasion, water exposure, UV radiation, temperature variation, and repeated mechanical stress. Seam tape must resist peeling and leakage while maintaining flexibility. This PVC airtight fabric supports boat tube joints, floor connections, reinforcement zones, and repair applications. Its waterproof and chemical-resistant characteristics are valuable in marine environments.

Inflatable Kayaks and Canoes

Inflatable kayaks and canoes require materials that can handle folding, rolling, and compact storage. A seam tape that is too rigid may create stress points when the product is packed. This fabric’s balanced flexibility makes it suitable for portable watercraft, while its strength helps maintain structural reliability on the water.

Floating Platforms and Water Sports Equipment

Water parks, floating docks, training platforms, and inflatable sports products are exposed to continuous movement and heavy user interaction. The seam tape must support load-bearing areas and prevent air leakage during extended use. The product’s tensile strength and tear resistance make it a strong candidate for such applications.

Repair and Reinforcement

Because PVC materials can often be patched or resealed with suitable methods, this fabric can also be useful for repair and reinforcement. Damaged seam regions may be reinforced, and new protective layers can be applied where abrasion is expected. This extends product service life and reduces replacement costs.

Processing Compatibility

The fabric is suitable for common inflatable product production processes when matched with proper equipment and parameters. PVC materials are often joined through high-frequency welding, hot-air welding, hot-wedge welding, or adhesive bonding. The correct method depends on the final product structure, factory equipment, target strength, and production volume.

High-frequency welding is widely used for PVC because it can produce strong, clean, and consistent seams. A stable PVC seam tape with uniform thickness helps improve welding reliability. Hot-air and hot-wedge methods can also be used in many applications, especially when continuous seam production is required. Adhesive bonding may be selected for specific repair or assembly operations, though proper surface preparation and adhesive compatibility are essential.

Manufacturers should test welding temperature, pressure, dwell time, speed, overlap width, and cooling conditions before mass production. Even high-quality material requires appropriate process settings. Once optimized, the material can support efficient production and stable seam quality.

Quality Control Considerations

Quality control for inflatable seam tape should be comprehensive. Basic visual inspection is not enough because the most important properties may not be visible. Thickness and weight must be controlled to ensure consistent welding behavior. Tensile and tear strength must be tested to verify reinforcement performance. Peeling strength is especially important because seam failure often begins with separation between layers or between tape and main fabric.

Air leakage testing is also important in final product production. Even if the tape material is airtight, improper welding or contamination can create leakage paths. Therefore, manufacturers should combine material testing with finished product pressure testing. Long-duration inflation tests, water immersion checks, soap-bubble inspections, and pressure-drop measurements are commonly used in the inflatable industry.

Color fastness is another important factor. A minimum color fastness grade of 6 supports outdoor appearance retention. This is especially relevant for consumer products, where visual quality influences perceived value. UV-resistant formulations can further improve color and surface stability.

Customization Options

Different customers may require different product configurations. The fabric can be customized in color, surface finish, functional additives, compliance options, and performance level. REACH and 16P-free options are available for customers who need stricter chemical safety requirements. RoHS, REACH, and EN71-3-oriented formulations may also be considered for health and market compliance depending on final application requirements.

Color customization supports brand identity and product design. Inflatable boards and boats are often sold in visually competitive markets. Seam tape color must match or complement the main fabric. Surface texture and gloss can also influence product appearance and handling.

Functional customization may include anti-UV additives for outdoor durability, anti-mildew additives for humid or marine climates, anti-frost additives for cold environments, anti-static features for special industrial use, anti-bacterial treatment for hygiene-sensitive products, and enhanced flame retardancy for regulated markets.

Comparison With Common Alternatives

Compared with lightweight PVC seam tapes, this 0.52 mm 650GSM material provides stronger reinforcement and better durability in high-stress areas. Lightweight tapes may be suitable for simple toys or low-pressure products, but they may not provide the same security for SUP boards, boats, or commercial inflatables.

Compared with overly heavy PVC tapes, this fabric offers better handling and helps reduce final product weight. Heavy tapes can increase production difficulty and may reduce the flexibility of the finished inflatable product. The 0.52 mm construction is easier to use on curved or complex seam areas while still providing dependable strength.

Compared with non-reinforced PVC film, the polyester-reinforced construction provides much higher mechanical stability. Film alone may offer waterproofing but lacks the same tensile and tear resistance. For pressure-bearing inflatable products, reinforced fabric is generally the more reliable choice.

Compared with inconsistent commodity fabrics, this product benefits from defined technical data, optional compliance pathways, and manufacturer experience in coated and laminated PVC systems. Buyers gain better predictability, which is essential for large-scale production.

Environmental and Safety Considerations

Modern inflatable product markets increasingly demand safer and more responsible materials. Customers may require compliance with REACH, RoHS, EN71-3, or phthalate-related restrictions. The availability of optional REACH and 16P-free configurations helps customers address market regulations and buyer expectations.

Environmental performance is also connected to durability. A stronger, longer-lasting inflatable product reduces waste because it does not need to be replaced as quickly. Materials that support repair and maintenance also contribute to extended service life. The PVC airtight fabric can be patched and resealed with appropriate methods, helping users maintain products rather than discard them prematurely.

Design Recommendations for Manufacturers

Manufacturers should design seam structures according to final product pressure, shape, use environment, and safety requirements. For standard drop stitch applications, the 0.52 mm fabric may be used as an outer seam tape. For reinforced SUP designs, it may be used as inner tape with 0.7 mm outer tape. This layered approach improves rail strength and helps distribute stress.

Overlap width should be selected carefully. A wider overlap generally increases bonding area and improves seam security, but it also adds weight and may affect appearance. Welding parameters should be validated through peel tests, pressure tests, and aging tests.

When designing inflatable boats or high-load platforms, manufacturers should consider additional reinforcement at corners, handles, valves, D-rings, towing points, and high-abrasion areas. Seam tape should be integrated into the overall structure rather than treated as a simple accessory.

Storage and Handling

Proper storage helps maintain material quality before production. Rolls should be stored in a clean, dry, and ventilated environment. Direct sunlight, excessive heat, sharp objects, and heavy compression should be avoided. Before welding or bonding, the material surface should be clean and free from dust, oil, moisture, or release agents.

During cutting, accurate dimensions help improve assembly consistency. Cutting tools should be sharp to avoid frayed edges or irregular shapes. For automated production, roll consistency and stable thickness support smoother feeding and alignment.

Why This Fabric Is a Strong Choice for Professional Buyers

The 0.52 mm 650GSM 1000D 23X23 Inflatable Seam Tape PVC Airtight Fabric combines measurable strength, practical weight, reliable airtightness, and customization potential. It is not merely a basic PVC strip; it is an engineered reinforced fabric for pressure-retaining inflatable products.

Professional buyers benefit from its balanced specification. Production teams benefit from its processability. End users benefit from better air retention, durability, and product confidence. Brand owners benefit from improved product reliability and customization options. When supported by a manufacturer with broad PVC coated and laminated fabric experience, the material becomes a dependable component in modern inflatable product design.

For companies producing SUP boards, inflatable boats, kayaks, floating platforms, and other technical inflatables, seam quality can define product reputation. Selecting the right seam tape is therefore a strategic decision. This fabric offers the strength and adaptability required to meet demanding market expectations.

Q&A Section

Q1: What is the main use of 0.52 mm 650GSM Inflatable Seam Tape PVC Airtight Fabric?

A1: It is mainly used for seam reinforcement and airtight sealing in inflatable products such as SUP boards, inflatable boats, kayaks, floating platforms, water sports equipment, and PVC drop stitch structures.

Q2: Can this fabric be used directly as outer tape on drop stitch fabric?

A2: Yes. The 0.52 mm fabric can be directly used as outer seam tape on PVC drop stitch fabric. It can also be used as inner tape together with heavier outer tape, such as 0.7 mm material, for reinforced SUP construction.

Q3: Why is 1000D polyester important?

A3: The 1000D polyester base fabric provides high tensile strength, dimensional stability, and resistance to deformation. This reinforcement helps the seam tape withstand internal air pressure, folding, bending, and outdoor use.

Q4: Is the material waterproof and airtight?

A4: Yes. The PVC construction provides waterproof and airtight performance when processed correctly. Proper welding or bonding is essential to achieve reliable final product sealing.

Q5: What processing methods can be used?

A5: The material is suitable for common PVC inflatable production methods such as high-frequency welding, hot-air welding, hot-wedge welding, and compatible adhesive bonding. Production parameters should be tested before mass manufacturing.

Q6: What makes this product better than ordinary seam tape?

A6: It offers a balanced 0.52 mm thickness, 650GSM weight, 1000D polyester reinforcement, 23X23 fabric density, strong tensile performance, good tear resistance, peeling strength, waterproofing, airtightness, and optional functional formulations.

Q7: Can the fabric be customized?

A7: Yes. Customization may include color, surface finish, anti-UV performance, anti-mildew treatment, anti-frost formulation, anti-static function, anti-bacterial treatment, flame retardancy, and chemical compliance options such as REACH or 16P-free requirements.

Q8: What temperature range can the fabric handle?

A8: The technical data indicates a temperature range of approximately -50℃ to +70℃, making it suitable for many outdoor and marine environments.

Q9: Is this material suitable for premium inflatable products?

A9: Yes. Its strength, airtight performance, and reinforcement capability make it suitable for higher-value inflatable products where seam reliability is essential.

Q10: How should manufacturers ensure best results?

A10: Manufacturers should select proper overlap designs, optimize welding temperature and pressure, keep surfaces clean, perform peel and pressure tests, and store materials properly before production.

Conclusion

The 0.52 mm 650GSM 1000D 23X23 Inflatable Seam Tape PVC Airtight Fabric is a high-performance solution for manufacturers who need reliable seam reinforcement in inflatable products. Its reinforced polyester base, PVC airtight layer, balanced thickness, manageable weight, high tensile strength, strong tear resistance, and optional functional additives make it well suited for SUP boards, inflatable boats, kayaks, floating platforms, and other demanding applications.

Its advantages over ordinary competing materials are clear: better reinforcement than lightweight tapes, easier handling than overly heavy options, stronger mechanical performance than non-reinforced film, and more customization potential than basic commodity fabrics. Supported by advanced PVC coating and lamination experience, quality control, and research-driven manufacturing, the product provides a dependable foundation for modern inflatable design.

For buyers seeking durability, airtight integrity, waterproof confidence, processing stability, and market-ready customization, this seam tape fabric represents a practical and technically sound choice.

References

1. GB/T1040, Plastics: Determination of Tensile Properties.

2. GB/T16578, Test Methods Related to Tearing Strength of Coated Fabrics.

3. GB/T3917, Textiles: Tearing Properties and Related Testing Methods.

4. FZ/T01003, Textile Testing Standard for Fabric Density, Weight, and Thickness Evaluation.

5. Handbook of Technical Textiles, Volume 1: Technical Textile Processes.

6. Coated and Laminated Textiles for Outdoor and Industrial Applications, Materials Engineering Reference.

7. PVC Formulation and Processing Guide for Flexible Coated Fabrics.
