400GSM 1000D 3x3 Transparent PVC Coated Polyester Fabric for Durable Outdoor Applications

Transparent PVC coated polyester fabric is designed for applications that require visibility, weather resistance, dimensional stability, and mechanical strength in one flexible sheet material. The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is a practical solution for tent windows, tarpaulin viewing panels, canopy structures, protective covers, packaging uses, exhibition systems, and outdoor enclosures where ordinary clear film may not provide sufficient strength. By combining a high-strength polyester base fabric with a transparent PVC coating, this product delivers a balance of clarity, reinforcement, waterproof performance, and durability.

Unlike standard super clear PVC film, which relies primarily on film thickness for mechanical performance, transparent PVC coated polyester fabric uses a woven reinforcement structure. This gives the material stronger tensile resistance, better tear control, and improved structural stability. The product is especially useful when the application requires both transparent or semi-transparent visual access and reliable physical performance under repeated folding, tensioning, wind load, installation stress, and outdoor exposure.

The fabric uses 1000D polyester yarn with a 3x3 thread density construction and a finished weight of 400 grams per square meter. This specification makes it lighter than many heavy industrial tarpaulins while remaining substantially stronger than unsupported transparent PVC film. Its 0.4 mm thickness provides flexibility for fabrication, welding, sewing, folding, rolling, and installation, while the PVC coating enhances waterproofing, anti-fouling performance, chemical resistance, and optional UV, mildew, frost, antistatic, antibacterial, and flame-retardant functions.

Zhejiang MSD Group Share Co., Ltd. manufactures PVC coated and laminated fabrics with a broad product system covering advertising flex banner, PVC calendered film, PVC ceiling film, drop stitch fabric, sunshade fabric, PVC waterproof fabric, PVC mesh fabric, PVC tarpaulin, and related flexible materials. With manufacturing experience dating back to 2002 and a location in the warp knitting industrial park of Haining City, Zhejiang Province, the company has developed strong capability in yarn selection, fabric reinforcement, PVC formulation, coating control, lamination, surface treatment, inspection, and customization.

Product Overview

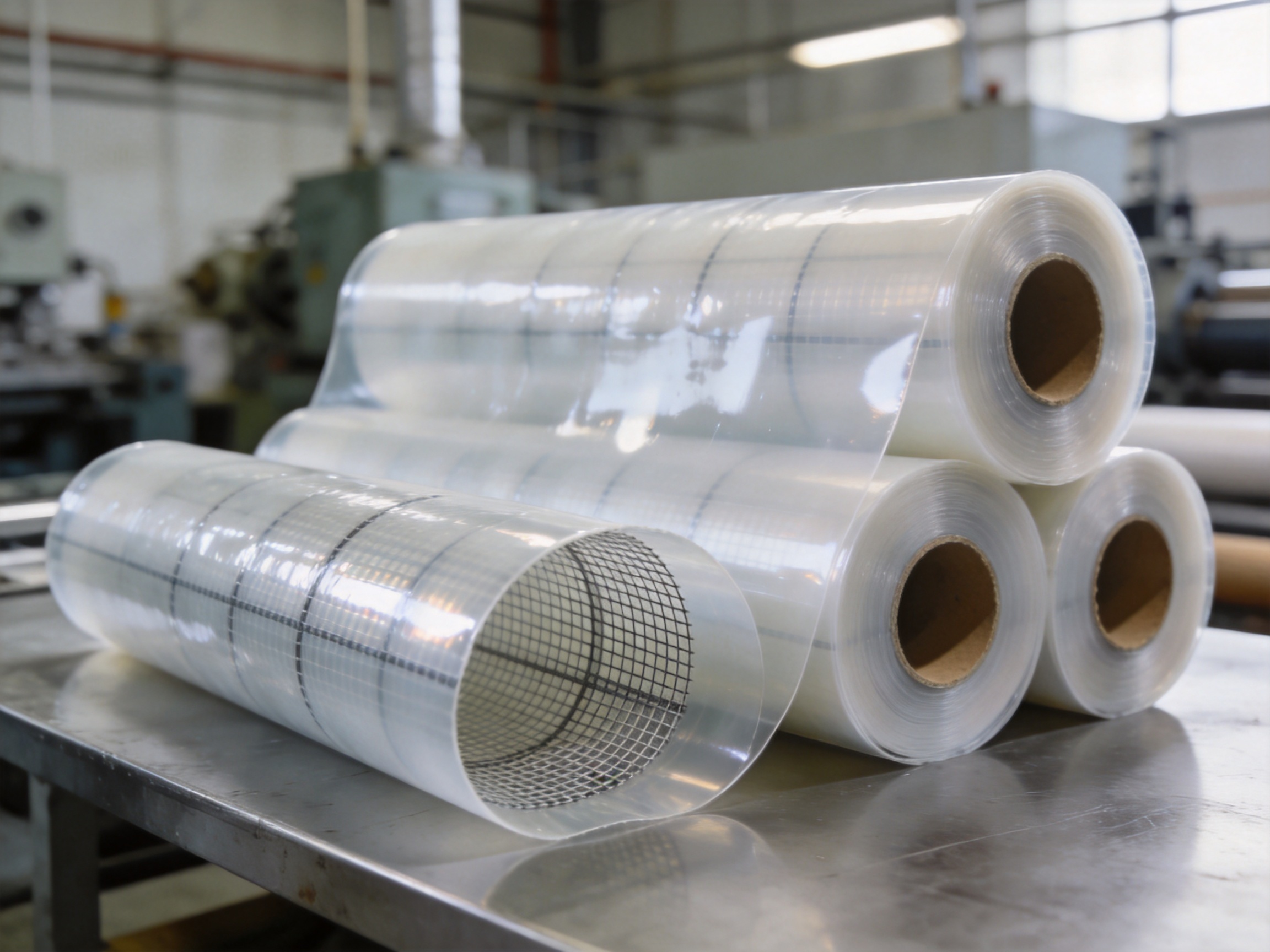

The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is a composite technical textile. Its base layer is polyester fabric, while its surface layer is transparent PVC. The polyester reinforcement gives the fabric load-bearing performance, while the PVC layer provides waterproofing, transparency, easy cleaning, chemical resistance, and environmental protection options depending on formulation. The result is a multifunctional material suitable for demanding outdoor and industrial environments.

The term “400GSM” refers to the finished fabric weight: approximately 400 grams per square meter, with a tolerance of about plus or minus 3 percent. GSM is important because it indicates density, handling feel, and expected durability. A 400GSM transparent reinforced fabric is strong enough for many tent, canopy, covering, and packaging applications, yet not excessively heavy for processing or installation.

The term “1000D” refers to the denier of the base fabric yarn. Higher-denier yarns generally provide greater strength and better resistance to breakage under stress. In this product, 1000D polyester yarn gives the base fabric strong reinforcement ability. The “3x3” construction describes the base fabric density, indicating a stable woven structure that supports the PVC coating and resists deformation.

The product is often selected for transparent windows in tents because it provides better strength than unsupported clear film. In tent manufacturing, transparent windows must resist wind pressure, pulling from seams, repeated folding during transport, and exposure to sun and rain. Clear film alone can be vulnerable to tearing at stitch lines or welded seams, while reinforced transparent fabric distributes stress through the polyester grid.

Technical Data

Why Polyester Reinforcement Matters

Transparent flexible materials can be divided into two broad categories: unsupported films and reinforced coated fabrics. Unsupported films are simple, clear, and economical, but their strength depends mostly on film thickness and plasticizer formulation. When they are pulled, punctured, folded, or exposed to long-term stress, they may stretch, deform, split, or tear quickly, especially around holes, seams, corners, and welded joints.

Reinforced coated fabrics solve this problem by adding a fabric skeleton inside or under the coating. In this product, polyester provides that skeleton. Polyester fiber is known for high tensile strength, good dimensional stability, wear resistance, weather resistance, wrinkle resistance, and suitability for coating processes. It helps the finished material hold shape, resist elongation, and maintain installation tension better than film alone.

The 1000D yarn specification makes the base strong enough for demanding end uses. The 3x3 density allows the fabric to retain a transparent visual effect while still providing reinforcement. This balance is important: if the fabric grid is too dense, transparency decreases; if it is too open, strength may be insufficient. The 1000D 3x3 structure is therefore suitable for products that need both visibility and durability.

In tent windows, for example, the fabric may be exposed to wind vibration and pulling forces from surrounding fabric panels. A reinforced transparent panel is less likely to fail catastrophically because the yarn structure helps restrict tear propagation. Even if the PVC coating is scratched or punctured, the polyester grid can help maintain panel integrity until repair or replacement is possible.

Advantages Over Ordinary Transparent PVC Film

The most obvious advantage of 400GSM 1000D 3x3 transparent PVC coated polyester fabric is its stronger physical performance compared with common transparent PVC film. Clear PVC film is useful when high optical clarity is the only priority, but in many outdoor and industrial conditions, clarity alone is not enough. A material must also resist tearing, tension, cold cracking, abrasion, water, dirt, chemicals, mildew, and UV exposure.

This reinforced transparent fabric provides tensile strength of approximately 560 N/5 cm in the machine direction and 470 N/5 cm in the cross direction. These values show that the material is designed for structural performance, not simply visual covering. The tear strength values of approximately 60 N/5 cm in the machine direction and 65 N/5 cm in the cross direction provide additional security in applications where punctures, hooks, sharp edges, or installation mistakes may occur.

Peeling strength is also important. A coated fabric is only reliable when the coating and base fabric remain strongly bonded. With a peeling strength value of approximately 90 N/5 cm, the product demonstrates good adhesion between the PVC layer and the polyester reinforcement. Strong bonding helps prevent delamination, bubbling, separation, and premature failure in humid or outdoor environments.

Another advantage is fabrication compatibility. The fabric can be processed by high-frequency welding, heat sealing, sewing, cutting, and edge reinforcement depending on the final product design. The PVC-coated surface supports waterproof joint creation, while the polyester base improves resistance at seams and attachment points. For manufacturers of tents, tarpaulins, curtains, covers, and packaging products, this combination improves both production efficiency and final product reliability.

Advantages Over Heavier Industrial Tarpaulin Materials

Heavy opaque tarpaulin materials can provide excellent strength and weather protection, but they do not provide visibility. For certain applications, users want to see through a panel while still gaining the safety and durability of reinforced fabric. Examples include tent windows, inspection curtains, exhibition booths, temporary partitions, greenhouse-style covers, protective covers for goods, and industrial observation panels.

The 400GSM transparent fabric is a middle-ground solution. It is lighter and more transparent than heavy opaque tarpaulin, yet stronger and more stable than unsupported film. This balance helps reduce product weight, improve handling, and support easier installation. In large outdoor tents, lighter window materials can reduce stress on frame structures and simplify folding and transport.

Compared with some heavier coated fabrics, a 0.4 mm transparent reinforced material can be more flexible and easier to fabricate into curved or irregular shapes. It can be rolled, folded, cut, and joined without the excessive stiffness that may appear in very thick tarpaulin materials. This makes it useful for customized architectural coverings, outdoor event structures, portable shelters, and seasonal protective products.

Waterproof and Anti-Fouling Performance

The PVC coating provides a continuous surface barrier against water. This is essential in tent windows, canopy sides, rain covers, cargo covers, temporary shelters, and outdoor enclosures. Polyester fabric by itself is strong but not fully waterproof; PVC coating transforms the textile into a waterproof composite material suitable for rain, splash, and humid environments.

The smooth PVC surface also improves anti-fouling performance. Dust, mud, fingerprints, water stains, and general outdoor dirt are easier to clean from PVC-coated surfaces than from uncoated woven textiles. This is particularly useful for transparent areas, where dirt can quickly reduce visibility and appearance. Routine cleaning with suitable mild cleaning methods helps maintain transparency and presentation quality.

In commercial tents and exhibition structures, appearance matters. A transparent panel that becomes cloudy, dirty, or stained too quickly can reduce the perceived quality of the final product. The PVC coating helps the fabric retain a clean surface, while optional additives can improve resistance to mildew, UV degradation, and weathering.

Weather Resistance and Temperature Range

Outdoor materials must tolerate temperature changes, sunlight, rain, wind, and repeated environmental cycling. This transparent PVC coated polyester fabric is designed for a temperature range from approximately -50°C to +70°C. That range allows the material to serve in many climates, including cold outdoor environments and warm seasonal conditions.

Low-temperature flexibility is important for folding and handling. Some PVC materials become stiff or brittle in cold weather if the formulation is not suitable. With appropriate formulation design, transparent PVC coated polyester fabric can maintain usable flexibility and reduce the risk of cracking during winter installation, storage, or transport.

Heat resistance is also important. Outdoor tents, canopies, and covers may be exposed to direct sun, heated air, or warm contact surfaces. The stated upper service range of approximately +70°C indicates suitability for many normal outdoor applications. For extreme heat exposure, application testing is recommended, but the material offers dependable performance for common outdoor use.

Optional anti-UV treatment can further improve outdoor service life. Ultraviolet radiation can cause discoloration, embrittlement, loss of strength, and surface degradation in polymer materials. By incorporating UV-resistant additives, the fabric can be better adapted for long-term sun exposure. This is especially important for tents, awnings, advertising structures, exhibition systems, agricultural covers, and outdoor storage products.

Flame Retardant and Safety Options

PVC itself has flame-retardant characteristics compared with many other plastic materials. The product can be supplied with flame-retardant performance such as B2 and M2 grades according to specific requirements. Flame retardancy is important in public spaces, event tents, exhibition halls, temporary buildings, commercial venues, and applications where safety regulations must be considered.

For tent and tarpaulin applications, flame retardancy can be a decisive purchasing factor. Event organizers, construction contractors, public facility operators, and rental companies often need materials that meet fire safety expectations. A transparent panel must not become the weak point in an otherwise flame-retardant tent system. This product helps manufacturers create more consistent safety performance across transparent and opaque sections.

Environmental and health-related standards can also be addressed. The material can be formulated to meet requirements such as RoHS, REACH, and EN71-3, depending on the customer’s target market and product use. Such compliance options are especially relevant for products distributed internationally or used in environments where restricted substances and safety of contact are important considerations.

Chemical Resistance and Industrial Practicality

PVC materials are known for high chemical resistance. The material information notes resistance to concentrated hydrochloric acid, 90 percent sulfuric acid, 60 percent nitric acid, and 20 percent sodium hydroxide in suitable conditions. For general users, this does not mean the fabric should be exposed carelessly to all chemicals, but it does indicate that PVC has strong resistance characteristics compared with many alternative flexible materials.

In practical applications, chemical resistance may help the fabric perform better in industrial workshops, storage facilities, transportation covers, agricultural uses, cleaning environments, and places where the material may contact mild chemicals, pollutants, cleaning agents, or acidic and alkaline conditions. As always, specific chemical exposure should be tested according to concentration, temperature, duration, and mechanical stress.

The smooth transparent PVC surface also supports cleaning and maintenance. In many field applications, fabric products are exposed to oils, dust, residues, and air pollution. A cleanable coating helps reduce maintenance cost and extends useful appearance. For transparent windows and observation panels, this is particularly valuable because surface contamination directly affects visibility.

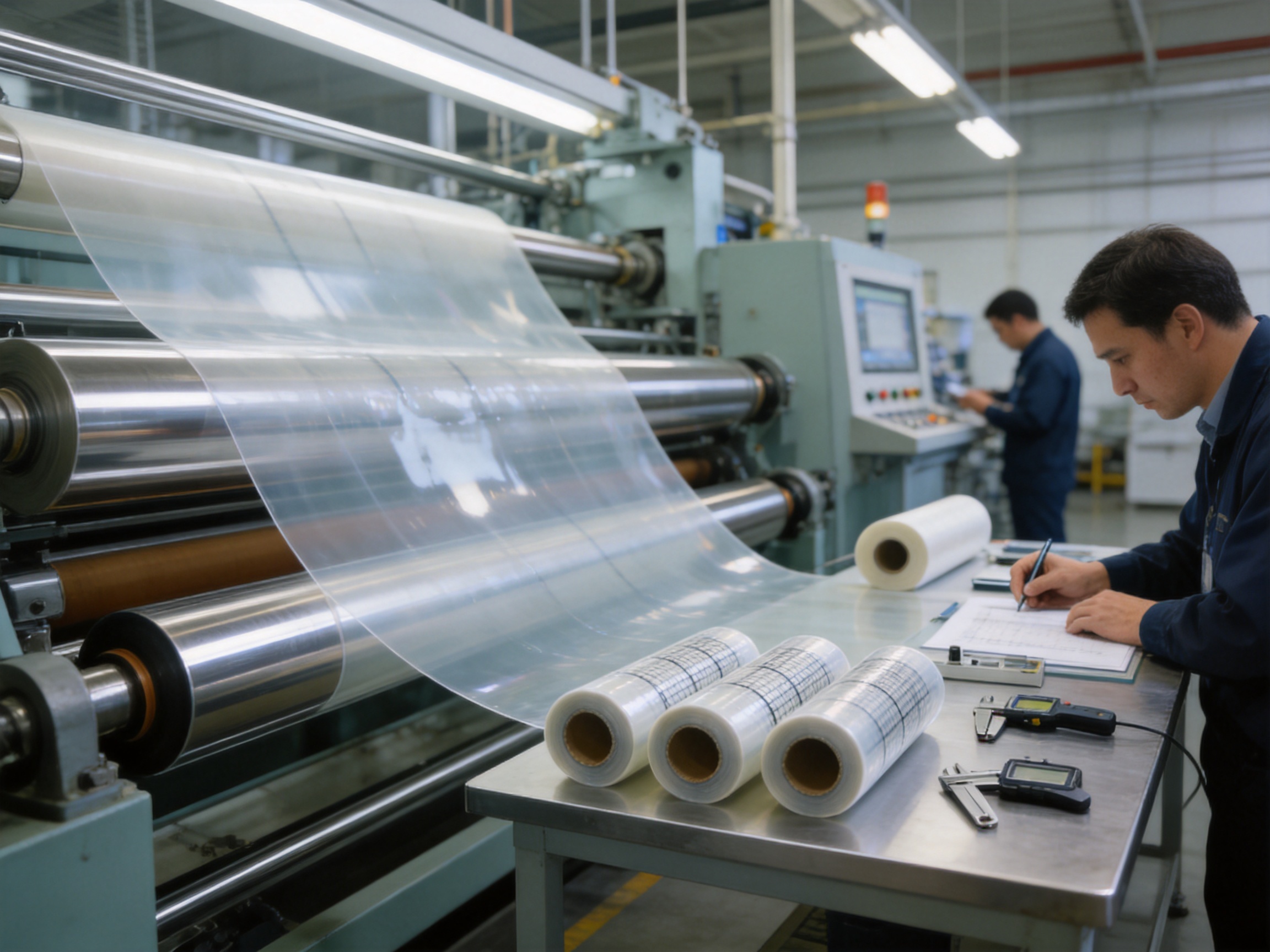

Manufacturing Strength: From Raw Material Control to Finished Fabric

The performance of coated fabric is determined not only by the raw materials but also by manufacturing control. Zhejiang MSD Group Share Co., Ltd. has developed experience across multiple categories of PVC film, PETG film, tent and tarpaulin fabric, PVC wallpaper, drop stitch fabric, inflatable boat fabric, PVC ceiling film, PVC flex banner, seamless wallcovering, translucent film, and projection film. This broad product range supports a deep understanding of polymer behavior, textile reinforcement, coating uniformity, surface treatment, and finished roll quality.

The manufacturing process begins with material selection. Polyester yarn must be selected according to strength, denier, stability, and compatibility with coating. The base fabric must be woven or prepared in a stable construction so that it supports consistent coating thickness and predictable mechanical values. For transparent reinforced fabric, the yarn arrangement must also support visual clarity and surface uniformity.

PVC formulation is another core step. Different applications require different performance priorities: transparency, softness, cold resistance, flame retardancy, UV resistance, mildew resistance, anti-static behavior, antibacterial performance, environmental compliance, or enhanced surface durability. A mature manufacturer can adjust formulation according to market requirements while keeping the coating compatible with the base fabric.

Coating and lamination control are essential. The PVC must be applied evenly, bonded firmly, and processed under suitable temperature and pressure conditions. If coating is too thin, waterproofing and durability may suffer. If coating is uneven, appearance, transparency, and strength may vary across the roll. If bonding is weak, peeling and delamination can occur during use. Advanced process control reduces these risks.

Coating Uniformity and Adhesion Control

Uniform coating is one of the main differences between high-quality transparent reinforced fabric and low-cost alternatives. A good coating line must maintain stable thickness, smooth surface finish, proper penetration or encapsulation of yarn, and consistent transparency across the entire roll width and length. This requires controlled temperature, coating viscosity, line speed, tension, and curing conditions.

Adhesion between PVC and polyester is equally important. Polyester has high strength, but the PVC layer must attach firmly to it. Poor adhesion causes peeling, bubbles, delamination, weak seams, reduced waterproofing, and early failure. The stated peeling strength value of 90 N/5 cm shows the importance of bond performance in this product.

In actual use, tent fabric may be folded thousands of times, pulled during installation, heated during welding, and exposed to moisture. Strong adhesion ensures that the composite works as one integrated material instead of two layers that can separate. This is a key reason why customers should evaluate coated fabric manufacturers not only by price but also by process stability and quality testing.

Quality Testing and Consistency

Reliable coated fabric production requires systematic testing. Key test items include base fabric yarn specification, fabric density, weight, thickness, tensile strength, tearing strength, peeling strength, low-temperature performance, surface appearance, transparency, color consistency, flame-retardant performance, UV resistance, mildew resistance, and environmental compliance where applicable.

The technical data sheet for this product includes recognized test methods such as FZ/T01003, GB/T1040, GB/T16578, and GB/T3917. These test methods help establish measurable product performance rather than vague claims. Customers can use these values for material comparison, product design, procurement standards, and quality inspection.

Consistency is especially important for customers who manufacture finished products in batches. If roll-to-roll weight, thickness, transparency, or welding behavior changes too much, production efficiency decreases and defect rates rise. A manufacturer with strong process control can help customers maintain stable output and reduce waste.

Zhejiang MSD Group Share Co., Ltd. emphasizes independent innovation and product development. Its product system includes environmentally friendly decorative materials, functional sports materials, and flexible materials for multiple application scenarios. This background gives the company the ability to support customers not only with standard materials but also with customized technical solutions.

Customization Possibilities

Different markets require different material specifications. The 400GSM 1000D 3x3 transparent PVC coated polyester fabric can be customized according to customer needs, including color tone, width, roll length, thickness, surface finish, softness, flame-retardant level, UV resistance, anti-fungal performance, cold resistance, environmental compliance, and other functional requirements.

For tent manufacturers, customization may include improved UV resistance, mildew resistance, cold flexibility, flame retardancy, or weldability. For packaging and cargo cover producers, customization may focus on tear strength, abrasion resistance, anti-fouling performance, and cost efficiency. For exhibition and advertising applications, transparency, surface appearance, color consistency, and print or fabrication compatibility may be more important.

Customizability is a major advantage over generic commodity materials. When a product is designed for a specific end use, it can deliver better value than a one-size-fits-all fabric. For example, a tent window material used in cold climates may require a different plasticizer system than a material used in tropical climates. A material used in public event tents may need stronger flame retardant compliance than a material used for private storage covers.

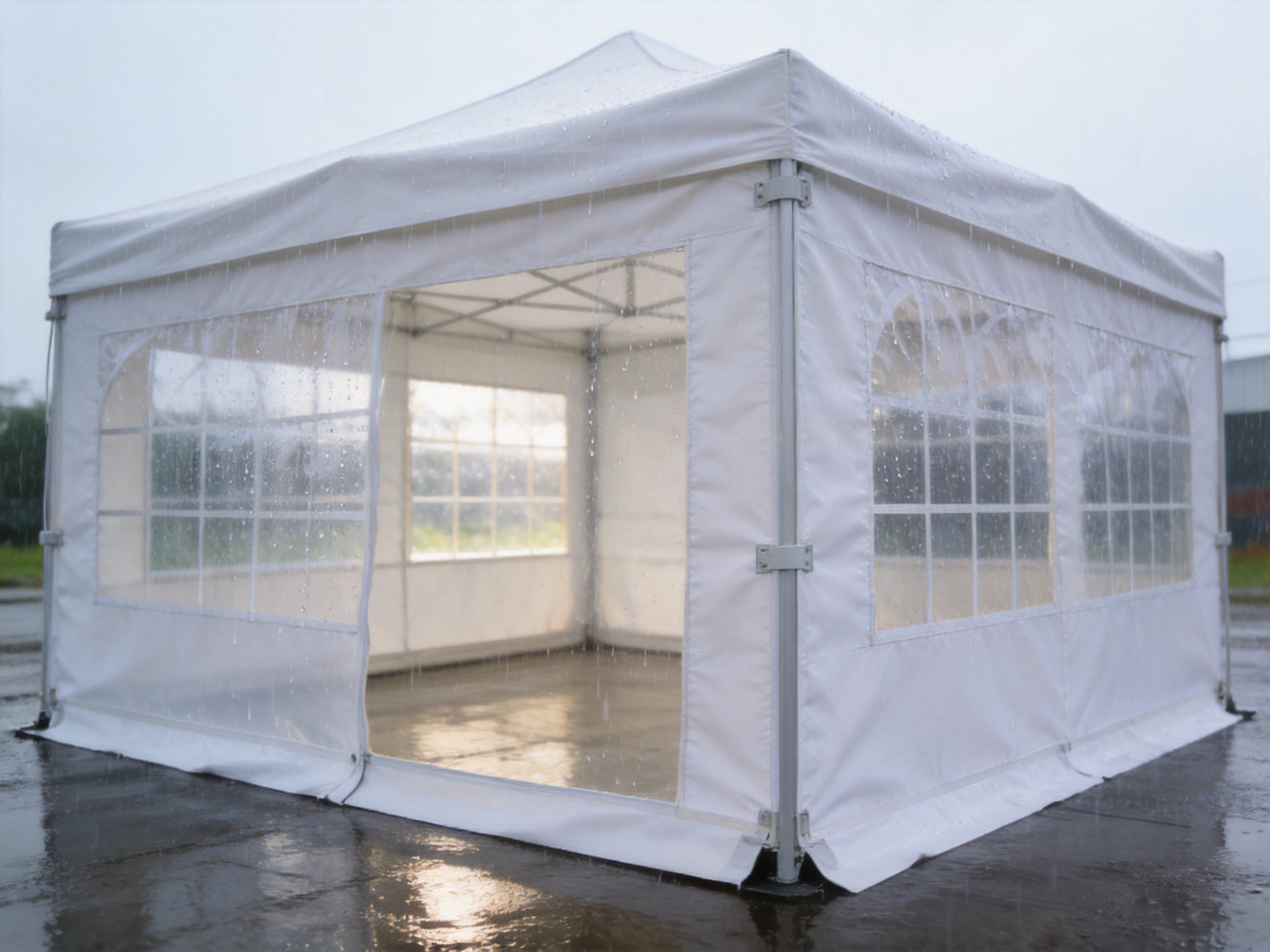

Application in Tent Manufacturing

Tent manufacturing is one of the most important application areas for transparent PVC coated polyester fabric. Outdoor tents often require windows or transparent panels to allow natural light, improve visibility, create a more open feeling, and enhance user comfort. However, these transparent sections must perform as well as the surrounding fabric structure.

In camping tents, event tents, party tents, industrial tents, warehouse tents, and temporary shelters, transparent windows may be exposed to repeated folding, packing, transport, rain, wind, and sunlight. Reinforced transparent fabric offers improved durability compared with ordinary clear plastic film. It can be integrated into tent walls through welding or sewing, depending on design requirements.

The material’s waterproof and anti-fouling characteristics help keep the tent interior dry and clean. Optional flame retardancy supports public event safety requirements. Optional anti-UV and anti-fungal functions help extend service life in humid and sunny environments. The material’s flexibility supports storage and transport, while its reinforced structure reduces the risk of tearing around installation points.

Application in Tarpaulin and Cover Products

Tarpaulins and covers are used to protect goods, vehicles, machinery, agricultural products, building materials, and outdoor equipment. In many cases, operators want to inspect covered items without fully removing the cover. Transparent reinforced panels can solve this problem by providing a viewing section while maintaining waterproof and protective performance.

For cargo covers, the fabric’s strength and tear resistance help prevent failure during handling. For machinery covers, transparency can allow quick visual checks. For agricultural covers, transparent reinforced fabric can provide light transmission while adding protection. For outdoor storage, the PVC surface supports water resistance and easier cleaning.

Compared with ordinary transparent film, this material is more suitable for covers that experience wind, movement, tying, folding, or contact with rough surfaces. Compared with opaque tarpaulin, it provides the benefit of visibility and light transmission. This combination creates design flexibility for manufacturers and end users.

Application in Packaging and Logistics

The packaging industry often requires flexible materials that are strong, weather-resistant, and easy to clean. The 400GSM transparent PVC coated polyester fabric can be used for logistics packaging bags, protective covers, cargo viewing panels, and reusable transport solutions. Its reinforced structure supports repeated handling, while its transparent coating helps operators identify goods or check condition quickly.

Reusable packaging is increasingly important in many supply chains. A material that can resist tearing, moisture, dirt, and abrasion offers better long-term value than disposable film. Because the fabric can be fabricated into custom shapes, it is suitable for specialized packaging products used in industrial logistics, warehouse storage, and equipment protection.

Optional environmental compliance such as RoHS and REACH can help customers meet market requirements. For international logistics and export-oriented goods, material documentation and stable quality can reduce procurement risk and improve customer confidence.

Application in Construction and Architectural Covers

In construction and architecture, transparent reinforced fabric can be used for awnings, rain canopies, temporary partitions, protective barriers, building accessory covers, and semi-transparent enclosure systems. It offers protection from rain and wind while allowing visibility or light transmission. This makes it useful for temporary construction zones, entrances, outdoor walkways, storage areas, and seasonal coverings.

Construction materials must often withstand rough handling, dust, moisture, and changing weather. The polyester reinforcement gives this fabric strength, while the PVC coating offers waterproofing and cleanability. Optional flame-retardant performance may be required for certain building-related applications, especially where public access or regulatory oversight is involved.

For architectural designers, transparency can create a lighter and more open visual effect than opaque coverings. The material can be combined with metal frames, fabric structures, or modular systems to create functional yet visually practical solutions. Its ability to be customized in size, color tone, thickness, and performance allows it to fit different design needs.

Application in Advertising, Exhibition, and Event Structures

Advertising and exhibition industries require materials that combine presentation quality with practical strength. Transparent PVC coated polyester fabric can be used in exhibition tents, display booths, protective curtains, temporary partitions, promotional structures, and semi-transparent branded environments. Its transparency allows light and visibility, while its reinforcement supports repeated installation and dismantling.

Event materials face demanding use cycles. They are transported, folded, stored, installed, cleaned, and reused many times. Low-quality film may become damaged quickly, creating replacement cost and poor appearance. Reinforced transparent fabric helps extend service life and maintain a professional presentation.

Optional flame retardancy is especially relevant for exhibition halls and public event spaces. Many venues require materials to meet fire safety standards. A supplier capable of producing B2 or M2 flame-retardant options can help event product manufacturers meet these requirements more easily.

Application in Industrial Curtains and Protective Barriers

Transparent reinforced PVC fabric can also be used in industrial curtains, workshop partitions, machine covers, dust barriers, and protective screens. In industrial environments, visibility is valuable because workers need to monitor equipment, traffic, or process areas while maintaining separation. A reinforced transparent fabric offers a practical balance of visibility and durability.

The material can be fabricated into hanging curtains, roll-up panels, door strips, framed screens, or removable barriers. Its waterproof and cleanable PVC surface helps maintain hygiene and appearance. Its reinforced base improves resistance to pulling and impact compared with ordinary clear sheet film.

Industrial environments may include oils, cleaning agents, dust, humidity, and temperature changes. PVC’s chemical resistance and the fabric’s mechanical strength make the product suitable for many general industrial conditions. Specific use cases should be tested if exposure involves aggressive chemicals, high heat, sharp abrasion, or safety-critical barriers.

Processing and Fabrication Methods

Finished product manufacturers value materials that are easy to process. The 0.4 mm thickness and reinforced PVC structure support multiple fabrication techniques. Depending on equipment and design, the material may be cut, sewn, heat sealed, high-frequency welded, folded, hemmed, reinforced with webbing, combined with zippers, attached to frames, or integrated into larger PVC fabric assemblies.

High-frequency welding is commonly used for PVC materials because it creates strong, waterproof seams without the need for stitching holes. Heat sealing may also be used in suitable conditions. Sewing can be used where mechanical attachment is required, often with additional sealing or reinforcement. The polyester base helps improve seam strength, while the PVC coating supports waterproof finishing.

Good processing performance reduces waste and improves production speed. Fabricators should adjust welding temperature, pressure, dwell time, and tooling according to material thickness and formulation. Before mass production, sample trials are recommended to confirm seam strength, appearance, shrinkage, and compatibility with other materials.

Storage, Handling, and Maintenance

Proper storage and maintenance help extend the service life of transparent PVC coated polyester fabric. Rolls should be stored in a clean, dry, ventilated location away from sharp objects, excessive heat, direct flame, and long-term compression. If stored for long periods, rolls should remain properly supported to avoid deformation or pressure marks.

During fabrication, operators should avoid dragging the material across rough surfaces. Cutting tables and workshop floors should be clean to protect transparency and surface finish. Sharp cutting tools should be used to produce clean edges and reduce stress concentration. When welding or sewing, proper alignment and tension control help maintain final product appearance.

For cleaning, mild methods are recommended. Dirt can often be removed with water and suitable neutral cleaning agents. Harsh solvents or abrasive brushes may damage the surface or reduce transparency. After cleaning, the material should be dried before storage to reduce mildew risk, especially in humid environments.

For outdoor products, periodic inspection is useful. Users should check seams, edges, attachment points, surface scratches, and areas exposed to repeated folding. Early repair can prevent minor damage from developing into larger failure. Reinforced transparent fabric is durable, but like all flexible materials, it performs best when properly used and maintained.

Why Manufacturer Capability Matters

In the coated fabric market, similar product names do not always mean similar quality. Two products may both be described as transparent PVC coated polyester fabric, but differences in yarn quality, coating formulation, thickness control, adhesion, UV additives, flame-retardant system, plasticizer quality, and inspection standards can lead to very different performance.

A capable manufacturer provides more than material supply. It provides technical understanding, specification control, customization support, reliable delivery, quality documentation, and problem-solving ability. Zhejiang MSD Group Share Co., Ltd. has built a product system across decorative materials, sports materials, and industrial flexible materials. This range supports a wider knowledge base for developing and adjusting coated fabric products.

The company’s location in Haining’s warp knitting industrial park provides access to a strong textile manufacturing environment. Its experience since 2002 reflects long-term engagement with PVC-coated and laminated products. Customers seeking PVC coated fabric, PVC laminated fabric, PVC outdoor fabric, and waterproof PVC fabric can benefit from supplier experience in both film and fabric technologies.

Independent innovation is especially important as markets demand higher performance and safer formulations. Customers increasingly require flame retardancy, environmental compliance, low-temperature resistance, UV stability, mildew resistance, antibacterial options, and customized surface performance. A manufacturer with research and development capability can respond to these requirements more effectively than a supplier offering only standard commodity rolls.

Competitive Value for Buyers

From a buyer’s perspective, the 400GSM 1000D 3x3 transparent PVC coated polyester fabric offers competitive value in several ways. First, it reduces failure risk compared with ordinary transparent film. Stronger tensile and tear performance can reduce claims, repairs, and replacements. Second, it improves end-product quality by providing a more durable transparent panel for tents, covers, and barriers.

Third, it supports customization. Buyers can request optional anti-fungal, anti-UV, flame-retardant, environmental, and other functional properties according to target market needs. Fourth, the material offers broad application flexibility. The same core product concept can be adapted for tents, tarpaulins, packaging, construction, advertising, exhibition, industrial curtains, and protective covers.

Fifth, working with an experienced manufacturer can improve procurement security. Stable technical data, controlled production processes, and quality inspection help buyers maintain consistent production. In competitive markets, a small material failure can damage the reputation of the finished product manufacturer. Choosing a stronger coated fabric can therefore protect both product performance and brand credibility.

Design Considerations for End Products

When designing products with transparent PVC coated polyester fabric, engineers and fabricators should consider load direction, seam placement, edge reinforcement, expected weather exposure, folding points, attachment methods, and cleaning requirements. The machine direction and cross direction have different tensile values, so fabric orientation may matter in high-stress applications.

Edges and corners are often the most vulnerable areas in flexible products. Reinforced hems, rounded corners, webbing, grommet patches, or welded overlaps can improve durability. For large panels exposed to wind, designers should avoid excessive unsupported spans or include appropriate framing and tensioning systems.

Transparency expectations should also be realistic. Because this is a reinforced fabric, it does not provide the same glass-like optical clarity as unsupported super clear film. Its value lies in the combination of visibility and strength. For windows that must be optically perfect, a different material may be required. For windows and panels that must survive outdoor stress, reinforced transparent fabric is often the more practical choice.

For flame-retardant, UV-resistant, anti-fungal, or environmentally compliant versions, customers should specify requirements before production. Additive systems and compliance testing must be planned during formulation. Clear communication between buyer and manufacturer helps ensure the final material matches application expectations.

Environmental and Compliance Perspective

Modern flexible materials must meet increasingly strict environmental and safety expectations. The ability to produce according to RoHS, REACH, and EN71-3 standards gives customers options for different markets. These standards relate to restricted substances, chemical safety, and heavy metal limits in certain use contexts.

Compliance is not only a regulatory issue; it is also a market advantage. Buyers in Europe, North America, and other international markets often request documentation for materials used in consumer products, public spaces, children-related environments, or export goods. A supplier capable of supporting such requirements can help customers reduce compliance risk.

At the same time, durability itself contributes to resource efficiency. A fabric that lasts longer may reduce replacement frequency and waste. Reinforced transparent PVC coated polyester fabric can support reusable covers, long-life tent windows, repeated-use exhibition structures, and durable protective products. When properly selected and maintained, it can provide a longer service cycle than low-strength disposable materials.

Q&A Section

What is 400GSM 1000D 3x3 transparent PVC coated polyester fabric?

It is a reinforced flexible fabric made from a 1000D polyester base fabric with a 3x3 construction and a transparent PVC coating. The finished material weighs approximately 400 grams per square meter and is designed to provide visibility, waterproofing, tensile strength, tear resistance, and outdoor durability.

How is it different from ordinary clear PVC film?

Ordinary clear PVC film is not reinforced with a woven polyester base. The 400GSM transparent PVC coated polyester fabric has a polyester skeleton that improves tensile strength, tear resistance, dimensional stability, and seam durability. It is better suited for tents, tarpaulins, covers, and applications exposed to stress.

Is the fabric fully transparent?

The fabric uses a transparent PVC coating, but because it contains a 1000D 3x3 polyester reinforcement grid, it is not the same as optical-grade clear film. It provides practical visibility and light transmission while prioritizing strength and durability.

What are the main applications?

Main applications include tent windows, canopy panels, tarpaulin viewing sections, cargo covers, logistics packaging, awnings, rain canopies, exhibition tents, advertising structures, industrial curtains, temporary partitions, and protective barriers.

Can it be used outdoors?

Yes. The material is designed for outdoor use, with waterproof PVC coating, polyester reinforcement, and optional anti-UV and anti-fungal treatments. The temperature range is approximately -50°C to +70°C, depending on application conditions.

Is flame-retardant performance available?

Yes. Flame-retardant options such as B2 and M2 can be supplied according to requirements. This is important for event tents, public spaces, exhibition structures, and other safety-sensitive applications.

Can the material meet environmental standards?

The fabric can be formulated to meet standards such as RoHS, REACH, and EN71-3 depending on customer requirements and target market regulations. Requirements should be confirmed before production.

What processing methods are suitable?

The material can be cut, sewn, heat sealed, high-frequency welded, folded, hemmed, and combined with other components depending on the finished product design. Processing trials are recommended before mass production.

Why is peeling strength important?

Peeling strength measures the bonding strength between the PVC coating and the polyester base fabric. Strong adhesion helps prevent delamination, bubbling, and coating separation, especially under outdoor exposure, folding, and mechanical stress.

Why choose an experienced manufacturer?

An experienced manufacturer can control yarn quality, coating formulation, thickness, adhesion, transparency, functional additives, inspection, and customization. This leads to more consistent product quality and better support for demanding applications.

Conclusion

The 400GSM 1000D 3x3 transparent PVC coated polyester fabric is a practical and durable solution for applications that need both visibility and strength. It improves upon ordinary transparent PVC film by adding a reinforced polyester base, creating better tensile strength, tear resistance, peeling strength, dimensional stability, and fabrication reliability. At the same time, it offers advantages over heavy opaque tarpaulins by allowing light transmission and visual access.

Its 400GSM weight, 0.4 mm thickness, 1000D yarn reinforcement, 3x3 fabric density, waterproof PVC coating, optional anti-UV and anti-fungal performance, and flame-retardant options make it suitable for tent windows, tarpaulins, covers, logistics packaging, construction accessories, advertising structures, exhibition systems, industrial curtains, and protective barriers. The material can also be customized for different climates, safety standards, and market requirements.

Zhejiang MSD Group Share Co., Ltd. supports this product with manufacturing experience, broad material expertise, process control, quality testing, and customization capability. For buyers seeking PVC coated fabric, PVC laminated fabric, PVC outdoor fabric, or waterproof PVC fabric, this transparent reinforced material offers a strong balance of performance, versatility, and long-term value.

References

1. GB/T1040, Plastics: Determination of Tensile Properties.

2. GB/T16578, Test Methods Related to Tear Resistance of Flexible Materials.

3. GB/T3917, Textiles: Tear and Peeling Strength Test References.

4. FZ/T01003, Textile Fabric Testing Methods for Weight, Thickness, and Density.

5. REACH Regulation, European Union Chemical Safety and Registration Framework.

6. RoHS Directive, Restriction of Hazardous Substances in Electrical and Related Material Applications.

7. EN71-3, Safety of Toys: Migration of Certain Elements.

8. General Technical Literature on PVC Coated Polyester Fabrics for Outdoor, Tarpaulin, Tent, and Industrial Applications.
