240GSM 1000D 9X9 PVC Coated Mesh Fabric: Lightweight Ventilation, Durable Protection, and Reliable Outdoor Performance

240GSM 1000D 9X9 PVC Coated Mesh Fabric is a lightweight technical textile developed for applications that require a balance of airflow, visibility, strength, weather resistance, and easy handling. Manufactured from high-quality polyester yarn and protected with a PVC coating, this open-mesh fabric is suitable for outdoor enclosures, ventilation panels, insect screens, construction barriers, agricultural protection, patio screens, pool enclosures, and industrial partitions.

Unlike solid PVC fabrics, this material is designed with an open mesh structure. Its approximately 50% open area allows air to pass through while maintaining a dependable physical barrier. The 1000D polyester base contributes structural stability, while the PVC coating improves resistance to moisture, ultraviolet exposure, abrasion, and everyday outdoor wear.

The product is manufactured by Zhejiang MSD Group Share Co., Ltd., an established flexible-materials producer with experience in PVC films, coated fabrics, advertising materials, ceiling films, tarpaulins, mesh fabrics, drop stitch fabrics, and other functional textiles. The company combines warp-knitting expertise, PVC formulation technology, coating and finishing capabilities, quality testing, and application-oriented product development.

This article examines the fabric’s structure, performance, manufacturing process, competitive advantages, recommended applications, installation guidance, maintenance requirements, and common customer questions.

Product Overview

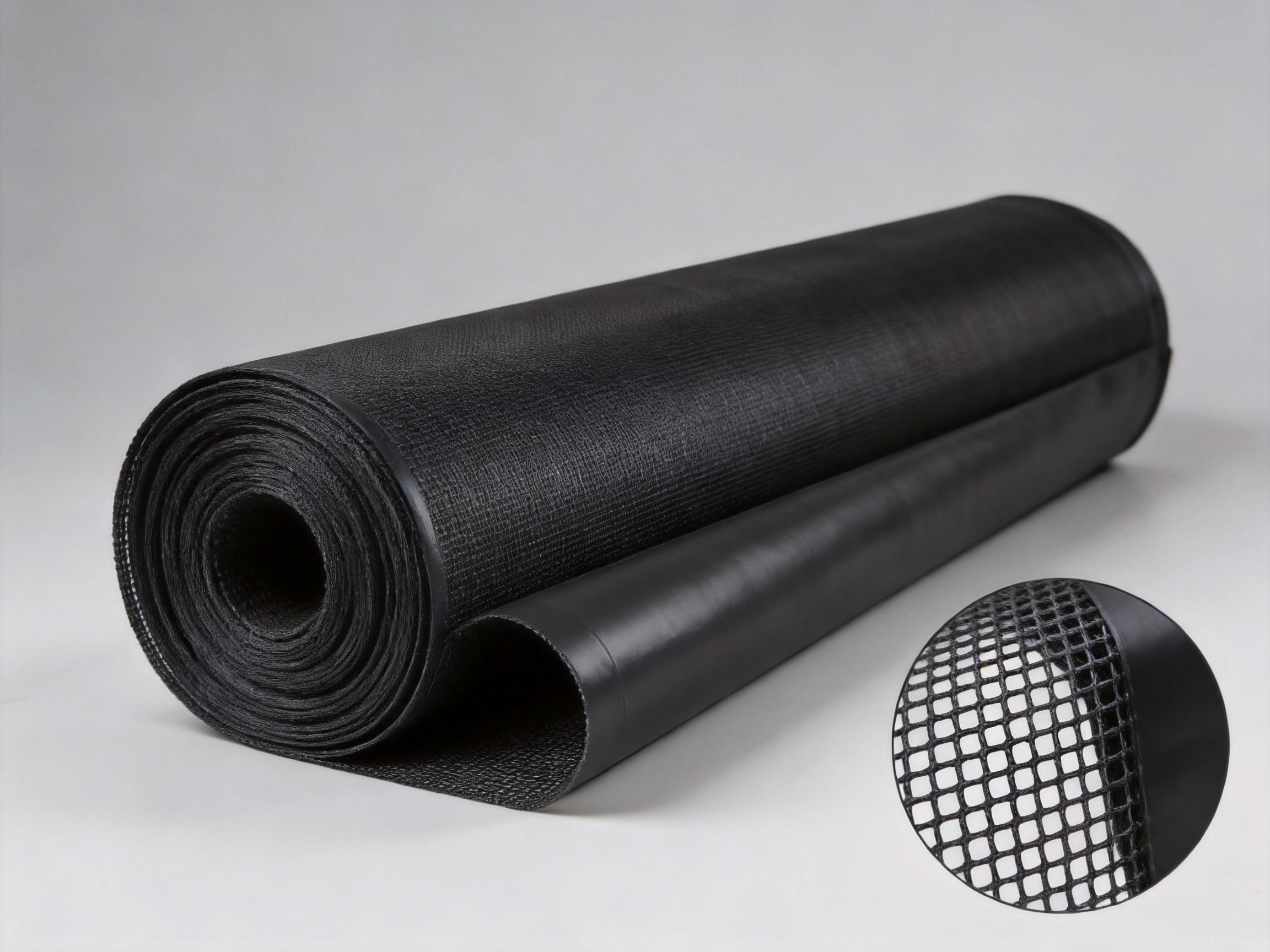

240GSM 1000D 9X9 PVC Coated Mesh Fabric consists of a polyester base fabric with 1000 denier yarn in both the machine direction and cross direction. The mesh density is 9 by 9 threads per inch. After PVC coating and finishing, the fabric has a nominal weight of approximately 240 grams per square meter and a thickness of approximately 0.48 millimeters.

The open construction is one of the product’s most important functional characteristics. With approximately 50% open area, the mesh can provide ventilation and visual permeability in situations where a solid sheet would create excessive wind load, block airflow, or reduce visibility. This makes the product useful in both temporary and semi-permanent structures.

The coating is engineered to protect the polyester yarn and improve the fabric’s outdoor performance. PVC coating can help limit water penetration, reduce the effect of ultraviolet exposure, simplify cleaning, and increase resistance to common forms of handling damage. Depending on the selected production specification, flame-retardant grades can also be supplied for projects that require additional fire-performance characteristics.

With a weight of about 240GSM, the fabric is considerably easier to handle than many heavier coated tarpaulins and architectural textiles. It can be transported, cut, tensioned, sewn, welded, or mechanically fastened with comparatively low labor requirements. This lightweight format is especially valuable for screens, covers, partitions, and enclosures that need regular installation or removal.

Property	Unit	Test Method	Average Value
Base fabric yarn	Denier	Not specified	1000 x 1000D
Base fabric density	Thread per inch	FZ/T01003	9 x 9
Finished fabric weight	Gram per square meter	FZ/T01003	240 ± 3%
Thickness	Millimeter	FZ/T01003	0.48 ± 3%
Tensile strength, machine direction	N/5cm	GB/T1040	1200
Tensile strength, cross direction	N/5cm	GB/T1040	1000
Tearing strength, machine direction	N/5cm	GB/T16578	220
Tearing strength, cross direction	N/5cm	GB/T16578	200
Peeling strength	N/5cm	GB/T3917	Not applicable or not reported
Temperature range	Degrees Celsius	Not specified	-50 to +70
Flame-retardant options	Classification	Applicable standard	B1, B2, M1, M2, and NFPA-701 options

Technical values may vary according to coating formulation, color, finishing treatment, production lot, and the final product specification. Buyers should confirm the required performance grade, test standard, dimensional tolerance, and compliance documentation before placing a large order.

240GSM 1000D 9X9 PVC Coated Mesh Fabric

Material Structure and Functional Design

1000D Polyester Base Fabric

The base fabric uses 1000 denier polyester yarn. Denier describes the linear mass of the yarn and is commonly used to indicate yarn size in technical textiles. A 1000D yarn provides a practical combination of strength, flexibility, processability, and cost efficiency for mesh applications.

Polyester is well suited to coated-fabric production because it offers good dimensional stability and can be formed into a consistent knitted or woven structure. It also provides a reliable substrate for PVC coating. When the yarn arrangement is controlled accurately, the finished mesh can maintain uniform openings and stable tensile properties across the roll width.

The 1000D construction gives the material more substance than lightweight insect-screen fabrics made from fine yarns. At the same time, it avoids the excessive weight associated with heavy-duty truck tarpaulins, reinforced architectural membranes, and thick industrial covers. This intermediate construction allows the fabric to serve a broad range of commercial and industrial purposes.

9X9 Mesh Configuration

The 9X9 construction indicates approximately nine threads per inch in each principal direction. This mesh count produces an open structure with an approximately 50% open area. The exact open area can be influenced by yarn diameter, coating thickness, mesh geometry, and finishing conditions, so project specifications should be checked against the intended application.

The open structure allows air movement and improves ventilation. It can also reduce the pressure that wind places on a screen or enclosure compared with an impermeable sheet. In outdoor structures, this characteristic may help improve comfort and reduce the need for additional ventilation systems.

The mesh openings are also useful when visibility is important. Users can maintain a degree of visual connection through the material while gaining protection from insects, debris, sunlight, wind, or contact. This makes the fabric suitable for pool enclosures, garden structures, patio screens, temporary partitions, machine guards, and construction safety barriers.

PVC Coating

The PVC coating forms a protective layer around and across the polyester mesh. The coating must be applied with controlled pressure, temperature, speed, and formulation balance. Excessive coating can reduce open area and airflow, while insufficient coating can lower durability and weather resistance. Consistent coating control is therefore essential to maintaining the intended performance.

PVC provides several practical benefits. It improves the fabric’s resistance to water and surface contamination, supports easier cleaning, and helps shield the polyester yarn from ultraviolet radiation. It can also provide a more stable surface for sewing, welding, edge reinforcement, printing, or attachment systems, depending on the selected grade.

The coating can be formulated in different colors and performance grades. Standard products may be used for general screening and enclosure work, while specialized versions can be developed for flame retardancy, increased UV resistance, improved flexibility, or specific environmental conditions.

Key Advantages Over Conventional Alternatives

Balanced Airflow and Barrier Protection

A solid PVC sheet can provide strong weather protection, but it may block airflow and create high wind resistance. An uncoated textile can offer ventilation, but it may absorb moisture, lose stability, or provide less protection against outdoor conditions. The 240GSM 1000D 9X9 mesh addresses this compromise by combining an open structure with a protective PVC coating.

The approximately 50% open area supports ventilation while the coated yarns create a durable screening surface. This balance is valuable for spaces that require air circulation rather than complete enclosure. Examples include agricultural wind barriers, outdoor seating areas, construction screening, and industrial partition systems.

Lower Weight and Easier Handling

At approximately 240GSM, the fabric can be handled by smaller installation teams and transported with lower logistical effort than heavier coated textiles. It is easier to roll, cut, fold, tension, and reposition. For temporary structures, this can reduce installation time and simplify storage between uses.

Lower weight can also reduce the structural demands placed on frames and support systems. Although engineering calculations remain necessary for permanent or safety-critical installations, a lighter material may enable more economical framework designs when compared with heavier solid membranes.

Outdoor Durability

The polyester base and PVC coating work together to improve resistance to outdoor exposure. The coating provides a protective barrier against moisture and ultraviolet radiation, while the high-denier yarns support mechanical strength. This combination is more durable than many untreated mesh materials used in similar environments.

Outdoor durability depends on factors such as sunlight intensity, temperature fluctuations, wind loading, cleaning chemicals, installation tension, and frequency of handling. Correct selection and installation are therefore important. Nevertheless, the product’s material structure is specifically suited to applications that require repeated exposure to outdoor conditions.

Useful Visibility

The mesh construction provides an open visual field compared with opaque PVC tarpaulin. Users can observe activity, equipment, or surrounding areas without completely removing the barrier. In commercial and industrial environments, this can improve supervision and operational awareness.

For public-facing locations, mesh screens can also provide a more open appearance than solid barriers. They can be used around patios, gardens, pools, temporary event spaces, or construction areas where ventilation and visibility are both desirable.

Easy Cleaning and Maintenance

The PVC surface is generally easier to clean than absorbent fabric. Dust, light mud, and common surface contaminants can often be removed with water and mild soap. This is especially beneficial for outdoor screens, pool enclosures, agricultural covers, and industrial partitions that may collect airborne particles.

Cleaning procedures should be adapted to the coating grade and project requirements. Abrasive brushes, concentrated solvents, and aggressive chemicals should be avoided unless specifically approved. Gentle cleaning helps preserve the PVC surface and maintain the appearance of the fabric.

Flexible Fabrication Options

The fabric can be converted into finished products using different methods. Depending on the design and equipment available, it may be cut and sewn, hemmed, reinforced with webbing, fitted with eyelets, attached to frames, or secured with lacing and fastening systems.

This flexibility allows the same base fabric to serve multiple industries. A supplier can provide rolls for fabricators or finished panels for end users. Custom widths, colors, edge treatments, and packaging arrangements may also be discussed for volume projects.

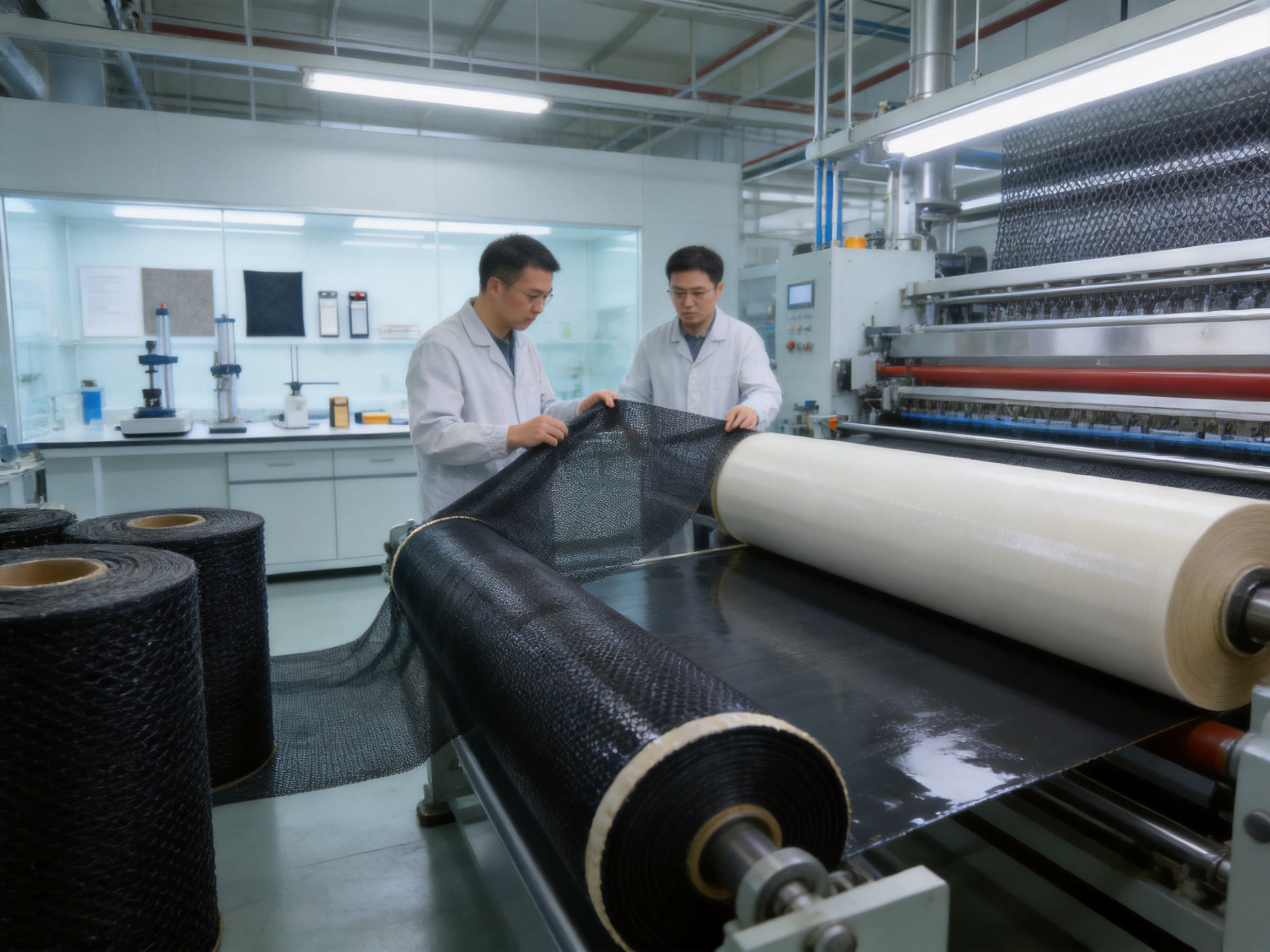

Advanced Manufacturing Process

Raw Material Selection

Manufacturing begins with the selection of polyester yarn and PVC raw materials. Yarn quality affects the strength, uniformity, and dimensional stability of the base fabric. PVC resin, plasticizers, stabilizers, pigments, flame-retardant additives, and other components influence coating flexibility, weatherability, color, and fire performance.

Reliable raw-material management is important because inconsistency in yarn size or PVC formulation can result in uneven mesh openings, coating variation, reduced adhesion, or unstable mechanical performance. A controlled supply chain supports repeatable quality from one production batch to the next.

Warp-Knitting and Base Fabric Formation

The polyester yarn is formed into the required mesh construction using specialized textile machinery. Warp-knitting technology can create a stable open structure with controlled thread density and consistent roll width. Machine settings are adjusted to achieve the 9X9 mesh configuration and the desired level of openness.

During this stage, operators monitor yarn tension, needle operation, fabric alignment, and surface uniformity. If the base fabric is uneven, later coating cannot fully correct the defect. Accurate formation of the substrate is therefore a foundation of finished-product quality.

PVC Formulation and Preparation

The PVC coating compound is prepared according to the target product specification. The formulation may be adjusted for flexibility, hardness, color, UV resistance, flame retardancy, surface appearance, and processing behavior. Mixing conditions must be controlled so that additives are distributed evenly throughout the compound.

For flame-retardant grades, the formulation can be developed to meet specified classifications or testing requirements such as B1, B2, M1, M2, or NFPA-701-related project needs. The exact classification depends on the formulation, product construction, test method, and certification conditions. It should not be assumed that every roll automatically meets every fire standard.

Coating and Lamination Control

The prepared PVC compound is applied to the polyester mesh under controlled production conditions. Coating pressure and temperature must be balanced carefully. The goal is to protect the yarn without closing the mesh openings or creating excessive weight.

Line speed, coating thickness, drying conditions, and fabric tension all influence the final result. In-process monitoring helps reduce variation in weight, thickness, color, and surface finish. A well-controlled coating line can produce a more consistent fabric that performs predictably during fabrication and installation.

Where a product requires additional layers or specialized finishing, lamination and surface-treatment processes may be incorporated. These may improve handling, appearance, cleanability, or compatibility with particular conversion methods. The production route is selected according to the product’s intended use rather than applying the same process to every fabric.

Online Inspection

Inspection during production can identify visible defects before the material reaches the final roll. Typical checks include mesh uniformity, coating coverage, pinholes, contamination, wrinkles, color consistency, edge quality, and roll alignment.

Online inspection is especially important for mesh products because irregular openings can affect airflow, visibility, appearance, and dimensional stability. A consistent inspection program helps prevent small defects from becoming widespread roll-level problems.

Laboratory Testing

Finished fabric is tested according to relevant internal or external methods. The supplied technical data lists FZ/T01003 for fabric weight, thickness, and mesh density; GB/T1040 for tensile strength; GB/T16578 for tearing strength; and GB/T3917 for peeling strength evaluation.

Testing provides objective information about whether the fabric meets the required specification. Weight and thickness measurements confirm coating consistency. Tensile and tear tests evaluate the fabric’s resistance to mechanical forces. Fire testing, when required, verifies performance against the specified classification or method.

Laboratory data also supports product development. If customers require higher strength, lower weight, greater flexibility, improved fire performance, or a different open-area ratio, test results help engineers adjust the yarn, mesh geometry, coating formulation, or finishing process.

Roll Finishing and Packaging

After inspection and testing, the fabric is wound into rolls according to the agreed length and packaging requirements. Proper winding reduces telescoping, wrinkling, and edge damage during transportation. Packaging should protect the material from moisture, excessive heat, contamination, and sharp objects.

Finished rolls can be labeled with product information, batch references, dimensions, and handling instructions. Clear identification supports traceability and helps customers manage inventory and production planning.

Manufacturing Strengths of the Producer

Zhejiang MSD Group Share Co., Ltd. was established in 2002 and is headquartered in Haining, Zhejiang Province, within a major warp-knitting industrial area. The company has developed a product portfolio covering advertising flex banners, PVC calendered films, PVC ceiling films, drop stitch fabrics, sunshade fabrics, waterproof PVC fabrics, PVC mesh fabrics, PVC tarpaulins, and other flexible materials.

This broad product range is a significant manufacturing advantage. Experience across multiple flexible-material categories allows the company to understand how different substrates, coatings, additives, and finishing processes behave in practical applications. Knowledge gained from one product family can support improvements in another.

The company emphasizes independent innovation and product development. This is relevant to coated mesh because the material must balance several properties that can conflict with one another. Increasing coating weight may improve protection but reduce breathability. Increasing openness may improve airflow but reduce screening effectiveness. Increasing stiffness may improve dimensional stability but make fabrication more difficult. Technical development is required to achieve an appropriate balance.

Its location in the Warp Knitting Industrial Park also provides access to a concentrated manufacturing ecosystem, technical labor, equipment resources, and supply-chain support. This can help improve production coordination and shorten the path from product development to commercial manufacture.

The company’s experience with environmentally oriented decorative materials, functional sports materials, advertising materials, and other flexible products demonstrates an ability to serve different market requirements. For international buyers, this diversified capability can be useful when several related products must be sourced from one supplier.

Application Areas

Outdoor Tents and Temporary Enclosures

The fabric can be used in tent side panels, ventilation sections, screened outdoor rooms, temporary shelters, and event enclosures. Its open structure allows air circulation and can make enclosed spaces more comfortable. The PVC coating helps the material withstand outdoor moisture and sunlight.

For tent applications, designers should consider the difference between a mesh ventilation panel and a waterproof roof or wall. The 50% open area is intended for airflow and screening, not for complete water exclusion. The fabric is often most effective when combined with solid coated fabrics in a hybrid tent design.

Awnings, Patio Screens, and Outdoor Living Areas

Patio screens and outdoor room panels can use the mesh to reduce insects, improve privacy, and limit wind or airborne debris while maintaining visibility. The material’s light weight makes it practical for retractable or removable systems.

In awning structures, the mesh may be used as a side curtain, ventilation insert, or decorative screening layer. Proper edge reinforcement and tensioning are important because repeated movement can concentrate stress at attachment points.

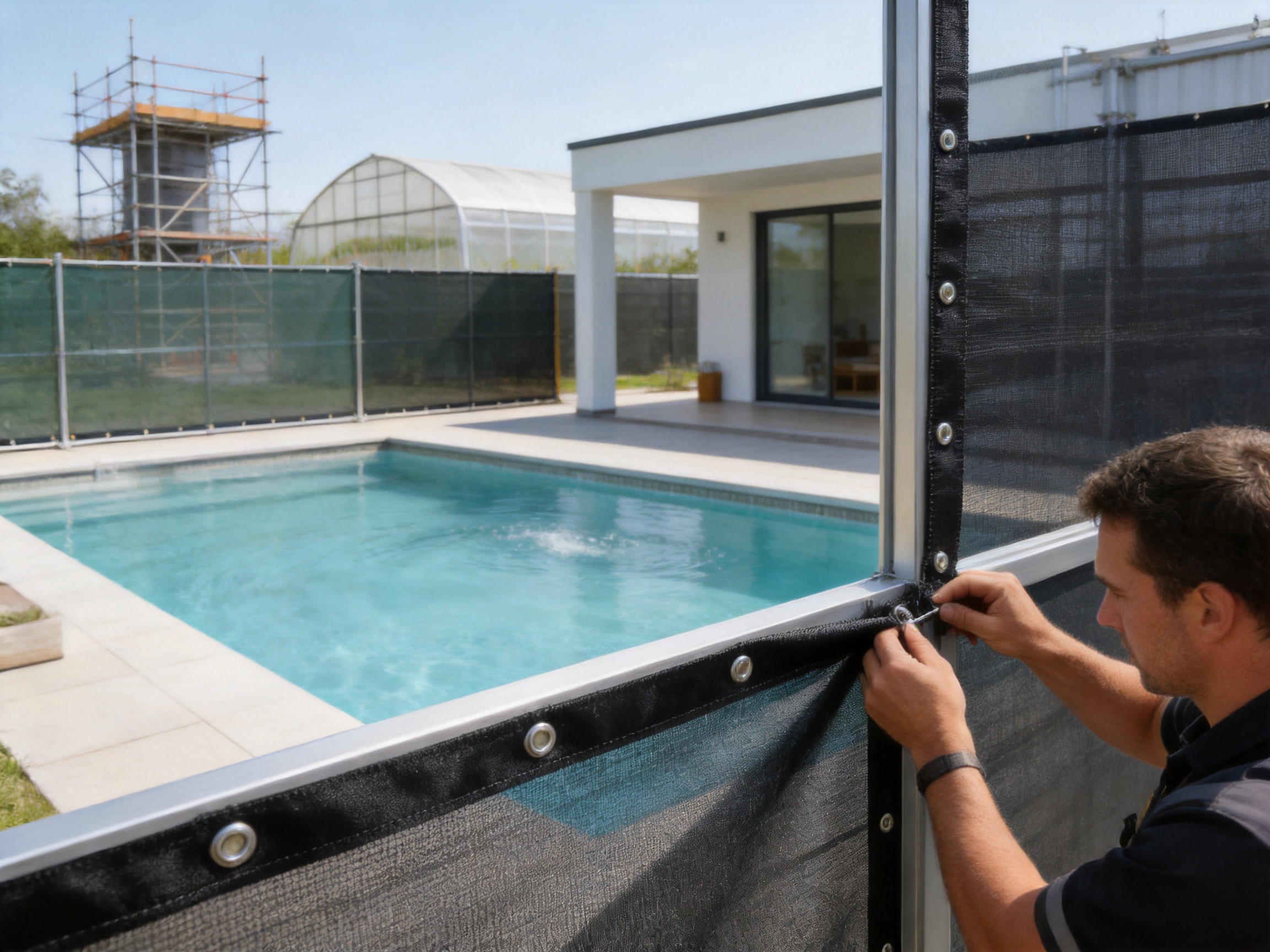

Pool Enclosures

The fabric is suitable for pool enclosure panels and related screening systems where air circulation and debris control are required. The PVC surface can be cleaned with mild soap and water, and the open construction helps prevent the enclosure from becoming excessively stagnant or visually closed.

Pool environments can expose materials to moisture, cleaning chemicals, sunlight, and repeated handling. Project managers should confirm chemical compatibility and UV requirements before selecting the fabric for a permanent installation.

Construction Safety and Scaffolding Barriers

Construction sites use mesh materials for debris barriers, temporary partitions, scaffold screening, perimeter protection, and visual separation. The open structure can reduce wind pressure compared with solid sheeting, while the coated surface can improve service life in dusty or wet conditions.

Safety applications require careful engineering. The fabric should not be treated as a substitute for a certified fall-protection system unless the complete assembly has been designed and tested for that purpose. Frame strength, edge attachment, wind loading, and site regulations must be considered.

Agricultural Protection

The fabric can be used for crop-protection screens, shade structures, wind barriers, greenhouse sections, animal-area partitions, and agricultural ventilation panels. Its combination of airflow and physical separation can support controlled growing environments and help protect crops from wind and selected pests.

The appropriate mesh opening depends on the target insect, crop, climate, and ventilation requirement. A 9X9 structure provides useful general-purpose screening, but specialized pest-control programs may require a different mesh count.

Industrial Partitions and Machine Guards

Factories, warehouses, and workshops can use the fabric for machine-area partitions, rack covers, storage barriers, ventilation screens, and temporary work-zone separation. The material provides a visible barrier without completely isolating an area from light and airflow.

For machine guards, the complete system must be assessed for the specific hazard. The fabric should be selected according to required tear resistance, attachment strength, visibility, and applicable workplace-safety rules. It is a flexible barrier material and may need to be combined with rigid framing or additional protective systems.

Insect Screens and Ventilation Panels

Open mesh fabric is commonly used in window screening, ventilation grilles, outdoor kitchens, livestock structures, and screened enclosures. The 9X9 mesh offers a practical balance between airflow and barrier coverage for many general applications.

Designers should consider the size of the insects or debris that must be excluded. The open area, yarn diameter, and installation gaps all influence actual screening performance. The edges should be sealed or secured carefully to prevent insects from entering around the perimeter.

Installation and Fabrication Guidance

Cutting

Use clean, sharp cutting tools suitable for coated textile materials. Dull blades can pull the mesh, create uneven edges, or damage the coating. Where the fabric will be sewn or mechanically fastened, allow sufficient margin for hems, reinforcement, and attachment hardware.

Before cutting a large quantity, fabricators should test the selected process on a sample. This helps confirm whether the edge requires hot cutting, binding, sewing, or an additional reinforcement strip. The correct approach depends on the final design and available equipment.

Edge Reinforcement

Edges are often the most highly stressed parts of a screen or enclosure. Reinforcement may be added with webbing, folded hems, welded strips, ropes, or other suitable materials. Eyelets, buckles, zippers, and tracks should be positioned so that the load is distributed rather than concentrated at a single point.

For repeated installation and removal, reinforced edges can significantly improve service life. The fabric should not be pulled directly by isolated mesh openings because localized stress may cause distortion or tearing.

Fastening

The material can be secured using staples, lacing, frame systems, spline systems, hooks, ropes, or comparable fastening methods. Framed installations are typically stretched and secured around the perimeter. The attachment system should be compatible with the fabric, frame, expected wind, and frequency of use.

Fasteners should be installed at regular intervals. Excessively wide spacing can allow sagging and flutter, while excessive tension can distort the mesh or damage the edge. A balanced installation maintains a flat appearance without placing unnecessary stress on the material.

Tensioning

Appropriate tension helps prevent wrinkles and sagging. However, over-tensioning can reduce the fabric’s service life, especially when the material is exposed to temperature changes or wind movement. Installers should tension the fabric evenly from the center toward the edges or according to the frame manufacturer’s instructions.

Large panels may require intermediate supports to control movement. The support design should account for the fabric’s open area, expected wind exposure, panel dimensions, and attachment strength.

Welding and Sewing

Depending on the PVC formulation and product specification, hot-air welding, high-frequency welding, or sewing may be used to fabricate panels. The selected method should be validated with trial samples because excessive heat can distort the mesh or damage the coating.

Sewing may be appropriate for hems, webbing, pockets, and flexible assemblies. Welding can provide a clean coated-fabric joint in suitable grades. For load-bearing seams, the seam design and reinforcement should be evaluated rather than relying only on the base-fabric strength.

Storage, Cleaning, and Maintenance

Store rolls in a dry, shaded, and well-ventilated location. Avoid direct sunlight during storage, standing water, excessive heat, and contact with sharp objects. Rolls should be supported in a way that prevents crushing, edge deformation, or prolonged pressure on one area.

Keep the fabric away from substances that may attack PVC or stain the surface. Strong solvents, concentrated acids, aggressive alkalis, and incompatible oils should not be used unless the coating supplier has confirmed compatibility.

For routine cleaning, use clean water and mild soap. A soft cloth or soft brush can remove ordinary dust and surface deposits. Rinse thoroughly and allow the fabric to dry before rolling or storing it. Trapped moisture can encourage contamination and may cause odor during long-term storage.

Inspect installed fabric periodically. Check for loose fasteners, frayed edges, punctures, cuts, coating damage, excessive sagging, and frame movement. Small defects should be repaired promptly so they do not expand under wind or repeated handling.

Where the fabric is used around pools, farms, construction sites, or industrial equipment, the inspection interval should reflect the exposure level. More frequent inspection is appropriate in locations with high ultraviolet exposure, strong wind, chemical contact, or regular mechanical abrasion.

How the Product Supports Sustainable Use

Material sustainability involves more than selecting a single polymer. Product service life, weight, maintenance requirements, transportation, replacement frequency, and application efficiency all influence overall environmental impact.

The lightweight construction can reduce transportation mass compared with heavier coated fabrics. The durable polyester base and protective PVC coating may also extend usable life in outdoor applications, reducing the frequency of replacement when the material is correctly selected and maintained.

The fabric can be converted into removable panels and reused in temporary structures when it remains in good condition. Careful cutting and proper storage can help preserve off-cuts and unused sections for smaller projects.

Customers seeking specific environmental attributes should request the relevant material declarations, restricted-substance information, production details, and end-of-life guidance. Requirements differ by market, building project, and application, so sustainability claims should be confirmed against project documentation rather than assumed from the product category alone.

Quality Assurance and Buyer Considerations

When comparing coated mesh fabrics from different suppliers, buyers should evaluate more than the nominal weight. Two products may both be described as 240GSM but differ in yarn quality, mesh geometry, coating formulation, open area, tensile strength, UV package, flame performance, and dimensional tolerance.

Important comparison points include the denier of the base yarn, thread count, finished weight, thickness, open-area percentage, tensile strength in both directions, tearing strength, coating uniformity, color consistency, roll width, temperature range, and available test reports.

Buyers should also clarify whether the quoted performance values represent average results, minimum guaranteed values, or typical values. The difference is important for engineering calculations and quality acceptance. Sample approval before mass production can help establish an agreed visual and technical standard.

For projects involving fire regulations, customers should specify the required national or regional standard. B1, B2, M1, M2, and NFPA-701 are not interchangeable descriptions. The finished assembly, installation method, substrate, and test conditions may affect the final classification.

For outdoor installations, it is advisable to confirm the expected service environment. Questions should include exposure to direct sunlight, wind, snow, rain, salt air, pool chemicals, fertilizers, cleaning agents, and extreme temperatures. This information helps the manufacturer recommend a suitable grade or finishing option.

Recommended Product Selection Process

Define the Application

Begin by identifying whether the fabric will be used for screening, ventilation, shade, wind reduction, debris control, partitioning, protection, or a combination of these purposes. A mesh intended for a patio screen may have different requirements from a mesh used as a construction barrier or machine partition.

Confirm Required Openness

Approximately 50% open area is useful for general airflow and visibility. If the priority is maximum insect exclusion, a tighter mesh may be more appropriate. If the priority is maximum ventilation or lower wind load, a more open construction may be preferred.

Evaluate Strength and Attachment

Determine the expected panel size, wind exposure, frequency of movement, and attachment method. Large or exposed installations may require reinforced edges, intermediate supports, stronger fasteners, or a different base fabric.

Confirm Regulatory Requirements

Identify whether the project requires flame-retardant classification, UV testing, water resistance, restricted-substance compliance, building approval, or workplace-safety documentation. Share these requirements with the supplier before production.

Approve a Sample

A physical sample allows the customer to examine color, mesh appearance, surface feel, flexibility, opacity, edge behavior, and fabrication compatibility. Sample approval is particularly useful when the fabric will be integrated into a larger enclosure or architectural system.

Frequently Asked Questions

What does 240GSM mean?

240GSM means that the finished fabric has a nominal mass of approximately 240 grams per square meter. The supplied technical specification gives a tolerance of approximately plus or minus 3%. Actual weight can vary slightly according to production conditions, color, coating formulation, and finishing.

What does 1000D mean?

1000D refers to the denier of the polyester yarn used in the base fabric. In this product, the listed construction is 1000D in both principal directions. The high-denier yarn contributes to the fabric’s tensile and tear performance while maintaining a relatively manageable weight.

What does 9X9 mesh mean?

9X9 indicates approximately nine threads per inch in each direction of the base fabric. This construction produces an open mesh with an approximate open area of 50%, although the exact value can vary with yarn size, coating, and production tolerances.

Is the fabric waterproof?

The PVC coating provides water resistance and helps protect the polyester base from moisture. However, the open mesh structure means that the material is not equivalent to a solid waterproof tarpaulin. It is best used where ventilation, screening, and water resistance are required together, rather than where complete water exclusion is essential.

Can the fabric be used outdoors?

Yes. The product is designed for outdoor applications and includes PVC protection against moisture and ultraviolet exposure. Long-term performance depends on climate, installation quality, cleaning practices, wind loading, and the selected coating grade.

Can it be used for pool enclosures?

Yes. The fabric can be used for pool-screening panels and enclosures because it supports airflow, visibility, debris control, and routine cleaning. Customers should confirm compatibility with local pool chemicals and specify the required UV and weathering performance for permanent installations.

Is it suitable for insect screening?

It can provide a barrier against many common insects while allowing ventilation. The actual effectiveness depends on the insect size, mesh opening, installation gaps, and perimeter sealing. Projects requiring control of very small insects may need a finer mesh construction.

Is the product flame retardant?

Flame-retardant options are available according to the supplied technical information, including B1, B2, M1, M2, and NFPA-701-related grades. The exact rating must be confirmed for the selected product specification and supported by the appropriate test documentation.

What temperature range can the fabric withstand?

The primary technical data lists a temperature range of approximately -50 to +70 degrees Celsius. Another application-oriented specification lists -10 to +50 degrees Celsius. Because temperature performance can vary by formulation and product grade, buyers should confirm the applicable range for the exact material ordered and the conditions of use.

How should the fabric be installed?

The material may be installed with staples, lacing, eyelets, frame systems, spline, hooks, or other compatible fasteners. Framed panels are generally stretched evenly and secured around the perimeter. Edge reinforcement is recommended for installations exposed to repeated handling or wind.

Can it be sewn or welded?

It may be suitable for sewing or welding depending on the selected PVC coating and fabrication equipment. A trial should be completed before mass production to verify seam appearance, strength, heat settings, and dimensional stability.

How should the fabric be cleaned?

Use mild soap, clean water, and a soft cloth or soft brush. Avoid abrasive tools and unapproved solvents. Rinse away cleaning residue and dry the fabric fully before long-term storage.

What are the product’s main advantages over solid PVC fabric?

The main advantages are airflow, lower wind resistance, reduced weight, improved visibility, easier handling, and suitability for screening applications. Solid PVC fabric remains preferable when complete opacity or full waterproofing is required, while coated mesh is better when ventilation and visual permeability are priorities.

What are the product’s main advantages over uncoated mesh?

The PVC coating improves resistance to moisture, ultraviolet exposure, dirt, and outdoor wear. It can also make the surface easier to clean and support improved service life. Uncoated mesh may be suitable for low-exposure applications, but coated mesh is generally more appropriate for demanding outdoor environments.

Conclusion

240GSM 1000D 9X9 PVC Coated Mesh Fabric is a versatile technical textile for applications requiring ventilation, visibility, screening, and outdoor durability. Its high-denier polyester base provides structural strength, while the PVC coating improves resistance to moisture, ultraviolet radiation, contamination, and routine handling.

The approximately 50% open area is central to the fabric’s value. It enables air circulation and visual access while maintaining a useful barrier against insects, debris, wind, and general contact. The relatively low weight makes the material easier to transport, fabricate, install, remove, and store than many heavier coated fabrics.

The product is supported by the manufacturing capabilities of Zhejiang MSD Group Share Co., Ltd., including experience in warp-knitted textiles, PVC coating, flexible materials, functional fabrics, and product innovation. Controlled raw-material selection, mesh formation, PVC formulation, coating, inspection, laboratory testing, and roll finishing contribute to consistent commercial production.

For the best results, customers should select the product according to the actual application, confirm the required open area and strength, evaluate environmental exposure, specify any fire-performance requirements, and approve samples before large-scale production. When properly designed, fabricated, installed, and maintained, this coated mesh can provide a durable and economical solution for a wide range of outdoor, agricultural, construction, commercial, and industrial projects.

References

1. Product Technical Data Sheet for 240GSM 1000D 9X9 PVC Coated Mesh Fabric.

2. FZ/T01003, textile test methods for fabric weight, thickness, density, and related physical properties.

3. GB/T1040, plastics and polymer-material tensile-property testing principles as referenced for tensile evaluation.

4. GB/T16578, textile tear-strength testing method as referenced for tearing-strength evaluation.

5. GB/T3917, textile tear and peeling-related test terminology and procedures as applicable to coated textile assessment.

6. GB 8624, classification of burning behavior and fire performance of building materials and products.

7. NFPA-701, standard methods of fire tests for flame propagation of textiles and films.

8. Manufacturer-provided product and company information for PVC coated fabrics, mesh fabrics, flexible materials, and related manufacturing capabilities.

Product: 240GSM 1000D 9X9 PVC Coated Mesh Fabric
